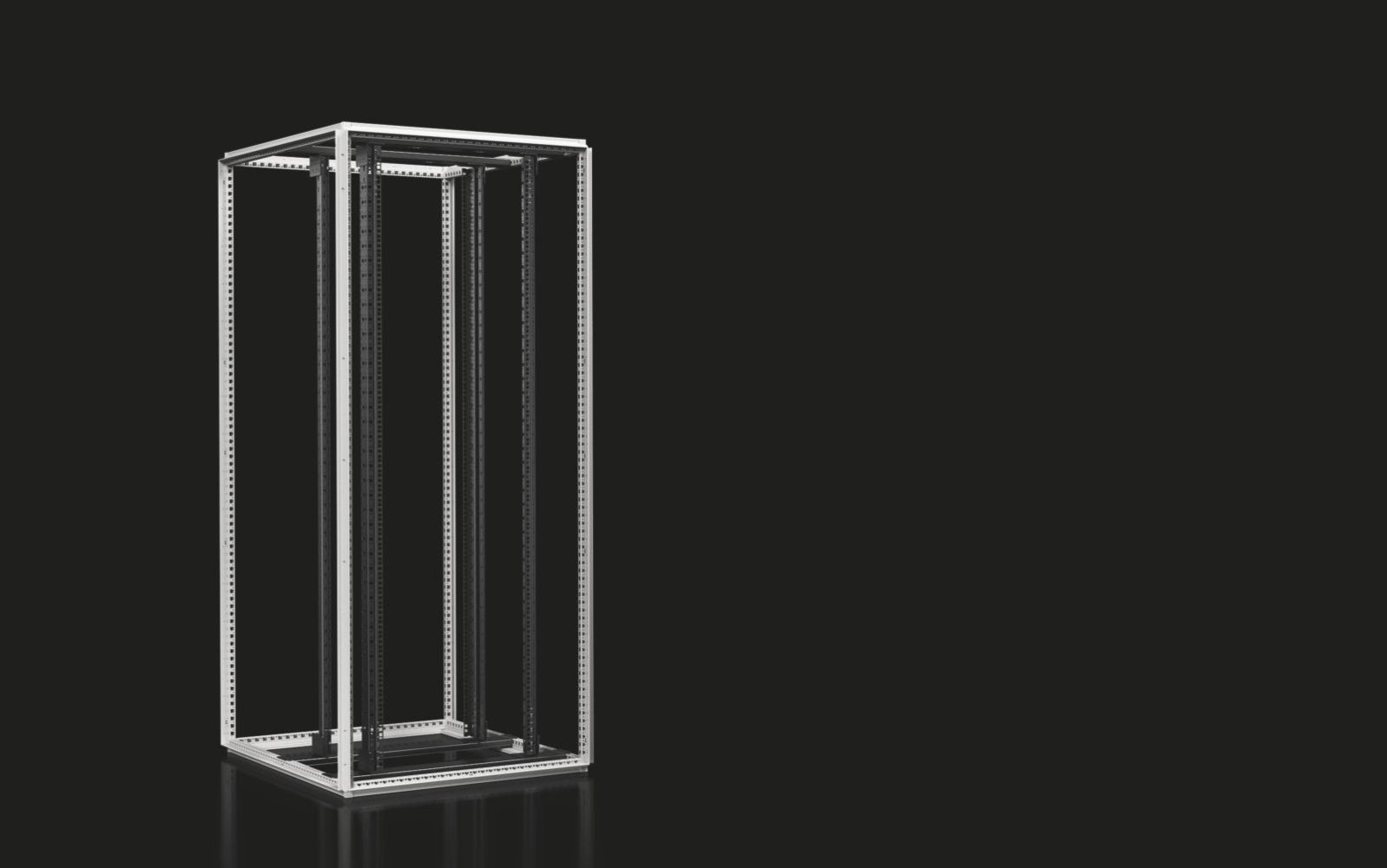

Rittal 1182095 VX IT Open, 48,3 cm ( 19 inch )-profile rails, 800x2000x1000 mm
|
813,17 EUR |
|
|
( 967,67 EUR incl. VAT ) ≈ £680.62 | ≈ $893.67 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103925 |
| Mfg Part No: | 1182095 |
| UPC/EAN: | 4028177973312 |
| Weight: | 69 kg |
| Type: | VX 1182095 |
Product information for Rittal 1182095:
Applications
This enclosure frame is suitable for use in data centers, server rooms, or technical rooms where an open, modular structure is required. It can serve as a base for quick configurations by adding doors, side panels, and other accessories from the Rittal system kit. The open design allows direct access to installed devices and facilitates maintenance work. The ventilation function supports cooling of installed components, especially when fan modules are installed in the roof area.
Functions and Equipment in Detail
The frame is delivered with a multi-part roof plate, equipped with side cable entries at both ends of the depth, and prepared for mounting a fan plate. The surface of the enclosure frame is dip-primed, with the interior finish painted. The color corresponds to RAL 7035 for the enclosure frame and roof, while the interior finish is RAL 9005. The delivery includes profile rails (482.6 mm), 12 x 48,3 cm ( 19 inch )-fasteners 1 HE (conductive), 25 conductive internal hexagon socket screws, spacers for raising a deck plate above the fan opening (height 50 mm), and an IPPC pallet. The base construction is open, allowing individual base modules such as component shelves or plinth trim panels from the accessory program to be mounted.
Technology Explained Simply
The 48,3 cm ( 19 inch ) mounting is secured to the depth struts at the top and bottom, ensuring high stability and mechanical strength. The static load capacity is 15,000 N, with the maximum static load capacity according to UL 2416 per enclosure being 12,000 N. The base material consists of sheet steel, providing high strength and durability. The mounting clearances are 87 mm at the front and 193 mm at the rear, offering sufficient space for cable routing and maintenance. The integrated groove on the horizontal profiles protects the PU foam seal and ensures clean processing.
Compatibility and Accessories
The VX 1182095 is compatible with a wide range of accessories from the Rittal system kit. These include, for example, aluminum viewing doors, sheet steel doors (single-piece closed or ventilated, vertically divided), side panels, and various component shelves in different heights and load capacities (e.g., 1HE, 0.5HE, 1.5HE) with plane spacings of 400–900 mm. Plinth corner pieces and plinth trim panels (e.g., 100 mm or 200 mm height) allow for individual design of the lower area. Combining these elements enables customized adaptation to specific requirements.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the frame profile, enabling protection-rated fastening of fittings. The square hole pattern all around allows the use of cage nuts and metric screws up to M8. The base frame is welded and features integrated reinforcements, allowing direct screwing of the enclosure to the floor from the interior side. The baying capability on all sides supports flexible placement in row configurations.
Operational Advantages
The open design of the VX 1182095 offers high flexibility for device installation and maintenance. The pre-assembled structure with integrated mounting planes enables quick and space-saving interior assembly. The ventilation function supports cooling of installed components, especially under high loads. The use of conductive screws and conductive fasteners ensures secure earthing and electromagnetic compatibility. The high static load capacity of 15,000 N makes the frame suitable for demanding applications. Compatibility with the Rittal RiPanel system allows modular expansion and adaptation to future requirements.
| General | |
| Model | Enclosure frame VX with roof sheet, without front and rear door, ventilated, without side walls |
| Surface protection | Cabinet frame: dip primed, interior: painted |
| Basic colour | RAL 7035 |
| Colour | housing frame and roof: RAL 7035, interior: RAL 9005 |
| Scope of delivery | cabinet frame, profile rails, 482.6 mm (19"), spacers, height 50 mm, for raising a cover plate above the fan opening in the roof panel, for passive ventilation (included). Not required for variants without opening., 12 x 19"-fasteners 1 HE, conductive (included), 25 internal hexagon screws, conductive (included), IPPC pallet, roof panel, multi-part, with side cable entry in depth, both sides, prepared for fan panel |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.000 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | Screwed to top and bottom depth brace |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Base material | steel sheet |
Questions & answers
What is the delivery time of Rittal 1182095 VX IT Open, 48,3 cm ( 19 inch )-profile rails, 800x2000x1000 mm?
The article Rittal 1182095 VX IT Open, 48,3 cm ( 19 inch )-profile rails, 800x2000x1000 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1182095 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1182095 VX IT Open, 48,3 cm ( 19 inch )-profile rails, 800x2000x1000 mm always at the best possible price. We can give you a discount of 2% on Rittal 1182095 VX IT Open, 48,3 cm ( 19 inch )-profile rails, 800x2000x1000 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
