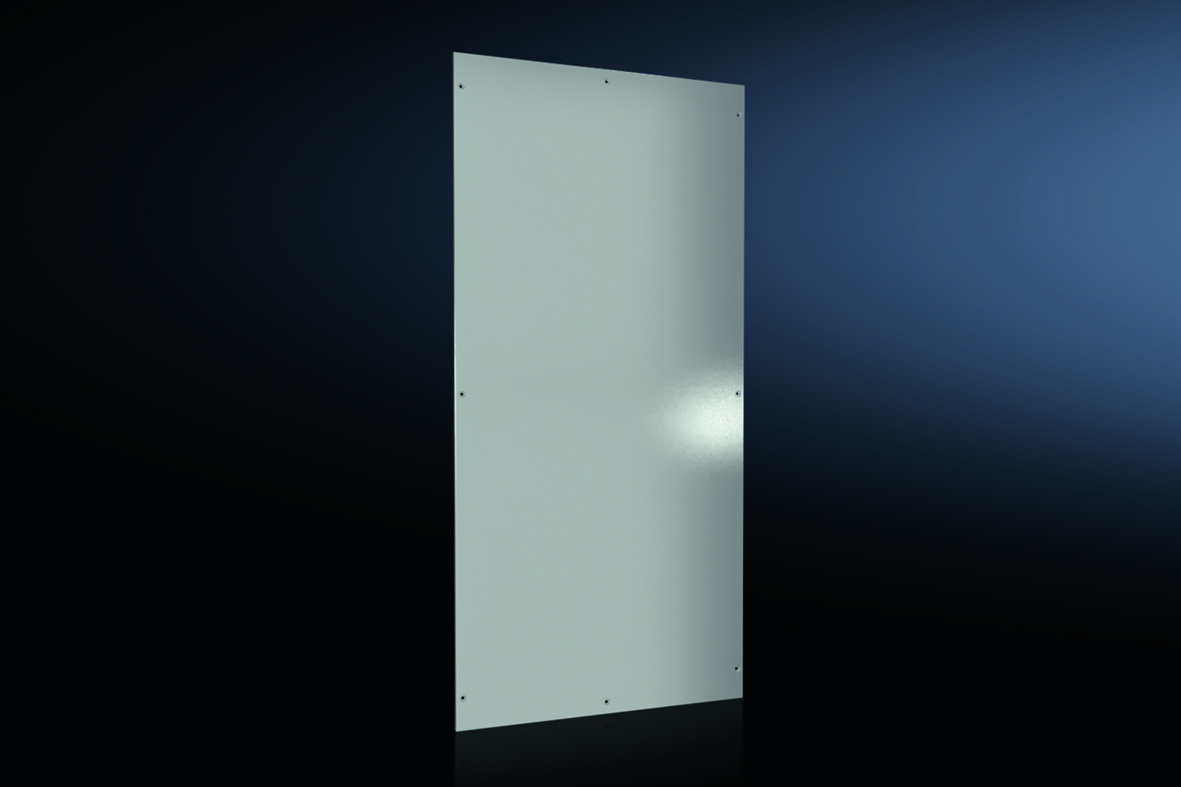

Rittal 8100245 Side panel VX screwable 2000x1000 1VE=2St (freight shipping)

Your rating:
Average rating
product review for Rittal 8100245 Side panel VX screwable 2000x1000 1VE=2St (freight shipping)
( 4.5 / 5 ) 27 ratings
Rittal 8100245
This image may differ from the desired article.
Rittal 8100245Rittal 8100245Rittal 8100245
205,35 EUR
( 244,37 EUR incl. VAT )
≈ £171.88  |  ≈ $225.68
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8100245 Side panel VX screwable 2000x1000 1VE=2St (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1440701
Mfg Part No: 8100245
UPC/EAN: 4028177921535
Weight:46 kg
Type:VX 8100.245

Product information for Rittal 8100245:

The Rittal VX 8100.245 is a screw-mounted side panel for enclosures of the VX system, specifically designed for enclosures with a height of 2,000 mm and a depth of 1,000 mm. The product is made of steel sheet with a wall thickness of 1.5 mm and is designed for use in industrial environments. The surface is dip-primed and externally powder-coated, providing high corrosion resistance and a uniform, robust coating in the colour RAL 7035. The side panel is part of a modular enclosure system and serves as a structural and protective component on the side surfaces of the enclosure.

Applications
The side panel is used in industrial plants, automation technology, and electrical installations where enclosures with a depth of 1,000 mm and a height of 2,000 mm are required. It is suitable for environments requiring a protection rating of IP 55 according to IEC 60 529, which ensures dust and splash water protection. The type rating according to UL 50E (Type 1 and Type 12) also makes it suitable for use in the USA and Canada, where these standards apply. The side panel is intended for use in indoor environments as well as in outdoor areas with limited weather exposure.

Functions and Equipment in Detail
Mounting is done by screwing, with the side panel featuring clip-on brackets that enable time-saving and precise fastening. The brackets are equipped with internal contact elements that ensure automatic equipotential bonding and enhance electromagnetic compatibility (EMC) protection. A hanging aid allows for easy positioning in height and depth, enabling installation by a single person. The earthing bolts feature a large, paint-free contact surface to ensure optimal electrical connection and secure earthing contact.

Technology Explained Simply
The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability and resistance to mechanical stress. The powder-coated surface provides additional corrosion protection and is suitable for use in industrial environments with increased contamination risk. The IP 55 protection rating means the side panel is protected against dust and splashing water, making it suitable for use in production halls, workshops, or outdoor areas with limited weather exposure. The type rating according to UL 50E (Type 1 and Type 12) ensures compliance with North American safety standards for enclosures.

Compatibility and Accessories
The side panel is specifically designed for enclosures of the VX system with a height of 2,000 mm and a depth of 1,000 mm. Compatible accessories include, for example, the VXIT 1000 DEHA network enclosure 42 HE, which is delivered without side panels, as well as a VX internal locking system for side panels, which enables additional securing. The combination with these components allows for a flexible and secure configuration of enclosures in the VX system.

Mounting and Installation
Mounting is done by screwing onto the designated brackets. The clip-on brackets and hanging aid simplify positioning and fastening, enabling installation by a single person. The earthing bolts allow for secure and reliable earthing of the enclosure.

Operational Advantages
The side panel offers high mechanical stability and reliable protection against dust and splashing water. The integrated brackets with equipotential bonding and EMC protection increase the safety and functionality of the enclosure. The easy mounting and the possibility of single-person installation reduce labour effort and installation time. The powder-coated surface in RAL 7035 ensures a uniform and robust appearance, which fits well in industrial environments.

The packaging unit includes 2 pieces, which is sufficient for use in standard enclosures of the VX system. The PCF (Product Carbon Footprint) values amount to 140.07 kg CO2 eq per packaging unit (Cradle-to-Gate, Category B), with the value being approximately calculated based on product weight and self-declared. This information serves transparency regarding the ecological footprint of the product, without affecting its technical properties.

Note: Batteries are not included in the delivery scope.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, Height: = 2.000 mm, Depth: = 1.000 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)140.07 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8100245, EAN: 4028177921535
