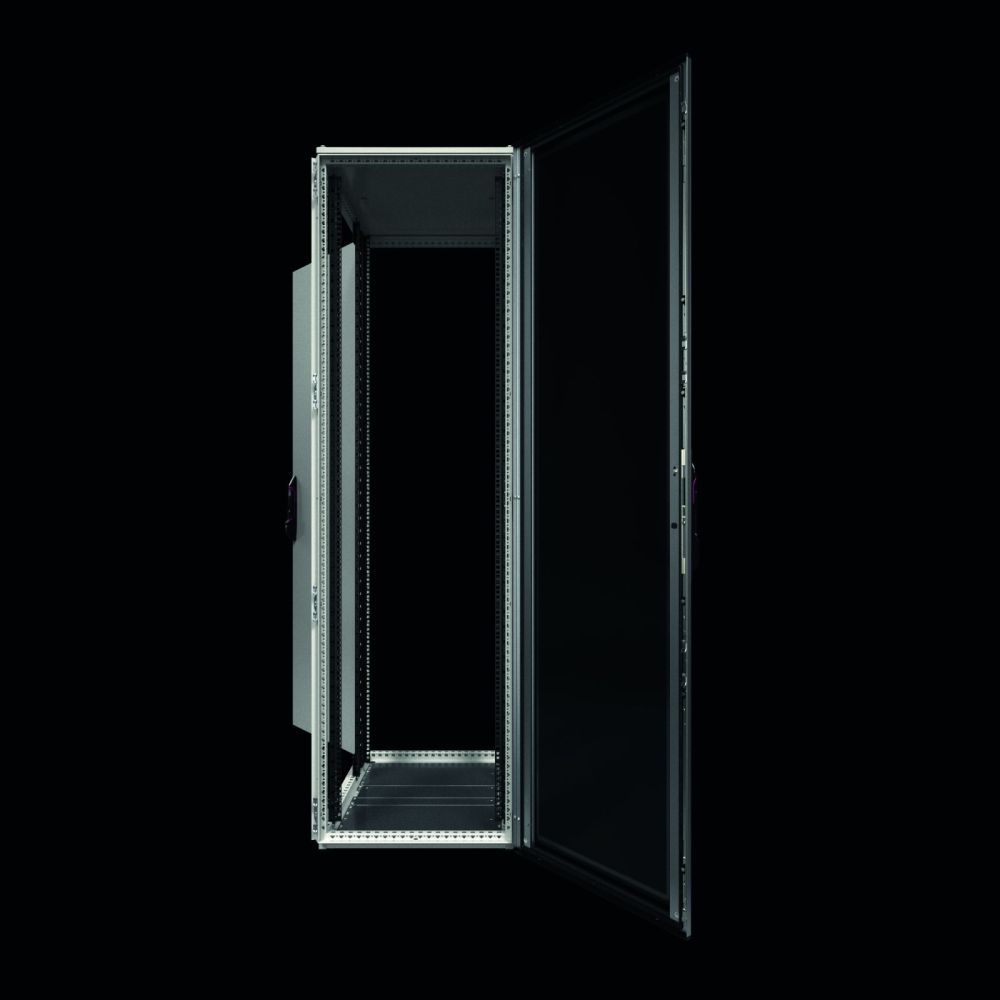

Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U

Your rating:
Average rating
product review for Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U
( 4 / 5 ) 2 ratings
Rittal 5309136
This image may differ from the desired article.
Rittal 5309136Rittal 5309136Rittal 5309136Rittal 5309136Rittal 5309136Rittal 5309136Rittal 5309136
1.226,48 EUR
( 1.459,51 EUR incl. VAT )
≈ £1,026.56  |  ≈ $1,347.90
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775541
Mfg Part No: 5309136
UPC/EAN: 4028177945104
Weight:125.4 kg
Type:VX 5309136

Product information for Rittal 5309136:

Rittal VX 5309136 is a network/server rack of the VX IT series in standard configuration, designed for use in IT infrastructures with increased requirements for protection and mounting comfort. The enclosure has a height of 2,000 mm, a width of 800 mm, and a depth of 1,000 mm, with 42 U height units (HE). The 48,3 cm ( 19 inch )-rack space is integrated both front and rear, enabling flexible mounting of devices. The rack spacing in delivered condition is 720 mm, with front mounting clearance of 87 mm and rear mounting clearance of 193 mm. The 48,3 cm ( 19 inch )-mounting is secured by screws to the depth rails at top and bottom, ensuring stable and secure installation.

Applications

The enclosure is designed for use in data centers, server rooms, and IT infrastructures where protection rating IP 55 is required. This protection rating safeguards against dust and splashing water, with IP 55 compliance only achieved in combination with a baying seal or screwed side panels. The IK08 rating provides protection against mechanical impacts, such as shocks or vibrations, making it suitable for industrial environments. The load capacity is 15,000 N, with maximum static load capacity per enclosure according to UL 2416 being 12,000 N.

Functions and Equipment in Detail

The enclosure features an aluminum viewing door at the front, equipped with 180° hinges, allowing full opening angle. The rear door is a solid steel sheet door with 130° hinges, providing secure and robust closure. Both doors are fitted with comfort handles for half cylinders, enabling safe and convenient operation. The viewing door consists of single-pane safety glass with a thickness of 3 mm, allowing clear visibility of installed devices without compromising safety. The front door is made of aluminum (1.25 mm), while the rear door is made of steel sheet (1.5 mm).

Technology Explained Simply

The surface of the enclosure frame is dip-primed, the interior construction is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminum, anodized/painted. The base color is RAL 7035, with enclosure frames, rear door, and roof in RAL 7035. The front door features vertical profiles in silver and horizontal profiles in RAL 9005, while the interior construction is painted in RAL 9005. Handles and hinges are also in RAL 9005. The roof is single-piece and closed, and the base plate is multi-piece and closed, providing a stable foundation. The 48,3 cm ( 19 inch )-profile rails are standard in the VX IT and enable secure mounting of IT devices.

Compatibility and Accessories

Various accessories are available for this enclosure to extend functionality. These include TS IT sliding rails, TS IT/TE component shelves in various heights and load capacities, VX plinth corner pieces, plinth trim panels, VX castors, levelling elements, plinth baying brackets, magnetic label frames, magnetic document clips, and door position switches. These components allow individual adaptation to specific requirements, such as mounting heavy equipment or integration into existing installations.

Mounting and Installation

Mounting is done by screwing to the depth rails at top and bottom, ensuring stable fastening. The 48,3 cm ( 19 inch )-rack space is integrated front and rear, enabling flexible device mounting. The baying seal and sealing kit for base plates are included in the delivery scope, supporting achievement of IP 55 protection rating. The 12 x 48,3 cm ( 19 inch )-fasteners 1 U and 25 internal hexagon socket screws, conductive are also included to facilitate installation.

Operational Advantages

The enclosure offers a high load capacity of 15,000 N, making it suitable for use with heavy IT equipment. The IP 55 protection rating and IK08 protection ensure high reliability in demanding environments. The aluminum viewing door with 180° hinges provides optimal visibility of devices and simplifies maintenance. The comfort handles for half cylinders offer safe and convenient operation. The integrated 48,3 cm ( 19 inch )-profile rails and pre-drilled mounting points simplify installation and maintenance of devices. The baying seal and sealing kit included in the delivery scope support achieving IP 55 protection, enhancing the enclosure’s reliability in demanding environments.

General
MaterialSheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourCasing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005
Width800 mm
Height2.000 mm
Depth1.000 mm
Height units42 HE
Mounting clearance to 19" plane, front/back87 mm / 193 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)720 mm
19" mountingScrewed to top and bottom depth brace
ModelStandard
Roof typeOne-piece, closed
Door configuration rearSteel sheet door, closed, single-piece, 130° hinges
Front door configurationAluminium front door, closed, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionfloor tray with floor plate, multi-part, closed
19" rack configurationFront and rear
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
Max. load capacity (static) according to UL 2416 per cabinet12.000 N
Degree of protection IP according to EN 60 529IP 55 only in combination with gasket for rowing or screwed side walls
IK codeIK08
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)308 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5309136, EAN: 4028177945104

Questions & answers

What is the delivery time of Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U?

The article Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5309136 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5309136 Server rack VX IT closed IP55 800x2000x1000 mm 42 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
