Rittal 5309190 Server rack VX IT closed IP55 800x2000x100 mm 42 U
|
921,61 EUR |
|
|
( 1.096,72 EUR incl. VAT ) ≈ £771.39 | ≈ $1,012.85 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775768 |
| Mfg Part No: | 5309190 |
| UPC/EAN: | 4028177945135 |
| Weight: | 102.6 kg |
| Type: | VX 5309190 |
Product information for Rittal 5309190:
Applications
This rack is suitable for use in data centres, server rooms, IT infrastructures, and other environments where direct, rack-specific climate control is required. The IP 55 protection rating safeguards against dust and splashing water, allowing use in outdoor areas or rooms with increased humidity, provided the baying seal or bolted side panels are installed. The IK08 rating ensures protection against mechanical impacts, such as light shocks or vibrations.
Functions and Equipment in Detail
The enclosure features a torsionally rigid, welded frame structure made of 9-fold bent, closed hollow profiles with a 25 mm grid hole pattern. Integrated blind rivet nuts M6 allow protection-rated mounting of fittings. The horizontal profiles include an integrated groove above the PU foam seal to protect it. The base sheet is multi-part and closed, with integrated reinforcement for direct bolting of the rack to the floor. The front and rear doors are equipped with comfort handles for half-cylinder profiles, enabling secure and convenient operation.
Technology Explained Simply
The IP 55 protection rating means the rack is dust-tight and protected against splashing water, making it suitable for industrial or semi-external environments. The IK08 rating guarantees protection against mechanical impacts, such as light shocks. The front viewing door made of safety glass allows visual inspection of installed devices without opening the door. The 180° hinges on the front door enable full opening, facilitating access to devices. The 130° hinges on the rear provide sufficient access for mounting and maintenance.
Compatibility and Accessories
The rack is delivered as a blank rack without pre-installed 48,3 cm ( 19 inch ) internal fittings. It can be individually supplemented with various accessories, including insert modules such as PSM socket modules, connection cables, cable ties, hook-and-loop fasteners, system lights, component shelves, and cable clips. These components enable application-specific equipment of the rack, for example for power supply, cable management, or lighting.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 and the 25 mm hole pattern in the frame. The base tray is designed for direct bolting to the floor. The baying seal and seal set for the base sheet are included in the delivery scope to ensure the IP 55 protection rating. The doors are equipped with comfort handles and safety locking, enabling secure closure.
Operational Advantages
The rack offers high mechanical stability and protection rating, making it suitable for demanding operating conditions. The open construction as a blank rack allows individual adaptation to specific requirements. Integrated mounting elements and the 25 mm hole pattern facilitate installation of devices and accessories. The viewing door enables quick visual inspection of devices without opening the door. The IK08 rating protects against mechanical impacts, increasing longevity.
Delivery Scope

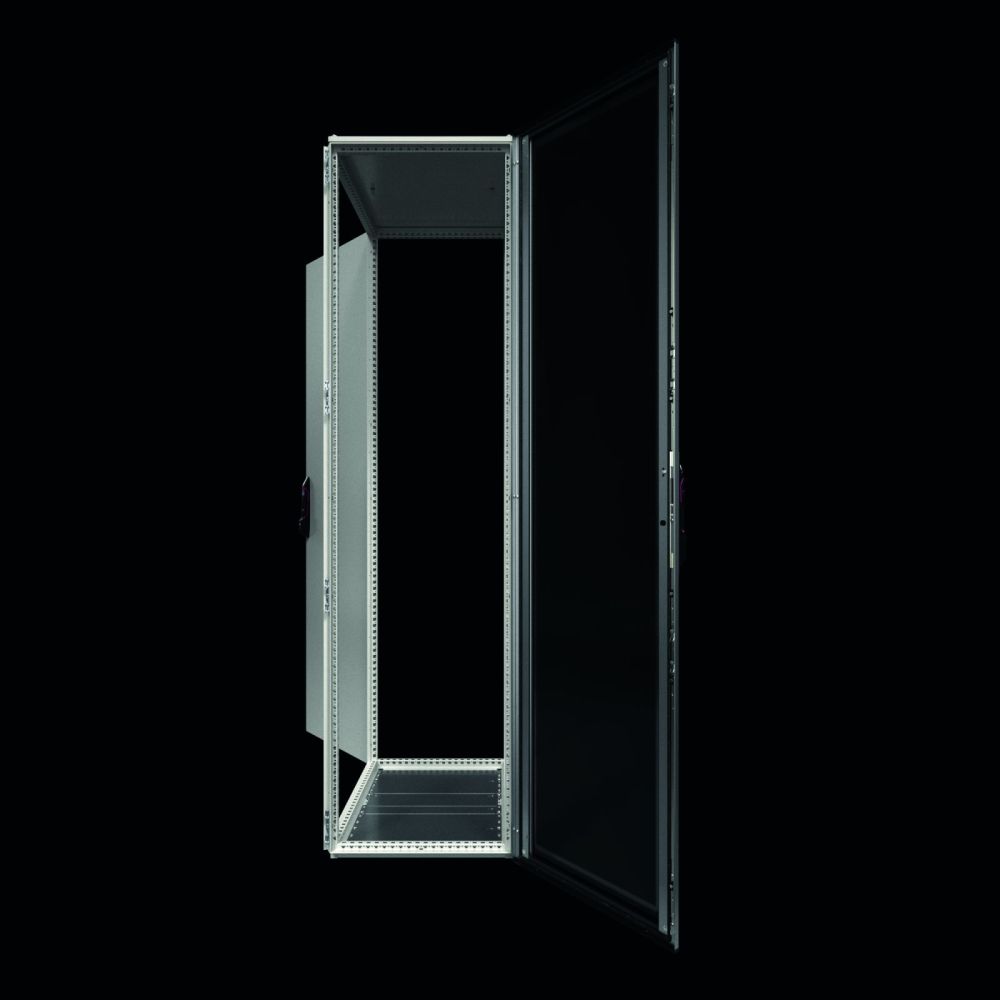

The rack is delivered with the rack frame, front aluminium viewing door with 180° hinges, rear steel sheet door with 130° hinges, roof plate, base tray with base sheet, baying seal, seal set for base sheets, 12 x 48,3 cm ( 19 inch ) fasteners (1 HE, conductive), and 25 internal hex socket screws (conductive). Packaging is on an IPPC pallet.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles, silver, and horizontal profiles RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.000 mm |
| Height units | 42 HE |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | None |
| Floor version | floor tray with floor plate, multi-part, closed |
| Mounting type for profile rail | None |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 253.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
