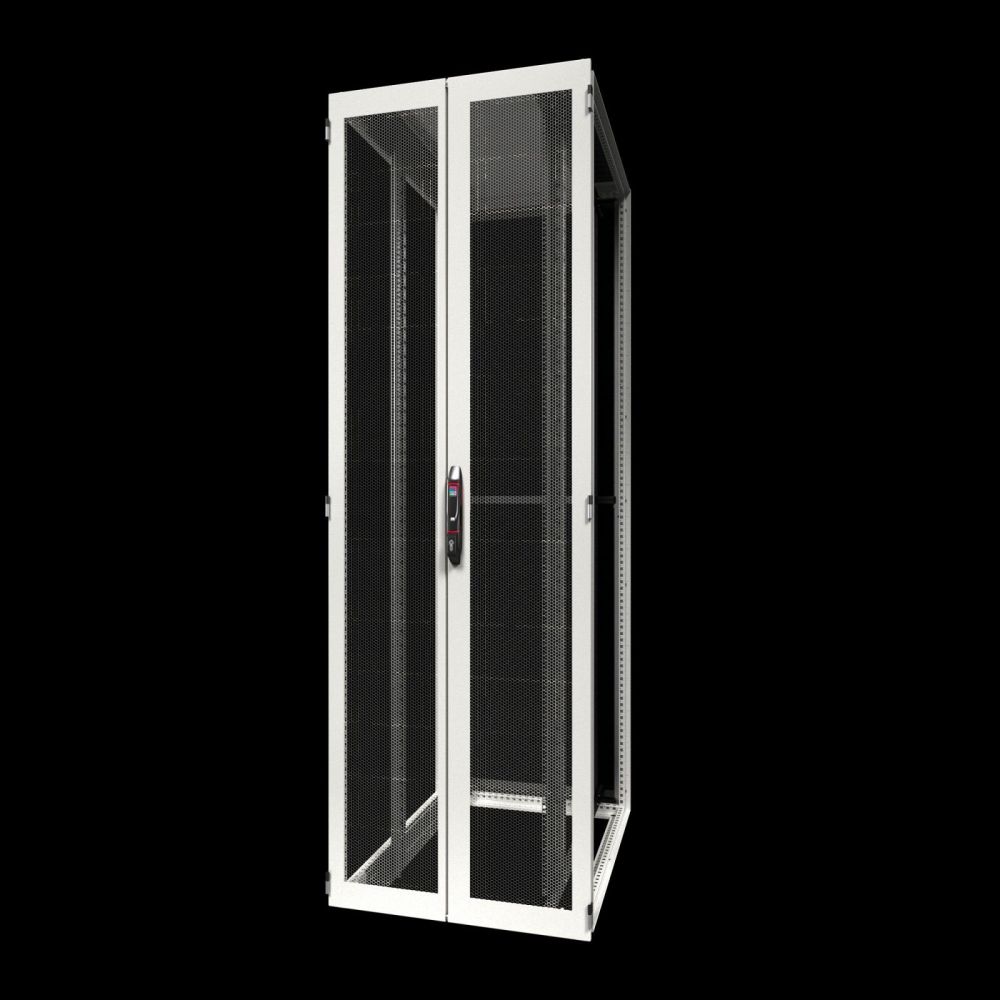

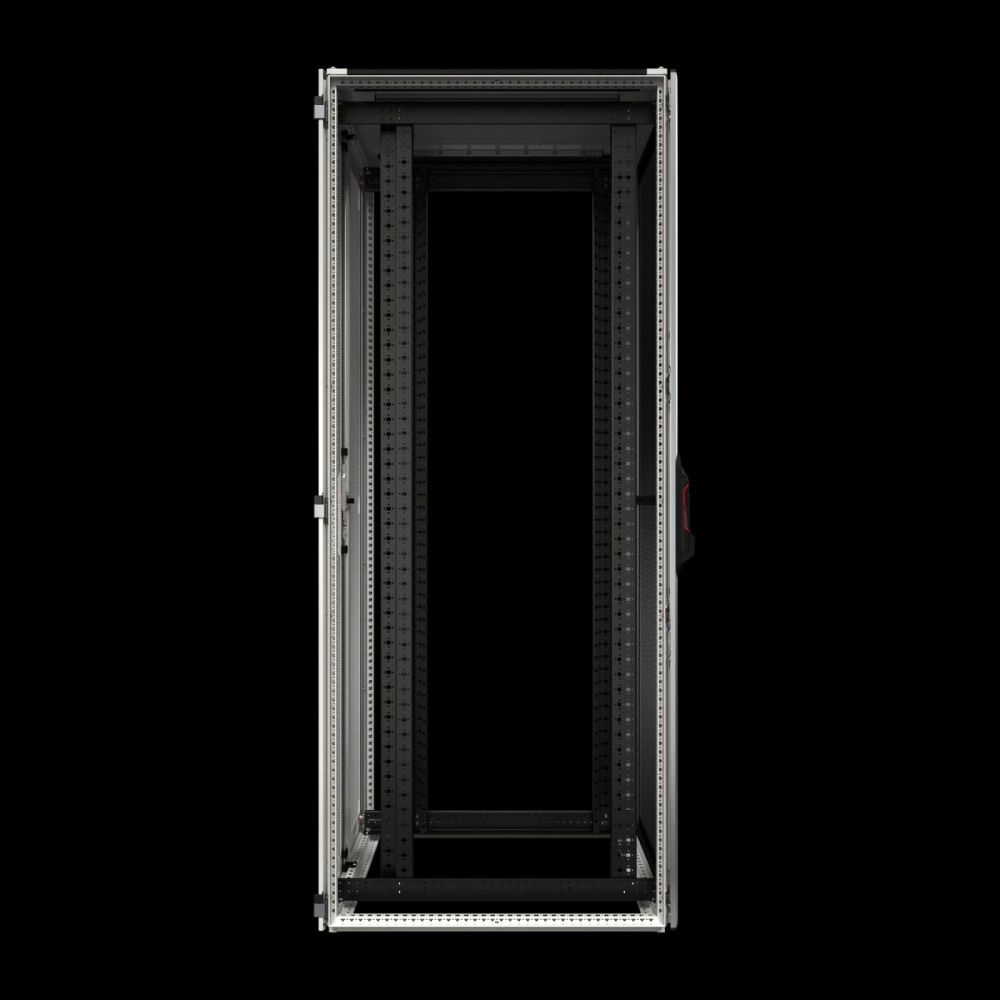

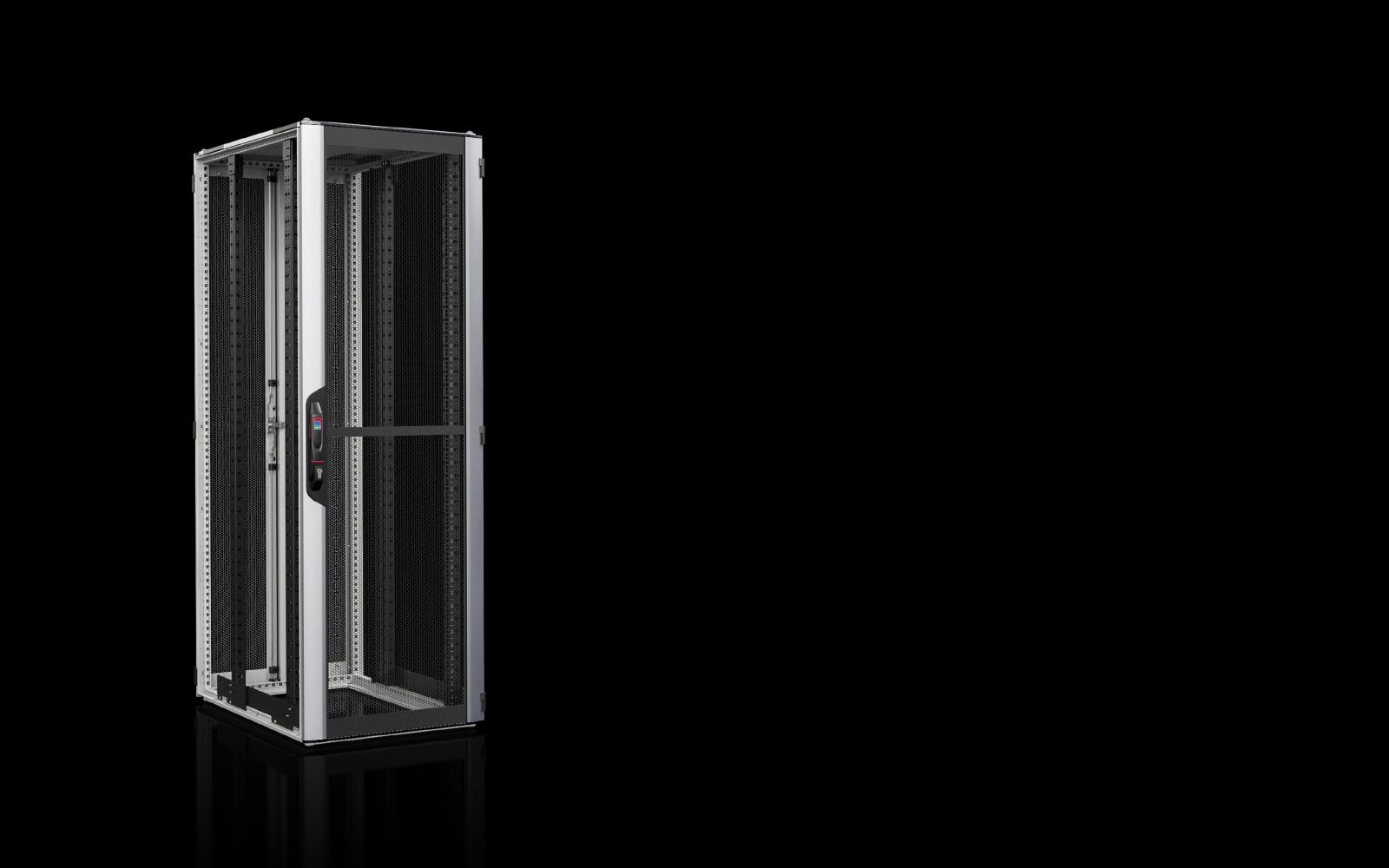

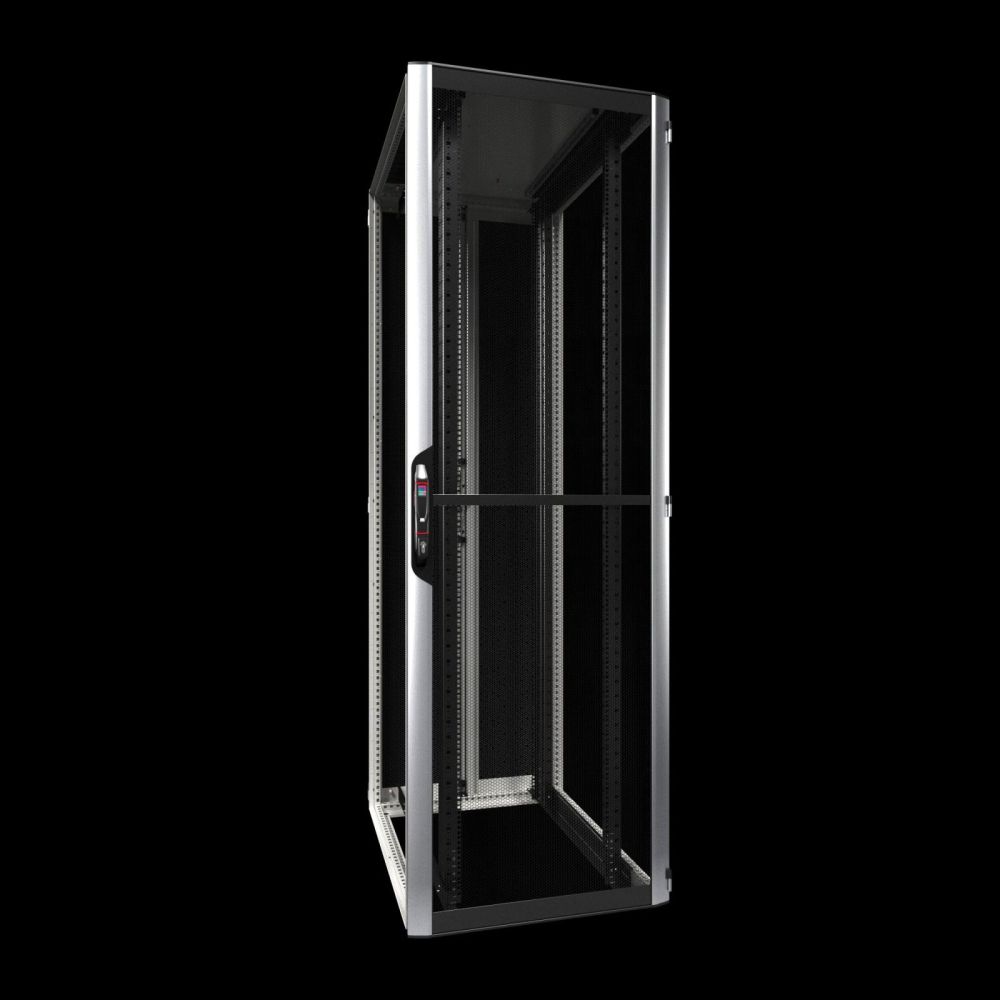

Rittal 5315818 Server rack VX IT ventilated 600x2200x1200 mm 47 U
|
-7% 1.671,53 EUR 1.803,46 EUR |
|
|
( 1.989,12 EUR incl. VAT ) ≈ £1,399.07 | ≈ $1,837.01 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 593614 |
| Mfg Part No: | 5315818 |
| UPC/EAN: | 4028177945371 |
| Weight: | 95.1 kg |
| Type: | VX 5315818 |
Product information for Rittal 5315818:
Applications
The rack is suitable for use in IT and server environments, particularly in rooms with controlled climate conditioning. The ventilated doors and open floor construction support passive cooling and ensure optimal air circulation. The dynamic configuration allows depth-variable mounting of 48,3 cm ( 19 inch ) profile rails, enabling the rack to adapt to different device heights and depths. The front and rear 48,3 cm ( 19 inch ) planes each feature a mounting clearance of 150 mm and 325 mm respectively, allowing flexible placement of devices.
Functions and Equipment in Detail

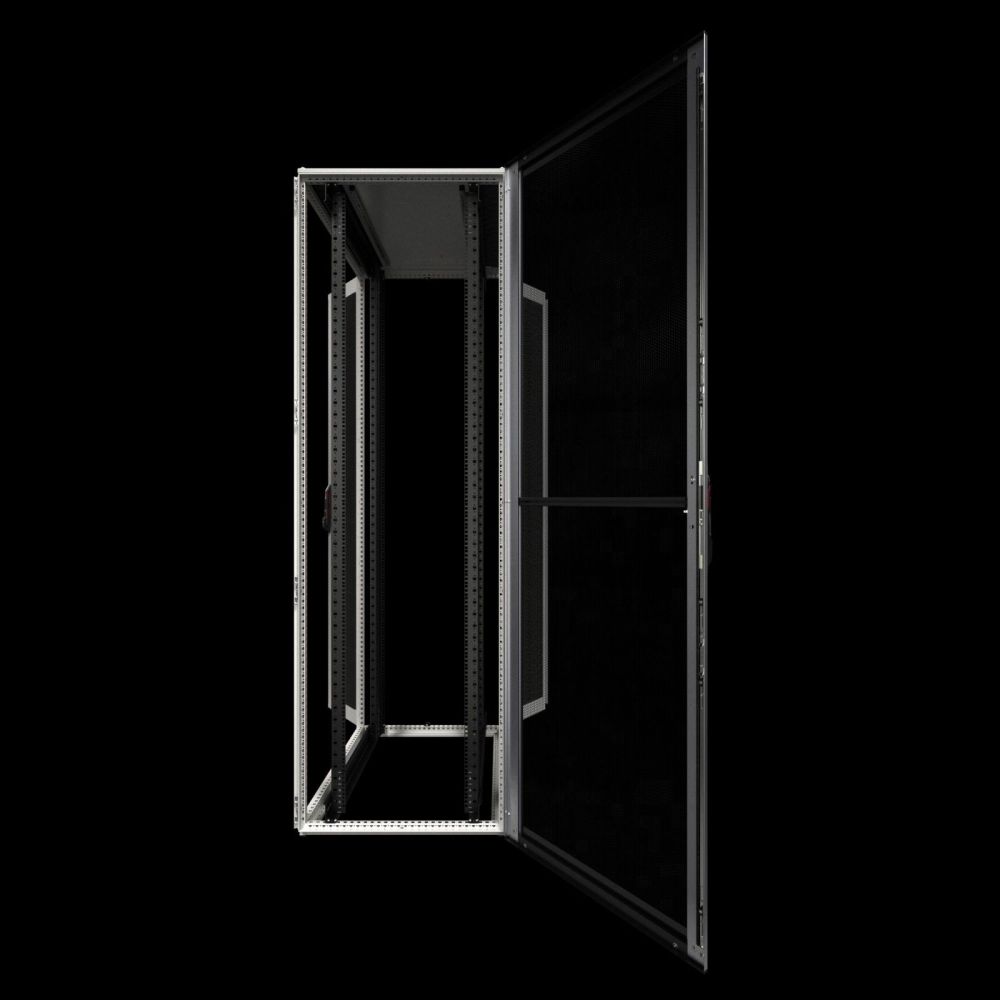

The front door is made of an aluminium-steel sheet composite with a thickness of 1.25 mm and is ventilated, with the open area in the perforated section amounting to approximately 85 %. The door is single-piece and fitted with 180° hinges, enabling full opening. The rear door is made of steel sheet (1.5 mm), also ventilated with approximately 85 % open area and vertically divided, also with 180° hinges. Both doors are equipped with comfort handles for half cylinders and a security locking system (type 3524 E). The roof is multi-part and features cable entries in the front and rear corner areas, supporting structured cable routing.
Technology Explained Simply
The 48,3 cm ( 19 inch ) profile rails are integrated in the dynamic configuration and can be adjusted in depth. Mounting is achieved via mounting brackets, which are screwed to the frame structure at the top and to the depth brace at the bottom. The plane spacing is 725 mm in the delivered state. The interior components, including the front ventilation grilles, are painted in RAL 9005, while the enclosure frame, rear door and roof are in RAL 7035. The front door features vertical profiles in silver and horizontal profiles in RAL 9005. The surface of the rack frame is dip-primed, the interior components are painted, and the rear door and roof are dip-primed and powder-coated.
Compatibility and Accessories
The rack is compatible with a wide range of accessories that support installation and operation. These include cable management panels in various heights (1 HE and 2 HE), insert modules such as PSM 6x C13, sliding rails TS IT, 48,3 cm ( 19 inch ) fasteners, connection cables for PSM (3-phase and UPS), component shelves, cable ties, system lights, cable clamps, internal hexagon socket screws, cage nuts, as well as cable managers and Velcro fasteners. These elements enable structured and secure mounting of IT devices and cables.
Mounting and Installation
Mounting is performed via the integrated mounting brackets on the frame structure and on the depth brace. The 48,3 cm ( 19 inch ) profile rails are depth-variable, allowing the rack to adapt to different device requirements. The provided spacers (height 50 mm) are used to raise a roof plate above the fan opening in the roof plate, enabling passive ventilation. These are not required if no openings are present in the roof plate. The delivery includes 12 pieces of 48,3 cm ( 19 inch ) fasteners (1 HE, conductive) and 25 internal hexagon socket screws (conductive).
Operational Advantages
The rack offers a high load capacity of 18,000 N and complies with the static load capacity standard UL 2416 with a maximum value of 15,000 N per rack. The open floor construction and ventilated doors support efficient cooling and prevent overheating of installed devices. The 180° hinges allow full door opening, facilitating maintenance and installation. The integrated M6 blind rivet nuts in the frame structure enable secure mounting of fittings without compromising the protection rating. The surface treatment with dip priming and powder coating ensures high corrosion resistance and durability.
The delivery includes the rack frame with doors and roof plate, the 48,3 cm ( 19 inch ) profile rails dynamic, spacers (height 50 mm), 12 pieces of 48,3 cm ( 19 inch ) fasteners (1 HE, conductive) and 25 internal hexagon socket screws (conductive). The packaging unit is 1 piece, the net weight is 94 kg, and the gross weight is 95.1 kg. The product identification numbers include the tariff code 94032080, the EAN 4028177945371 and the manufacturer's number 5315818. The PCF values (Cradle-to-Gate) amount to 234.3 kg CO2 eq (Category B), with the value being approximately calculated based on product weight and self-declared.
The rack is designed for use in IT and server environments where high load capacity, flexible mounting and efficient cooling are required. The dynamic configuration and ventilated doors make it particularly suitable for rooms with room climate control, where continuous air circulation must be ensured. The integrated mounting elements and compatibility with various accessories facilitate the installation and maintenance of IT systems.
| General | |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 1.200 mm |
| Height units | 47 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 325 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 725 mm |
| 19" mounting | mounted with mounting bracket to frame structure at top and to depth brace at bottom |
| Model | Dynamic |
| Roof type | multi-part, with cable entry in corner areas front and rear |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19"-profile rails dynamic in VX IT |
| Floor version | Open |
| 19" rack configuration | 19"-level front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 18.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 15.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 234.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
