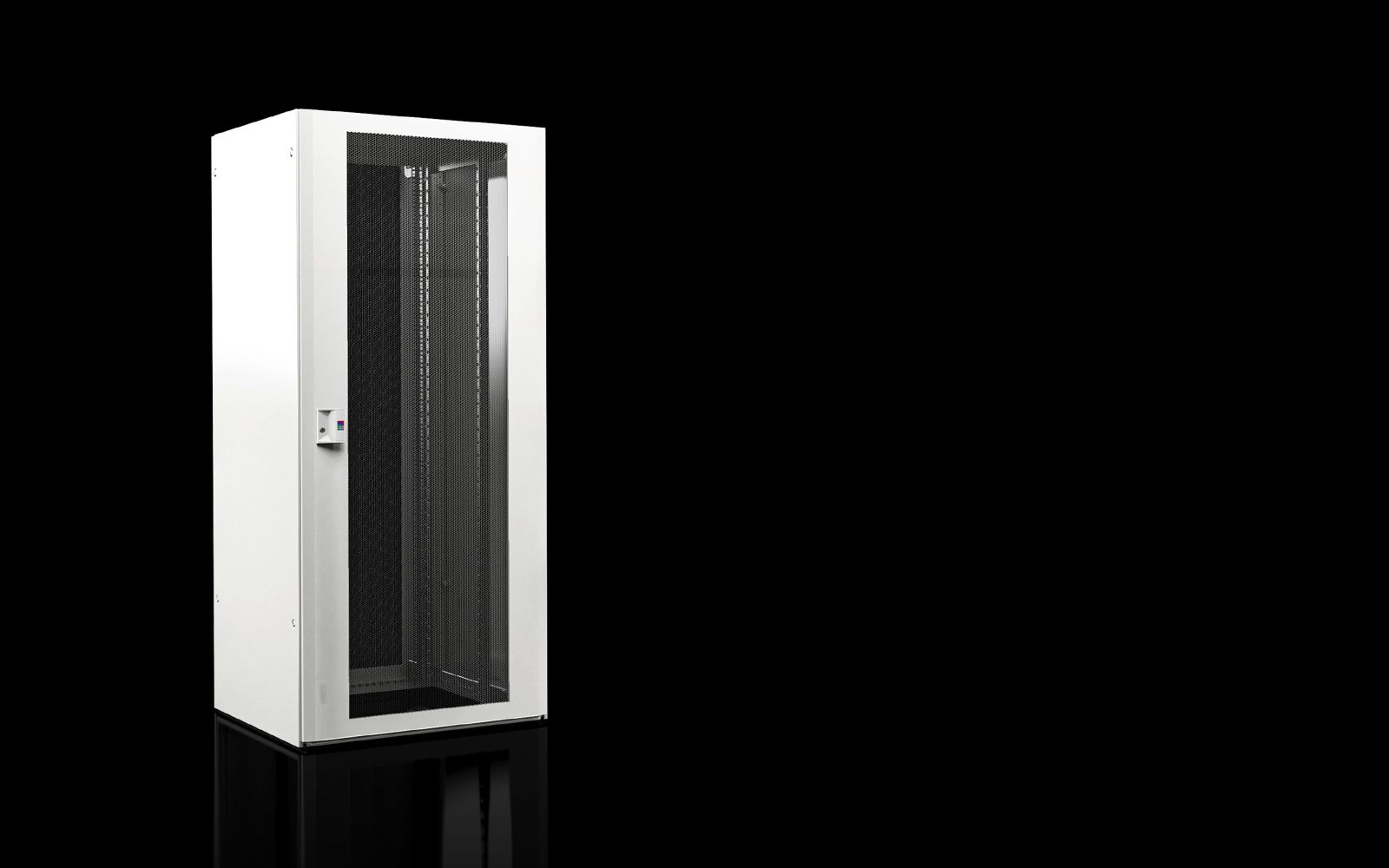

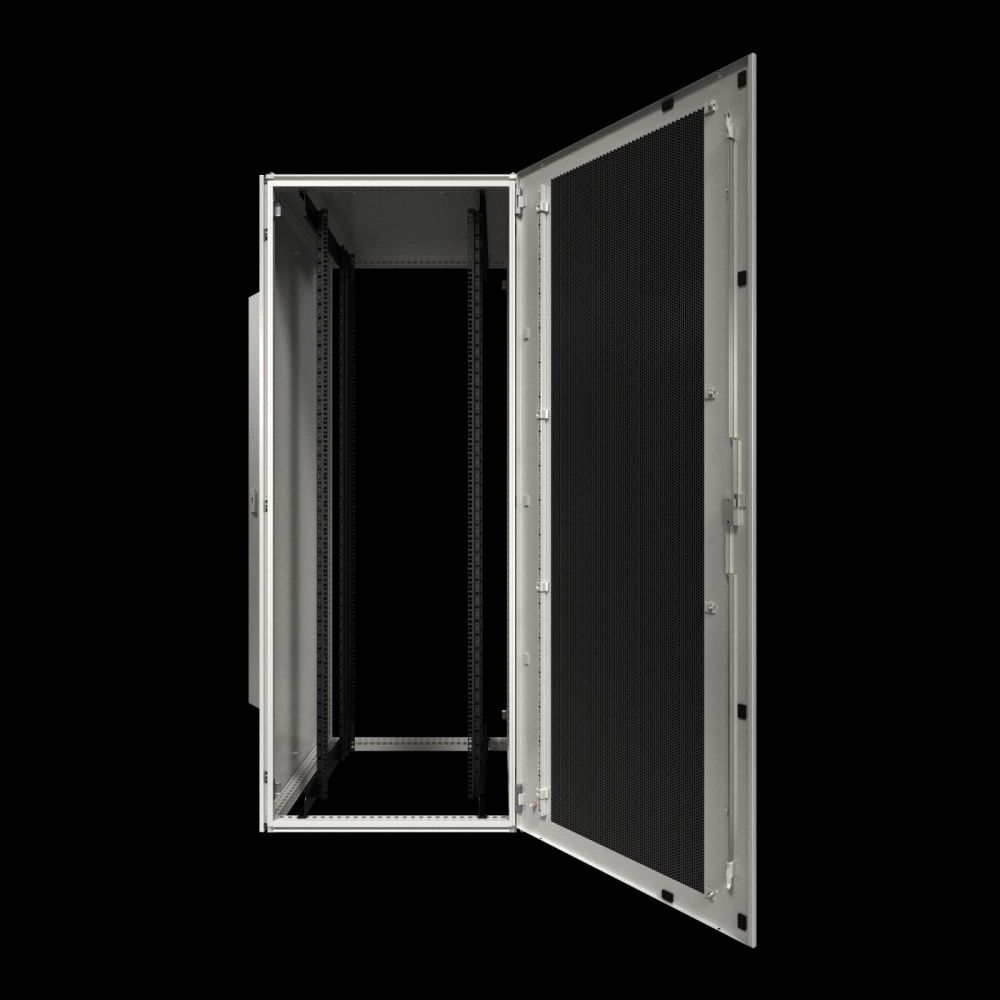

Rittal 7888822 TX CableNet, ventilated door, disassemblable enclosure, 800x
|
920,00 EUR |
|
|
( 1.094,80 EUR incl. VAT ) ≈ £770.04 | ≈ $1,011.08 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2145702 |
| Mfg Part No: | 7888822 |
| UPC/EAN: | 4028177997745 |
| Weight: | 144 kg |
| Type: | TX 7888822 |
Product information for Rittal 7888822:
Applications
This enclosure is suitable for installing IT and electrical equipment in spaces with limited room. It is particularly advantageous when only small components are installed, as no height units are lost to unused spaces. The ventilated doors ensure efficient air circulation, supporting cooling of installed devices. The side panels are screwed, allowing quick access to the interior without having to disassemble the entire enclosure.
Functions and Equipment in Detail
The enclosure frame is made of a torsion-resistant, welded, symmetrical frame structure consisting of rolled and 16-fold flanged vertical profiles. The profiles feature an integrated system perforation with a 25 mm grid, enabling convenient internal assembly by simply hanging and securing components. The vertical frame profiles have two mounting planes offset in depth and width, which can be used individually to allow flexible component mounting. The enclosures can be bayed front, rear, and side. The base concept is open, without base sheets, and can optionally be equipped with base modules from the accessory range.
Technology Explained Simply
The ventilation of the doors with a free area of approximately 78 % ensures optimal air circulation, supporting cooling of installed devices. The screwed roof plate with double-sided concealed cable entry enables clean and structured cabling along the full depth of the enclosure. The central, concealed opening in the roof plate facilitates integration of a fan module, further improving cooling performance. The adjustable 48,3 cm ( 19 inch ) profile rails allow flexible mounting of devices in different positions. The static load capacity is 500 kg, ensuring the stability of the enclosure even under high loads.
Compatibility and Accessories
Various accessories are available for this enclosure to support individual internal configuration. These include, for example, VX plinth corner pieces with plinth trim panels, levelling feet, slide rails, 48,3 cm ( 19 inch ) fasteners, routing panels, component shelves, cable ducts, blank panels, routing brackets, VX plinth trim panels, transport kit, VX IT base sheet module, and AX comfort handles. These components allow custom adaptation of the enclosure to specific requirements.
Assembly and Installation

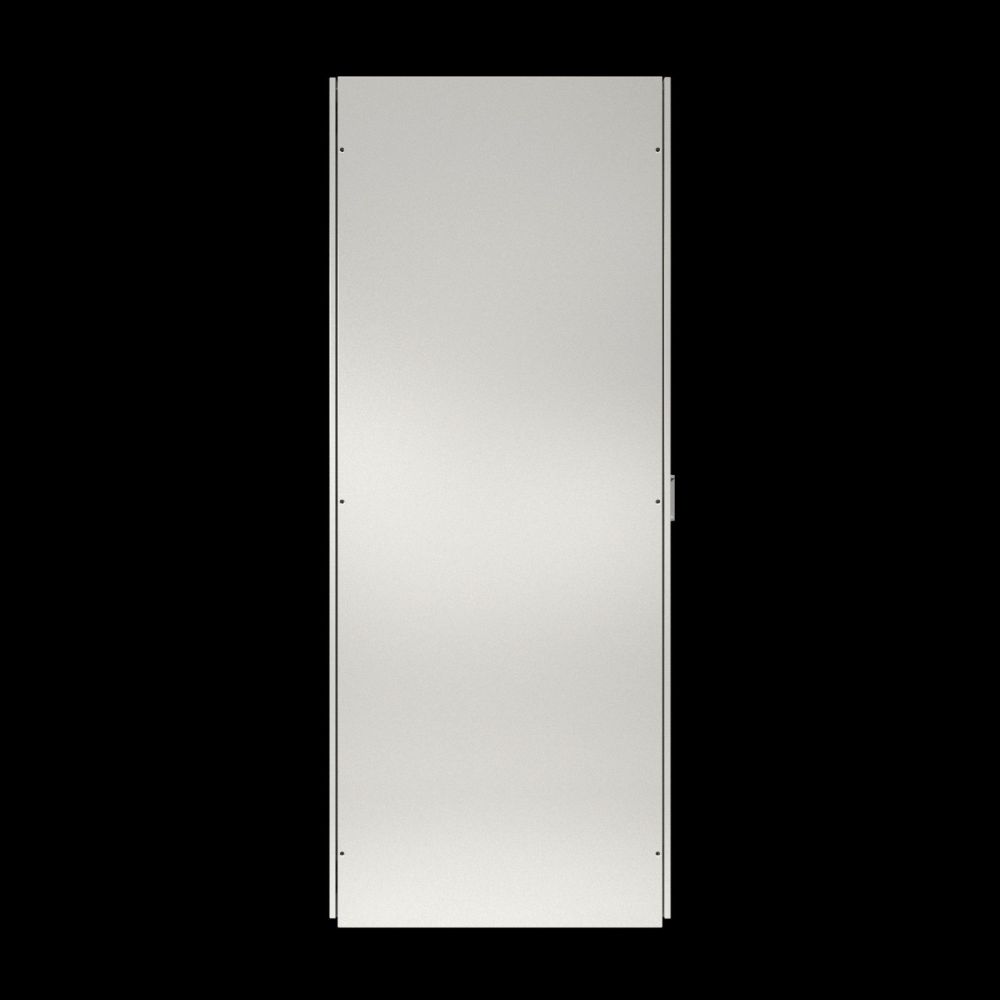

The enclosure is disassemblable, simplifying assembly and transportation. The screwed side panels allow quick access to the interior. The adjustable 48,3 cm ( 19 inch ) profile rails enable flexible mounting of devices in different positions. The enclosures can be bayed front, rear, and side. The static load capacity of 500 kg ensures the stability of the enclosure even under high loads.
Operational Advantages

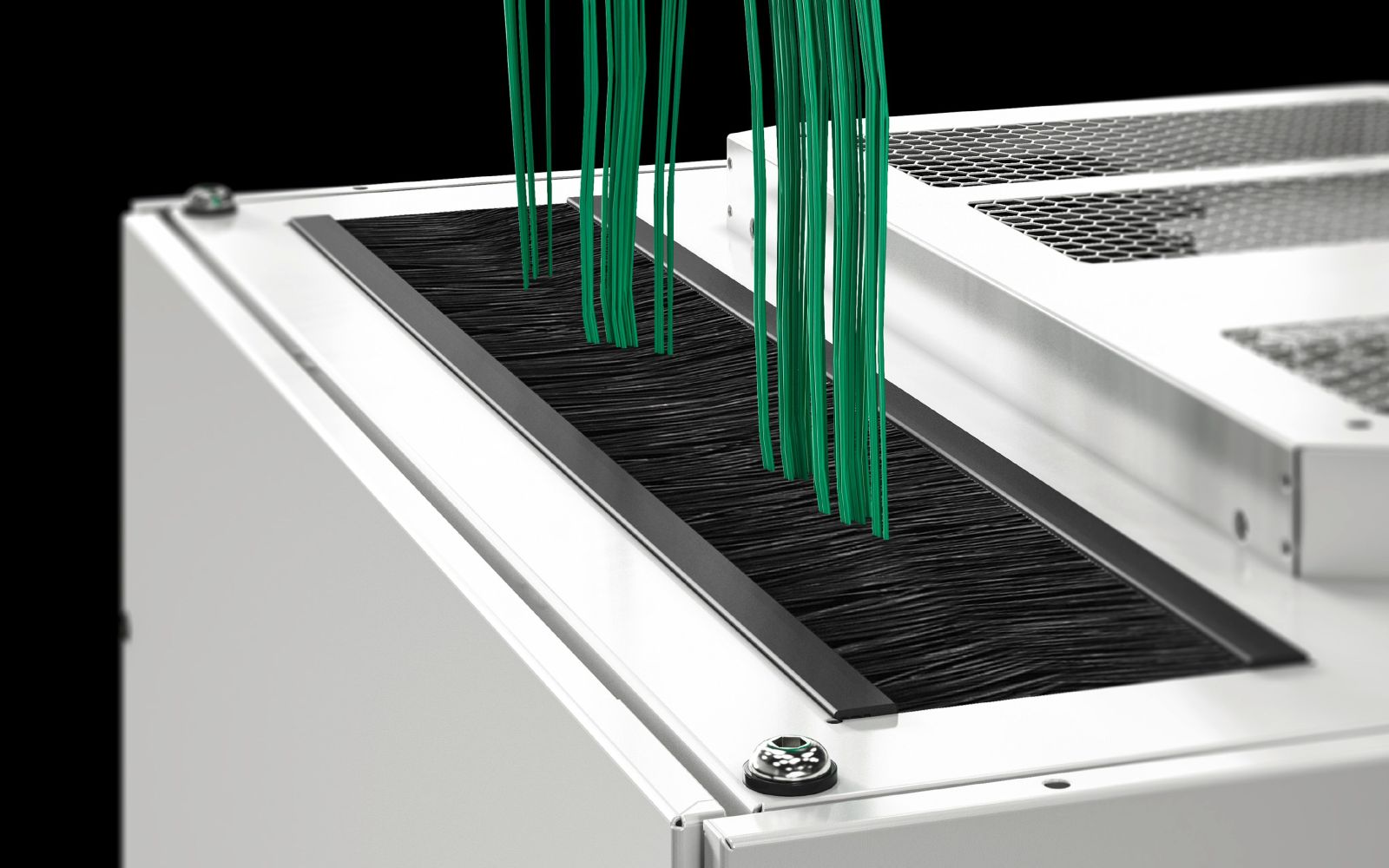

The enclosure offers optimal use of cabinet volume, especially for cabling, thanks to the new roof plate concept. The ventilated doors ensure efficient cooling of installed devices. The adjustable 48,3 cm ( 19 inch ) profile rails enable flexible device mounting. The screwed side panels allow quick access to the interior. The open base concept offers flexibility in equipping with base modules. The static load capacity of 500 kg ensures the stability of the enclosure even under high loads.
| General | |
| Model | 2nd generation, ventilated, with side walls |
| Material | Roof: steel sheet, 1.5 mm, cabinet frame: steel sheet, 1.5 mm, door: steel sheet, 1.2 mm, 19“ profile rails: steel sheet, 2 mm, side wall: steel sheet, 1.2 mm |
| Surface protection | Cabinet frame: dip-primed, flat parts: dip-primed, powder-coated |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet with ventilated front door and rear door, cabinet frame, with 19" mounting rails front and rear, side panels, bolted roof sheet with double-sided concealed cable entry over full cabinet depth, and central concealed opening for easy integration of a fan module. |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.200 mm |
| Height units | 42 HE |
| Layer spacing (as delivered) | 725 mm |
| Door configuration | ventilated |
| Door configuration rear | Steel sheet door, single-piece ventilated |
| Front door configuration | Steel sheet door, single-piece ventilated, free area in perforated sheet section approx. 78 % |
| Load capacity | 5000 N |
| Load capacity (static) | 500 kg |
| Base material | steel sheet |
