Rittal 5301347 VX IT floor plate multi-part closed 800x1200 mm

Your rating:
Average rating
product review for Rittal 5301347 VX IT floor plate multi-part closed 800x1200 mm
( 4.5 / 5 ) 2 ratings
Rittal 5301347
This image may differ from the desired article.
Rittal 5301347Rittal 5301347
61,41 EUR
( 73,08 EUR incl. VAT )
≈ £51.40  |  ≈ $67.49
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5301347 VX IT floor plate multi-part closed 800x1200 mm
Datasheet:file_download Download
Lieske Part No.:1864896
Mfg Part No: 5301347
UPC/EAN: 4028177950993
Weight:9.76 kg
Type:VX 5301347

Product information for Rittal 5301347:

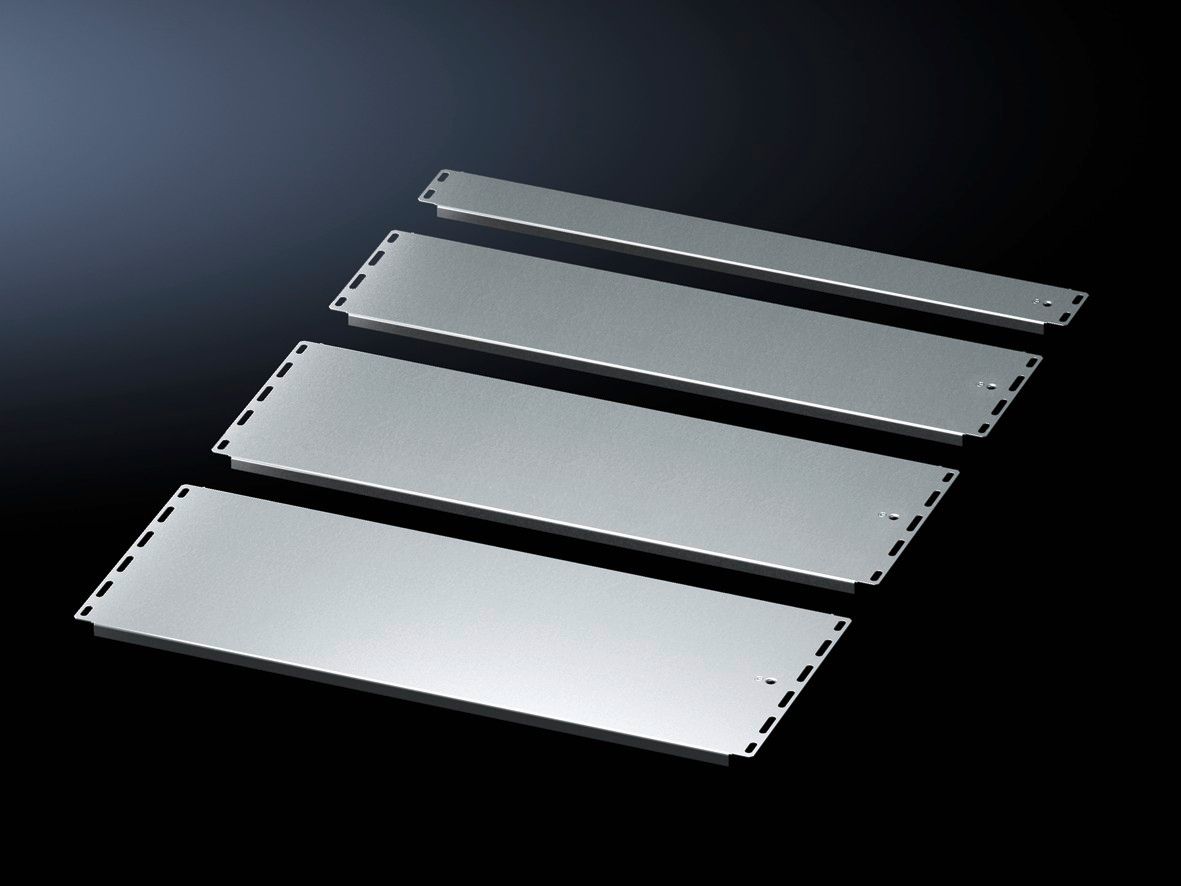

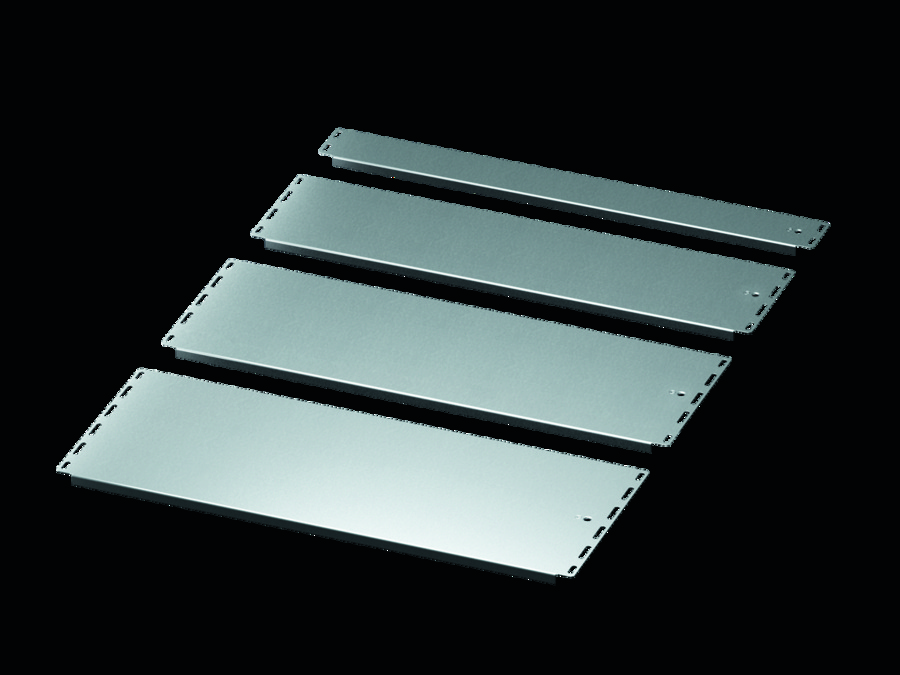

The Rittal VX 5301347 is a multi-part base plate set for enclosures of type VX IT, specifically designed for enclosures with a width of 800 mm and a depth of 1,200 mm. It serves as a closed base cover to seal the lower area of the enclosure and enable proper cable routing. The set consists of four closed base plate modules with a depth of 237.5 mm, as well as a sliding plate with a depth of 115 mm, intended for cable entry. The modules are made of steel sheet and feature a zinc-coated surface, ensuring high corrosion resistance and durability. The sequence of individual modules can be freely chosen, allowing flexible adaptation to different cable requirements.

Applications
This base plate set is intended for use in industrial enclosures of the VX IT system, particularly in environments where clean and secure cable routing and mechanical shielding of the lower enclosure area are required. It is suitable for applications in automation technology, process industry, and electrical engineering, where protection against dust, moisture, and mechanical stress is important. The closed design ensures a tight cover that remains stable even under increased environmental demands.

Functions and Equipment in Detail
The set includes four identical, closed base plate modules with a depth of 237.5 mm, each covering the lower area of the enclosure. Additionally, a sliding plate with a depth of 115 mm is included, serving as access for cable entries. The modules are designed to be connected to each other, creating a continuous, flat cover. The delivery also includes a sealing strip and the required mounting hardware to securely install the modules in the enclosure. The modules can optionally be replaced with variants for cable entry, enabling adaptation to specific installation requirements.

Technology Explained Simply
The use of steel sheet as material ensures high mechanical stability and resistance to external influences. The zinc-coated surface protects the material from corrosion, especially in humid or aggressive environments. The module depth (237.5 mm) matches the standard depth for VX IT enclosure housings, ensuring a perfect fit and secure seating. The sliding plate (115 mm depth) allows targeted cable routing without compromising the closed cover. The modular design allows flexible arrangement, enabling modules to be rearranged as needed.

Compatibility and Accessories
The base plate set is specifically designed for enclosures of type VX IT with a minimum width of 800 mm and a minimum depth of 1,200 mm. It is not suitable for other enclosure types or dimensions. The modules are compatible with standard mounting elements of the VX IT system. The option to replace individual modules with variants for cable entry expands application possibilities without altering the overall structure.

Mounting and Installation
Installation is carried out by securing the modules to the designated mounting points in the lower area of the enclosure. The included mounting hardware and sealing strip facilitate installation. Modules are installed one after another, with the sequence being freely selectable. The sliding plate is placed at the desired location to enable cable entries. Module connections are made via mechanical interlocking or screw fastening, depending on the enclosure construction. Installation does not require special tools, although clean and planned preparation of the mounting surface is recommended.

Operational Advantages
The multi-part base plate set provides a reliable and tight cover for the lower enclosure area, enhancing the safety and functionality of the enclosure. The modular structure allows flexible adaptation to different cable requirements without replacing the entire set. The zinc-coated surface ensures long service life, even in demanding environments. The integrated cable entry via the sliding plate reduces the need for additional penetrations and improves order within the enclosure. Easy mounting and maintenance increase efficiency during installation and servicing.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryFloor plate set, sealing tape, including mounting material, 4 floor plate modules, closed, depth: 237.5 mm, 1 sliding plate, depth: 115 mm
Suitable forCabinet type: VX IT, width: = 800 mm, depth: = 1,200 mm
PCF/VE (Cradle-to-Gate)36.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301347, EAN: 4028177950993
