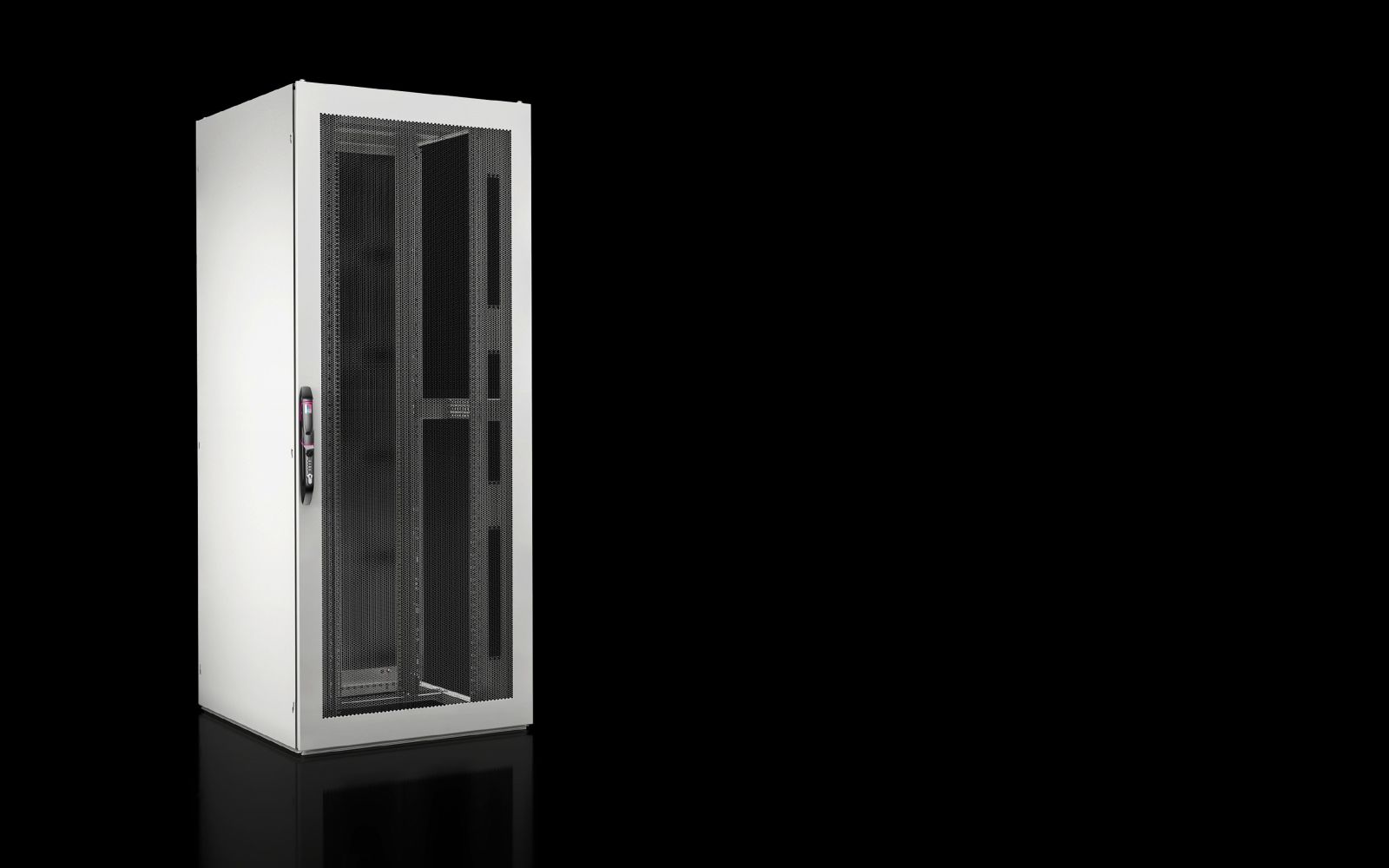

Rittal 5541220 TX Colocation Rack, 47 U, W x H x D: 800 x 2200 x 1200

Your rating:
Average rating
product review for Rittal 5541220 TX Colocation Rack, 47 U, W x H x D: 800 x 2200 x 1200
( 0 / 5 ) 0 ratings
Rittal 5541220
This image may differ from the desired article.
Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220Rittal 5541220
-7% 1.770,89 EUR 1.894,38 EUR
( 2.107,36 EUR incl. VAT )
≈ £1,482.23  |  ≈ $1,946.21
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5541220 TX Colocation Rack, 47 U, W x H x D: 800 x 2200 x 1200
Datasheet:file_download Download
Lieske Part No.:877405
Mfg Part No: 5541220
UPC/EAN: 4028177971615
Weight:141 kg
Type:TX 5541220

Product information for Rittal 5541220:

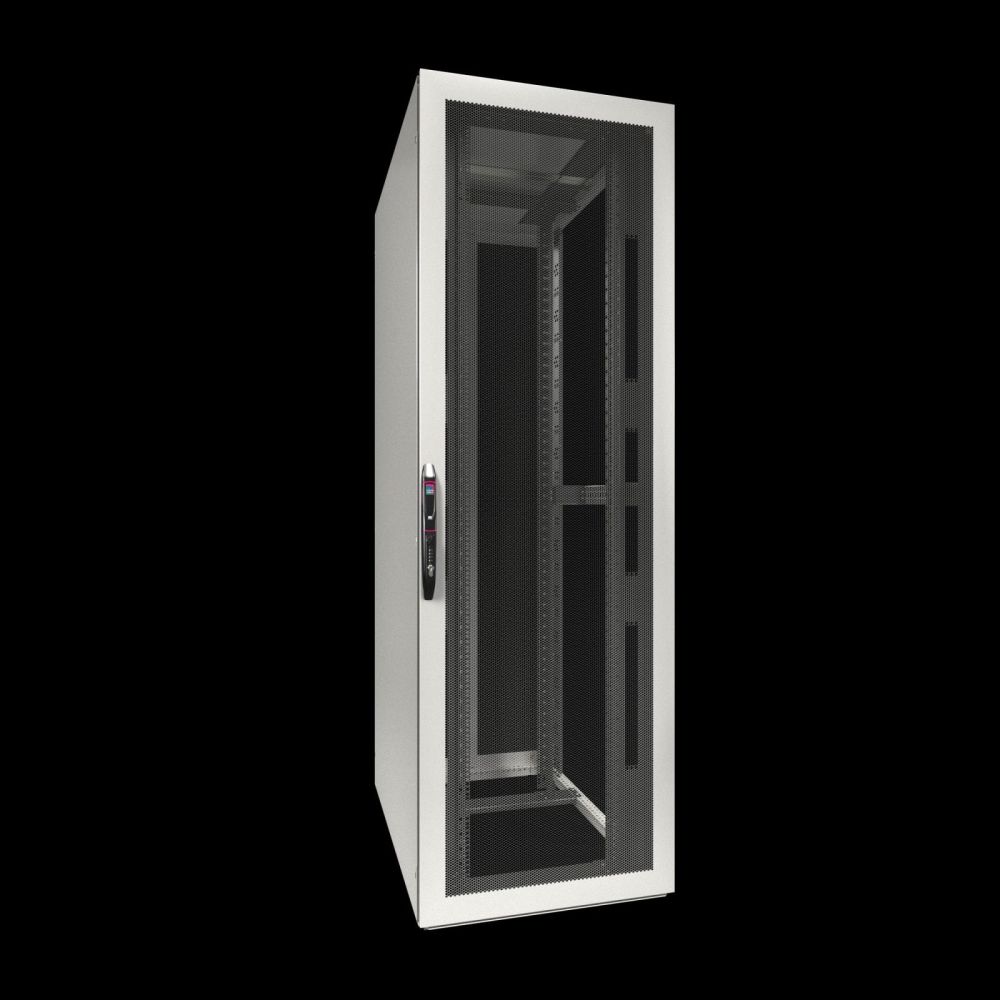

The Rittal TX 5541220 is a server rack of the TX Colocation series, specifically designed for use in large data centres. It features dimensions of 800 mm width, 2,200 mm height, and 1,200 mm depth, providing a mounting height of 47 height units (HE). The enclosure is made of sheet steel and is finished in the base colour RAL 7035, with doors, roof, and frame painted in this colour. The handles and hinges are finished in RAL 9005. The doors are ventilated, with the front door being single-piece and the rear door double-piece, each featuring a free area in the perforated section of approximately 78 %. The door hinges allow an opening angle of 130°, although the actual angle may vary depending on the installation location.

Applications

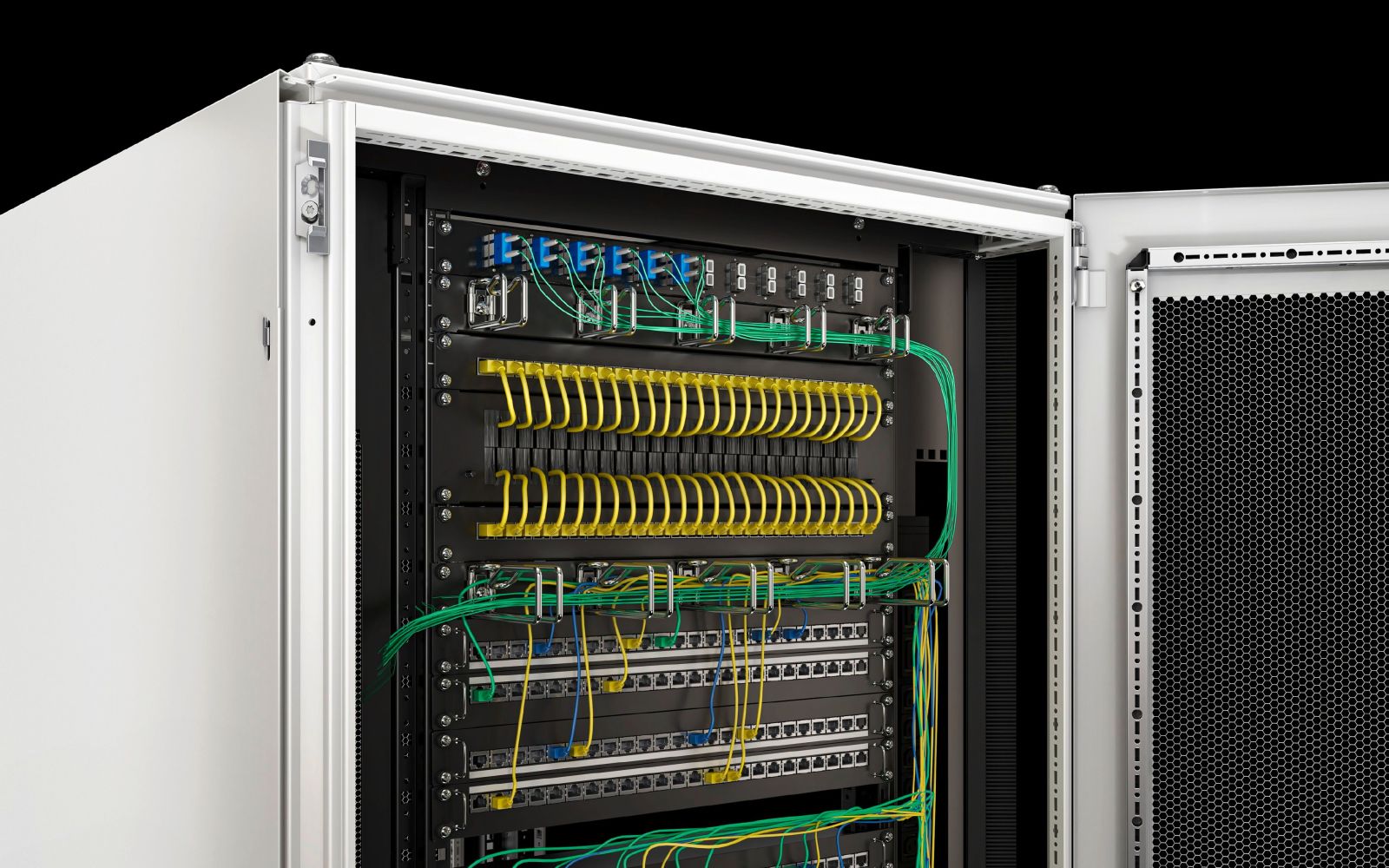

The rack is designed for installation in data centres where efficient airflow and structured cabling are required. Integrated air baffle plates and a partition panel on the left side of the rack ensure targeted airflow, supporting the cooling of installed IT systems. The cable tray on the rear right side facilitates cabling and ensures orderly cable routing. The construction is designed for room climate control, ensuring optimal cooling performance through door ventilation.

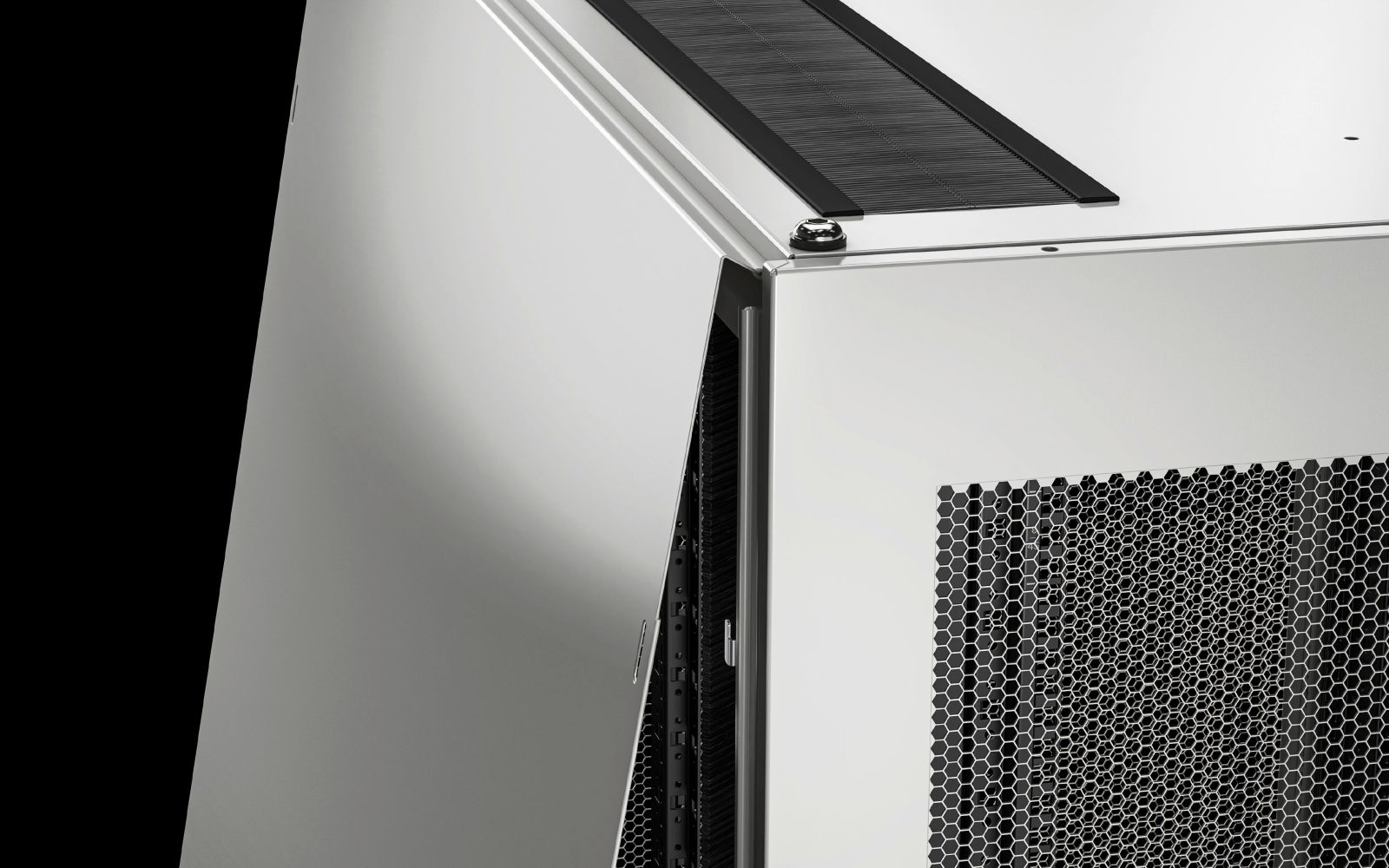

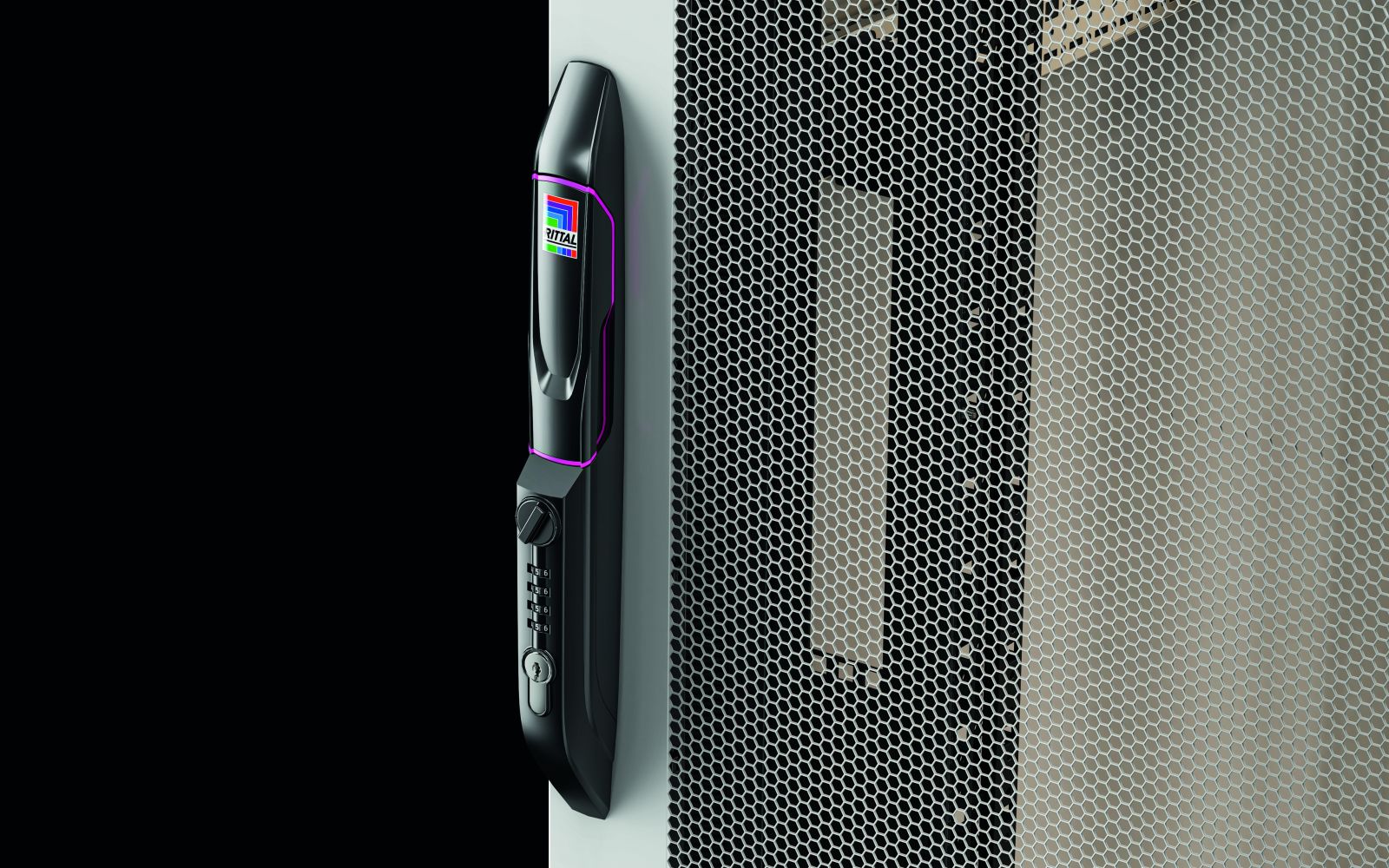

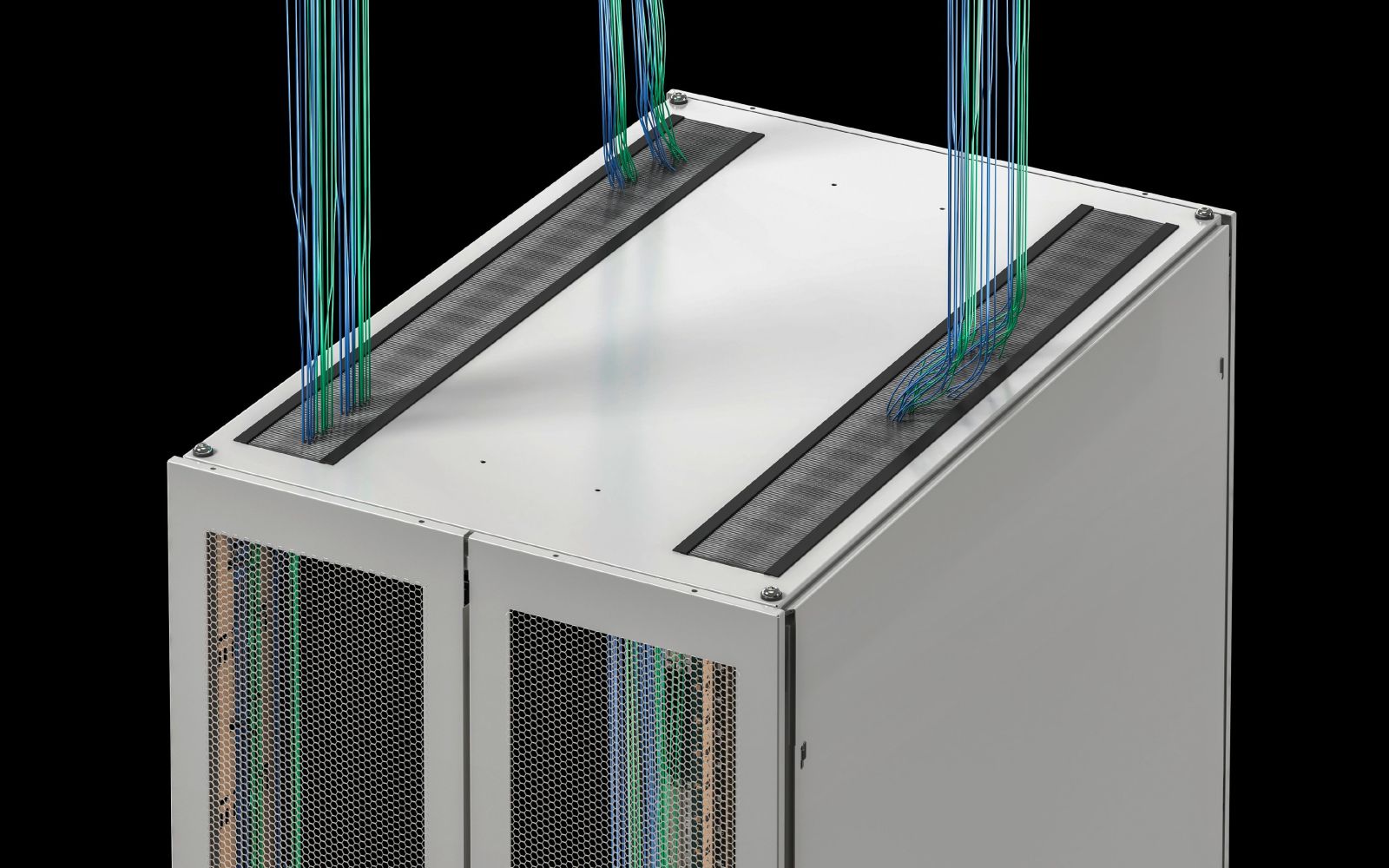

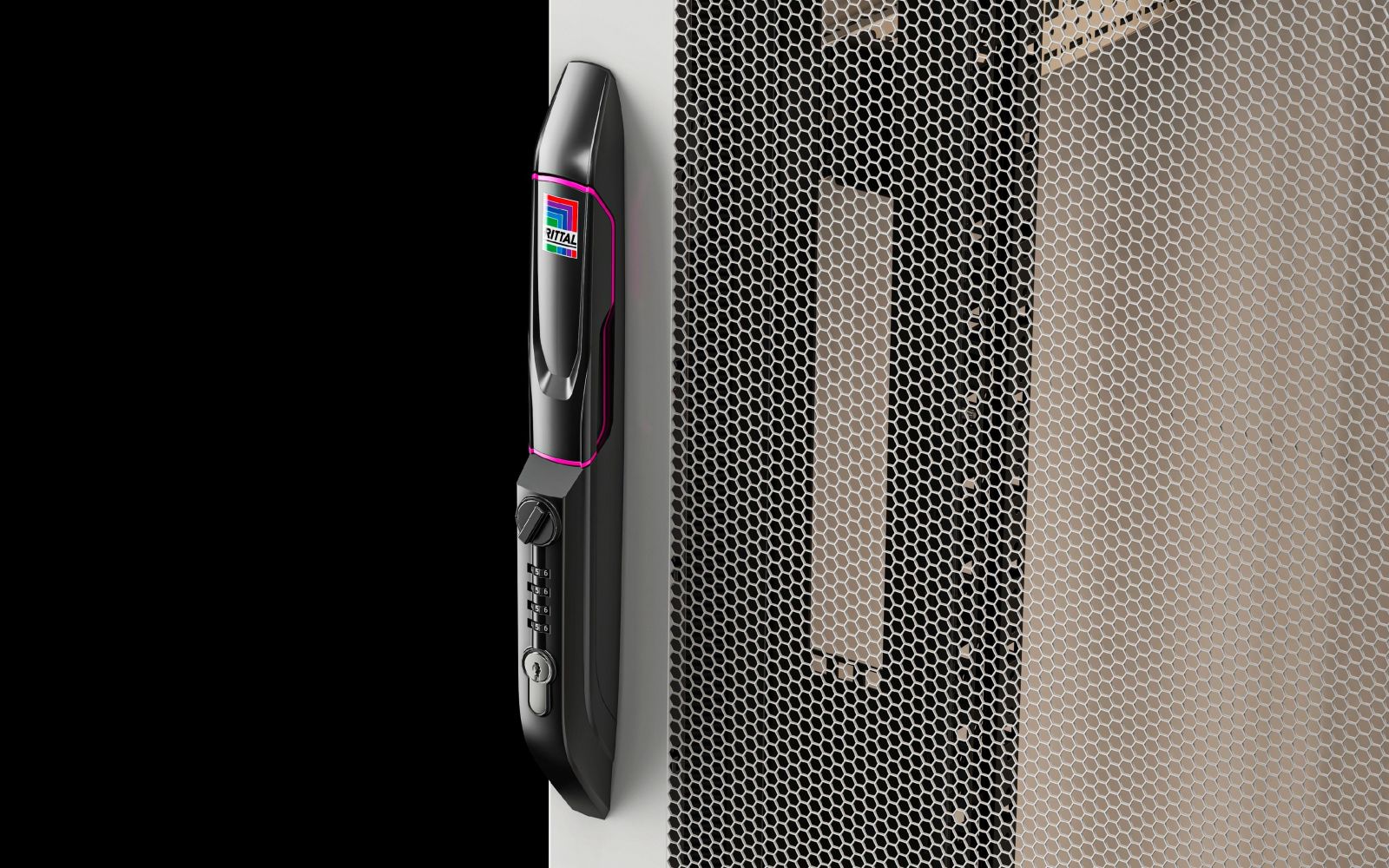

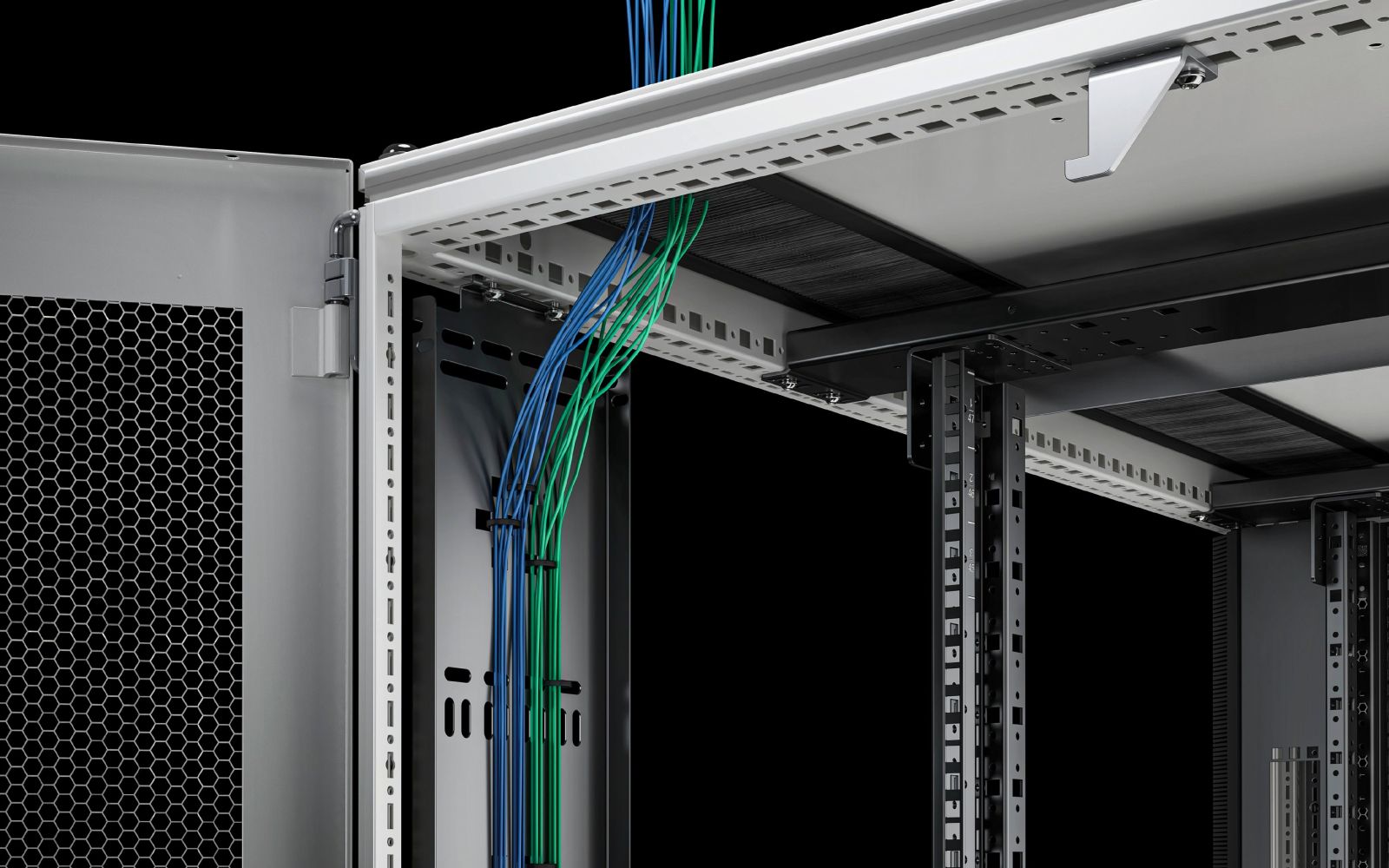

Functions and Equipment in DetailThe rack is equipped with a comfort handle VX, which integrates a numeric code lock to secure access to the contents. The roof construction consists of a roof plate with cable entries along the full rack depth on both the left and right sides, enabling flexible and secure cable routing. The floor construction is open, allowing the rack to be placed directly on the floor. The profile rails are positioned at the 48,3 cm ( 19 inch ) level at the front and rear, enabling flexible device mounting. The load capacity is 15,000 N, ensuring high load-bearing capability for heavier IT systems.

Technology Explained SimplyThe door material thickness is 1.2 mm, providing sufficient stability while allowing ventilation. The surface of the rack frame is dip-primed, the interior assembly is painted, while doors and roof are dip-primed and powder-coated. The level spacing in the delivered state is 745 mm, with a minimum distance between mounting levels of 115 mm and a maximum of 341 mm. The 48,3 cm ( 19 inch ) mounting is achieved via cross-braces, enabling stable device mounting. The rear doors were revised from 01.09.2026 with additional reinforcement elements and an optimised locking mechanism to enhance stability.

Compatibility and AccessoriesVarious accessories are available for this rack, extending its functionality. These include TX air baffle plates horizontal in RAL9005, TX Colo PDU/cable trays for 47 HE, as well as various VX floor plate modules in different configurations (ventilated, closed, single-piece, double-piece) and VX sliding plates. Additionally, a floor mounting set for floor plate modules is available. These components allow for individual adaptation of the rack to specific requirements in data centres.

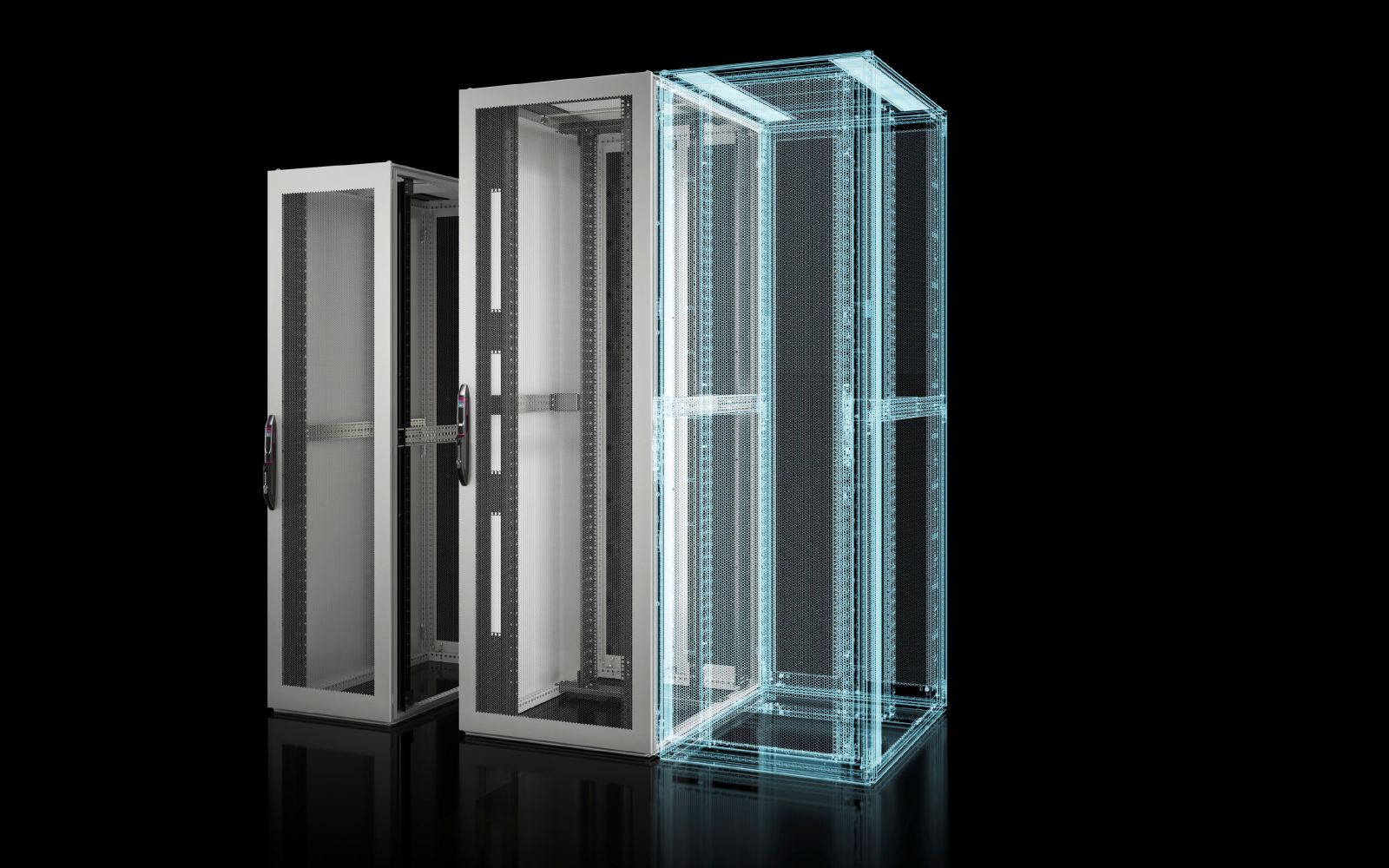

Mounting and InstallationThe rack is pre-assembled and consists of a welded, torsionally rigid frame structure made from rolled, 9-fold bent hollow profiles. The profiles are symmetrically shaped on all sides and feature a 25 mm pitch hole pattern. Mounting is achieved via integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The profiles are rounded, and horizontal profiles feature an integrated groove above the PU foam seal to protect it. Mounting levels are accessible from inside and outside, enabling space-saving installation.

Operational AdvantagesThe rack offers an immediately ready-to-use configuration tailored to the requirements of large data centres. The integrated air baffle plates and partition panel ensure optimal airflow, improving cooling of IT systems. The cable tray and cable entries in the roof simplify cabling and ensure structured, clear installation. Door ventilation supports room climate control, while the numeric code lock secures access to the contents. The high load capacity of 15,000 N allows mounting of heavy equipment, and flexible mounting via cross-braces provides stable fastening.

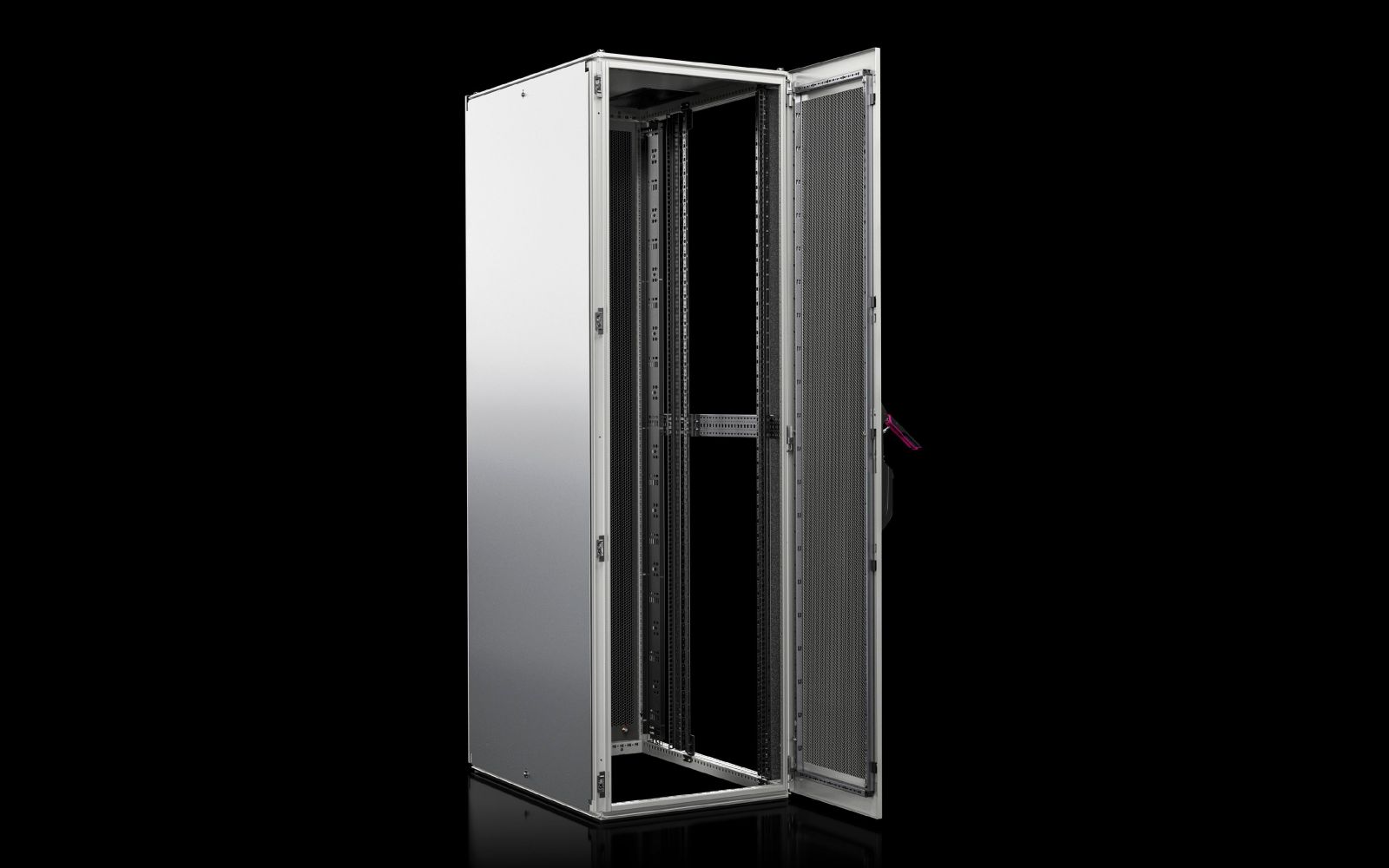

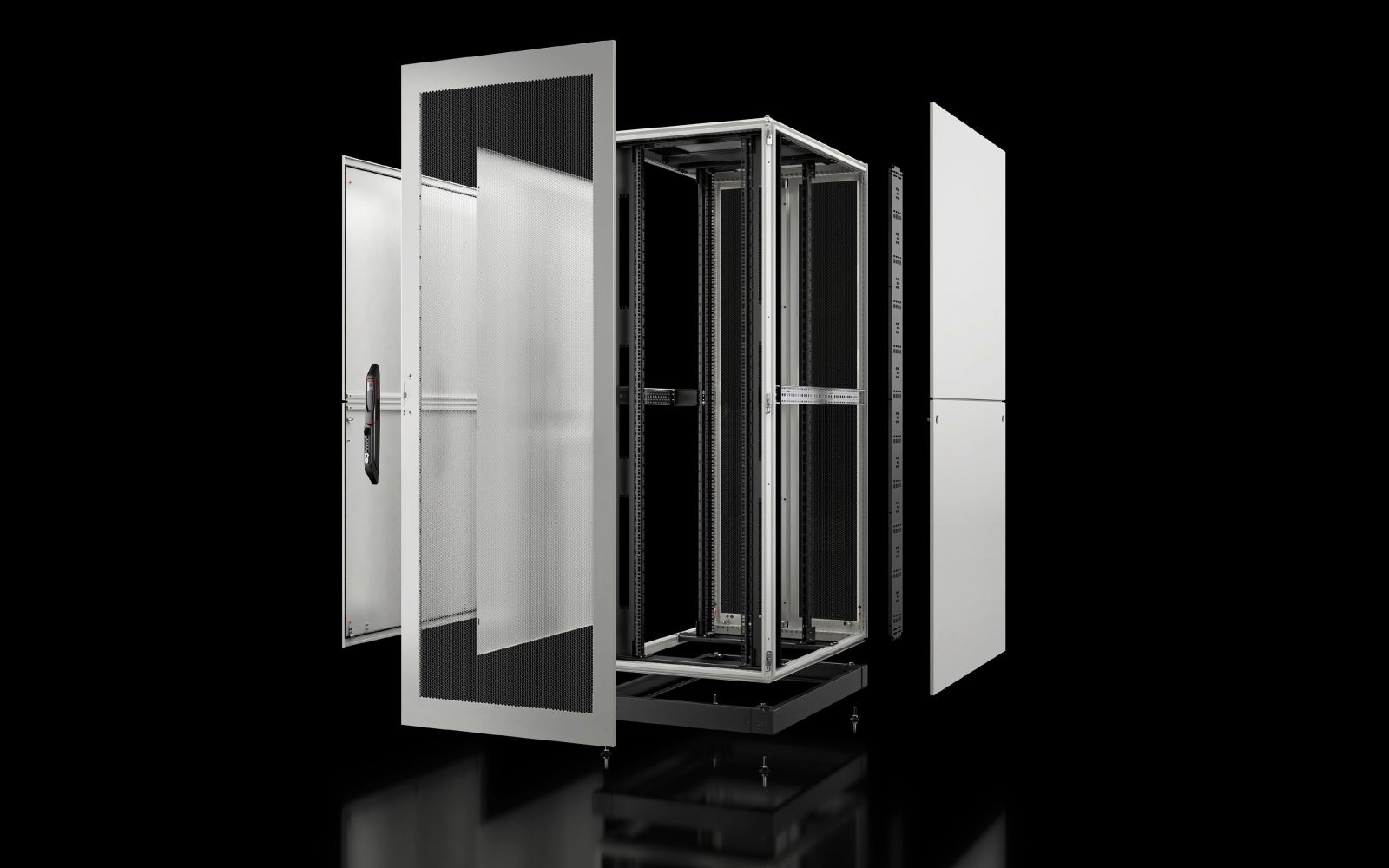

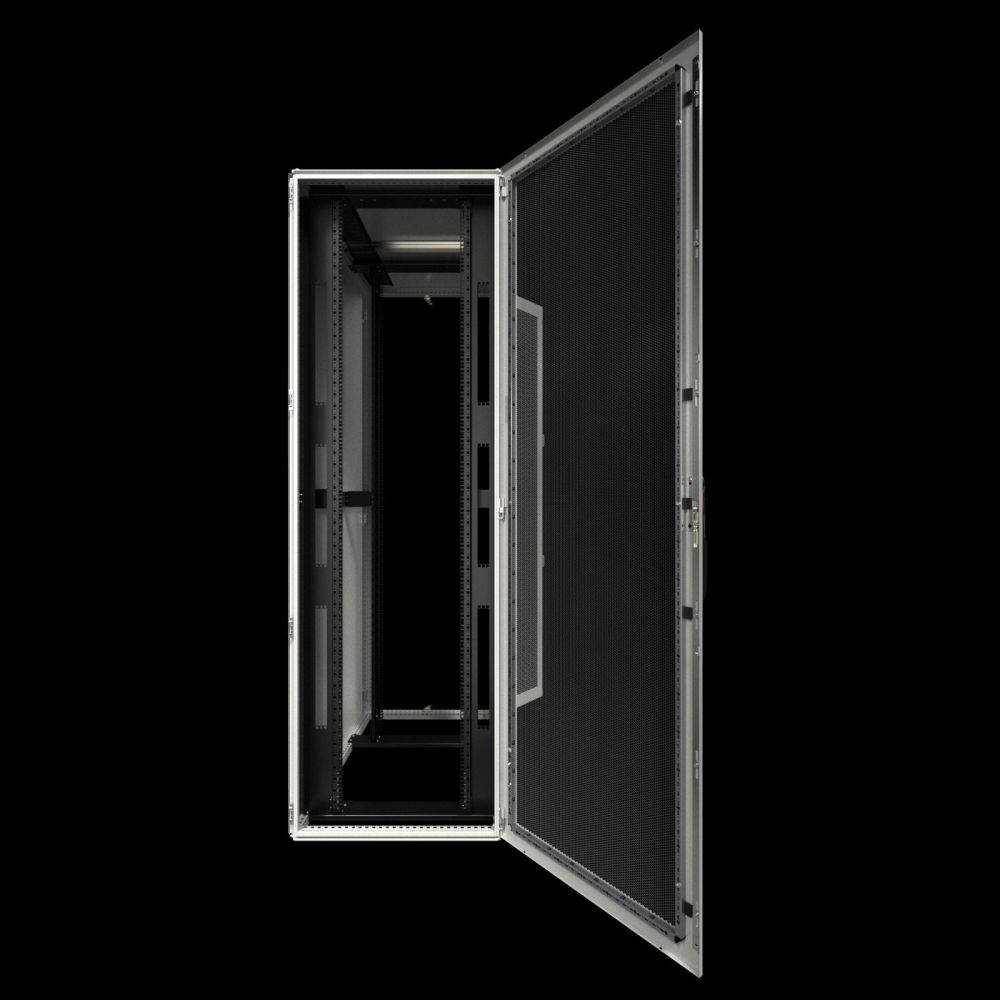

Scope of DeliveryThe rack is delivered with the following components: rack frame with doors and roof plate, ventilated sheet steel front door with 130° hinges, double-piece ventilated sheet steel rear door with 130° hinges, comfort handle VX with numeric code lock at front and rear, roof plate with cable entries on left and right, partition panel on the left side of the rack, 150 mm cable tray on the rear right side of the rack, 10 x cage nuts including screws, earthing accessories (delivered loose), profile rails (482.6 mm / 48,3 cm ( 19 inch )), air baffle plate, baying set (delivered loose).

General
ModelStandard
Market-relevant product changesFrom 01.09.2026, the TX Colocation Rack will feature new, optimised rear doors with significantly improved stability due to additional reinforcement elements and an optimised locking mechanism.
Materialsteel sheet
Surface protectionEnclosure frame: dip-primed, interior assembly: painted, doors and roof: dip-primed, powder-coated, ventilated door, sheet steel
Basic colourRAL 7035
ColourHousing frame and roof: RAL 7035, door: RAL 7035, handle and hinges: RAL 9005
Door material thickness1,2 mm
Width800 mm
Height2.200 mm
Depth1.200 mm
Height units47 HE
Layer spacing (as delivered)745 mm
Minimum distance between mounting planes115 mm
Maximum distance between mounting planes341 mm
19" mounting800 mm wide cabinet mounted on cross-braces
Roof typeRoof sheet, with cable entry along full cabinet depth on left and right
Door configurationVentilated doors

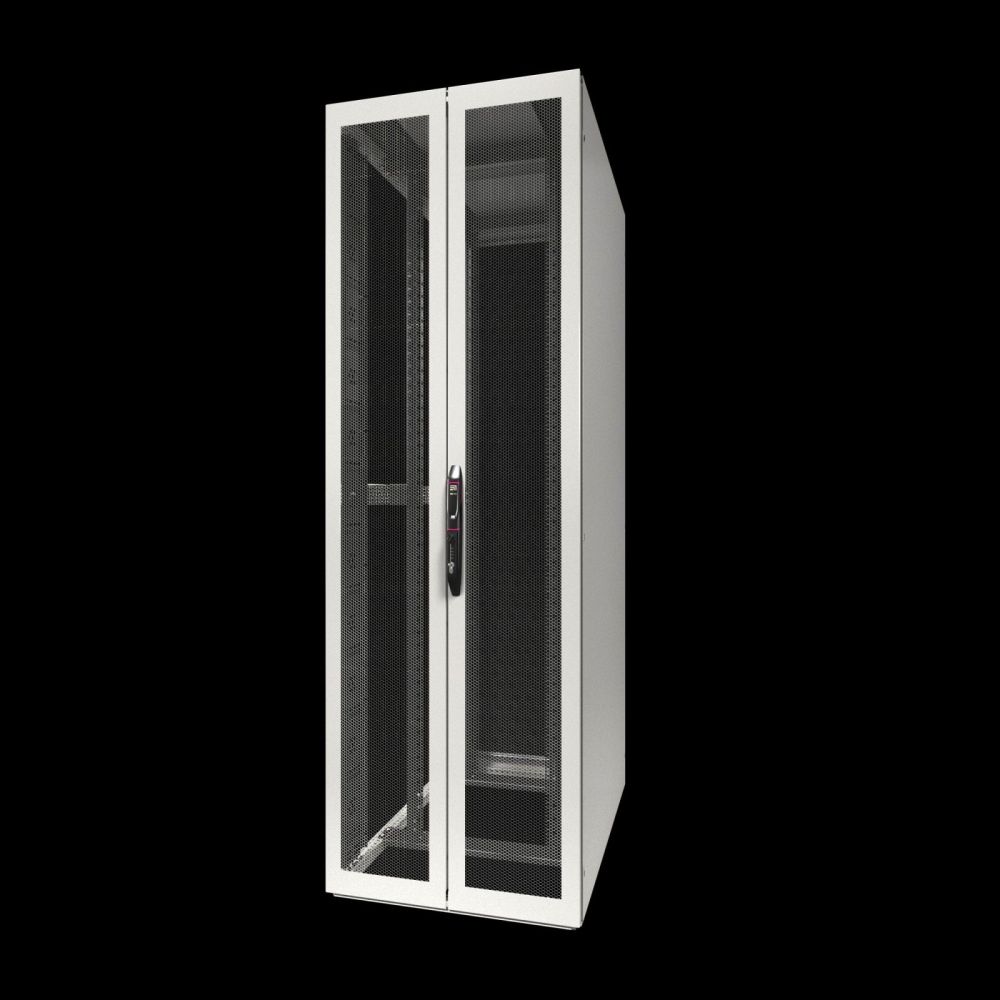

Door configuration rearSteel sheet door, ventilated, two-part, free area in perforated sheet metal section approx. 78 %
Front door configurationSteel sheet door, ventilated, aluminium-steel sheet door, ventilated, single-piece, free area in perforated sheet section approx. 78 %
Floor versionOpen
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
