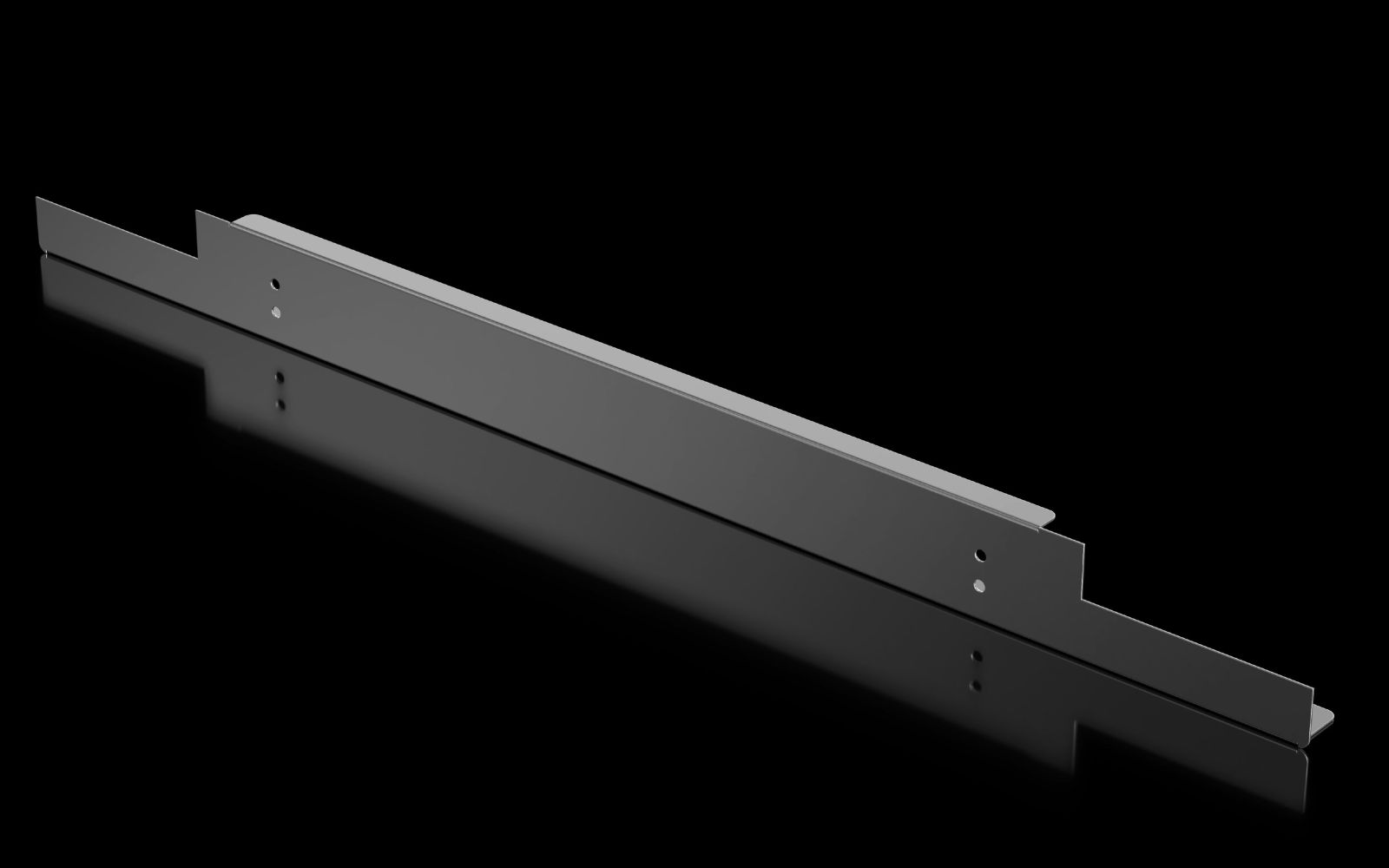

Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005

Your rating:
Average rating
product review for Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005
( 0 / 5 ) 0 ratings
Rittal 5501801
This image may differ from the desired article.
62,34 EUR 65,05 EUR
( 74,18 EUR incl. VAT )
≈ £52.18  |  ≈ $68.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005
Datasheet:file_download Download
Lieske Part No.:895155
Mfg Part No: 5501801
UPC/EAN: 4028177971677
Weight:0.123 kg
Type:TX 5501801

Product information for Rittal 5501801:

The Rittal TX 5501801 is a horizontal air baffle plate set, specifically developed for use in TX Colocation Rack enclosures with a width of 800 mm. It serves targeted airflow guidance within the enclosure and supports thermal optimization of device arrangement. The air baffle plates are made of sheet steel and feature a lacquered surface in the colour RAL 9005, ensuring high corrosion resistance and visual harmony with other Rittal products. The delivery scope includes two horizontal air baffle plates, one for the upper and one for the lower position in the rack, as well as the required mounting material.

Applications
The air baffle plates are intended for installation in TX Colocation Rack systems used in data centres, industrial control environments, or for IT infrastructure installations. They enable the creation of a continuous partitioning within the 48,3 cm ( 19 inch ) mounting area to control airflow within the enclosure. This is particularly important when multiple devices with different cooling requirements are operated in the same rack. The horizontal partitioning complements the vertical partitioning already included in the rack’s delivery scope at the front side, creating a closed airflow path that increases climate control efficiency.

Functions and Equipment in Detail
The air baffle plates are designed as horizontal partition plates that can be positioned in the upper and lower zones of the 48,3 cm ( 19 inch ) mounting area. They prevent uncontrolled airflow between individual device levels and ensure that cooling and heating air is directed precisely to the respective devices. The use of sheet steel ensures high mechanical stability and durability. The lacquered surface in RAL 9005 provides a uniform, dirt-repellent finish that integrates well visually into existing Rittal systems.

Technology Explained Simply
The air baffle plates work in conjunction with the rack’s vertical partitioning to create a closed airflow path. This ensures that air supplied by a climate control unit or fan is directed precisely to devices requiring cooling, while preventing warm air from rising from below and reducing cooling efficiency. The horizontal positioning of the plates ensures that airflow is not disturbed by the devices themselves, providing a clear path through the rack.

Compatibility and Accessories
The product is specifically designed for TX Colocation Rack systems with a width of 800 mm. It is not suitable for other enclosure types or widths. The air baffle plates complement the vertical partitioning already included in the rack and are thus an integral part of the airflow solution.

Installation and Mounting
Installation is carried out by securing the air baffle plates to the designated mounting points in the rack, in the upper and lower zones of the 48,3 cm ( 19 inch ) mounting area. The included mounting material enables simple and secure installation. No additional tools are required. Positioning is parallel to the front side of the rack to ensure optimal airflow.

Operational Advantages
Using the air baffle plates results in improved airflow within the enclosure, increasing the cooling performance of installed devices and reducing the risk of overheating. Targeted airflow also reduces the energy consumption of climate control, as air is not unnecessarily redirected or lost. The mechanical stability of the sheet steel ensures long service life, and the lacquered surface in RAL 9005 guarantees a clean, uniform appearance in the rack system.

General
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 air ducts horizontal, top and bottom, including mounting material
Suitable forHousing type: TX Colocation Rack, width: = 800 mm


Product data sheet
Datasheet for Rittal 5501801, EAN: 4028177971677

Questions & answers

What is the delivery time of Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005?

The article Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5501801 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005 always at the best possible price. We can give you a discount of 2% on Rittal 5501801 TX TX air baffle plate horizontal for TX Colo Rack RAL9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
