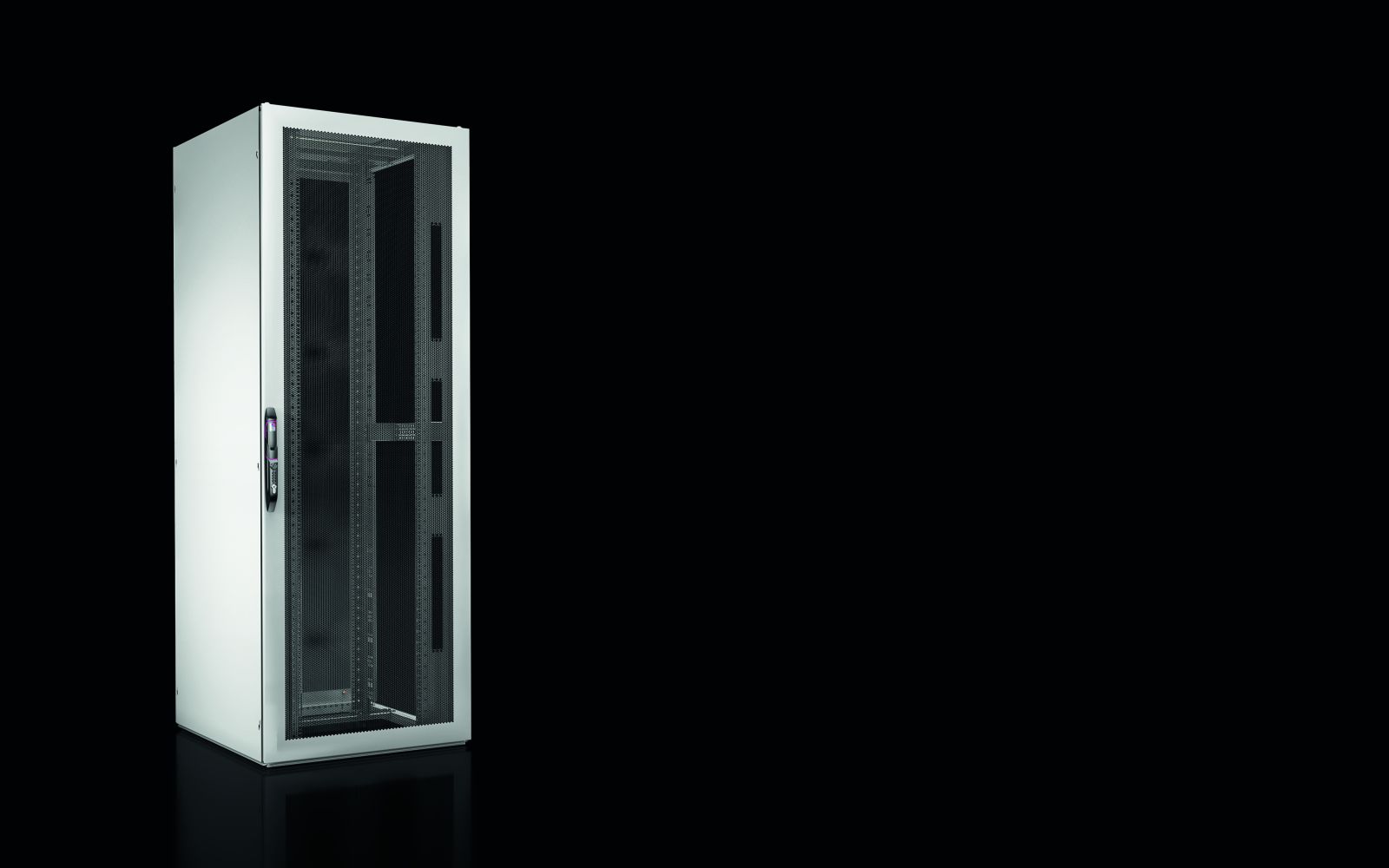

Rittal 5541245 TX Colocation Rack, 52 U, W x H x D: 800 x 2450 x 1200

Your rating:
Average rating
product review for Rittal 5541245 TX Colocation Rack, 52 U, W x H x D: 800 x 2450 x 1200
( 5 / 5 ) 1 ratings
Rittal 5541245
This image may differ from the desired article.
Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245Rittal 5541245
-8% 1.957,30 EUR 2.119,81 EUR
( 2.329,19 EUR incl. VAT )
≈ £1,638.26  |  ≈ $2,151.07
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 5541245 TX Colocation Rack, 52 U, W x H x D: 800 x 2450 x 1200
Datasheet:file_download Download
Lieske Part No.:603862
Mfg Part No: 5541245
UPC/EAN: 4028177971622
Weight:151 kg
Type:TX 5541245

Product information for Rittal 5541245:

The Rittal TX 5541245 is a server rack of the TX Colocation series, specifically designed for use in large data centres. It features a height of 52 U and dimensions of 800 mm width, 2450 mm height, and 1200 mm depth. The rack is made of sheet steel and is finished in the base colour RAL 7035, with doors, roof, and frame painted in this colour. The handles and hinges are finished in RAL 9005. The doors are ventilated, with the front door being single-piece and the rear door vertically divided. Both doors are fitted with 130° hinges, allowing for a wide opening angle. The ventilation area in the perforated sheet metal section is approximately 78 %, supporting efficient airflow. The door thickness is 1.2 mm. The surface of the rack frame is dip-primed, the interior assembly is painted, while doors and roof are dip-primed and powder-coated.

Applications

The TX 5541245 is designed for use in large data centres where central IT infrastructure is operated. The integrated airflow management via air baffle plates and a partition panel ensures optimal cooling of installed devices. The cable tray on the rear right side of the rack and the cable entry along the full rack depth on the left and right sides of the roof simplify cable routing and management. Room climate control is supported by the ventilated doors, ensuring efficient heat dissipation.

Functions and Equipment in Detail

The rack is equipped with a comfort handle VX including a numeric code lock on both front and rear sides, providing enhanced access protection. The profile rails are mounted in 48,3 cm ( 19 inch )-plane at the front and rear, enabling flexible installation of IT equipment. The mounting planes are arranged at intervals of at least 115 mm to a maximum of 341 mm, with the plane spacing in the delivered state being 745 mm. The load capacity of the rack is 15,000 N, ensuring high mechanical stability. The roof construction consists of a roof plate with integrated cable entry along the full depth on the left and right sides. The floor area is open.

Technology Explained Simply

The ventilated doors with a free area of approximately 78 % enable efficient air circulation, which is crucial for cooling IT systems. The integrated air baffle plates and the partition panel on the left side of the rack ensure orderly airflow, optimising cooling performance. The cable tray on the rear right side simplifies cabling and reduces the risk of cable entanglement. The 130° hinges on front and rear sides allow for a large opening angle, facilitating access to devices inside the rack. The dip-primed and powder-coated surface provides high corrosion resistance and even colour application.

Compatibility and Accessories

Various accessories are compatible with this rack, including the TX 5501801 air baffle plate horizontal in RAL9005, the TX 5502141 Colo PDU/cable tray 52 U in RAL9005, and side panels horizontally divided 52 U in RAL7035. Additional compatible components include VX sliding plates, VX IT floor plate module in various versions (ventilated, single-piece, double-piece, closed, with side cable routing), and the VX 5502503 floor mounting TS/TX T 1200 mm for VX floor plate module. These accessories support customisation of the rack to specific requirements.

Mounting and Installation

The rack is delivered as a pre-assembled IT rack, consisting of a torsionally stiff, welded frame structure made of rolled, 9-fold bent, closed hollow profiles. Mounting is performed via cross-braces, with profile rails mounted in 48,3 cm ( 19 inch )-plane at front and rear. The mounting planes are equipped with blind rivet nuts M6, enabling secure attachment of fittings in accordance with protection class requirements. Profile edges are rounded, and horizontal profiles feature an integrated groove above the PU foam seal to protect it.

Advantages in Operation

The TX 5541245 offers an immediately operational configuration tailored to the requirements of large data centres. The integrated air baffle plates, partition panel, and cable tray reduce installation time and improve maintainability. The ventilated doors and optimised airflow ensure efficient cooling, enhancing the operational reliability of IT systems. The maximum load capacity of 15,000 N guarantees long service life even under high mechanical loads. The numeric code locks on front and rear sides provide a high security standard. From 01.09.2026, rear doors will be equipped with additional reinforcement elements and an optimised locking mechanism, further improving stability.

Scope of Delivery

The rack is delivered with frame, doors, roof plate, partition panel, cable tray, air baffle plate, baying set, 10 cage nuts including screws, earthing accessories, and profile rails. Components are either pre-mounted or supplied loose. Batteries are not included in the scope of delivery.

General
ModelStandard
Market-relevant product changesFrom 01.09.2026, the TX Colocation Rack will feature new, optimised rear doors with significantly improved stability due to additional reinforcement elements and an optimised locking mechanism.
Materialsteel sheet
Surface protectionEnclosure frame: dip-primed, interior assembly: painted, doors and roof: dip-primed, powder-coated, ventilated door, sheet steel
Basic colourRAL 7035
ColourHousing frame and roof: RAL 7035, door: RAL 7035, handle and hinges: RAL 9005
Door material thickness1,2 mm
Width800 mm
Height2.450 mm
Depth1.200 mm
Height units52 HE
Layer spacing (as delivered)745 mm
Minimum distance between mounting planes115 mm
Maximum distance between mounting planes341 mm
19" mounting800 mm wide cabinet mounted on cross-braces
Roof typeRoof sheet, with cable entry along full cabinet depth on left and right
Door configurationVentilated doors
Door configuration rearSteel sheet door, ventilated, two-part, free area in perforated sheet metal section approx. 78 %
Front door configurationSteel sheet door, ventilated, aluminium-steel sheet door, ventilated, single-piece, free area in perforated sheet section approx. 78 %
Floor versionOpen
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
