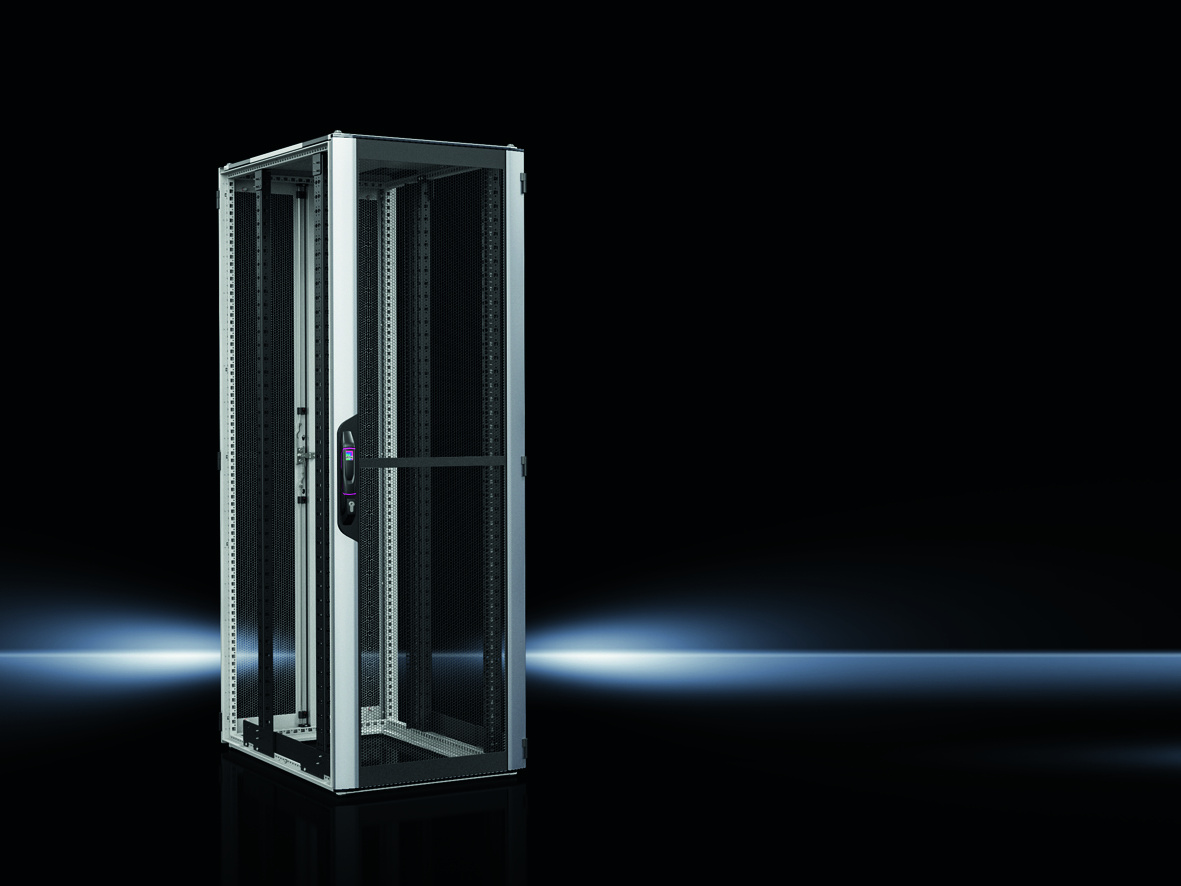

Rittal 5311816 Server rack VX IT ventilated 800x2000x1200 mm 42 U

Your rating:
Average rating
product review for Rittal 5311816 Server rack VX IT ventilated 800x2000x1200 mm 42 U
( 4.7 / 5 ) 3 ratings
Rittal 5311816
This image may differ from the desired article.
Rittal 5311816Rittal 5311816Rittal 5311816Rittal 5311816Rittal 5311816Rittal 5311816Rittal 5311816
1.605,29 EUR
( 1.910,30 EUR incl. VAT )
≈ £1,343.63  |  ≈ $1,764.21
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 5311816 Server rack VX IT ventilated 800x2000x1200 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775817
Mfg Part No: 5311816
UPC/EAN: 4028177945234
Weight:112.2 kg
Type:VX 5311816

Product information for Rittal 5311816:

The Rittal VX 5311816 is a network/server rack of the VX IT series in the dynamic configuration, designed for use in IT infrastructures with room climate control. The enclosure has dimensions of 800 mm width, 2,000 mm height, and 1,200 mm depth, and provides space for 42 height units (HE). It is designed for mounting 48,3 cm ( 19 inch ) devices, with the 48,3 cm ( 19 inch ) mounting plane integrated both front and rear. The 48,3 cm ( 19 inch ) profile rails in the dynamic configuration are depth-variable and screwed to the depth rails at the top and bottom. The spacing between mounting levels is 725 mm in the delivered state, with a mounting clearance of 150 mm in front and 325 mm at the rear relative to the 48,3 cm ( 19 inch ) mounting plane.

Applications
This rack is suitable for use in data centers, server rooms, and IT infrastructures where a ventilated design is required for heat dissipation and integration into room climate control systems. The open floor construction allows for flexible cable routing and the installation of floor plates or other floor elements. The multi-part roof construction with lateral cable entry at the depth and preparation for a fan plate supports the integration of fan modules and organized cable routing.

Functions and Equipment in Detail
The front door is made of aluminium (1.25 mm) and steel sheet, ventilated, and single-piece. The ventilation area is approximately 85% of the perforated sheet portion. The door opens 180° and is equipped with a comfort handle for half cylinder and a safety lock 3524 E. The rear door is made of steel sheet (1.5 mm), also ventilated, vertically divided, and fitted with 180° hinges. The ventilation area is also approximately 85%. The surface of the rack frame is dip-primed, the interior build is painted, the rear door and roof are dip-primed and powder-coated. The front door is anodized/painted. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door is vertically silver and horizontally RAL 9005. The interior build, front ventilation grille, handle, and hinges are also in RAL 9005.

Technology Explained Simply
The dynamic profile rails allow flexible adjustment of device mounting to accommodate different depths of installed equipment. The depth-variable rails are mounted on the depth rails and can be positioned as needed. The rack's load capacity is 18,000 N, with a maximum static load capacity per rack according to UL 2416 of 15,000 N. The construction from steel sheet and aluminium ensures high stability and torsional stiffness. The rack frame consists of closed hollow profiles, welded and symmetrically arranged, achieving high mechanical strength. Integrated blind rivet nuts M6 allow secure attachment of fittings to the profile without compromising the protection rating.

Compatibility and Accessories
The rack is compatible with various accessories that extend its functionality. These include, for example, cable management panels in 1 HE and 2 HE, slide rails for 1 HE, connection cables for PSM systems, power busbar 2-way 3-phase 16 A, cable managers, system lights, and cable ties. The delivery includes 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE, contact-type, as well as 25 internal hexagon socket screws, conductive, and spacers for raising a roof plate above the fan opening in the roof plate. These components support passive ventilation and correct device mounting.

Mounting and Installation
Mounting is done by screwing to the depth rails at the top and bottom. The open floor construction allows flexible installation, with the mounting height of the 48,3 cm ( 19 inch ) plane provided both front and rear. The lateral cable entry in the roof enables organized cable routing. The door opening angles may vary depending on the type and location of installation and should be considered during installation planning.

Operational Advantages
The ventilated construction with high ventilation area (approx. 85%) supports heat dissipation and integration into room climate control systems. The 180° hinges allow full door opening, facilitating access to installed devices. The dynamic profile rails offer flexibility for mounting various devices with different depths. The robust construction from steel sheet and aluminium ensures long service life and high load capacity. The integrated blind rivet nuts M6 simplify the attachment of additional components without compromising the protection rating.

The PCF value (Cradle-to-Gate) is 275.9 kg CO2 eq (Category B), calculated approximately based on product weight and self-declared. The packaging unit is 1 piece, net weight 110 kg, gross weight 112.2 kg. The tariff code is 94032080. The rack construction is UL + C-UL (listed) certified.

General
MaterialSheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourHousing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005
Width800 mm
Height2.000 mm
Depth1.200 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 325 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)725 mm
19" mountingScrewed to top and bottom depth brace
ModelDynamic
Roof typeMulti-part, with lateral cable entry in depth, on both sides, prepared for fan panel
Door configuration rearSteel sheet door, ventilated, vertically divided, 180° hinges
Front door configurationAluminium-steel sheet door, ventilated, single-piece, 180° hinges
Profile rail version19"-profile rails dynamic in VX IT
Floor versionOpen
19" rack configuration19"-level front and rear
Mounting type for profile rail19"-level front and rear
Load capacity18.000 N
Max. load capacity (static) according to UL 2416 per cabinet15.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)275.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5311816, EAN: 4028177945234
