Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005

Your rating:
Average rating
product review for Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005
( 5 / 5 ) 1 ratings
Rittal 5302043
This image may differ from the desired article.
Rittal 5302043Rittal 5302043Rittal 5302043Rittal 5302043
61,64 EUR
( 73,35 EUR incl. VAT )
≈ £51.59  |  ≈ $67.74
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1989423
Mfg Part No: 5302043
UPC/EAN: 4028177952683
Weight:1.94 kg
Type:DK 5302043

Product information for Rittal 5302043:

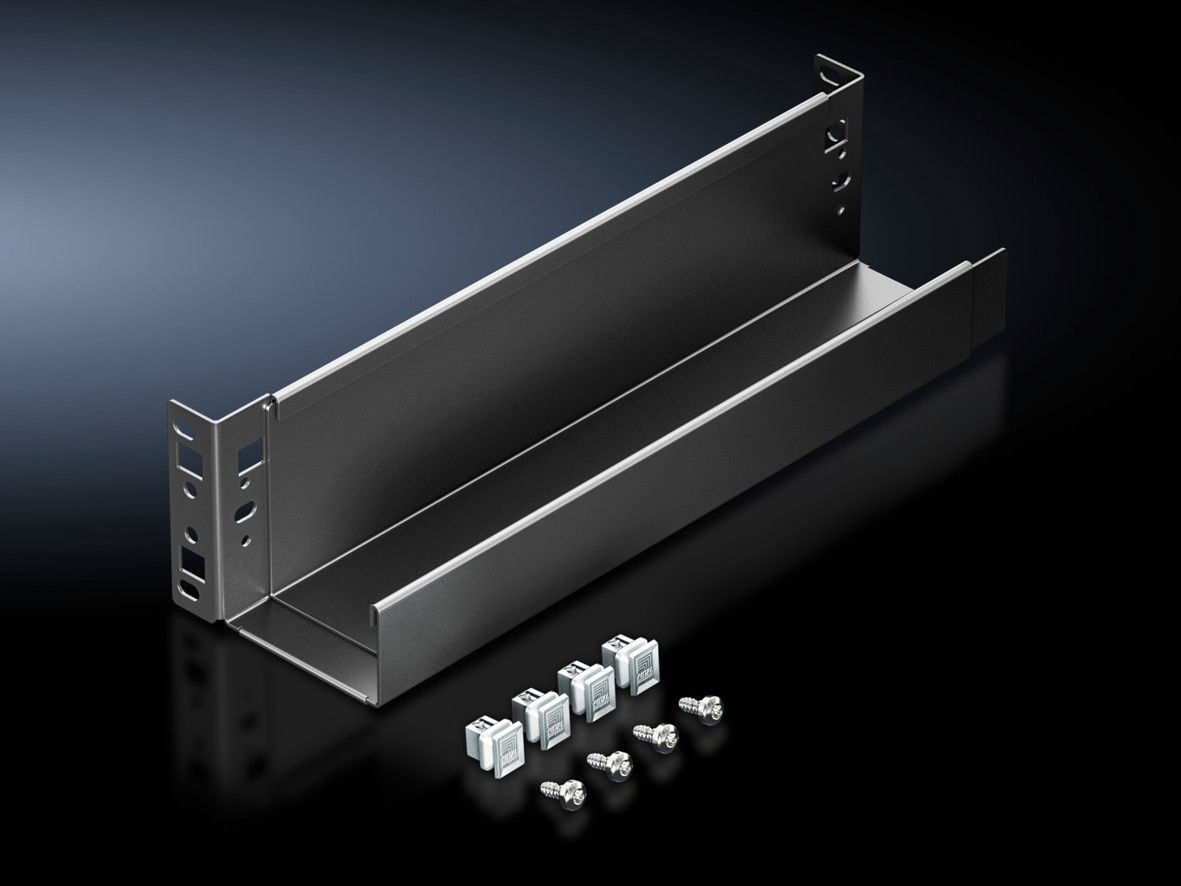

The Rittal IT cable duct, type DK 5302043, is a depth-variable system accessory made of sheet steel, specifically developed for protected cable routing between front- and rear-side mounting areas in enclosures. The product is painted in RAL 9005 and offers a length of 550 mm with a variable depth of 350 to 550 mm. It is intended for use in systems with profile rail systems VX IT Standard, TX CableNet, and TS IT, with the installation position in the 48,3 cm ( 19 inch )-plane located between 510 mm and 710 mm. With alternative mounting, positioning between 415 mm and 615 mm is possible. The material is galvanized sheet steel, providing high mechanical stability and corrosion resistance. The surface is painted, ensuring additional protection against environmental influences.

Applications

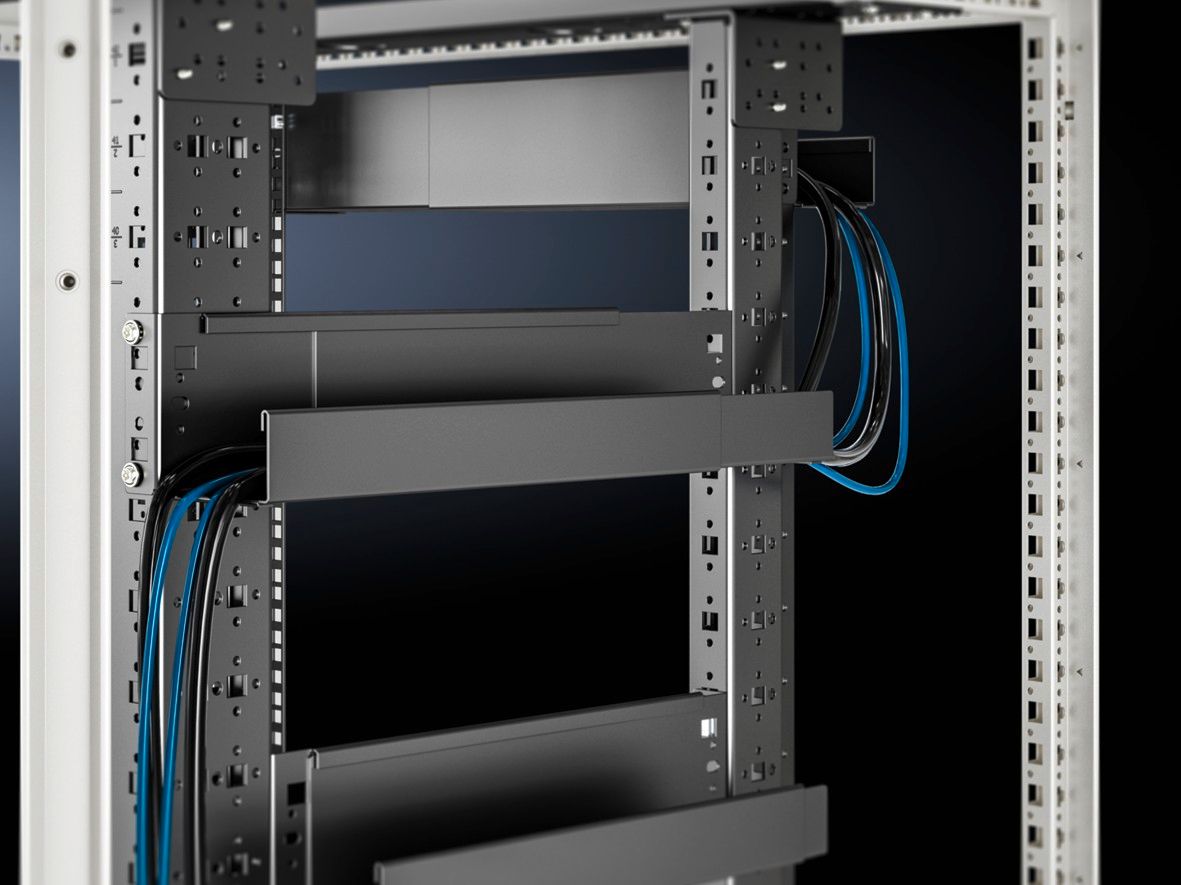

The cable duct serves structured and protected routing of cables and lines within enclosures, particularly in IT and telecommunications installations. It enables clear separation between the front and rear sides of the enclosure, keeping cable routing organized and facilitating maintenance and installation of devices. The depth-variable construction adapts to different enclosure depths, supporting flexible mounting in various enclosure configurations.

Functions and Equipment in Detail
The product includes mounting hardware in the delivery scope, enabling direct mounting on the specified profile rail systems. The cable duct is designed for use in enclosures employing the VX IT Standard, TX CableNet, or TS IT system. Mounting takes place at designated positions in the 48,3 cm ( 19 inch )-plane, with exact dimensions specified according to system variant. The depth-variable design allows adaptation to different enclosure depths, enabling flexible use in various application scenarios.

Technology Explained Simply
The cable duct is made of galvanized sheet steel, offering high strength and durability. The RAL 9005 paint finish ensures uniform surface quality and high protection against external influences. The depth-variable construction allows adaptation to enclosure depths from 350 to 550 mm, enabling use in various enclosure sizes. Mounting is achieved via integrated fastening elements on the profile rail systems, ensuring stable and secure attachment.

Compatibility and Accessories
The cable duct is compatible with profile rail systems VX IT Standard, TX CableNet, and TS IT. These systems are widely used in industry and enable standardized mounting of devices and accessories. The duct can be used in enclosures employing these systems and adapts to the respective mounting positions.

Mounting and Installation
Mounting takes place at designated positions in the 48,3 cm ( 19 inch )-plane, with exact dimensions specified according to system variant. The included mounting hardware enables simple and secure fastening to the profile rail systems. The depth-variable construction allows adaptation to different enclosure depths, enabling flexible use in various application scenarios. Mounting requires no additional tools, as the fastening elements are directly attached to the rails.

Operational Advantages
The cable duct provides structured and protected cable routing, facilitating maintenance and installation of devices. The depth-variable design enables flexible adaptation to different enclosure depths, allowing use in various application scenarios. The use of galvanized sheet steel and painted surface ensures high mechanical stability and corrosion resistance, extending the product’s service life. Integrated fastening elements enable simple and secure mounting on profile rail systems, making installation time-saving and efficient.

General
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Mounting optionsVX IT Standard profile rail system, TX CableNet profile rail system, TS IT profile rail system
Mounting position 19" rackVX IT Standard: min. 510 - max. 710 mm, with alternative mounting 415 - 615 mm, TX CableNet: min. 510 - max. 710 mm, with alternative mounting 415 - 615 mm, TS IT: min. 510 - max. 710 mm, with alternative mounting 415 - 615 mm
Length350: 550 mm
PCF/VE (Cradle-to-Gate)7.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302043, EAN: 4028177952683

Questions & answers

What is the delivery time of Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005?

The article Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302043 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 5302043 IT cable duct, depth adjustable, 350–550 mm, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
