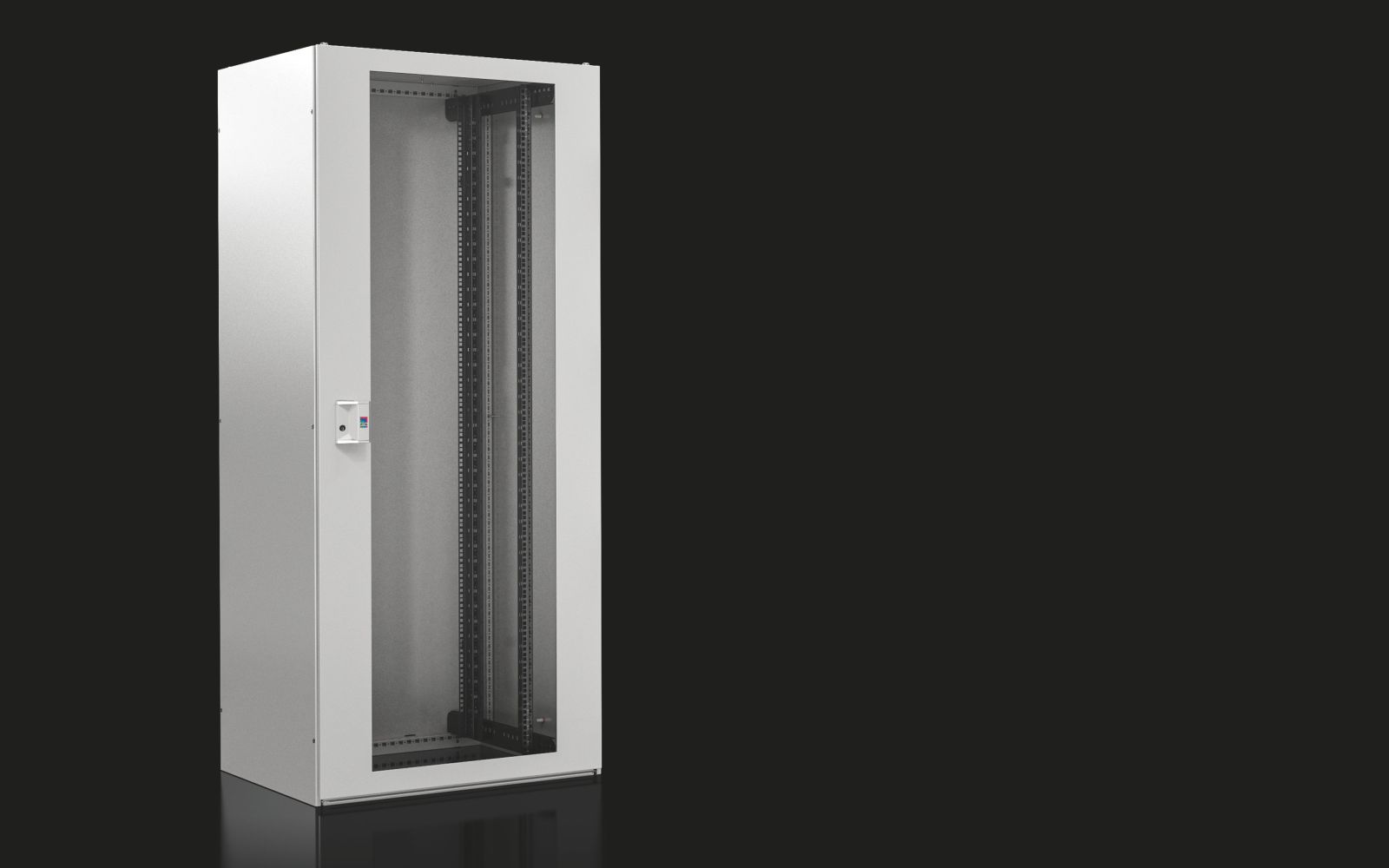

Rittal 7888828 Network enclosure TX 800x2000x800 mm 42 U viewing door

Your rating:
Average rating
product review for Rittal 7888828 Network enclosure TX 800x2000x800 mm 42 U viewing door
( 4.5 / 5 ) 2 ratings
Rittal 7888828
This image may differ from the desired article.
Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828Rittal 7888828
-15% 674,14 EUR 789,36 EUR
( 802,23 EUR incl. VAT )
≈ £564.26  |  ≈ $740.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7888828 Network enclosure TX 800x2000x800 mm 42 U viewing door
Datasheet:file_download Download
Lieske Part No.:1103924
Mfg Part No: 7888828
UPC/EAN: 4028177994683
Weight:126.5 kg
Type:TX 7888828

Product information for Rittal 7888828:

The Rittal network cabinet TX 7888828 is an IT rack of the 2nd generation, designed for housing network and IT components in confined spaces, low ceiling heights, or hard-to-reach areas. The enclosure features a front viewing door with single-pane safety glass (3 mm) and a single-piece, solid steel door at the rear. The side panels are screwed, enabling quick access to the interior. The roof plate is also screwed and provides a double-sided, concealed cable entry across the entire cabinet depth, as well as a central, concealed opening for integrating a fan module. Dimensions are 800 mm width, 2000 mm height, and 800 mm depth, corresponding to a mounting height of 42 HE. The mounting pitch is 445 mm in the delivered state.

Applications
This cabinet is suitable for use in smaller IT network infrastructures where space optimization and individual interior configuration are prioritized. Its compact design without excessive width or depth allows for efficient use of available space. The construction is particularly advantageous when only small electrical components are installed, as no mounting units remain unused.

Functions and Equipment in Detail
The enclosure is made of steel sheet, with the door and side panels having a sheet thickness of 1.2 mm. The 19“ profile rails are made of 2 mm thick steel sheet. The cabinet frame surface is dip-primed, while flat parts are dip-primed and powder-coated in RAL 7035. The front and rear 19“ profile rails are adjustable both in depth and width, enabling individual, even asymmetric, interior configuration. The frame profiles feature an integrated system hole pattern with a 25 mm hole spacing, allowing easy component mounting.

Technology Explained Simply
The screwed side panels and roof plate allow quick access to the interior without tools. The double-sided, concealed cable entry in the roof plate ensures orderly cabling and minimizes visible cables inside the cabinet. The static load capacity is 500 kg, and the operational load capacity is 5000 N.

Compatibility and Accessories
The cabinet is compatible with a comprehensive accessory program, including slide rails, routing panels, cable ladders, levelling feet, component shelves, and cable ducts. These components enable individual interior outfitting and adaptation to specific requirements.

Mounting and Installation
Mounting is achieved via a torsion-resistant, welded frame structure made of rolled and 16-fold flanged vertical profiles, connected with a horizontal frame at the bottom and horizontal cross profiles. The cabinets can be bayed front, rear, and side. The door opening angle during baying is maximum 105°. The base frame is open, without base plates, and can optionally be equipped with base modules from the accessory program.

Operational Advantages
The cabinet offers optimal space utilization through its compact design and flexible interior outfitting. The adjustable 19“ profile rails and comprehensive accessory program allow individual adaptation to various requirements. The screwed side panels and roof plate facilitate access and maintenance. The protection rating IP 20 ensures protection against finger contact and against solid foreign objects, but not against splashing water or dust. The surface coating of dip-primed and powder-coated steel sheet provides high corrosion resistance and visual quality.

Protection Rating and Material
The protection rating IP 20 according to EN 60 529 protects against finger contact and against entry of solid foreign objects with a diameter of at least 12.5 mm. The enclosure is made of steel sheet, with the door and side panels having a sheet thickness of 1.2 mm and the 19“ profile rails 2 mm. The surface is dip-primed and powder-coated in RAL 7035.

Accessories and Expansion Options
Compatible accessories include VX plinth corner pieces, routing panels, slide rails, levelling feet, component shelves, cable ladders, cable ducts, brush kit for TX CableNet, and blank panels. These components enable flexible and individual cabinet outfitting.

Scope of Delivery
The scope of delivery includes the enclosure with front viewing door and rear solid door, side panels, and a screwed roof plate with double-sided, concealed cable entry across the entire cabinet depth and a central, concealed opening for integrating a fan module. The 19“ profile rails are already integrated into the enclosure.

General
Model2nd generation, with sight door, with side walls, with roof sheet
MaterialEnclosure: sheet steel, door: sheet steel, 1.2 mm, side wall: sheet steel, 1.2 mm, 19“-profile rails: sheet steel, 2 mm, side wall: sheet steel, 1.2 mm
Surface protectionCabinet frame: dip-primed, flat parts: dip-primed, powder-coated
Basic colourRAL 7035
ColourRAL 7035
Scope of deliveryCabinet with front vision door and rear door, side walls, bolted roof sheet with double-sided concealed cable entry along the entire cabinet depth, and central concealed opening for easy integration of a fan module.
Width800 mm
Height2.000 mm
Depth800 mm
Height units42 HE
Layer spacing (as delivered)445 mm
Door configuration rearSheet steel door, single-piece closed
Front door configurationVision door, single-piece, with single-pane safety glass 3 mm, door opening angle in rowing max. 105°
Load capacity5000 N
Load capacity (static)500 kg
Degree of protection IP according to EN 60 529IP 20
NoteFor installation of a fan module, brush strips are required for equipping the cable passage openings, if these are used or the cover plates have been removed. Brush strips for covering the cable entry are available separately and can be conveniently ordered through our accessory range.
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 7888828, EAN: 4028177994683
