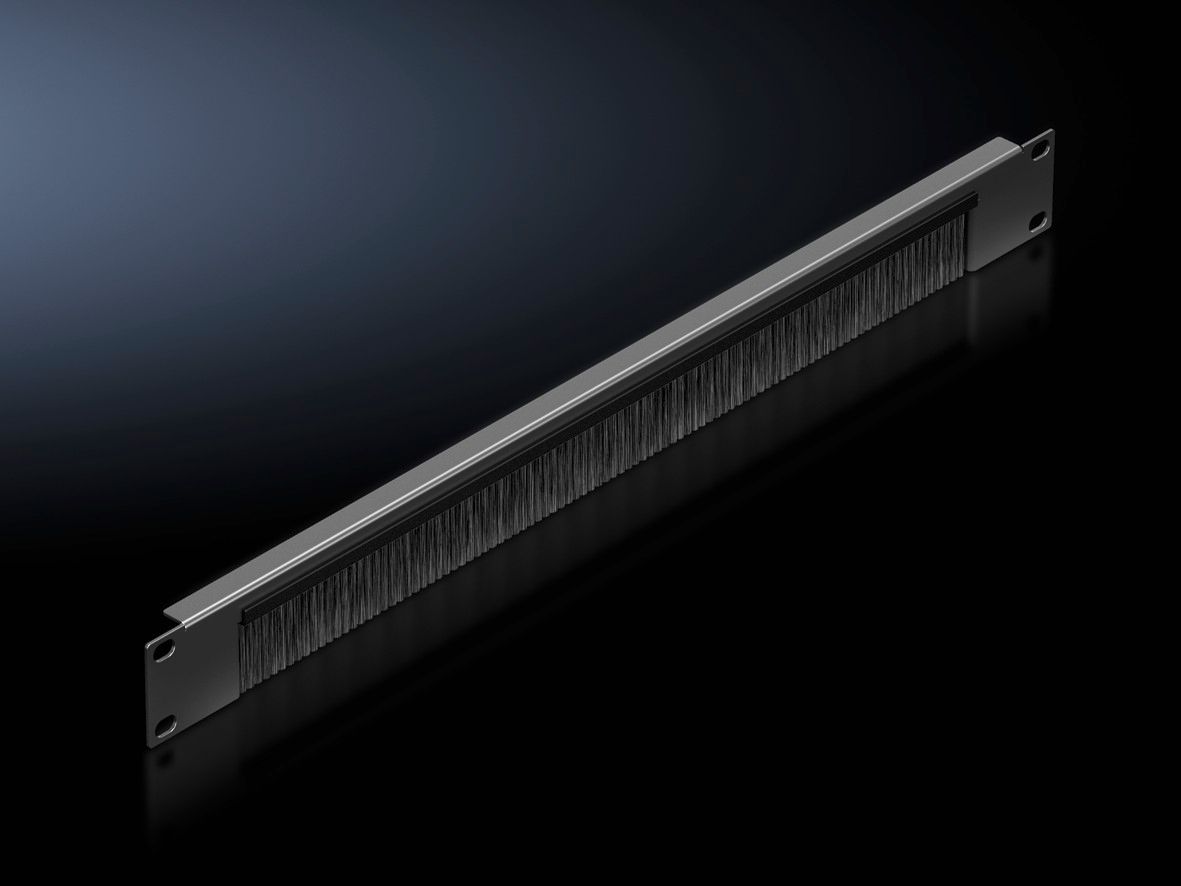

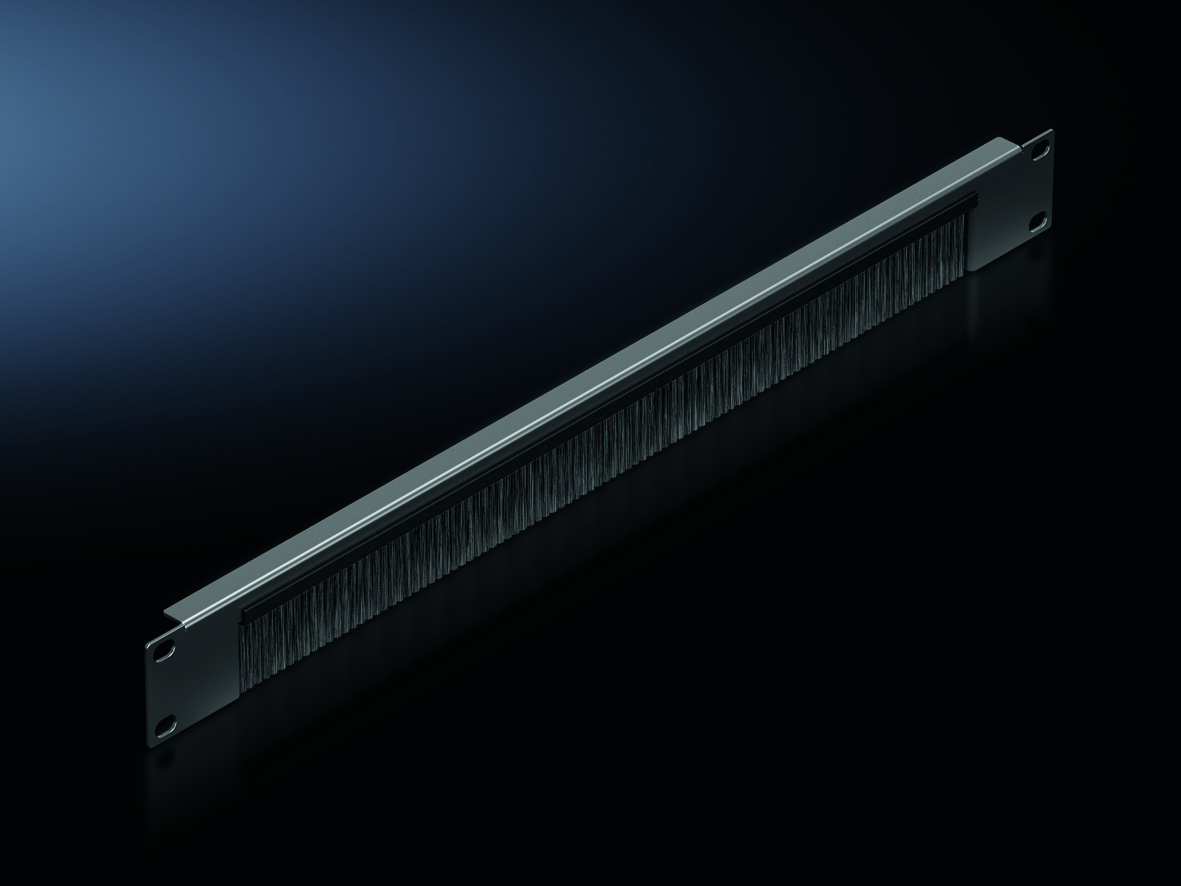

Rittal 5302202 Cable entry panel IT 48,3 cm ( 19 inch ) 1 U
|
29,13 EUR |
|
|
( 34,66 EUR incl. VAT ) ≈ £24.38 | ≈ $32.01 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1864881 |
| Mfg Part No: | 5302202 |
| UPC/EAN: | 4028177952874 |
| Weight: | 0.243 kg |
| Type: | DK 5302202 |
Product information for Rittal 5302202:
Applications
This panel is specifically designed for mounting areas in the 48,3 cm ( 19 inch ) standard where structured and secure cable routing is required. It is commonly used in enclosures, server racks, or other IT and electrical installations to route cables in an organized and protected manner through a mounting plane. Its use is particularly suitable in environments where a clean and functional separation between the front and rear of the cabinet is necessary.
Functions and Features in Detail
The panel is made of sheet steel and features a lacquered surface in the color RAL 9005, ensuring high corrosion resistance and an attractive visual appearance. The integrated brush strip made of plastic (UL 94-HB, halogen-free) provides a tight seal for the mounting cutout. The fibers of the brush strip are made of plastic PA6, also halogen-free, and are embedded in a mounting housing made of PVC (halogen-containing). The mounting cutout has a width of 390 mm and a height of 30 mm, corresponding to the standard size for 1 U.
Technology Explained Simply
The brush strip serves as a mechanical and partially also electrostatic shielding. It prevents dust, moisture, or small particles from entering the cabinet area, while allowing cables to pass through easily. The materials are selected to provide high mechanical stability and resistance to wear. The lacquering of the sheet steel protects against corrosion and ensures a long service life for the panel.
Compatibility and Accessories
The panel is designed for use in the 48,3 cm ( 19 inch ) standard and fits standard mounting spacings. To increase the cable routing opening, two panels can be combined, thereby increasing the cutout height to 60 mm (when two opposing panels are used). This allows flexible adaptation to different cable quantities and diameters. The combination is achieved by simple mounting on opposite sides of the mounting plane.
Mounting and Installation

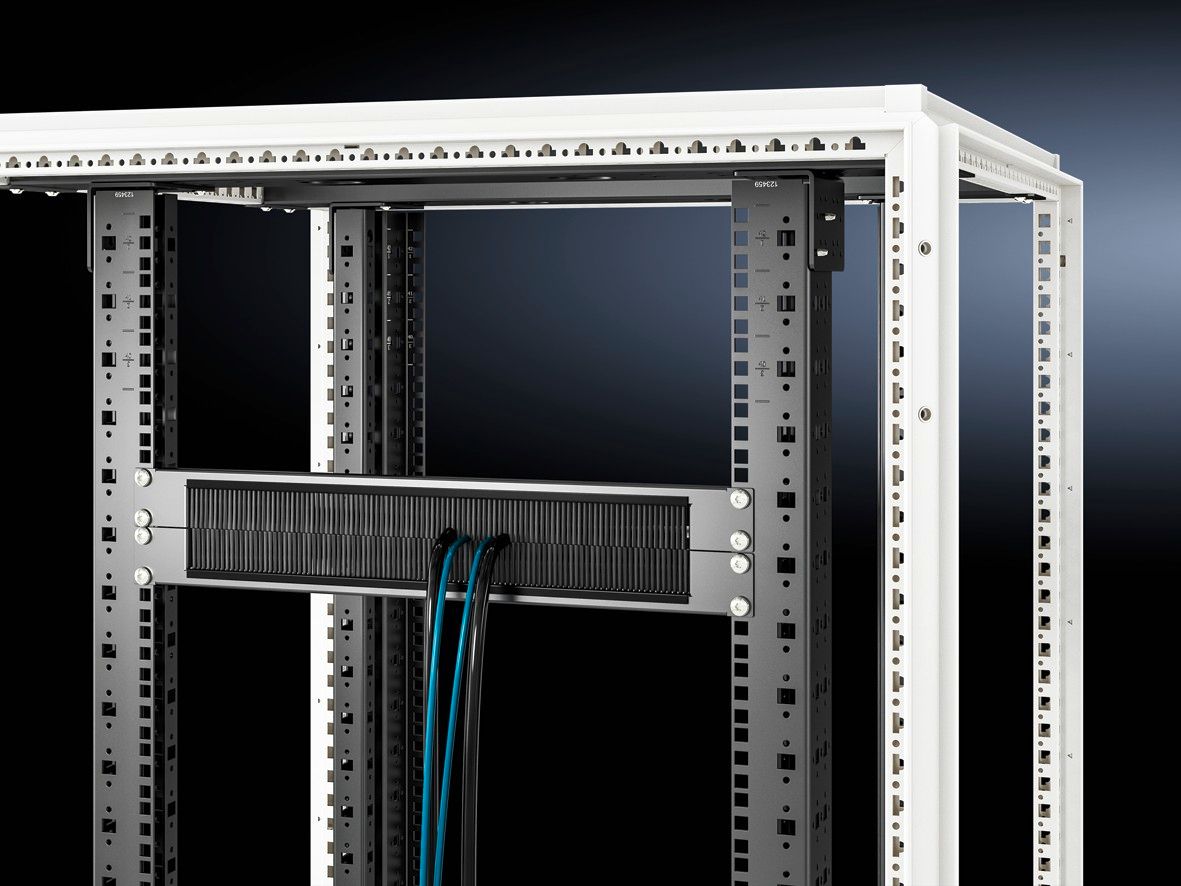

Mounting is done directly into the designated mounting plane of an enclosure or rack. The panel is inserted into the designated opening and secured using the integrated fastening elements. The brush strip ensures a tight fit without requiring additional seals or adhesives. Installation is quick and does not require special tools.
Operational Advantages
The panel provides a reliable and clean solution for cable routing in 48,3 cm ( 19 inch ) installations. The integrated brush strip ensures effective sealing, protecting internal spaces from contamination. The use of halogen-free materials for the brush strip and its fibers reduces fire risk and the formation of toxic gases in case of fire. The combinability with additional panels increases flexibility in planning cable routes.
| General | |
| Applications | For closing and simultaneous cable routing in mounting areas in 1 HE, 482.6 mm (19") mounting standard |
| Material | Sheet steel, brush bar: plastic, UL 94-HB, halogen-free, fibres brush bar: plastic PA6, halogen-free, brush bar mounting body: plastic PVC, halogen-containing |
| Surface protection | Painted |
| Colour | RAL 9005 |
| Mounting cutout | Width: 390 mm, height: 30 mm |
| Width | 482,6 mm |
| Height units | 1 HE |
| PCF/VE (Cradle-to-Gate) | 0.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5302202 Cable entry panel IT 48,3 cm ( 19 inch ) 1 U ?
The article Rittal 5302202 Cable entry panel IT 48,3 cm ( 19 inch ) 1 U is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302202 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5302202 Cable entry panel IT 48,3 cm ( 19 inch ) 1 U always at the best possible price. We can give you a discount of 2% on Rittal 5302202 Cable entry panel IT 48,3 cm ( 19 inch ) 1 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
