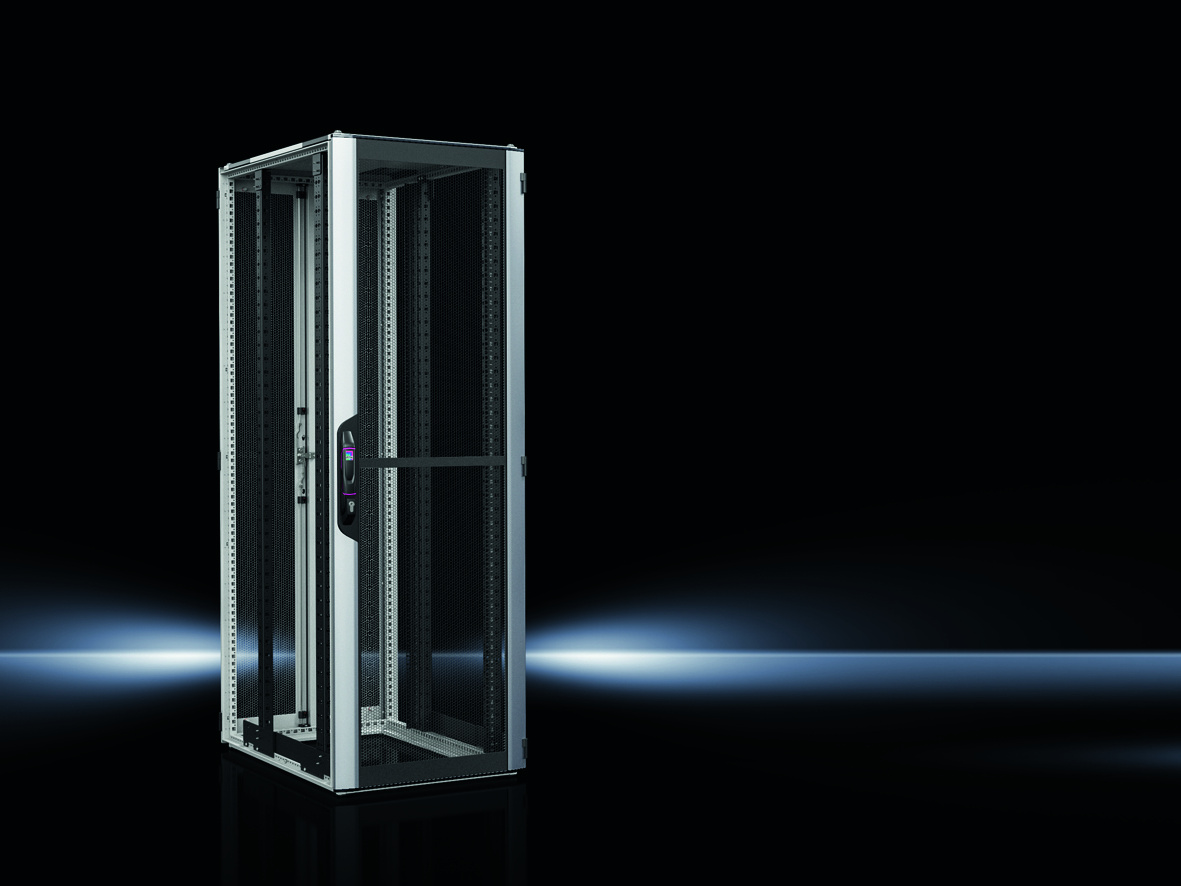

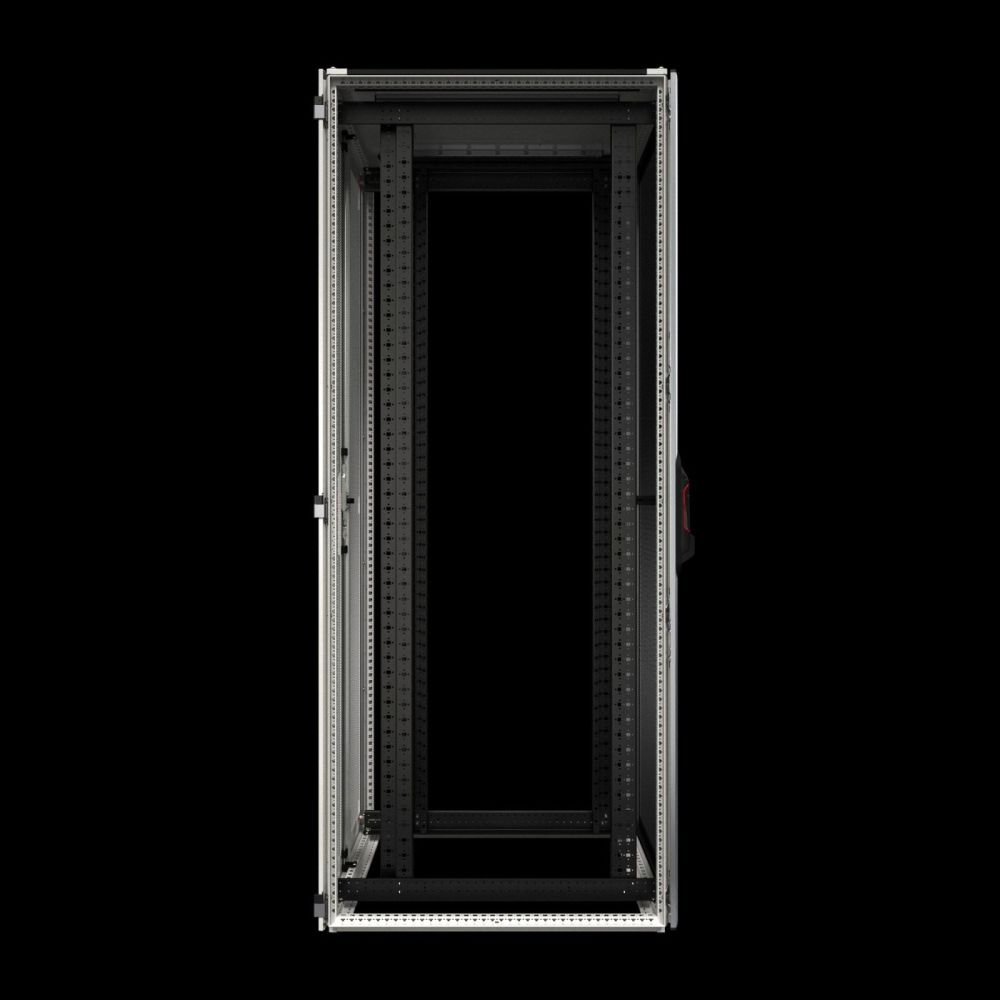

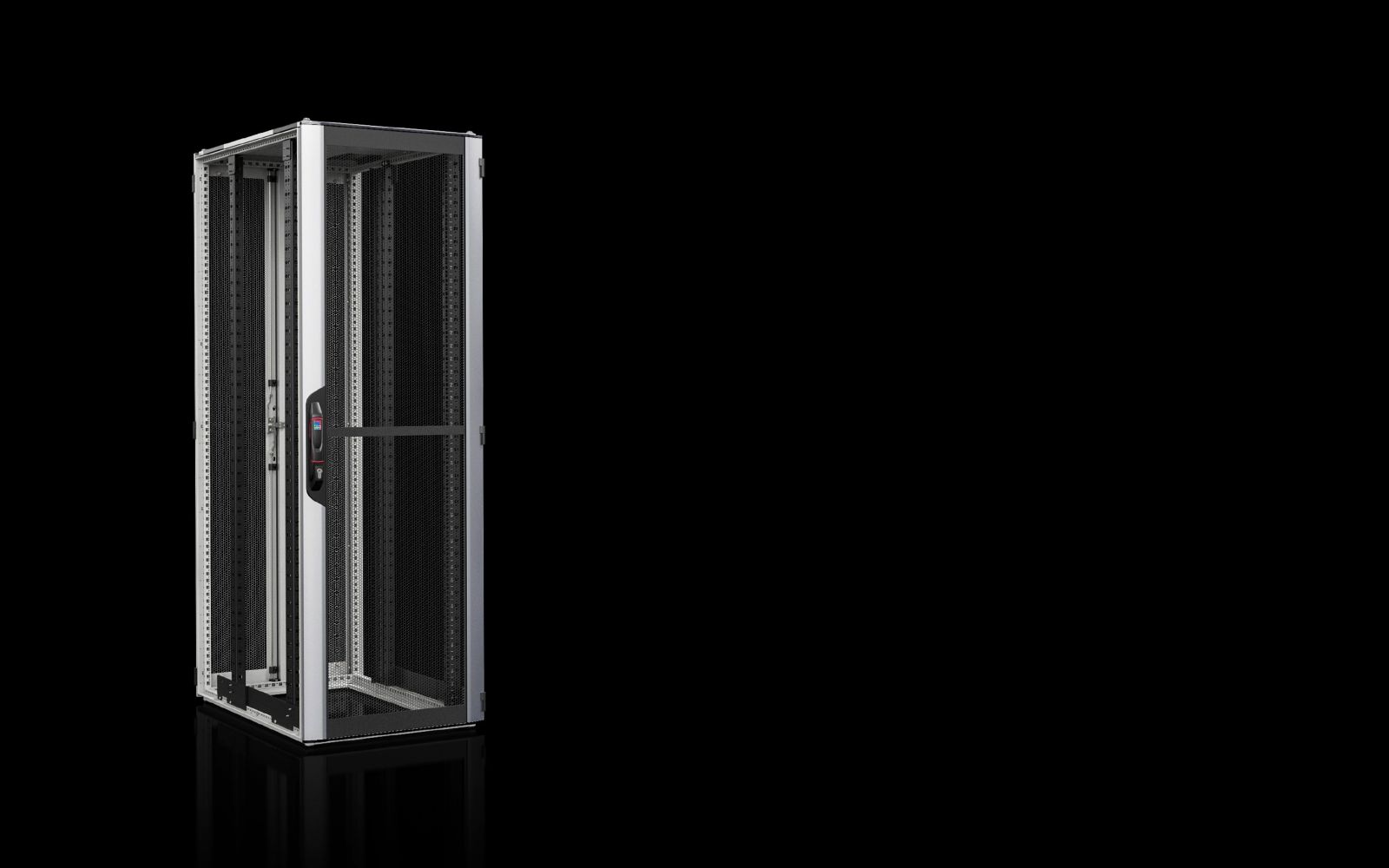

Rittal 5335816 Server rack VX IT ventilated 800x2450x1000 mm 52 U

Your rating:
Average rating
product review for Rittal 5335816 Server rack VX IT ventilated 800x2450x1000 mm 52 U
( 5 / 5 ) 1 ratings
Rittal 5335816
This image may differ from the desired article.
Rittal 5335816Rittal 5335816Rittal 5335816Rittal 5335816Rittal 5335816Rittal 5335816
1.883,01 EUR
( 2.240,78 EUR incl. VAT )
≈ £1,576.08  |  ≈ $2,069.43
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 5335816 Server rack VX IT ventilated 800x2450x1000 mm 52 U
Datasheet:file_download Download
Lieske Part No.:1295053
Mfg Part No: 5335816
UPC/EAN: 4028177945647
Weight:119 kg
Type:VX 5335816

Product information for Rittal 5335816:

The Rittal VX IT network/server rack, type 5335816, is a network/server rack in the dynamic configuration, designed for use in IT infrastructures with high requirements for ventilation, mounting flexibility, and mechanical stability. The enclosure has dimensions of 800 mm width, 2,450 mm height, and 1,000 mm depth, offering an expansion length of 52 height units (HE). The 48,3 cm ( 19 inch )-plane is integrated both front and rear, enabling flexible mounting of devices on both sides of the rack. The plane spacing is 700 mm in the standard delivery state, with mounting at the depth rails secured at top and bottom. The profile rails are configured in the dynamic version, allowing depth-variable mounting. The load capacity of the rack is 18,000 N, with the maximum static load capacity according to UL 2416 per rack being 15,000 N.

Applications
The rack is designed for use in data centers, server rooms, and other IT environments where efficient ventilation and room climate control are required. The ventilated doors with approximately 85 % free area in the perforated metal section support air circulation and contribute to heat dissipation. The dynamic configuration enables adaptable mounting for different device heights and depths, making it particularly suitable for heterogeneous IT systems. The multi-part roof construction with side cable entry at depth and preparation for a fan plate supports integration of cooling and ventilation systems.

Functions and Equipment in DetailThe front door consists of aluminum (1.25 mm) and sheet steel, is ventilated, single-piece, and equipped with 180° hinges. The rear door is made of sheet steel (1.5 mm), also ventilated, vertically divided, and fitted with 180° hinges. Both doors are equipped with a comfort handle for half cylinder and a safety locking system 3524 E. The surface of the rack frame is powder-coated, the interior build is painted, rear door and roof are also powder-coated. The front door is anodized, the sheet steel is powder-coated. The base color of the enclosure is RAL 7035, with the front door featuring vertical silver-colored profiles and horizontal RAL 9005. Interior build, front ventilation grille, handle, and hinges are in RAL 9005. The floor is open, enabling flexible cable routing and mounting.

Technology Explained SimplyThe 48,3 cm ( 19 inch )-profile rails dynamic allow adaptable mounting for different devices, with the rails secured to the depth rails. The plane spacing of 700 mm in the standard delivery state can be adjusted as needed. The ventilation of the doors with 85 % free area in the perforated metal section ensures efficient air circulation, which is important for cooling IT devices. The 180° hinges allow full door opening, facilitating access to devices. The stability of the rack is ensured by the welded, torsion-resistant frame structure made of 9-fold bent hollow profiles, featuring a 25-mm grid hole pattern. The load capacity of 18,000 N makes the rack suitable for use with heavy IT systems.

Compatibility and AccessoriesThe rack is compatible with various accessory parts that extend its functionality. These include, for example, routing panels in various heights, slide rails for device mounting, connection cables for PSM systems, cable ties and cable clamps for cable routing. Additionally, system lights, busbars, and hook-and-loop fasteners are available to facilitate installation and maintenance. The 48,3 cm ( 19 inch )-fasteners and internal hex socket screws are included in the delivery scope and serve for secure device fastening.

Mounting and InstallationMounting is done by screwing to the depth rails at top and bottom. The profile rails are depth-variable and can be adjusted according to device depth. The spacers with a height of 50 mm are used to raise a roof plate above the fan outlet in the roof plate, enabling passive ventilation. The door opening angles may vary depending on the type and location of installation, which should be considered during planning.

Operational AdvantagesThe rack offers high ventilation efficiency through ventilated doors with 85 % free area, supporting cooling of IT devices. The dynamic configuration of the profile rails enables flexible mounting for different device depths. The 180° hinges facilitate access to devices, while the torsion-resistant construction ensures high mechanical stability. The powder-coated surface provides high corrosion resistance and an attractive visual appearance. The open floor construction enables flexible cable routing and mounting. The compatibility with accessories extends the functionality of the rack and supports efficient installation and maintenance.

General
MaterialSheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: powder-coated, internal construction: painted, rear door and roof: powder-coated, front door: aluminium, anodized, steel sheet: powder-coated
Basic colourRAL 7035
ColourHousing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005
Width800 mm
Height2.450 mm
Depth1.000 mm
Height units52 HE
Mounting clearance to 19" plane, front/back87 mm / 213 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)700 mm
19" mountingScrewed to top and bottom depth brace
ModelDynamic
Roof typeMulti-part, with lateral cable entry in depth, on both sides, prepared for fan panel

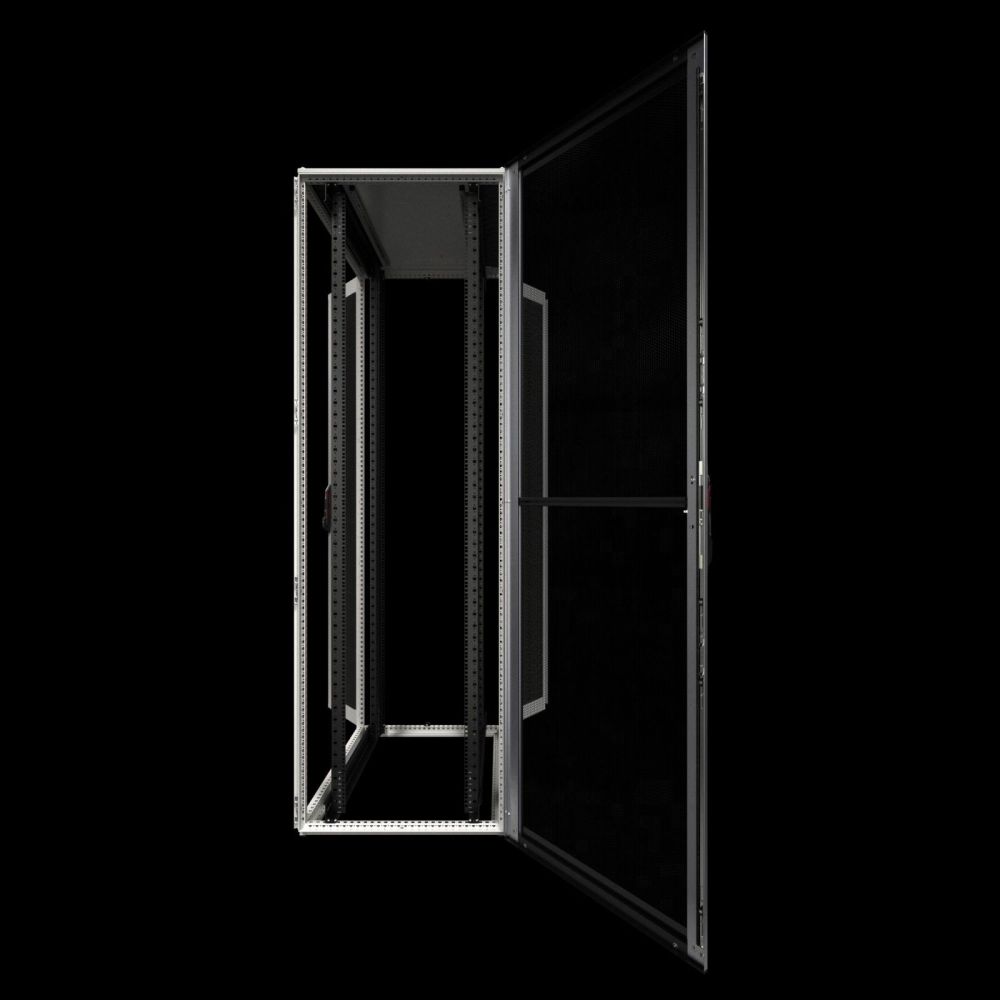

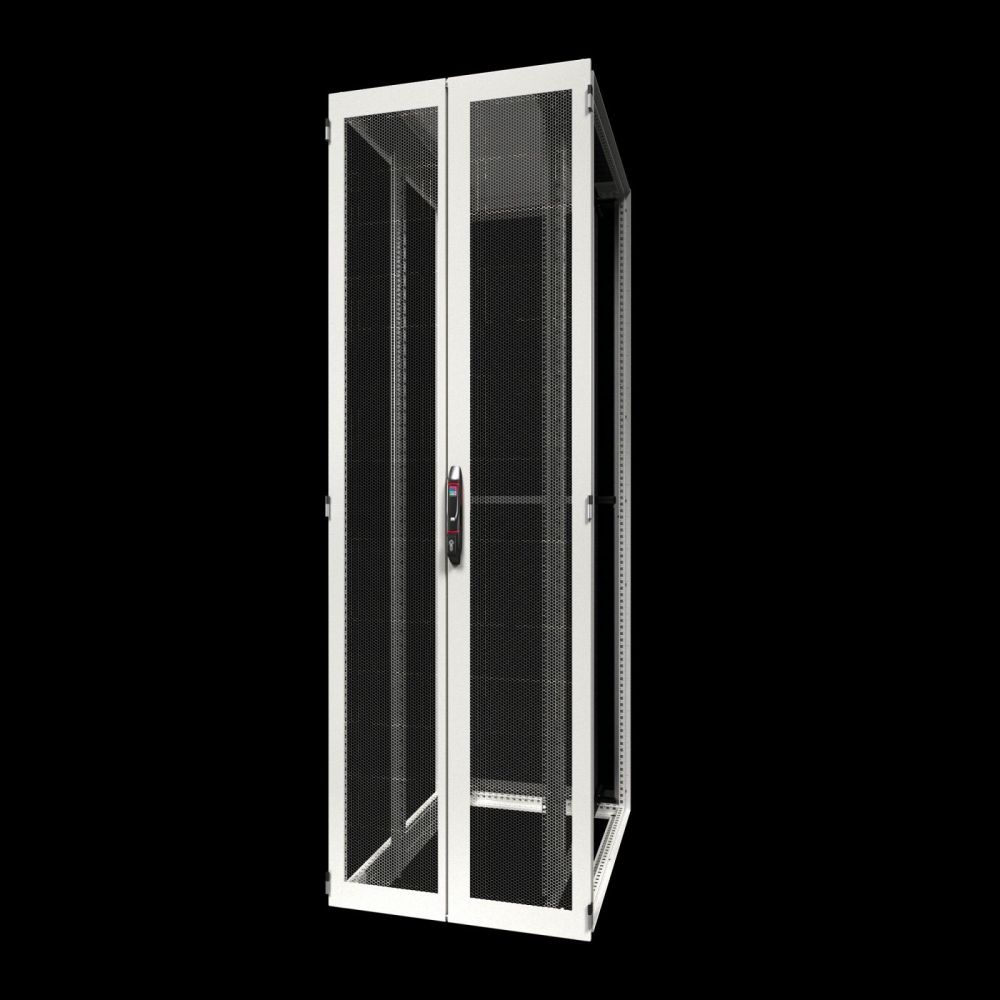

Door configuration rearSteel sheet door, ventilated, vertically divided, 180° hinges

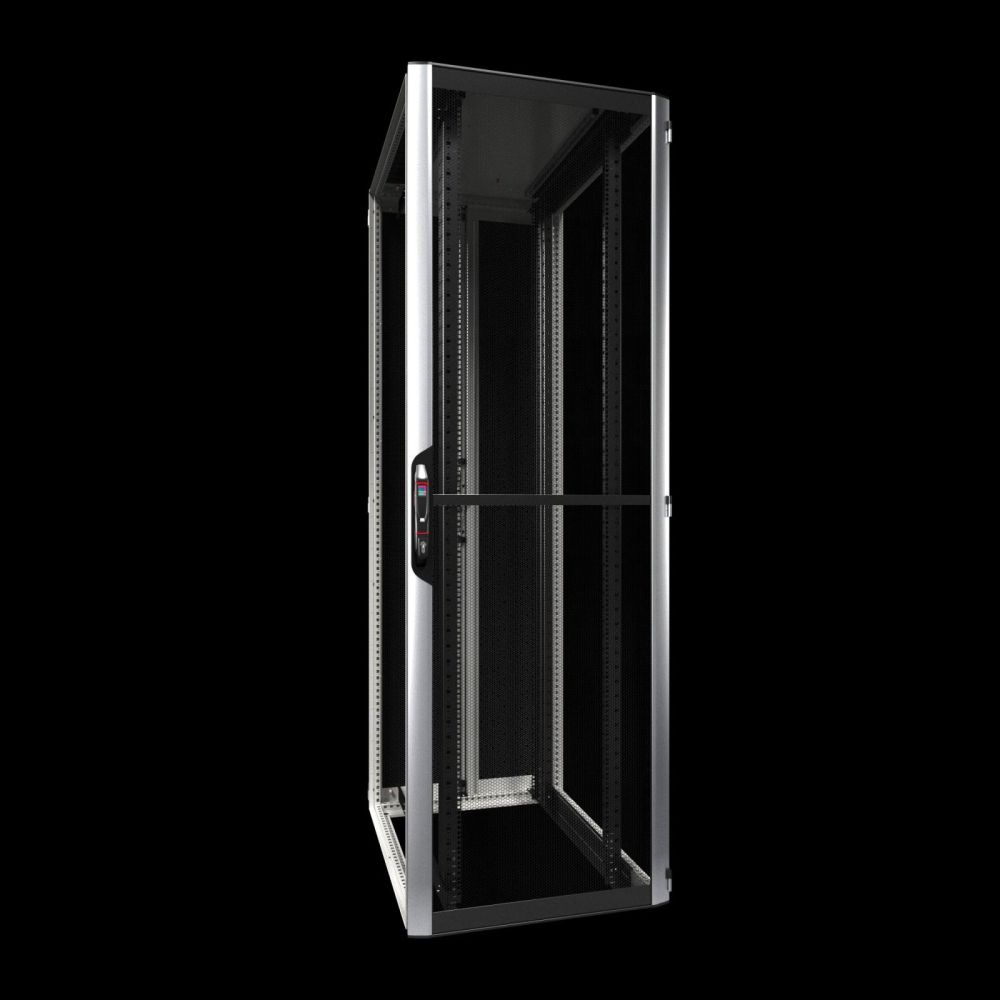

Front door configurationAluminium-steel sheet door, ventilated, single-piece, 180° hinges
Profile rail version19"-profile rails dynamic in VX IT
Floor versionOpen
19" rack configuration19"-level front and rear
Mounting type for profile rail19"-level front and rear
Load capacity18.000 N
Max. load capacity (static) according to UL 2416 per cabinet15.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)286 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
