Rittal 7507100 FlatBox DK 6 U W x D 600x600 mm grey 48,3 cm ( 19 inch ) profile rails
|
278,61 EUR 278,69 EUR |
|
|
( 331,55 EUR incl. VAT ) ≈ £233.20 | ≈ $306.19 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 129469 |
| Mfg Part No: | 7507100 |
| UPC/EAN: | 4028177551435 |
| Weight: | 23 kg |
| Type: | DK 7507100 |

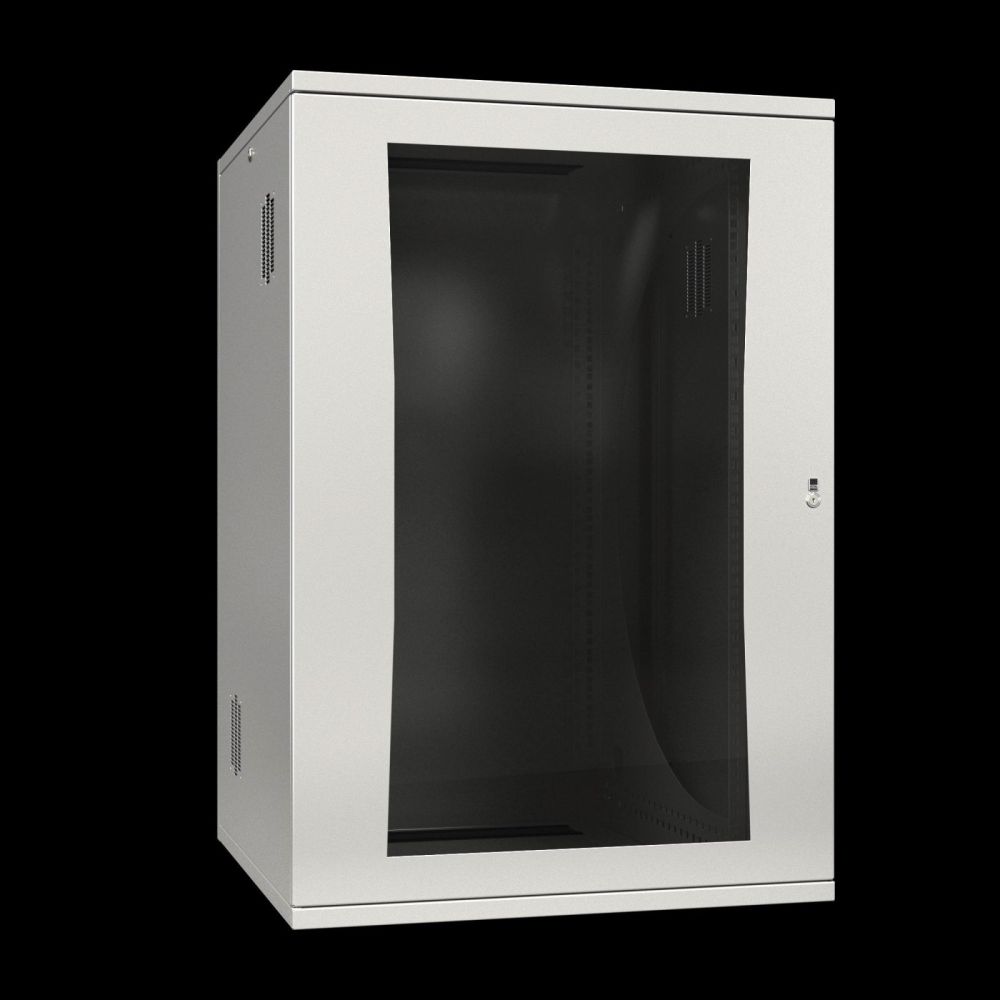

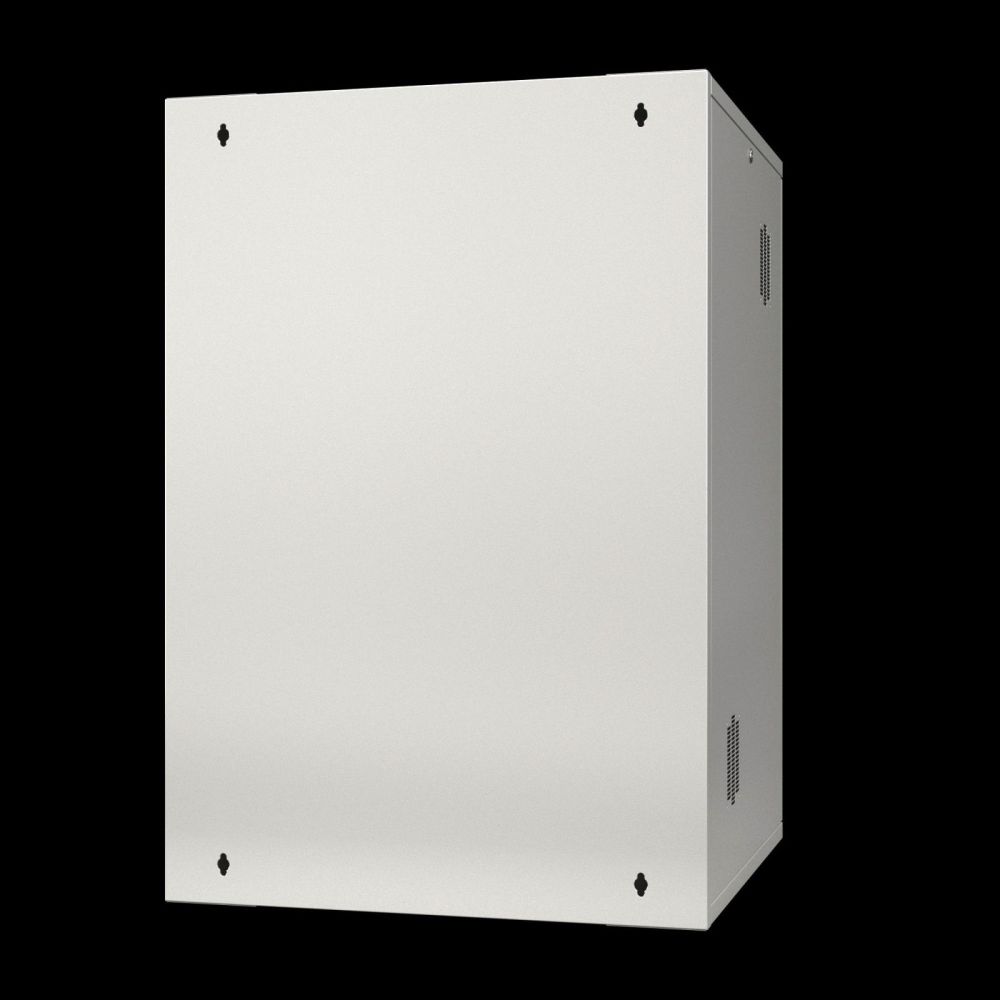

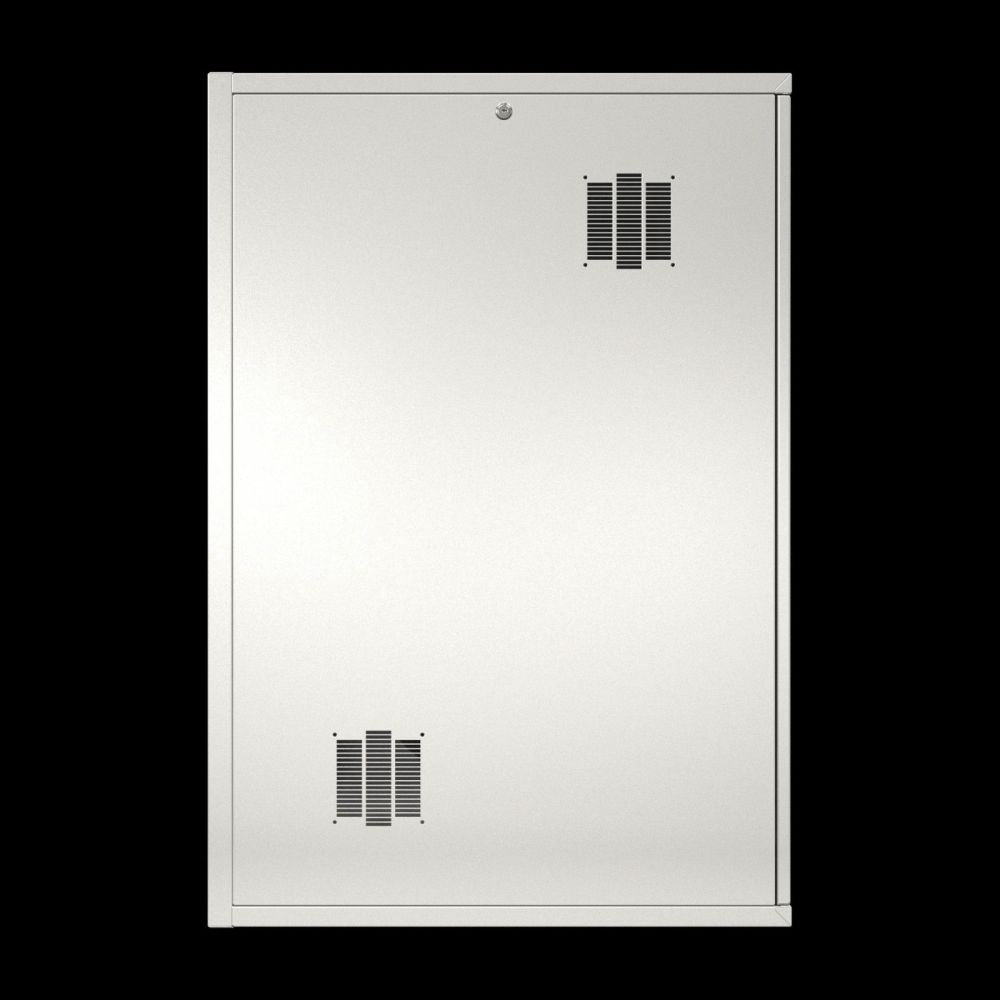

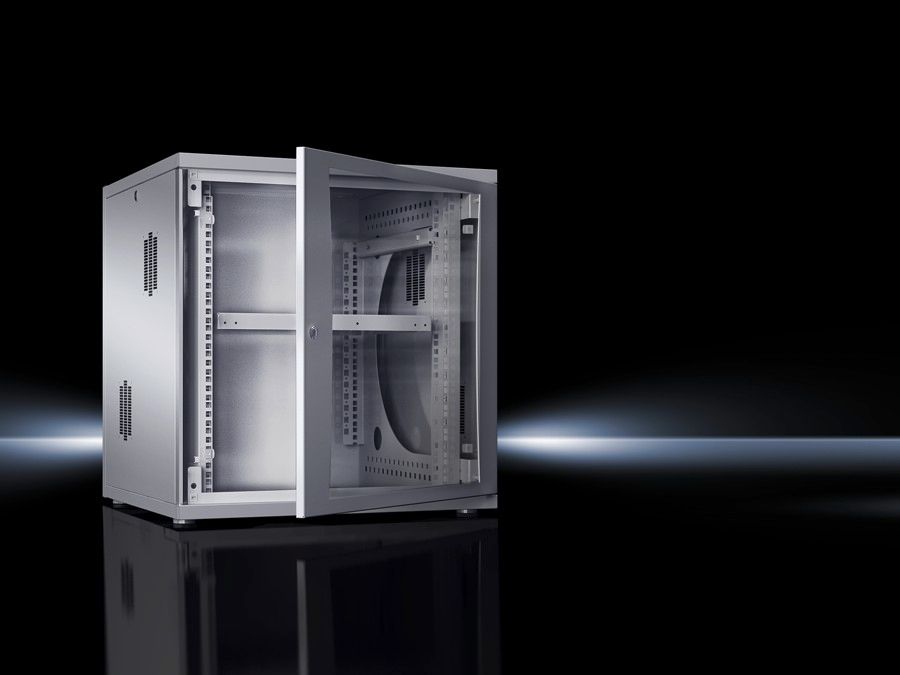

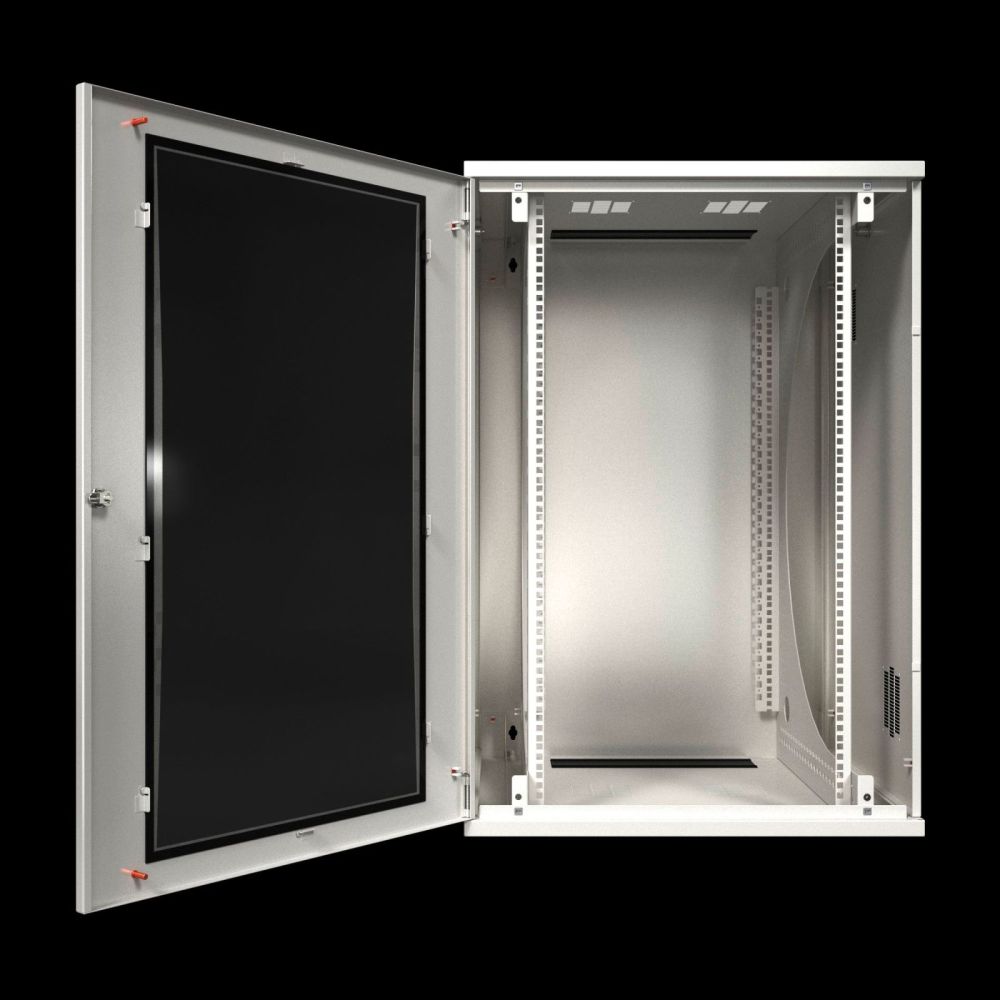

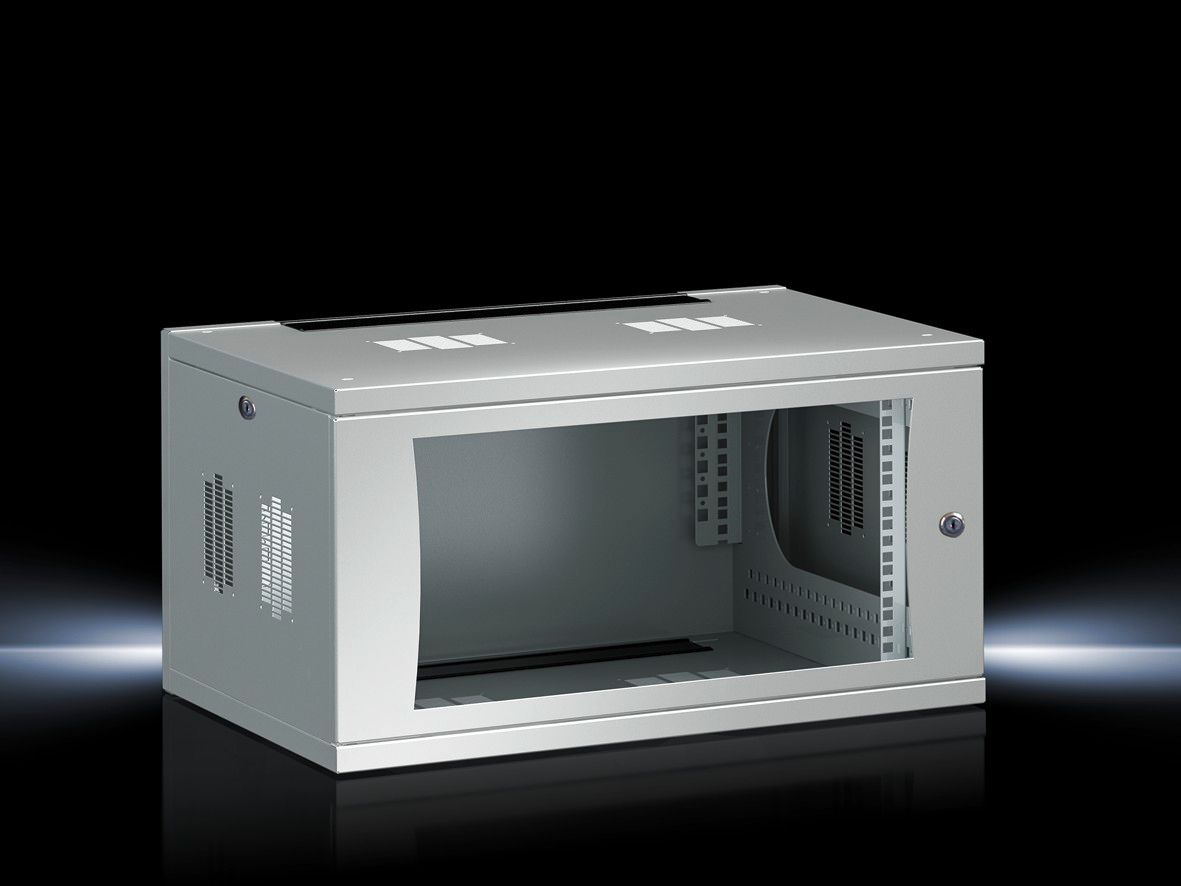

Product information for Rittal 7507100:
Benefits: Tool-free quick assembly
System assembly on the open 482.6 mm (48,3 cm ( 19 inch )) frame
Material: Sheet steel
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: RAL 7035
Supply includes: Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door hinge point selectable
Connection components for tool-free, fast assembly
Earthing kit for system-compatible earthing of all enclosure parts
2 pc(s). 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Note: Max. installation depth: Depth - 58 mm to rear panel
Max. distance between two 482.6 mm (48,3 cm ( 19 inch )) levels: Depth - 104 mm
Packs of: 1 pc(s).
EAN: 4028177551435
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Dimensions: Width: 600 mm
Height: 358 mm
Depth: 600 mm
Installation height for components: 6 U
Weight/pack: 23.25 kg
| General | |
| Model | With 19" profile rails |
| Material | Sheet steel, viewing window: single-pane safety glass, 3 mm |
| Surface protection | Powder-coated |
| Colour | RAL 7035 |
| Scope of delivery | Enclosure in flat-pack packaging, 1 wall section, 2 base carriers, 2 roof/base sheets, with cutouts for cable entry via brush strips, 4 brush strips, 2 side walls, lockable, 1 viewing door, lockable, safety lock 3524 E, door hinge freely selectable, connection elements for tool-free quick assembly, grounding kit for system-compliant grounding of all enclosure parts, 19" profile rails |
| Height units | 6 HE |
| Width | 600 mm |
| Height | 358 mm |
| Depth | 600 mm |
| Component mounting height | 6 HE |
| Load capacity | max. 300 N |
| Note | Max. installation depth: depth - 58 mm to rear wall, max. spacing between two 19" shelves: depth - 104 mm, maximum door opening angle is 210° |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 91.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
