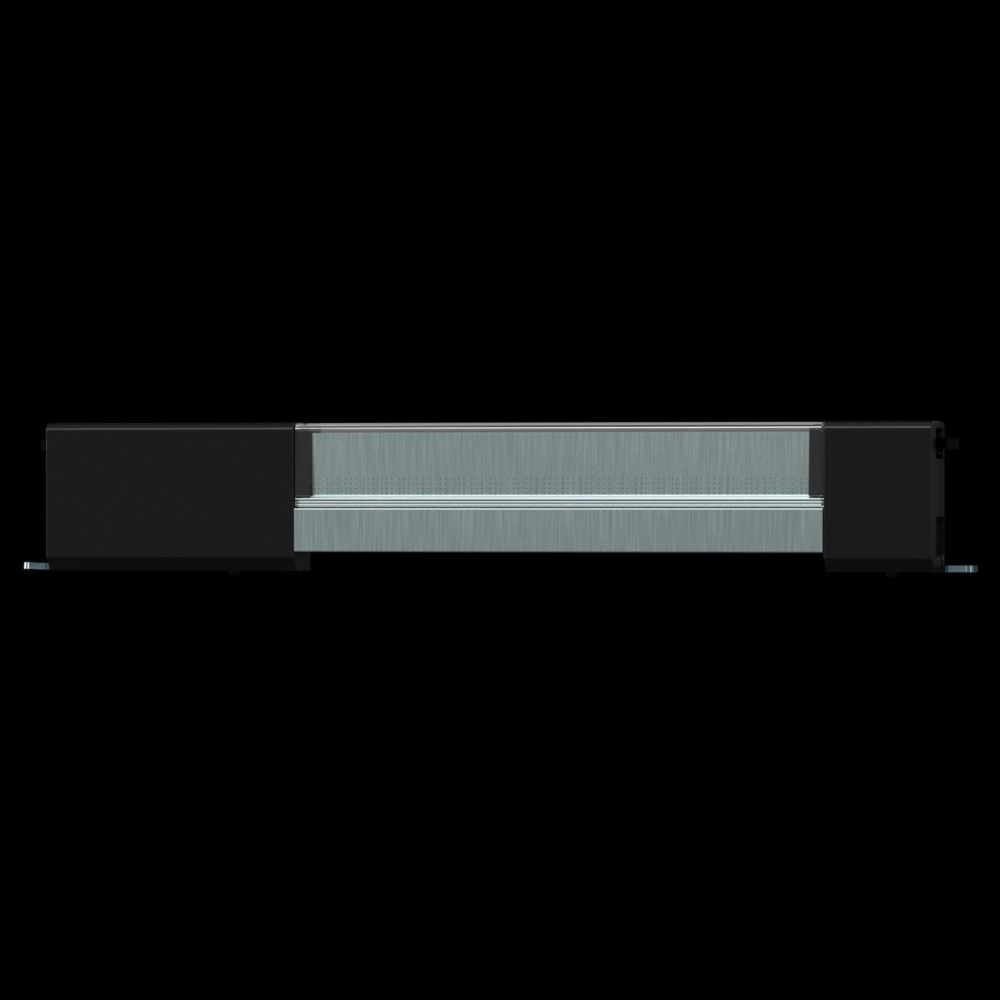

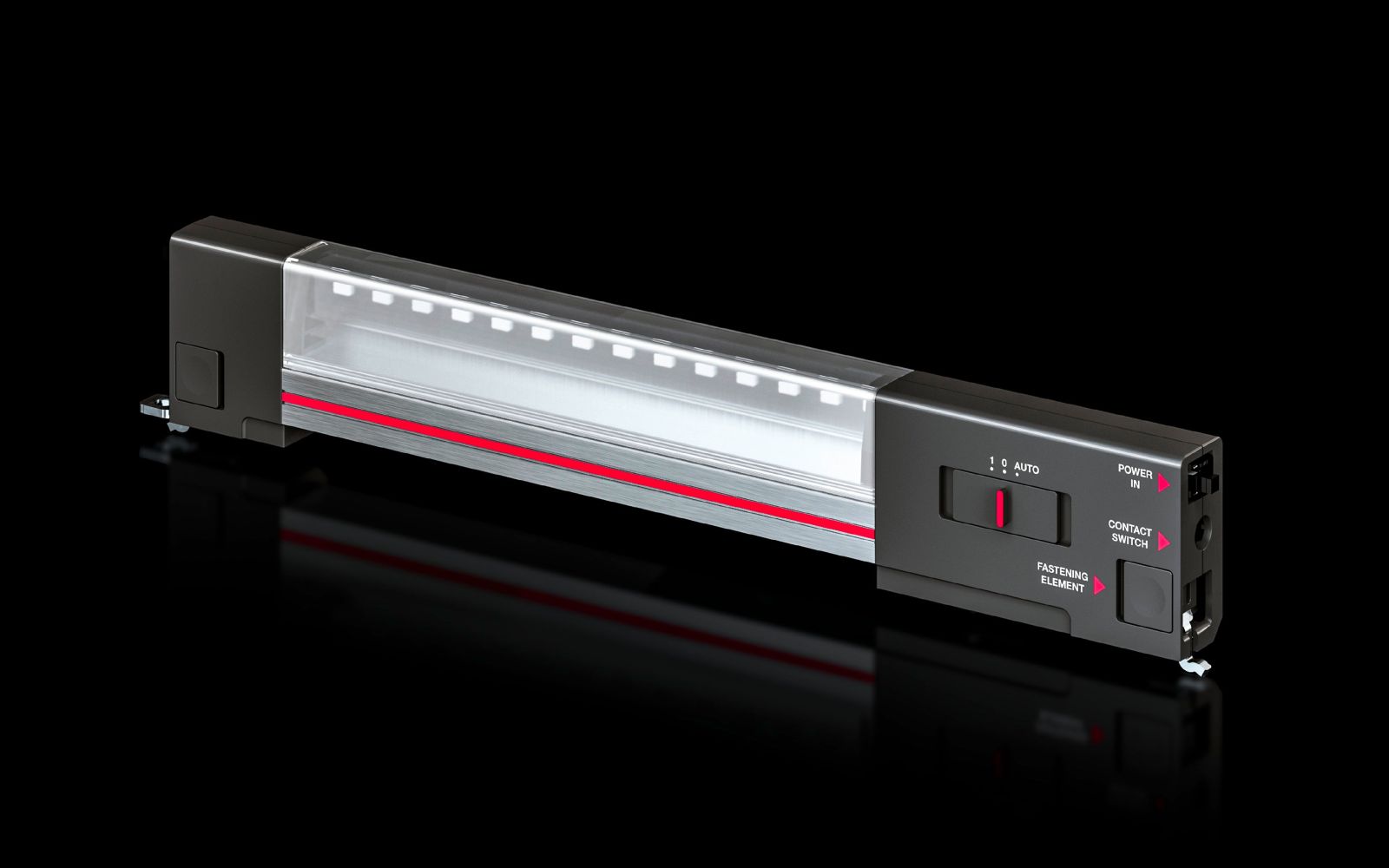

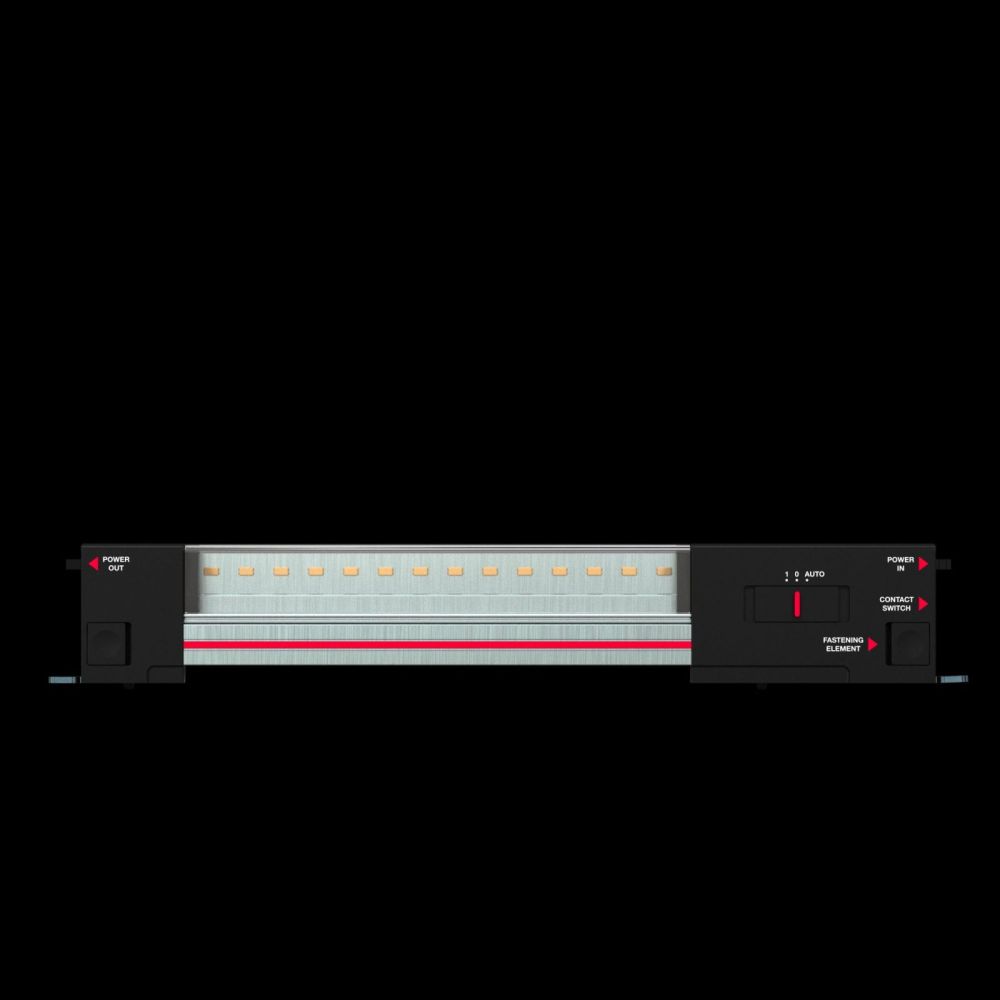

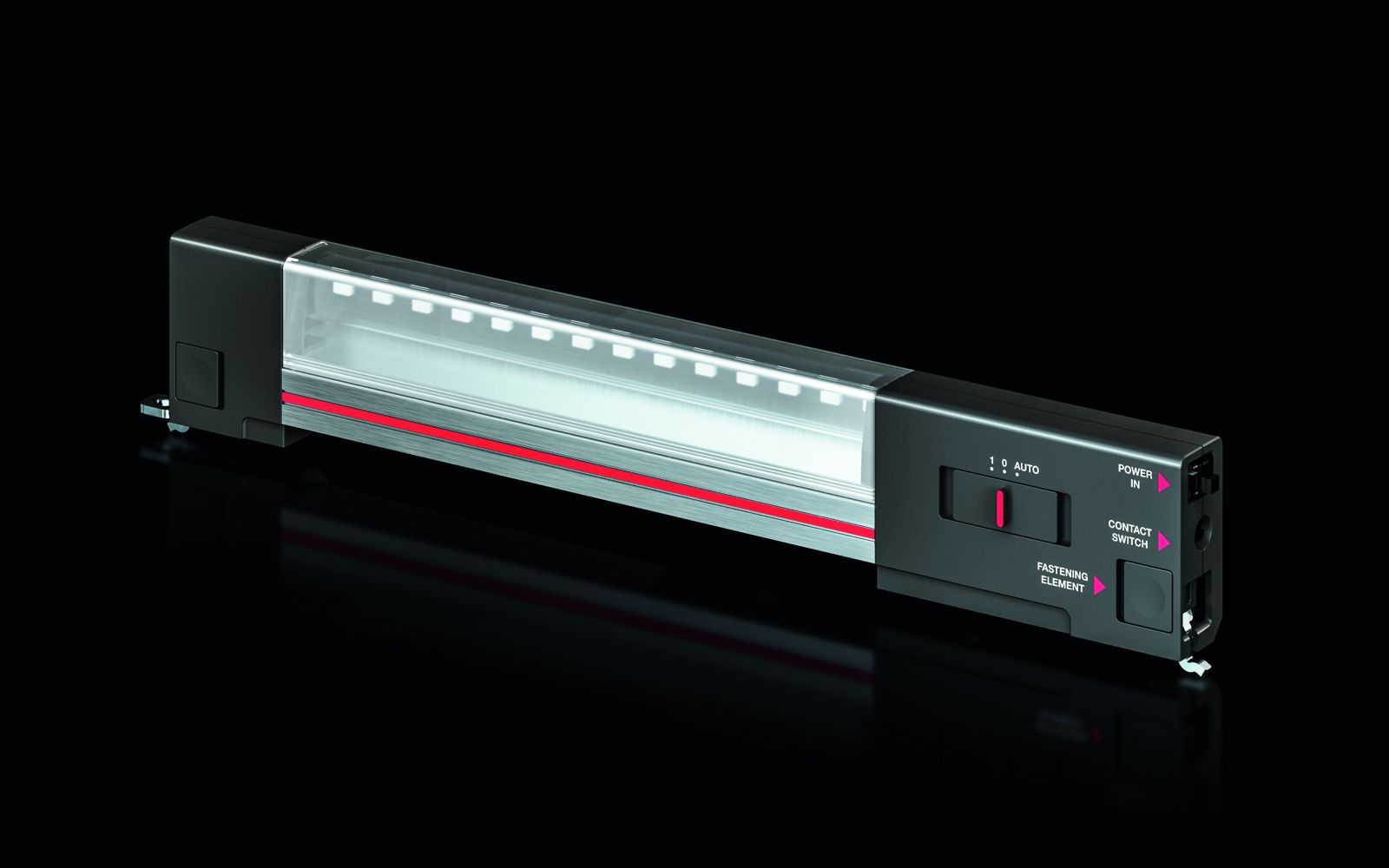

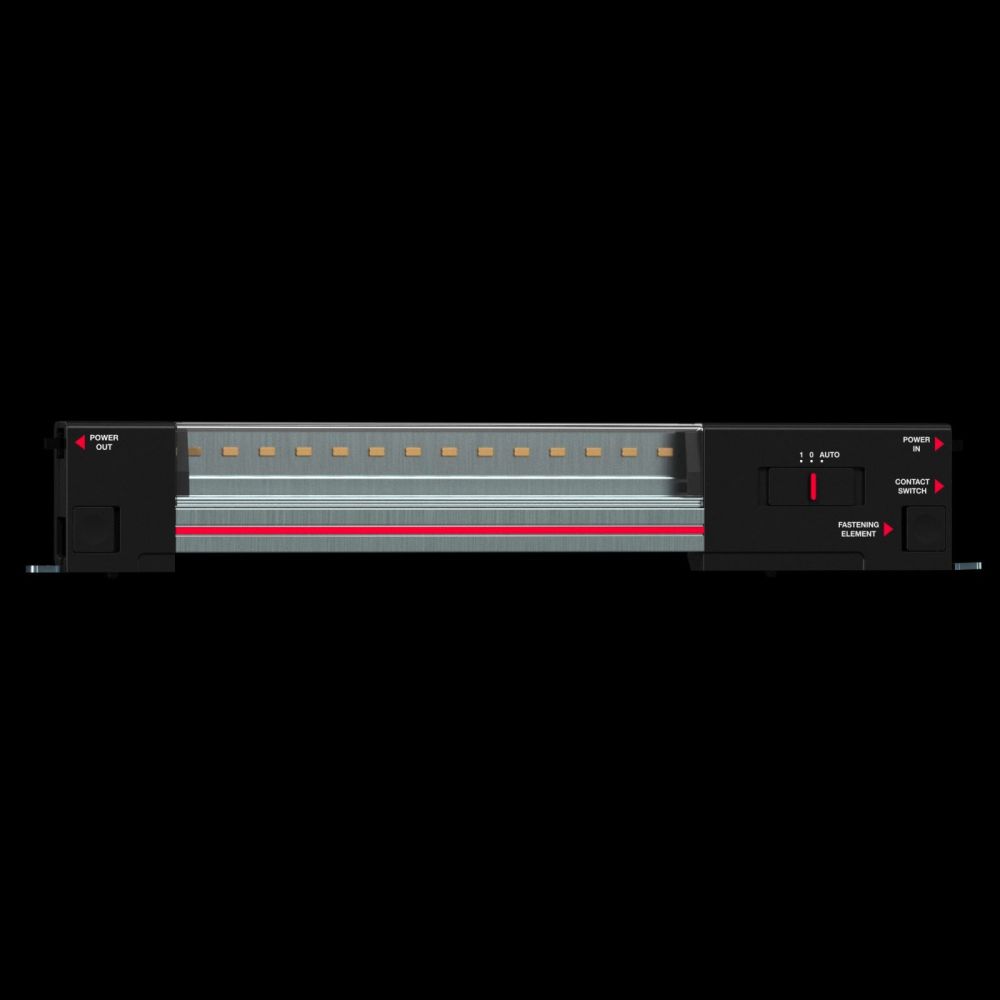

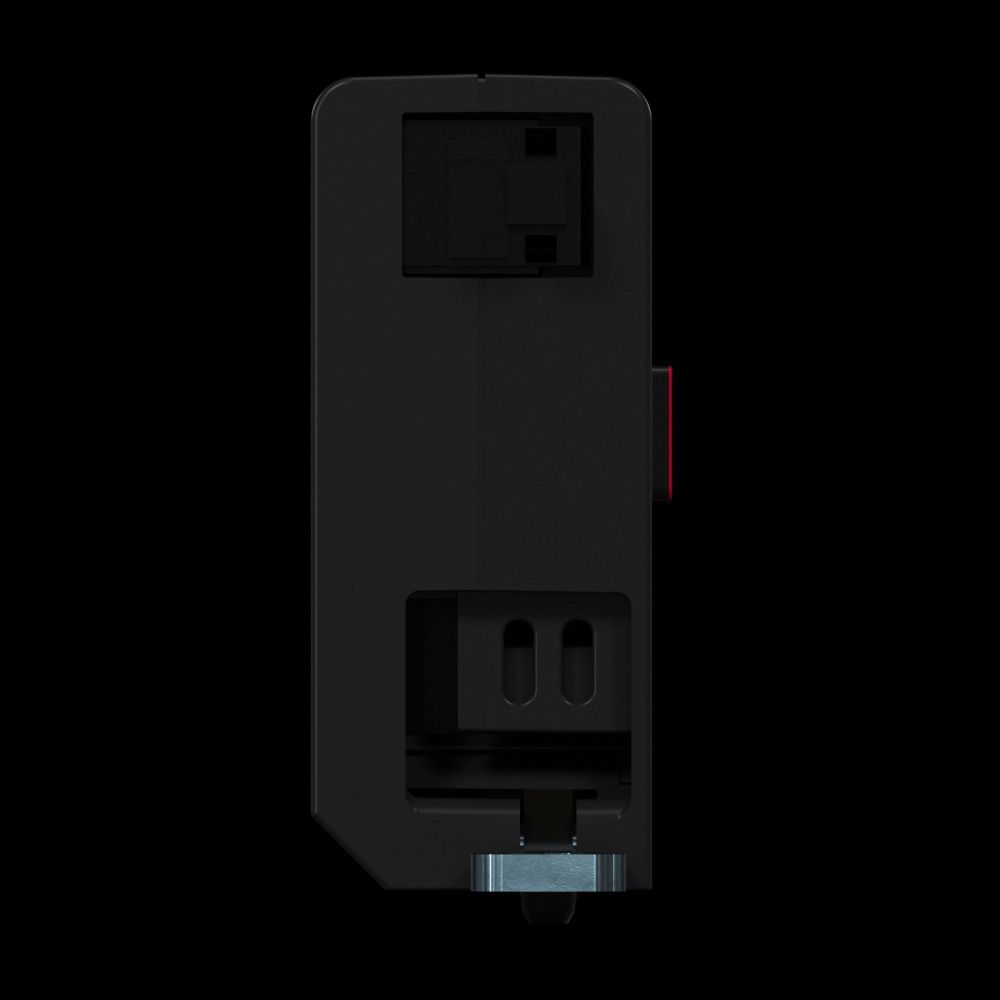

Rittal 7859000 IT system light for IT enclosure systems and enclosures
|
64,80 EUR 64,81 EUR |
|
|
( 77,11 EUR incl. VAT ) ≈ £54.24 | ≈ $71.22 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1347882 |
| Mfg Part No: | 7859000 |
| UPC/EAN: | 4028177817937 |
| Weight: | 0.401 kg |
| Type: | IT 7859000 |
Product information for Rittal 7859000:
Applications
The IT system light is specifically designed for use in IT enclosure systems such as VX IT, VX SE, TE 8000, IT housings, AX, and TP. It is suitable for illuminating server and network enclosures where uniform and sufficient lighting is required for maintenance and installation work. Mounting is done directly onto the frame profile or using a mounting kit with magnet, enabling flexible adaptation to various enclosure types. The light is designed for operation with Europlugs according to CEE 7/16 as well as cold appliance plugs, enabling universal use in various installations.
Functions and Equipment in Detail
The light features an integrated on/off/door position switch, allowing the lighting to be switched manually or activated automatically when the enclosure door is opened. The plug-ready connection cables ensure the light is immediately operational without additional wiring work. Mounting can be done by screwing, clip mounting, or magnetic mounting, with the delivery including a mounting kit with magnet and mounting screws. The light is designed for operation with a rated operating voltage of 100 V to 230 V (AC) at 50 Hz/60 Hz.
Technology Explained Simply
The light produces a luminous flux of 600 lm at a light colour temperature of 4000 K (neutral white), ensuring clear and uniform illumination. The housing is made of extruded aluminium, the cover from polycarbonate, and the ends from PC-ABS, ensuring a robust and durable construction. The protection rating IP 20 according to IEC 60 529 protects against finger contact and vertically falling water, making the light suitable for indoor use. The operating temperature range is between -20 °C and +55 °C, enabling use in various environments.
Compatibility and Accessories
The IT system light is compatible with various accessories, including door position switches with connection cable (800 mm, black), special connection cables for the IT system light LED, and DK power cables with IEC C18. These components enable flexible and application-specific configuration of the lighting. The plug-ready connection cables are exclusively intended for the IT system light LED, and cascading multiple lights is not possible.
Mounting and Installation
Mounting is done by screwing, clip mounting, or magnetic mounting, with mounting kits included in the delivery. The light can be mounted directly onto VX IT/VX SE profile, TE 8000, IT housing, AX, or TP. Dimensions are 337 mm (width), 55 mm (height), and 23 mm (depth), allowing easy integration into standard enclosure constructions. Mounting is done without loss of height units, minimizing space requirements within the enclosure.
Operational Advantages
The IT system light provides reliable and uniform illumination of the enclosure interior, facilitating maintenance and installation work. The integrated fuse (T2A) protects against overloads, and the double-insulated design (protection class II) enhances safety. The plug-and-play mounting and plug-ready connection cables reduce installation time and simplify use. The light is designed for operation in a temperature range of -20 °C to +55 °C, enabling broad application in various environments.
| General | |
| Model | Insulated for protection, with internal fuse (T2A) |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | IT system luminaire LED, magnetic mounting kit, including mounting screws |
| Connection options | Power supply via connectors, door position switch |
| Protection class | II (double insulated) |
| Switch (type) | Integrated on/off/door position switch |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting |
| Mounting options | Screwing or clipping directly onto VX IT/VX SE profile, TE 8000, IT enclosure: with magnetic mounting kit, AX, TP: with magnetic mounting kit, AX: with rail for indoor installation, for operation with Europlug according to CEE 7/16 and cold appliance plug |
| Luminous flux | 600 lm |
| Colour of light | 4000 K (neutral white) |
| Note | The plug-ready connection cables are to be used exclusively with the IT-system lamp LED. Cascading multiple IT-system lamps LED is not possible. |
| Width | 337 mm |
| Height | 55 mm |
| Depth | 23 mm |
| Operating temperature range | -20 °C...55 °C |
| Rated operating voltage | 100 V - 230 V (AC), 50 Hz/60 Hz |
| Degree of protection IP according to IEC 60 529 | IP 20 |
