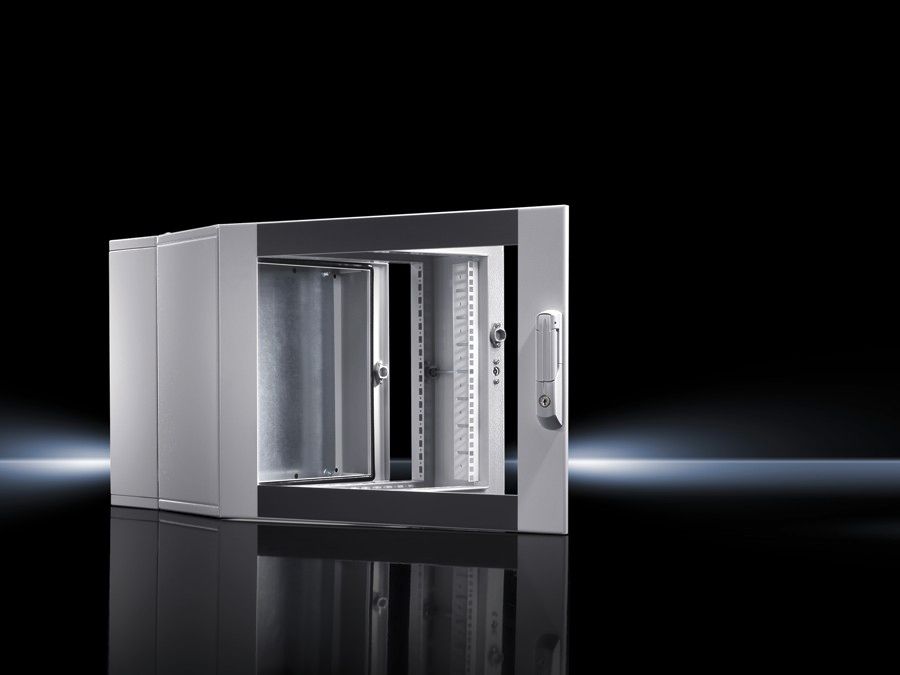

Rittal wall-mounted enclosure EL 3 U W x D: 600x373 mm fixed installation profile. (freight shipping)
|
-8% 370,30 EUR 401,04 EUR |
|
|
( 440,66 EUR incl. VAT ) ≈ £309.94 | ≈ $406.96 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 618422 |
| Mfg Part No: | 2243605 |
| UPC/EAN: | 4028177324305 |
| Weight: | 19.668 kg |
| Type: | EL 2243605 |
Product information for Rittal 2243605:
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324305
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 212 mm
Units: 3 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 149 mm
Mounting plate: Width: 485 mm
Height: 165 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 15 kg
Weight/pack: 21.4 kg
| General | |
| Model | Wall-mounted enclosure IT, with mounting plate and profile rails, fixed installation |
| Material | Wall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm |
| Surface protection | Powder-coated |
| Basic colour | RAL 7035 |
| Colour | wall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey) |
| Scope of delivery | Wall section with flange plate closed, top and bottom, and mounting plate (included), swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, 1 control cabinet key double bar No. 5, mini comfort handle for locking inserts, safety lock 3524 E |
| Height units | 3 HE |
| Width | 600 mm |
| Height | 212 mm |
| Depth | 373 mm |
| Built-in depth | 320 mm |
| Light dimensions | Clear width: 502 mm, clear height: 149 mm |
| Depth of swivel part | 216 mm |
| Mounting plate dimensions (W x H) | 485 mm x 165 mm |
| Depth of wall part | 135 mm |
| IK code | IK08 |
| Load capacity of swivel part (static) | 150 N |
| Base material | steel sheet |
| Degree of protection IP according to EN 60 529 | IP 55 |
