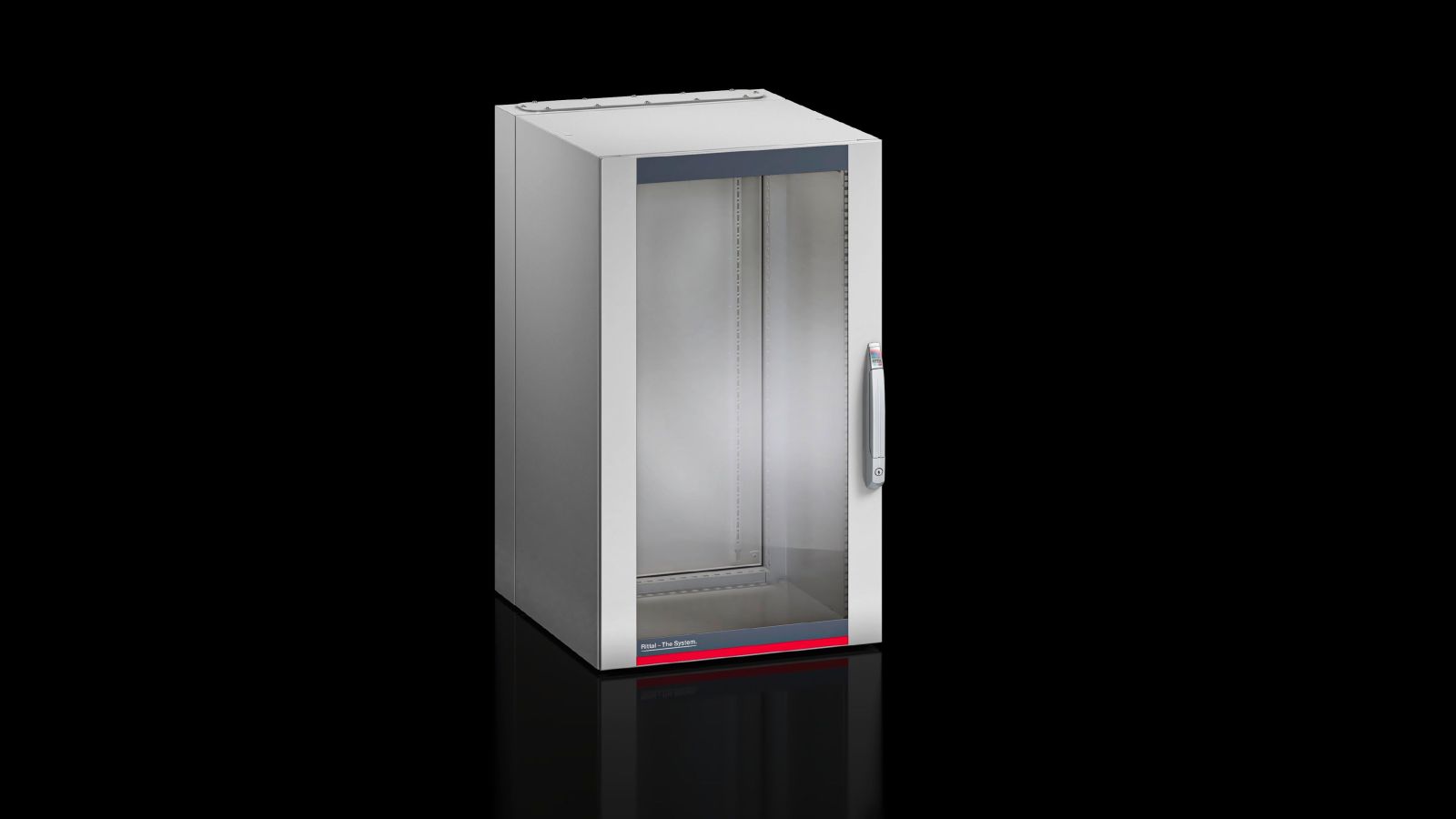

Rittal 2262150 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x573 mm 21 U

Your rating:
Average rating
product review for Rittal 2262150 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x573 mm 21 U
( 4 / 5 ) 2 ratings
Rittal 2262150
This image may differ from the desired article.
Rittal 2262150Rittal 2262150Rittal 2262150Rittal 2262150Rittal 2262150Rittal 2262150Rittal 2262150Rittal 2262150
-6% 760,15 EUR 805,76 EUR
( 904,58 EUR incl. VAT )
≈ £636.25  |  ≈ $835.40
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2262150 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x573 mm 21 U
Datasheet:file_download Download
Lieske Part No.:603849
Mfg Part No: 2262150
UPC/EAN: 4028177982963
Weight:52.66 kg
Type:AX 2262150

Product information for Rittal 2262150:

The Rittal AX 2262150 is a 3-piece wall-mounted enclosure for IT applications, designed for use in technical rooms, server rooms, or for the installation of network and communication technology on walls. The enclosure offers 21 height units (HE) and has overall dimensions of 600 mm width, 1,012 mm height, and 573 mm depth. The internal clear dimensions are 502 mm width and 951 mm height, providing sufficient space for standard 48,3 cm ( 19 inch ) devices and modules. The installation depth is 520 mm, allowing even deeper devices to be securely mounted.

Applications
This wall-mounted enclosure is designed for use in industrial, commercial, and IT environments where a compact yet robust wall-mounted installation is required. It is particularly suitable for installing network switches, routers, servers, security systems, or other IT and electrical devices that require protected and accessible mounting. The three-piece design enables easy access to devices inside without having to dismantle the entire enclosure.

Functions and Equipment in Detail

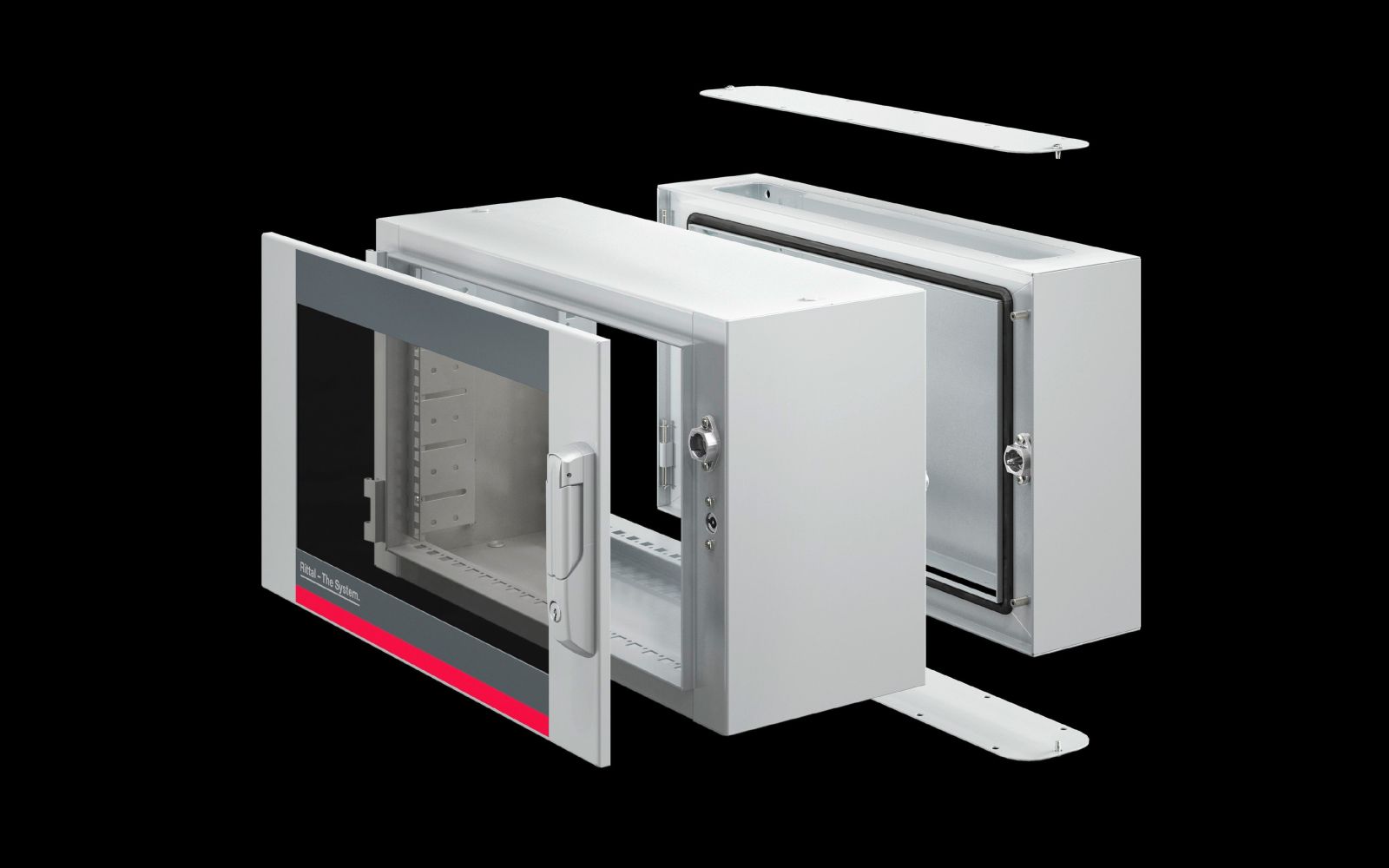

The enclosure consists of a wall section, a swing section, and a design viewing door. The wall section is equipped with closed gland plates at the top and bottom, ensuring a protection rating of IP 54 according to EN 60 529. The viewing door is made of 3 mm single-pane safety glass and provides clear visibility of installed devices. The door is secured via a 2-point locking mechanism, which includes a comfort handle and a safety lock 3524 E. This construction ensures secure access and prevents unauthorized opening.

Technology Explained Simply
The enclosure is made of steel sheet with a thickness of 1.5 mm and is powder-coated, providing high mechanical stability and corrosion protection. The color of the wall and swing sections is RAL 7035, while the viewing door features a two-tone design in RAL 7035/7015 (slate gray). The static load capacity of the swing section is 750 N, and that of the wall section is 250 N, enabling secure mounting of heavy devices. The swing section features a 25 mm hole pattern in the front and rear frames, as well as two 48,3 cm ( 19 inch ) profile rails at the front, suitable for mounting standard IT devices.

Compatibility and Accessories
The AX 2262150 is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, mounting brackets, component shelves in various depths and colors, and system chassis. These components allow for individual adaptation to specific mounting and protection requirements. Wall mounting is achieved via integrated holes in the wall section, ensuring secure attachment to the wall.

Installation and Mounting
Installation is carried out on a wall using the designated holes in the wall section. The swing section is attached to the wall section and can be opened as needed for device installation or maintenance. The 2-point locking mechanism ensures secure and convenient operation. The pre-mounted profile rails and hole pattern facilitate the installation of devices and cables.

Operational Advantages
The enclosure provides a high protection rating IP 54) against dust and splashing water, making it suitable for use in outdoor areas or damp indoor environments. The three-piece construction allows for quick access to devices without having to dismantle the entire enclosure. The use of steel sheet and safety glass ensures high mechanical stability and transparency. The integrated 2-point locking mechanism with comfort handle ensures secure and user-friendly operation.

The product description is based on information provided by the manufacturer Rittal and the technical features of article AX 2262150. The mentioned technical data and functions are taken from official sources and have not been supplemented or interpreted.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, lock middle section: 3 mm double bar, lock design vision door: safety lock 3524 E, comfort handle for lock inserts and 2-point locking
Height units21 HE
Width600 mm
Height1.012 mm
Depth573 mm
Built-in depth520 mm
Light dimensionsClear width: 502 mm, clear height: 951 mm
Depth of swivel part416 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking type: 2-point locking, Lock insert: Comfort handle and 2-point locking
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
PCF/VE (Cradle-to-Gate)208.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2262150, EAN: 4028177982963
