Rittal 2262160 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x673 mm 21 U

Your rating:
Average rating
product review for Rittal 2262160 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x673 mm 21 U
( 4.5 / 5 ) 2 ratings
Rittal 2262160
This image may differ from the desired article.
Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160Rittal 2262160
-6% 968,30 EUR 1.026,40 EUR
( 1.152,28 EUR incl. VAT )
≈ £810.47  |  ≈ $1,064.16
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2262160 AX wall-mounted enclosure 3-piece W x H x D: 600x1012x673 mm 21 U
Datasheet:file_download Download
Lieske Part No.:603850
Mfg Part No: 2262160
UPC/EAN: 4028177983304
Weight:56.5 kg
Type:AX 2262160

Product information for Rittal 2262160:

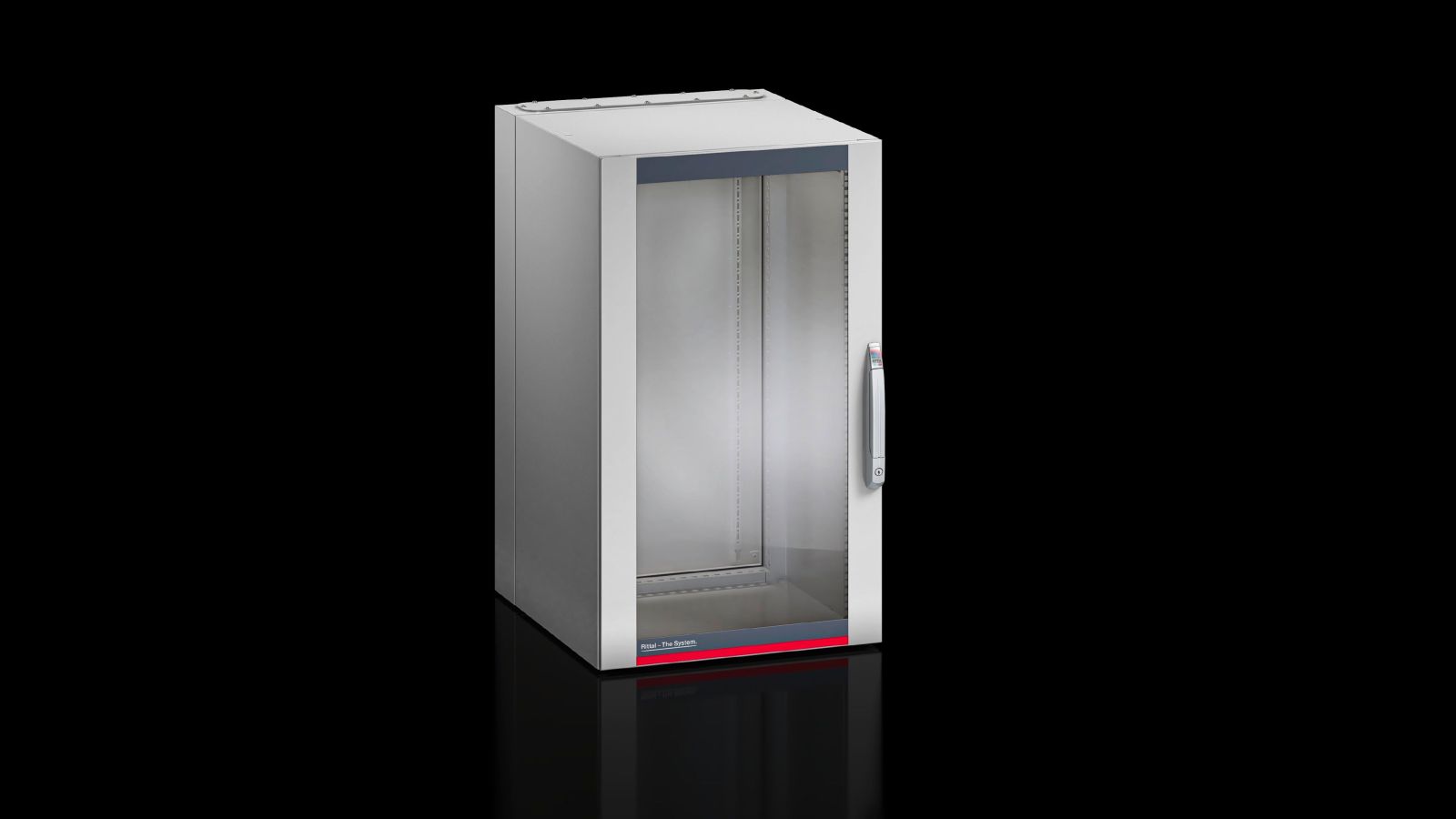

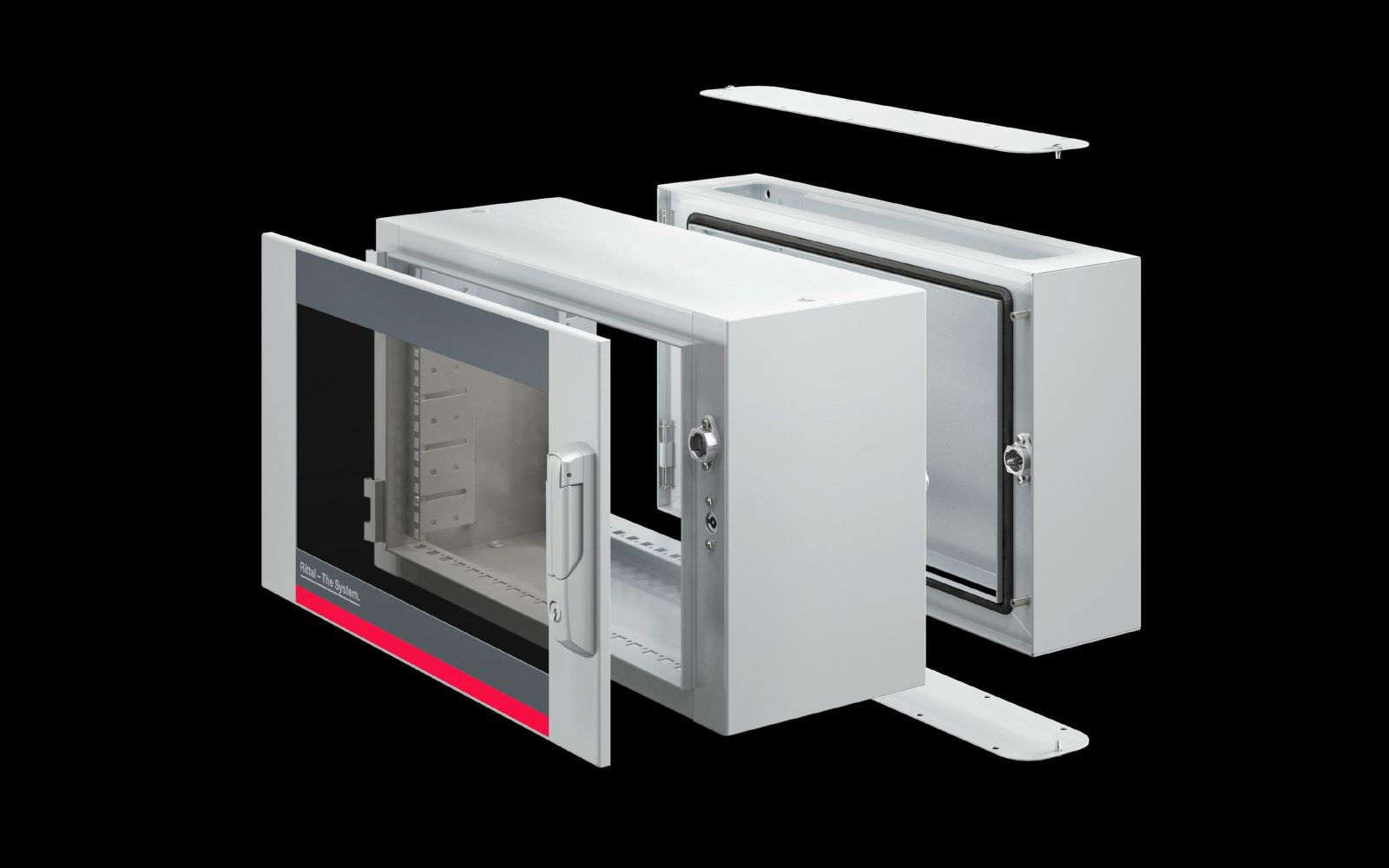

The Rittal AX 2262160 is a 3-piece wall-mounted enclosure for IT applications, designed for use in 19-inch systems. It features a total height of 1,012 mm, a width of 600 mm, and a depth of 673 mm, with an installation depth of 620 mm. The enclosure comprises 21 height units (HE) and is therefore suitable for mounting standard IT devices. The 3-piece construction consists of a wall section, a swing section, and a design viewing door, ensuring easy access to installed components. The wall section is equipped with closed gland plates at the top and bottom, enabling protection rating IP 54 according to EN 60 529. The surface is powder-coated, with the wall and swing sections in RAL 7035, and the viewing door in a combination of RAL 7035 and RAL 7015 (slate grey). The viewing pane is made of single-pane safety glass with a thickness of 3 mm.

Applications
This wall-mounted enclosure is designed for use in IT infrastructures, particularly in offices, server rooms, or technical rooms, where compact and flexible wall mounting is required. The 3-piece design enables easy installation and maintenance, as the swing section can be opened 90 degrees. The IP 54 protection rating safeguards against dust and splashing water, making it suitable for slightly damp environments. The static load capacity of the swing section is 750 N, and that of the wall section is 250 N, allowing the mounting of heavier devices.

Functions and Equipment in Detail

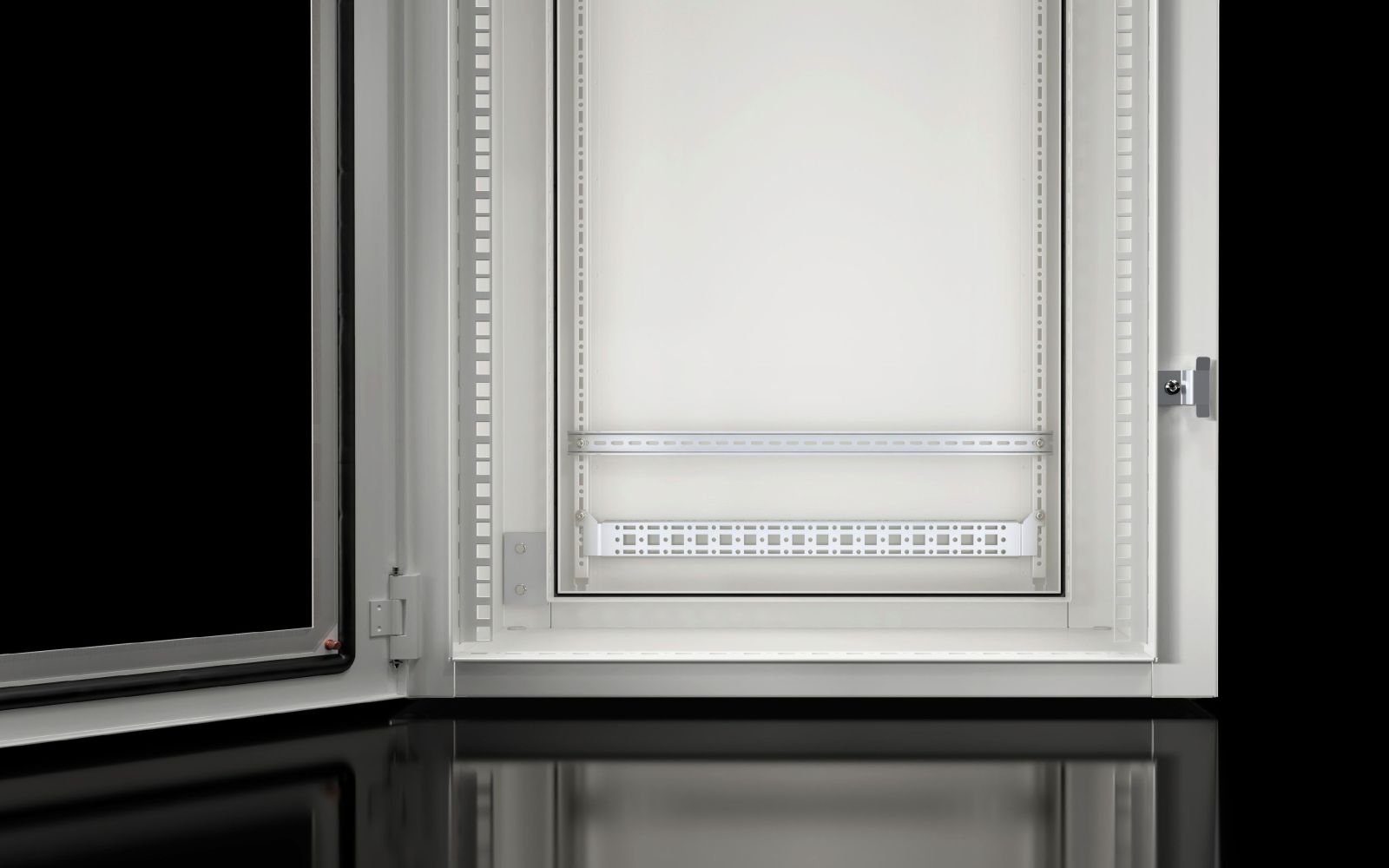

The swing section features a 25 mm hole pattern in the front and rear frames, enabling flexible mounting of devices and accessories. Two 19-inch profile rails are mounted at the front, providing secure fixation for IT devices. The design viewing door includes a safety locking mechanism type 3524 E and a comfort handle equipped with a 2-point locking system. This construction ensures secure closure and facilitates access. The clear dimensions are 502 mm in width and 951 mm in height, providing sufficient space for standard IT modules.

Technology Explained Simply
The enclosure is made of steel sheet with a thickness of 1.5 mm, which is robust and durable. The powder-coated surface provides corrosion protection and a uniform color tone. The single-pane safety glass viewing pane is shatter-resistant and allows clear visibility of installed devices. The IP 54 protection rating means the enclosure is dust-tight and protected against splashing water, making it suitable for indoor use, even in damp environments. The 2-point locking system ensures secure locking, while the comfort handle facilitates access.

Compatibility and Accessories
The AX 2262160 is part of the AX/VX system kit and can be expanded with various accessories. These include, for example, 19-inch fasteners, earthing rails, routing panels, component shelves, C-profile rails, mounting plates for terminal boxes, and wall mounting brackets. These components allow individual adaptation to specific requirements, such as integrating earthing systems or mounting additional modules. The mounting plates and wall mounting brackets support secure attachment to the wall.

Installation and Mounting

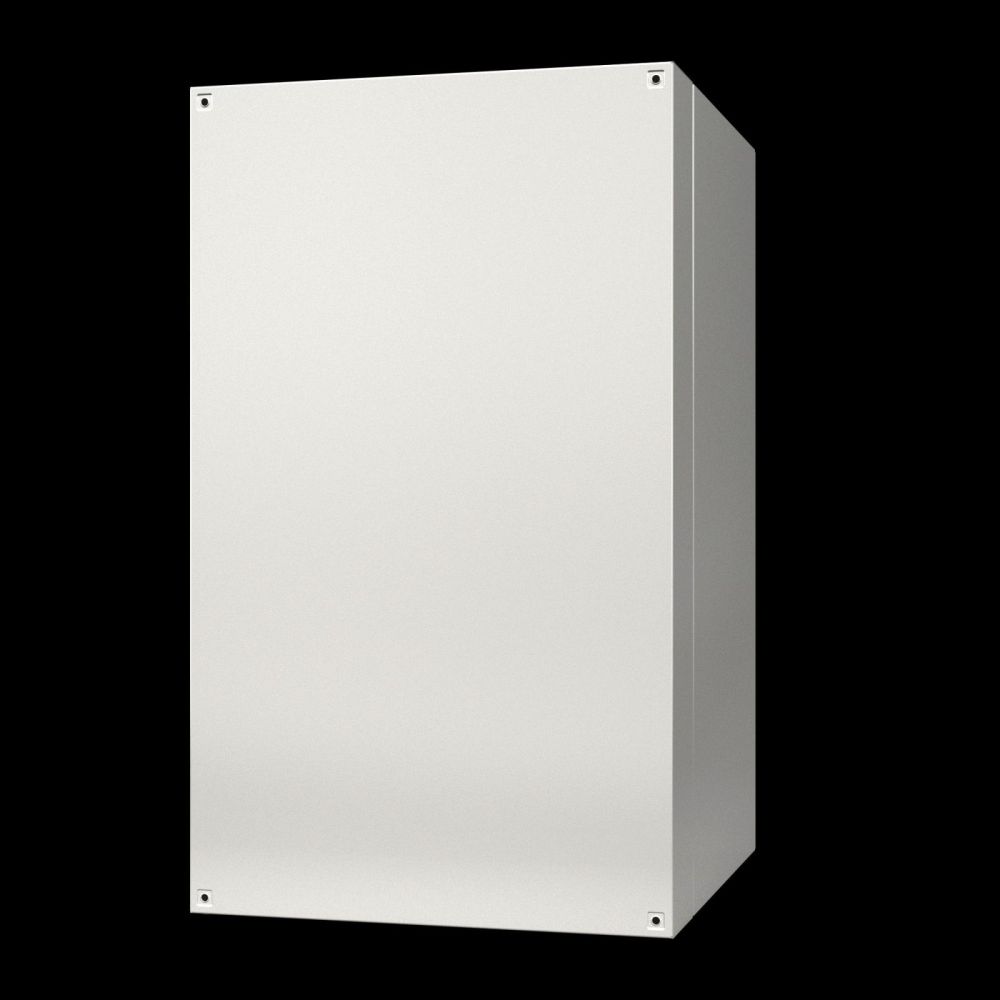

Installation is carried out on the wall using the pre-drilled holes in the wall section. The swing section is attached to the wall section and can be opened 90 degrees after device installation. The 25 mm hole patterns in the front and rear frames allow flexible device mounting. The static load capacity of 750 N for the swing section and 250 N for the wall section ensures secure mounting even for heavy devices. The closed gland plates at the top and bottom are required to achieve the IP 54 protection rating.

Operational Advantages

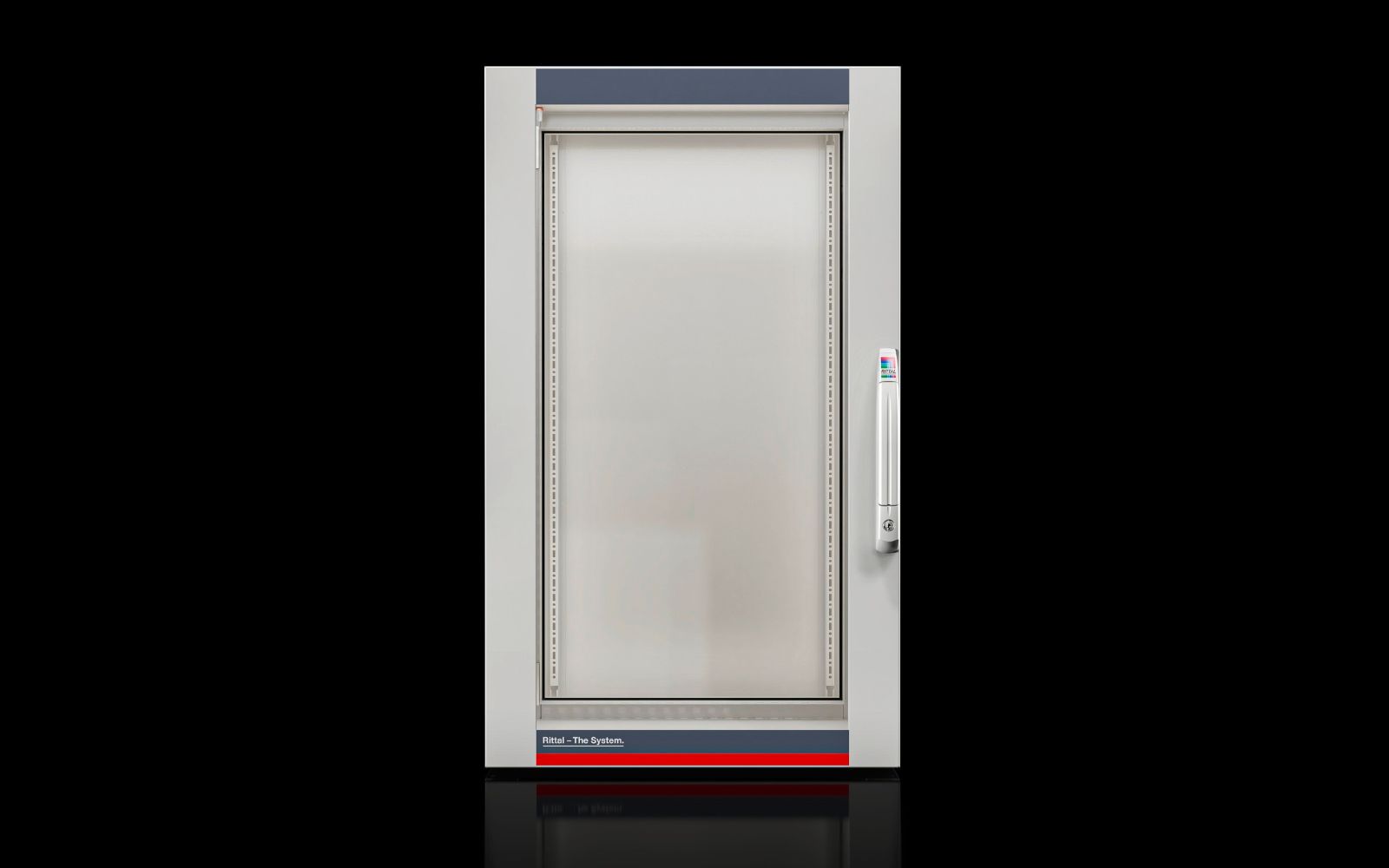

The 3-piece design offers high flexibility for mounting and maintenance. The design viewing door with comfort handle and 2-point locking system enables secure and convenient access. The IP 54 protection rating protects installed devices from dust and splashing water. The use of steel sheet and single-pane safety glass ensures high mechanical stability and safety. Compatibility with the AX/VX system kit allows expansion with various accessories to meet specific requirements.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swing section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, lock middle section: 3 mm double bar, lock design vision door: safety lock 3524 E, comfort handle for lock inserts and 2-point locking
Height units21 HE
Width600 mm
Height1.012 mm
Depth673 mm
Built-in depth620 mm
Light dimensionsClear width: 502 mm, clear height: 951 mm
Depth of swivel part516 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking type: comfort handle and 2-point locking, lock insert: security insert lock No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared
