Rittal 2261540 wall-mounted enclosure AX 15 U W x D: 600x473 mm closed gland plate (freight shipping)

Your rating:
Average rating
product review for Rittal 2261540 wall-mounted enclosure AX 15 U W x D: 600x473 mm closed gland plate (freight shipping)
( 0 / 5 ) 0 ratings
Rittal 2261540
This image may differ from the desired article.
Rittal 2261540Rittal 2261540Rittal 2261540Rittal 2261540
753,07 EUR
( 896,15 EUR incl. VAT )
≈ £630.32  |  ≈ $827.62
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 2261540 wall-mounted enclosure AX 15 U W x D: 600x473 mm closed gland plate (freight shipping)
Datasheet:file_download Download
Lieske Part No.:603846
Mfg Part No: 2261540
UPC/EAN: 4028177983359
Weight:38.1 kg
Type:AX 2261540

Product information for Rittal 2261540:

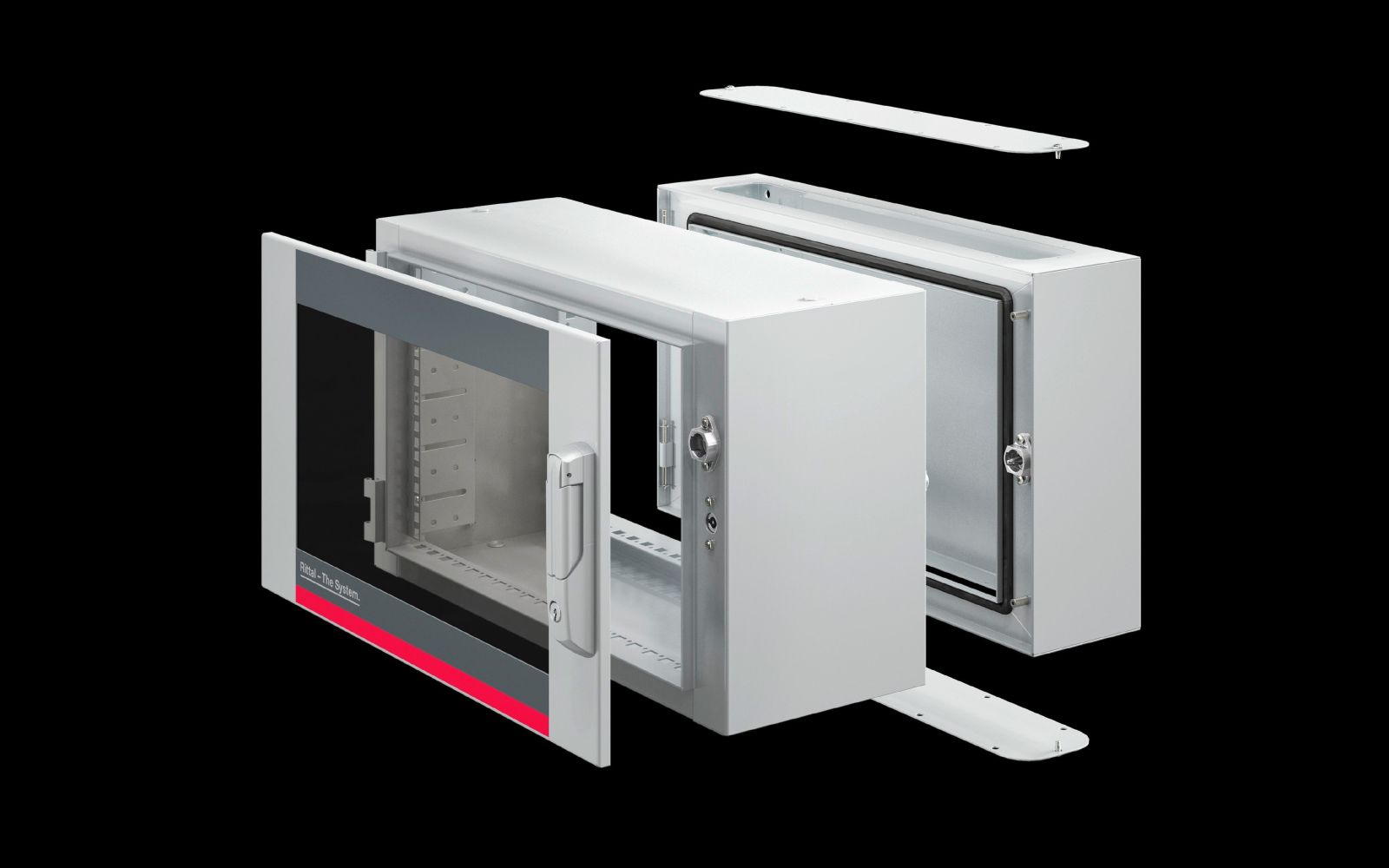

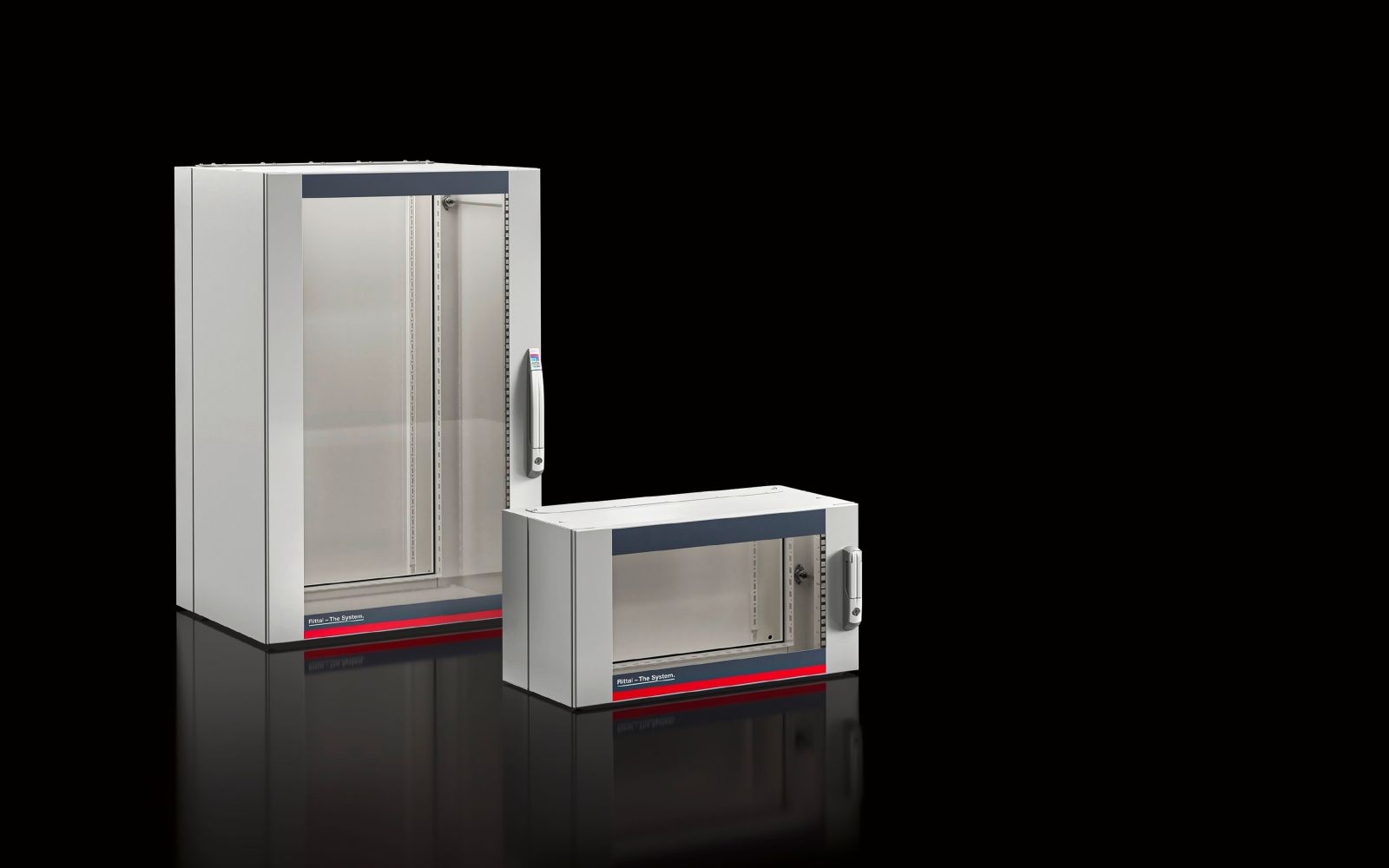

The Rittal AX 2261540 is a 3-piece wall-mounted enclosure for IT applications, designed for use in 19-inch systems. It features a total height of 15 U and is dimensioned with a width of 600 mm, a height of 745 mm, and a depth of 473 mm. The enclosure consists of a wall section, a swing section, and a design viewing door, ensuring a flexible and accessible structure. The construction made of sheet steel with a thickness of 1.5 mm provides a robust foundation suitable for use in industrial and technical environments. The surface is powder-coated, achieving high corrosion resistance and a uniform appearance. The color scheme is RAL 7035 for the wall and swing sections, while the viewing door is finished in a combination of RAL 7035 and RAL 7015 (slate grey).

Applications
This wall-mounted enclosure is designed for use in IT infrastructures, such as server rooms, office installations, or industrial control systems. The 3-piece structure allows easy access to installed devices, enabling efficient maintenance and installation work. The closed gland plate at the top and bottom of the wall section ensures a secure and dust-tight connection to the wall, which is particularly advantageous in environments with increased contamination risk. The installation depth is 420 mm, providing sufficient space for mounting devices with shallow depth.

Functions and Equipment in Detail
The swing section is equipped with a 25 mm hole pattern in the front and rear frame, enabling flexible device mounting. Two 48,3 cm ( 19 inch ) profile rails are mounted at the front, providing a stable mounting option for IT and electronics components. The design viewing door made of single-pane safety glass with a thickness of 3 mm ensures clear visibility of installed devices without compromising safety. The door is secured using a mini comfort handle and a safety locking mechanism (locking type 3524 E), enabling secure access and efficient operation. The lock in the middle section is designed as a 3 mm double bar, providing additional stability.

Technology Explained Simply
The IP 54 protection rating, achieved in conjunction with the closed gland plate at the top and bottom, protects the enclosure against dust and splashing water. This makes the enclosure suitable for indoor use, particularly in environments with some humidity or dust exposure. The static load capacity of the swing section is 750 N, while the wall section has a load capacity of 250 N. These values ensure safe mounting and use even with heavier devices. The clear dimensions are 502 mm in width and 684 mm in height, defining the effective space available for device mounting.

Compatibility and Accessories
The enclosure is part of the AX/VX system kit and can be combined with various accessories to meet specific requirements. Compatible accessories include 48,3 cm ( 19 inch ) fasteners, earthing rails, routing panels, component shelves, C-profile rails, mounting brackets, system chassis, and wall mounting holders. These components allow individual adaptation of the enclosure to different applications, such as mounting network equipment, controls, or security systems. Mounting plates for terminal boxes and bus enclosures extend the application possibilities in the field of electrical installation.

Mounting and Installation
Mounting is done on the wall using the pre-drilled holes in the wall section. The closed gland plate at the top and bottom ensures a secure connection to the wall and prevents dust or moisture ingress. The installation depth of 420 mm must be considered during wall mounting planning to ensure correct positioning.

Operational Advantages
The Rittal AX 2261540 offers high flexibility in device installation due to its modular design and integrated mounting elements. The safety locking mechanism and mini comfort handle ensure secure and convenient access. The powder-coated surface and IP 54 protection rating increase durability and protect installed devices. The combination of robust sheet steel and safety glass provides a reliable and aesthetically pleasing solution for IT and electronics applications.

General
ModelWall-mounted IT enclosure
MaterialWall and swivel part: Sheet steel, 1.5 mm, viewing panel: Single-pane safety glass, 3 mm
Surface protectionPowder-coated
Colourwall and swivel part: RAL 7035, vision door: RAL 7035/7015 (slate grey)
Scope of deliveryWall section: closed flange plate, top and bottom, swivel section with 25 mm hole pattern in front and rear frame and two 19" profile rails, front, fixed installation, design vision door, locking middle section: 3 mm double bar, locking design vision door: safety lock 3524 E, mini comfort handle
Height units15 HE
Width600 mm
Height745 mm
Depth473 mm
Built-in depth420 mm
Light dimensionsClear width: 502 mm, Clear height: 684 mm
Depth of swivel part316 mm
Depth of wall part135 mm
Number of locks1
Load capacity of swivel part (static)750 N
Load capacity wall part (static)250 N
Base materialsteel sheet
LockLocking system: Mini comfort handle, lock insert: Security lock insert No. 3524 E
Degree of protection IP according to EN 60 529IP 54 with flange plate closed top and bottom
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 2261540, EAN: 4028177983359
