Rittal 2500460 door position switch for system light LED

Your rating:
Average rating
product review for Rittal 2500460 door position switch for system light LED
( 4.5 / 5 ) 108 ratings
Rittal 2500460
This image may differ from the desired article.
Rittal 2500460Rittal 2500460Rittal 2500460
32,32 EUR
( 38,46 EUR incl. VAT )
≈ £27.05  |  ≈ $35.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2500460 door position switch for system light LED
Datasheet:file_download Download
Lieske Part No.:970671
Mfg Part No: 2500460
UPC/EAN: 4028177809178
Weight:0.108 kg
Type:SZ 2500460

Product information for Rittal 2500460:

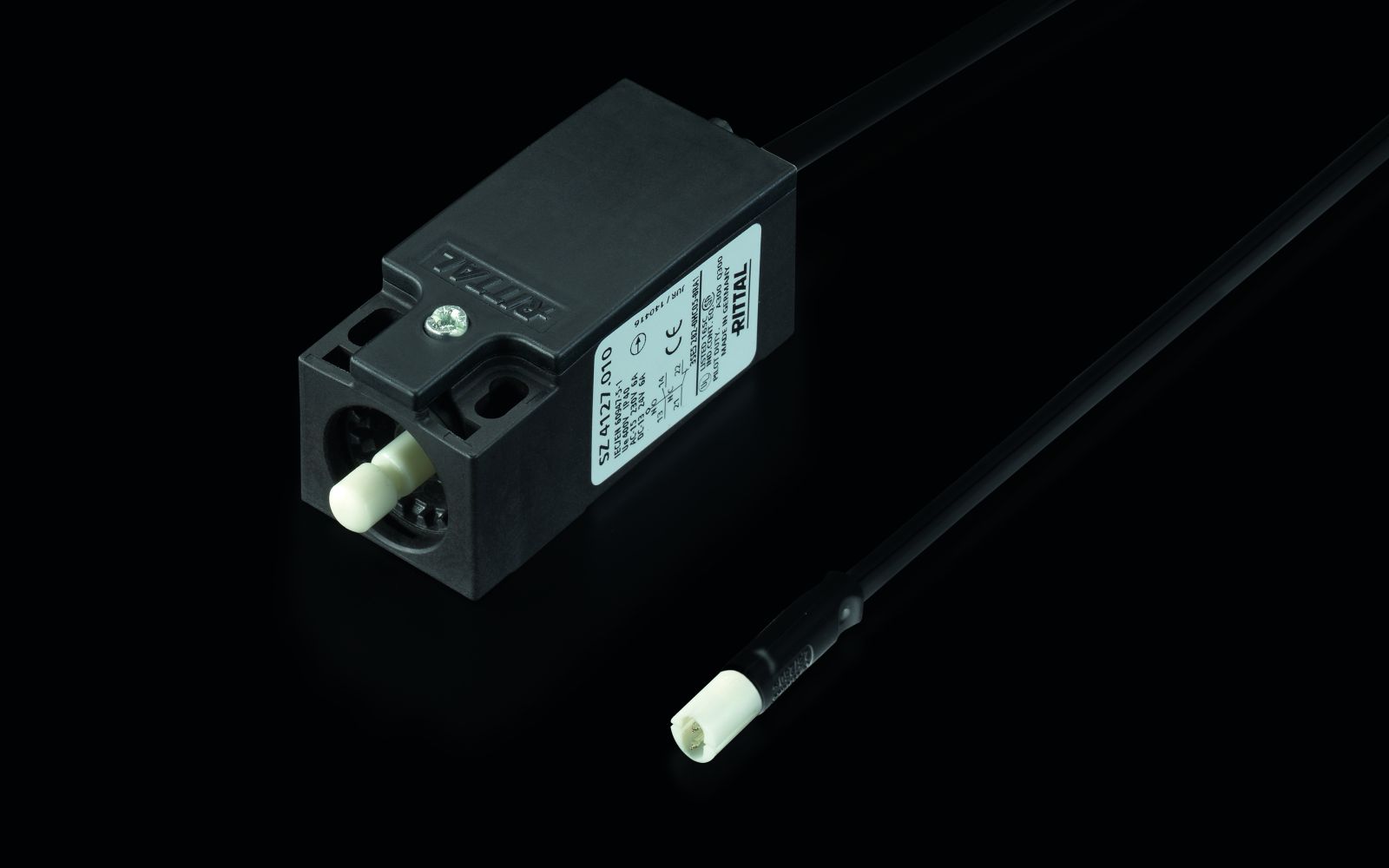

The Rittal SZ 2500460 is a door position switch in black, specifically developed for simple and time-saving connection of the system light LED to enclosures. It features an integrated connection cable with a length of 800 mm, enabling direct connection to the lighting system. The version with connection cable simplifies installation, as no additional cables or connections are required. The device is housed in a compact enclosure with dimensions 31 mm (width), 78 mm (height), and 30 mm (depth), and is supplied with mounting hardware to ensure secure mounting on the enclosure door.

Applications
The door position switch is primarily used in the field of industrial and enclosure technology, especially in combination with LED system lights. It functions as a mechanical switch that automatically activates the lighting when the enclosure door is opened and deactivates it when the door is closed. This improves workplace safety and efficiency during maintenance and inspection of enclosures. The application is in industrial environments where reliable and maintenance-friendly lighting control is required.

Functions and Equipment in Detail
The switch is designed for a rated operating voltage of 230 V (AC) and 24 V (DC), making it suitable for most standard applications in enclosure technology. The electrical connection is rated for a current of 2.5 A, which is sufficient to power typical LED system lights. The integrated connection cable has a cross-section of 0.75 mm² (equivalent to AWG 18), ensuring stable current transmission. The black color ensures unobtrusive integration into the enclosure front.

Technology Explained Simply
The door position switch operates mechanically: when the enclosure door is opened, the switch is actuated by the door's movement and turns on the LED light. When the door is closed, the switch resets and turns off the lighting. The connection cable enables a direct link to the power supply network or to the light, eliminating the need for additional connection work. The use of mounting hardware ensures secure installation, even with frequent opening and closing of the door.

Compatibility and Accessories
The switch is specifically designed for use with the system light LED from Rittal. Compatible accessories available in the product range include cable ties L150 mm for securing the connection cable, as well as mounting brackets for door position switches, which offer an alternative mounting option. These components support installation and ensure safe operation of the switch.

Mounting and Installation
Mounting is performed on the enclosure door using the included mounting hardware. The connection cable is directly connected to the LED system light or to the power supply network. The length of 800 mm provides sufficient clearance for cabling within the enclosure. Installation is simple and requires no special tools or additional effort.

Advantages in Operation
The use of the door position switch reduces installation time and minimizes wiring errors. The automatic activation of lighting when the door is opened increases safety and work comfort. The robust design and use of standard materials (0.75 mm², AWG 18) ensure reliable performance throughout the device's lifetime. Compatibility with the LED system light and easy installation make the switch a practical solution for enclosure systems.

General
Modelwith connection cable
ColourBlack

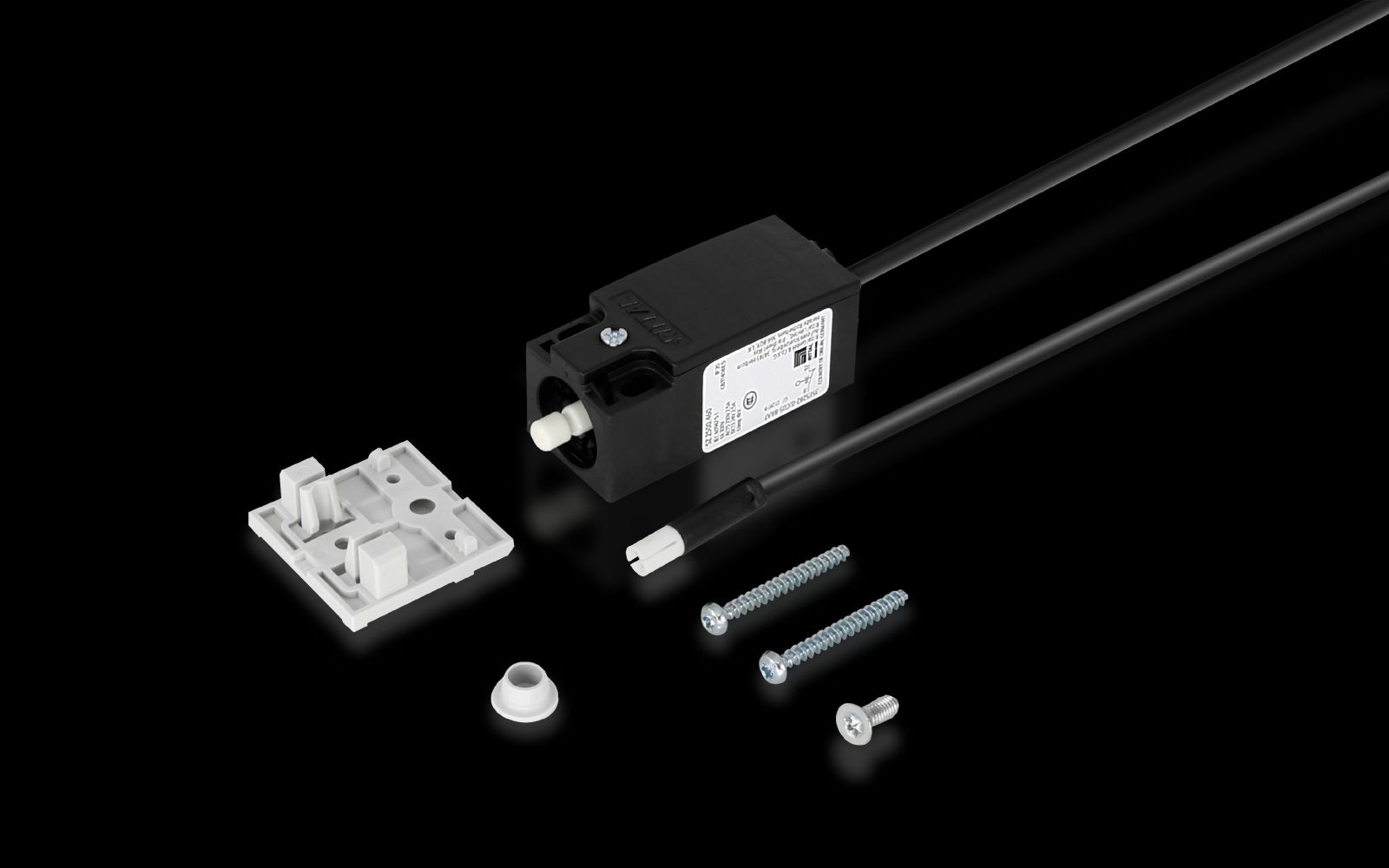

Scope of deliveryIncluding mounting hardware
Cross section0,75 mm²
Length800 mm
AWGAWG 18
Width31 mm
Height78 mm
Depth30 mm
Electrical connection2,5 A
Rated operating voltage230 V (AC), 24 V (DC)


Product data sheet
Datasheet for Rittal 2500460, EAN: 4028177809178
