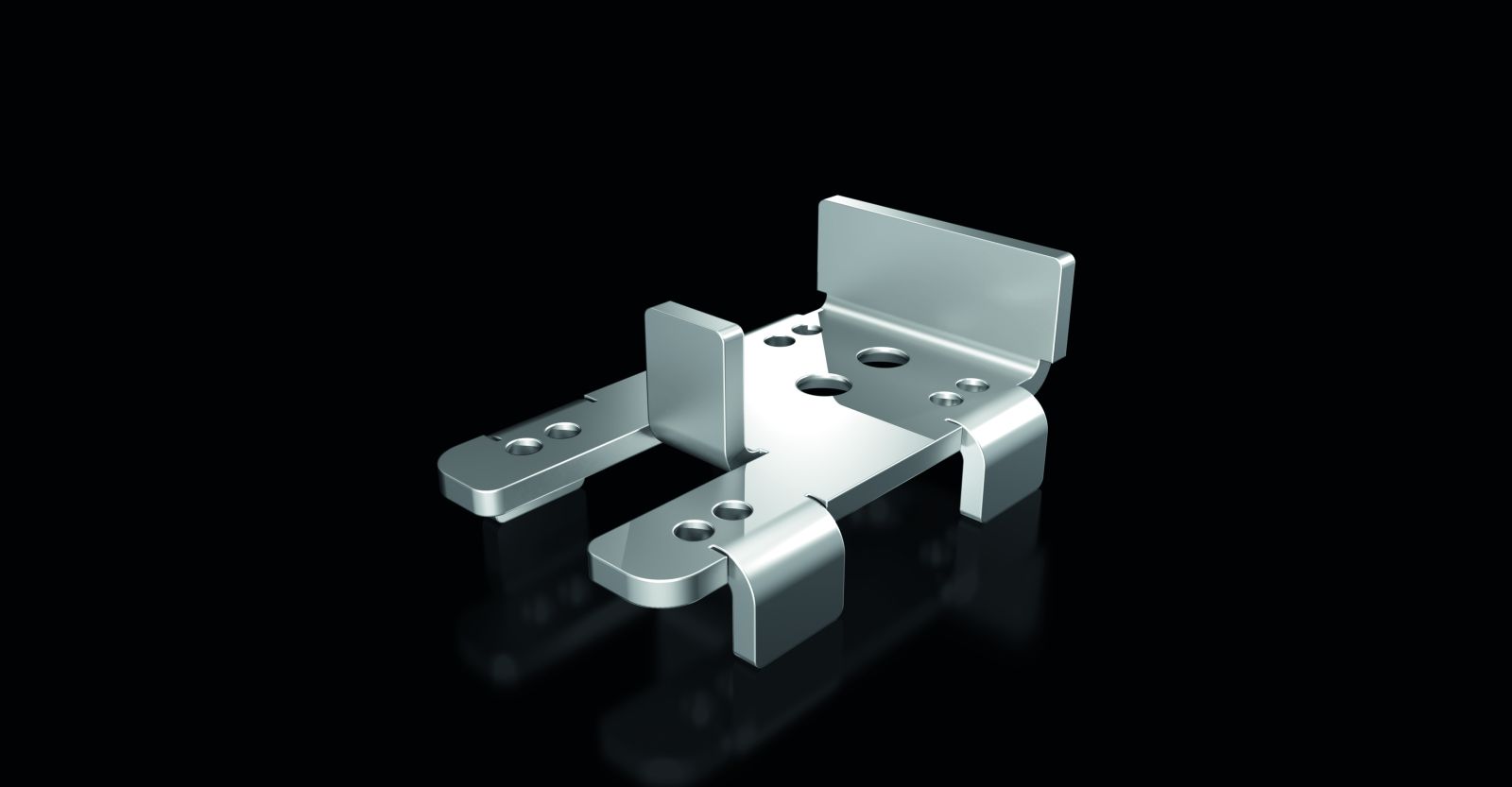

Rittal 5302351 Mounting angle for door position switch
|
6,23 EUR 6,49 EUR |
|
|
( 7,41 EUR incl. VAT ) ≈ £5.21 | ≈ $6.85 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1972948 |
| Mfg Part No: | 5302351 |
| UPC/EAN: | 4028177965645 |
| Weight: | 0.072 kg |
| Type: | VX 5302351 |
Product information for Rittal 5302351:
Applications
The mounting bracket is used in industrial and technical installations where the exact position of an enclosure door must be monitored. This includes, for example, process control systems, automation technology, or safety monitoring systems. Its use in the enclosure systems VX, VX IT, and TX CableNet makes it particularly suitable for users relying on standardized, modular enclosure solutions. The mounting is directly to the frame, ensuring a stable and permanent fixation of the door position switch.
Functions and Equipment in Detail
The bracket is designed to securely mount the door position switch to the enclosure frame. The mounting is done on the designated profiles of the frame, with the exact positioning varying depending on the door variant. The installation is carried out using the included mounting materials, which are designed for connection with the frame profiles. These materials include the necessary screws or brackets to ensure a firm connection. The bracket's construction takes into account the mechanical stresses that occur during frequent opening and closing of the enclosure door.
Technology Explained Simply
The mounting bracket acts as a mechanical adapter between the door position switch and the enclosure frame. It transfers the mechanical movement of the door (e.g., opening/closing) to the switch, which then signals accordingly. The use of standardized frame profiles in the enclosure systems allows universal adaptation to various door configurations. The material selection and design of the bracket ensure that it meets requirements for stability and durability in industrial environments. The mounting is done without additional tools or modifications to the enclosure frame.
Compatibility and Accessories
The mounting bracket is specifically designed for the enclosure systems VX, VX IT, and TX CableNet. It is compatible with the various door variants of these systems, with the mounting position (on the upper horizontal profile or on the side vertical profiles) depending on the respective door configuration.
Mounting and Installation
Installation is performed by securing the bracket to the frame structure using the included mounting materials. The exact positioning depends on the door variant—either on the upper horizontal profile or on the side vertical profiles. The installation requires no additional tools or modifications to the enclosure. After securing the bracket, the door position switch is mounted onto it, with its mechanical movement triggered by the door movement. The installation is quick and simple, as the mounting materials can be used directly.
Advantages in Operation
The mounting bracket provides a reliable and mechanically stable mounting solution for door position switches in industrial enclosures. Integration into the enclosure systems VX, VX IT, and TX CableNet enables standardized and modular installation, simplifying maintenance and replaceability. The use of pre-fabricated mounting materials reduces installation time and ensures consistent quality. The construction guarantees a long service life under industrial conditions, thereby increasing the operational safety of the installation. The direct mounting to the frame enables stable and jerk-free signal transmission of the door status.
| General | |
| Scope of delivery | Including mounting hardware |
Questions & answers
What is the delivery time of Rittal 5302351 Mounting angle for door position switch?
The article Rittal 5302351 Mounting angle for door position switch is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302351 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5302351 Mounting angle for door position switch always at the best possible price. We can give you a discount of 2% on Rittal 5302351 Mounting angle for door position switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
