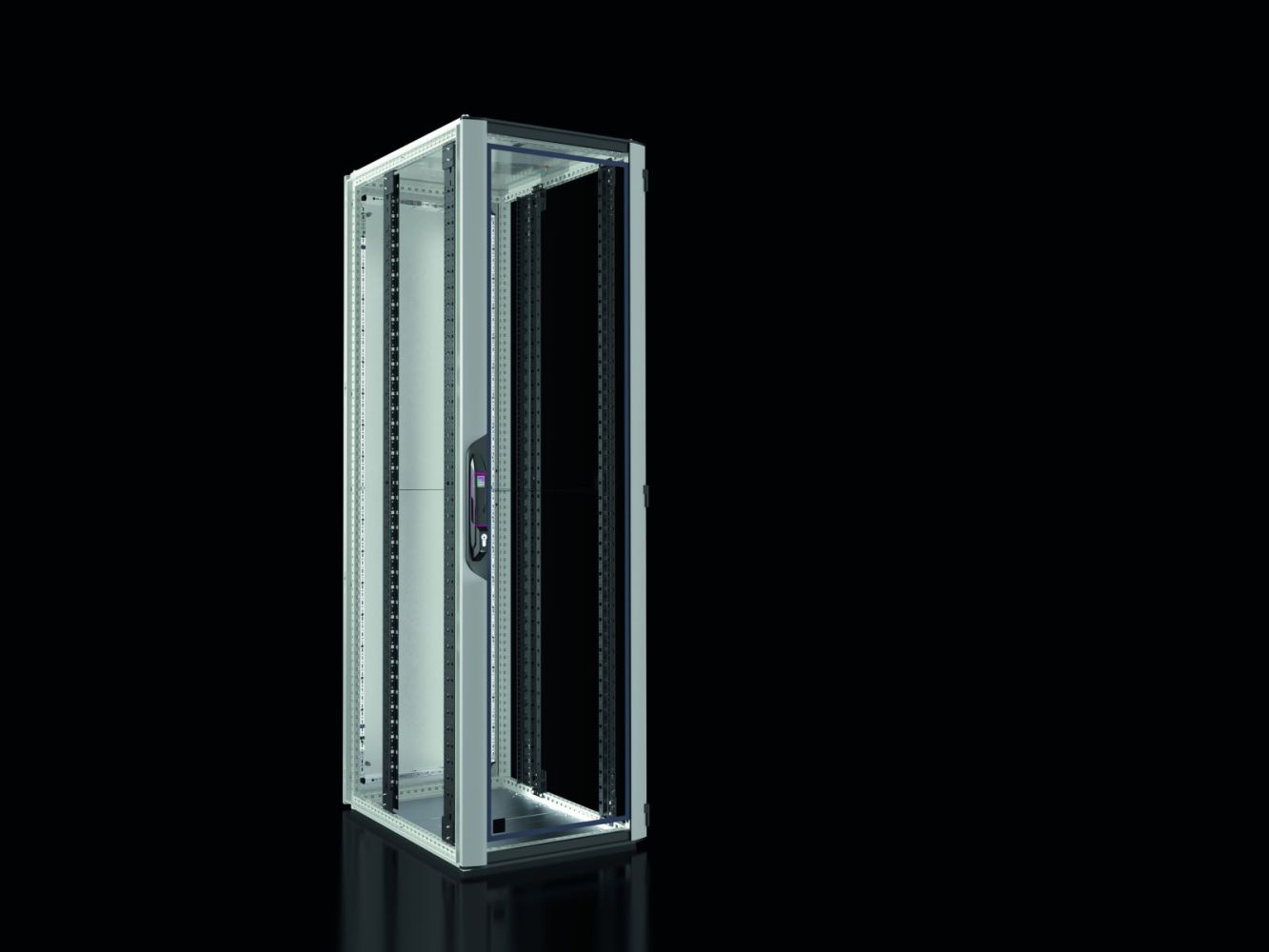

Rittal 5330133 Server rack VX IT closed IP55 600x2000x800 mm 42 U (freight shipping)
|
-8% 1.076,40 EUR 1.165,77 EUR |
|
|
( 1.280,92 EUR incl. VAT ) ≈ £900.95 | ≈ $1,182.96 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775733 |
| Mfg Part No: | 5330133 |
| UPC/EAN: | 4028177945579 |
| Weight: | 96 kg |
| Type: | VX 5330133 |
Product information for Rittal 5330133:
Applications
This enclosure is suitable for use in industrial and commercial environments where a high protection class and mechanical stability are required. It is particularly suitable for server and network installations requiring direct climate control, as well as applications in data centers, factories, or administrative facilities. The IP 55 protection rating safeguards against dust and splashing water, making it suitable for outdoor use or humid indoor environments, provided the baying seal or bolted side panels are correctly installed.
Functions and Equipment in Detail
The enclosure features a torsion-resistant frame structure made of rolled, 9-fold bent hollow profiles, equipped with a 25 mm pitch hole pattern. Mounting is performed via mounting brackets bolted to the top and bottom of the frame structure. The 48,3 cm ( 19 inch ) profile rails are integrated in the standard configuration, enabling device mounting on the front and rear 48,3 cm ( 19 inch ) planes. The plane spacing is 520 mm in the delivered state, with a mounting clearance of 87 mm in front and 193 mm behind the 48,3 cm ( 19 inch ) plane. The base tray consists of multi-part base sheets and is closed, providing a stable foundation for installation.
Technology Explained Simply
The surface of the frame structure is dip-primed, while the interior build is painted. The rear door and roof are dip-primed and powder-coated, and the front door made of aluminium is anodized/painted. The color scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door is vertically silver and horizontally RAL 9005. The interior build, handles, and hinges are also painted in RAL 9005. The load capacity is 15,000 N, with the maximum static load capacity per enclosure according to UL 2416 being 12,000 N. The base materials consist of sheet steel and aluminium, with the viewing door made of safety glass.
Compatibility and Accessories
Various accessories are available for this enclosure to extend its functionality. These include component shelves in different heights (0.5 HE, 1 HE, 1.5 HE) and plane spacings (400–600 mm, 600–900 mm), partially retractable and with varying load capacities. Slide rails in 1 HE and 2 HE versions, as well as document clamps and door position switches, are also available. For mounting and stabilization, there are VX castors, levelling elements (H: 200 mm), plinth baying brackets, and expansion brackets. The baying seal is included in the delivery scope, along with 12 x 48,3 cm ( 19 inch ) fasteners (1 HE, conductive) and 25 internal hexagon screws (conductive). Delivery is on an IPPC pallet.
Mounting and Installation
Mounting is performed via the integrated mounting brackets on the frame structure, bolted at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are already installed in the enclosure, enabling device mounting on front and rear planes. The doors are equipped with hinges allowing an opening angle of 180° (front) and 130° (rear). The exact door opening may vary depending on the installation location. The base tray is multi-part and closed, providing a stable foundation. The baying seal is included to ensure the IP 55 protection rating.
Operational Advantages
The enclosure offers high mechanical stability due to the torsion-resistant frame structure and robust material construction. The IP 55 protection rating safeguards against dust and splashing water, increasing reliability in demanding environments. The integrated 48,3 cm ( 19 inch ) profile rails and designated mounting points simplify device installation. Comfort handles and 180° hinges on the front door improve accessibility. The included baying seal supports achieving the IP 55 protection rating, facilitating installation in row configurations. The load capacity of 15,000 N allows mounting of heavy equipment, with the UL 2416 standard specifying a maximum static load of 12,000 N per enclosure. The surface coating ensures high corrosion resistance and visual quality.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 193 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | floor tray with floor plate, multi-part, closed |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 236.5 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5330133 Server rack VX IT closed IP55 600x2000x800 mm 42 U (freight shipping)?
The article Rittal 5330133 Server rack VX IT closed IP55 600x2000x800 mm 42 U (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5330133 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5330133 Server rack VX IT closed IP55 600x2000x800 mm 42 U (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 5330133 Server rack VX IT closed IP55 600x2000x800 mm 42 U (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
