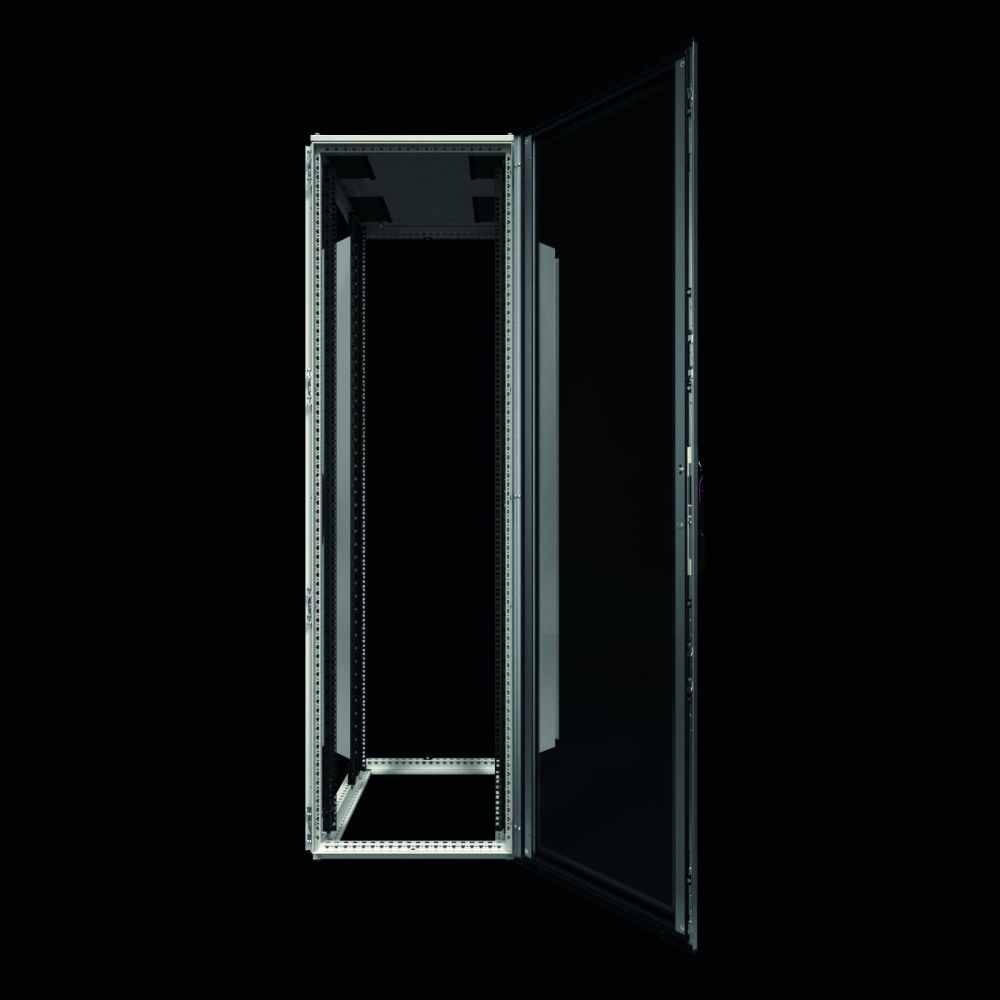

Rittal 5307124 Server rack VX IT closed 800x2000x800 mm 42 U (freight shipping)
|
1.256,61 EUR |
|
|
( 1.495,37 EUR incl. VAT ) ≈ £1,051.78 | ≈ $1,381.01 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775553 |
| Mfg Part No: | 5307124 |
| UPC/EAN: | 4028177944954 |
| Weight: | 107.2 kg |
| Type: | VX 5307124 |
Product information for Rittal 5307124:
Applications
The rack is suitable for use in IT and server environments where structured and secure mounting of network and server equipment is required. The enclosed design with an aluminum viewing door at the front and a steel sheet door at the rear offers high protection against dust, foreign objects, and unauthorized access. The viewing door is made of single-pane safety glass (3 mm) and allows visual inspection of the equipment inside without opening the door. The rear door is vertically divided and equipped with 180° hinges, enabling comfortable operation and maintenance. The front door is single-piece, also with 180° hinges, and made of aluminum (1.25 mm), anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The rear door is made of steel sheet (1.5 mm) and powder-coated in RAL 7035. The enclosure frame, roof, and rear door are also in RAL 7035, while the internal build is painted in RAL 9005. The handle and hinge elements are also finished in RAL 9005.
Functions and Equipment in Detail
The rack features a multi-part roof plate equipped with side cable entries at the depth, on both sides, and is prepared for mounting a fan plate. The floor construction is open, allowing flexible installation of floor plates or component shelves. The mounting clearances are 150 mm at the front and 130 mm at the rear to the 48,3 cm ( 19 inch ) plane, providing sufficient space for cable routing and maintenance. The delivery includes 12 x 48,3 cm ( 19 inch ) fasteners 1 HE, conductive, 25 internal hexagon socket screws, conductive, and spacers for raising a cover plate above the fan opening in the roof plate to enable passive ventilation. These components are not required for variants without an opening in the roof plate. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and allow flexible mounting of equipment.
Technology Explained Simply
The surface treatment of the rack frame is done by dip priming, the internal build is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminum, anodized/painted, ensuring high corrosion resistance and optical quality. The load capacity of 8,000 N corresponds to a high mechanical protection standard and is suitable for use in industrial or commercial environments. The IK code IK08 guarantees protection against mechanical impacts such as shock and impact, which is important for use in environments with increased mechanical stress. The 48,3 cm ( 19 inch ) mounting on cross-braces at the top and bottom ensures stable mounting of equipment and prevents shifting under load.
Compatibility and Accessories
The rack is compatible with a wide range of accessory parts that enhance functionality and adaptability. These include VX plinth corner pieces with plinth trim panel, routing panels, cable managers, component shelves, drawers, cable ducts, glide rails, cable routing trough panel, elastic clamp profiles IP55, socket strips, magnetic label frames, document clips, VX castors, and VX levelling elements. These components allow individual adaptation to specific requirements such as cable management, equipment mounting, floor installation, or transport.
Mounting and Installation
Mounting is done via the provided 48,3 cm ( 19 inch ) profile rails, mounted on the front and rear planes. The 48,3 cm ( 19 inch ) mounting secured to cross-braces at the top and bottom ensures stable and secure mounting. The spacers included in the delivery allow raising a cover plate above the fan opening in the roof plate to enable passive ventilation. The open floor construction allows installation of additional floor plates or component shelves. The 180° hinges on the front and rear doors facilitate mounting and maintenance of equipment inside.
Operational Advantages
The rack offers high mechanical stability and load capacity, making it suitable for demanding environments. The enclosed design with viewing door and steel sheet door provides high protection against dust, foreign objects, and unauthorized access. The integrated 48,3 cm ( 19 inch ) profile rails and 48,3 cm ( 19 inch ) mounting enable flexible and stable mounting of equipment. The side cable entries in the roof plate simplify cable routing and fan integration. The compatibility with various accessories increases adaptability to specific requirements. The surface treatment ensures high corrosion resistance and optical quality. The load capacity of 8,000 N and IK code IK08 guarantee a high protection standard, which is important for use in industrial or commercial environments.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | Standard |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 263.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
