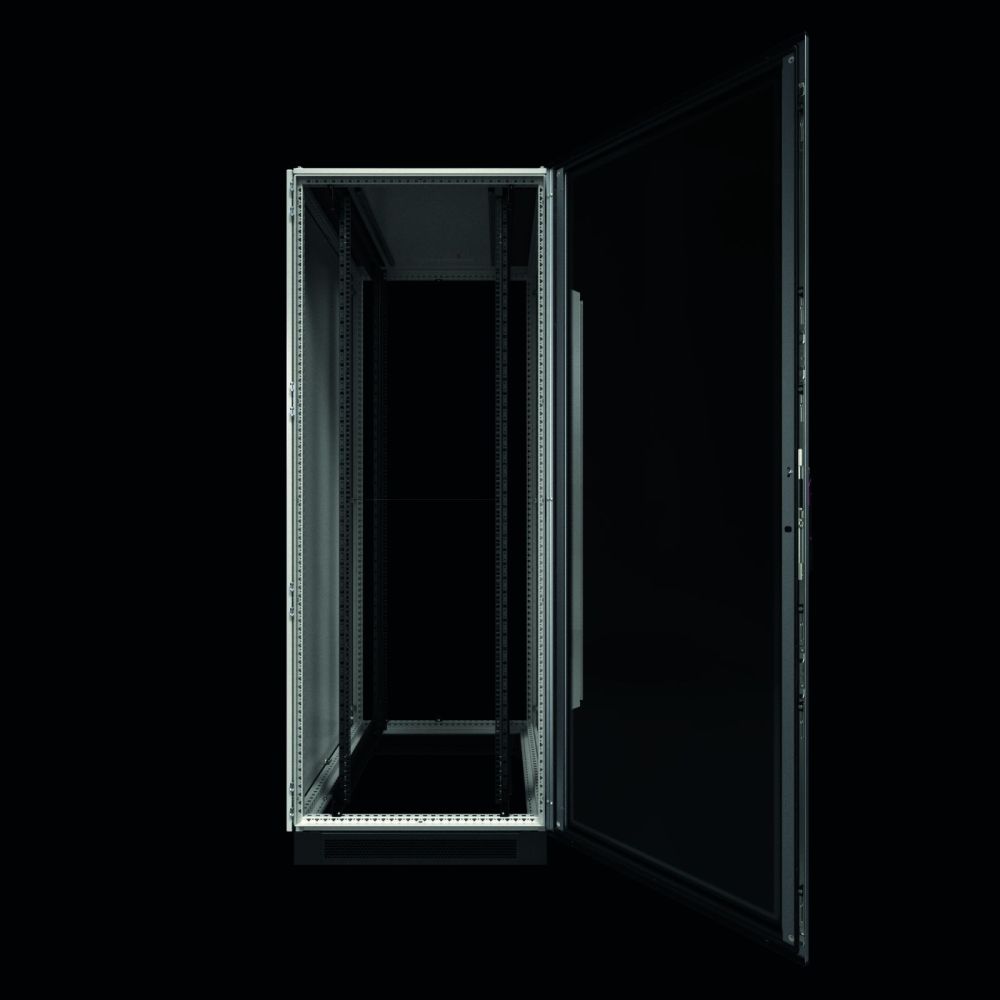

Rittal 5307154 Server rack VX IT closed 800x2100x800 mm 42 U (freight shipping)
|
1.618,33 EUR 1.621,12 EUR |
|
|
( 1.925,81 EUR incl. VAT ) ≈ £1,354.54 | ≈ $1,778.54 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775551 |
| Mfg Part No: | 5307154 |
| UPC/EAN: | 4028177944978 |
| Weight: | 158 kg |
| Type: | VX 5307154 |
Product information for Rittal 5307154:
Applications include housing network and server equipment in data centres, IT server rooms, industrial facilities, and technical rooms where a closed, pre-assembled enclosure solution with direct climate control is required. The pre-assembled configuration reduces on-site installation time and ensures quick commissioning. The enclosure construction is designed for a static load capacity of 8,000 N, complying with the UL 2416 standard. The IK08 protection class provides protection against mechanical impacts such as shocks and vibrations, making it suitable for industrial environments.
Functions and equipment in detail include a 48,3 cm ( 19 inch ) internal assembly with standard profile rails, screwed to the cross braces at the top and bottom. The bay spacing is 520 mm in the delivered state, with the mounting plane positioned both front and rear. The mounting clearance is 150 mm at the front and 130 mm at the rear, providing sufficient space for cable routing and maintenance. The roof is multi-part and features side cable entries at the depth, on both sides, as well as preparation for a fan plate, enabling integration of fan modules. The VX plinth system with a height of 100 mm is ventilated and ensures optimal air circulation at the base. The front base module is mounted as a viewing panel, improving the visual appearance and facilitating cable access.
Technology explained simply shows that the enclosure is designed for direct, rack-specific climate control, optimizing air circulation within the enclosure. The 180° hinges on the front and rear allow full door opening, facilitating maintenance and device installation. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT system and enable mounting of equipment according to the 48,3 cm ( 19 inch ) standard. The cable entry in the roof supports structured cabling, especially when integrating fan modules. The load capacity of 8,000 N ensures the enclosure remains stable even under high static loads.
Compatibility and accessories include a wide range of compatible components that extend functionality. These include VX plinth corner pieces with plinth trim panels, 48,3 cm ( 19 inch ) fasteners 1 HE with termination, component shelves in various heights (0.5HE, 1HE, 1.5HE), magnetic label frames, document clamps, VX castors, levelling elements (H: 200 mm), plinth baying brackets, VX plinth expansion angles, door position switches, TS IT 2 HE slide rails, fan modules incl. 2 fans (for VX, TS, VX IT and TS IT), VX plinth adapters for double swivel castors, and plinth corner pieces with plinth trim panels front and rear. These accessories enable individual adaptation to specific requirements such as maintenance, transport, ventilation, or labelling.
Assembly and installation are facilitated by the pre-assembled configuration, which includes all necessary elements such as doors, roof, profile rails, and plinth system. Wall or floor mounting is done using the included M12 levelling feet and plinth adapters, with optional spacers (50 mm) available to raise the roof plate above fan openings. The 12 x 48,3 cm ( 19 inch ) fasteners 1 HE and 25 internal hex socket screws are included in the delivery, as are 4 combination rails for internal and external mounting planes and 10 cable routing brackets. Assembly is done by screwing to the cross braces, with the pre-fabricated construction enabling quick and secure installation.
Operational advantages lie in the pre-assembled configuration, which minimizes on-site installation time. The closed construction with front viewing door and rear sheet steel door offers high protection against dust and mechanical impacts. The IK08 protection class and static load capacity of 8,000 N make the enclosure suitable for demanding industrial environments. The side cable entries in the roof and prepared mounting for fan modules support efficient climate control. The 180° hinges on front and rear allow unobstructed access to all equipment, simplifying maintenance and installation. The ventilated plinth ensures optimal air circulation at the base, increasing cooling performance. The colour design in RAL 7035 and RAL 9005 provides a professional appearance that harmonizes well in technical rooms.
| General | |
| Material | Sheet steel, aluminium, plastic, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles, silver, and horizontal profiles RAL 9005, interior fitting, base: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Height including socket | 2.100 mm |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | pre-assembled |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Floor module front mounted as sight shield |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 389.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
