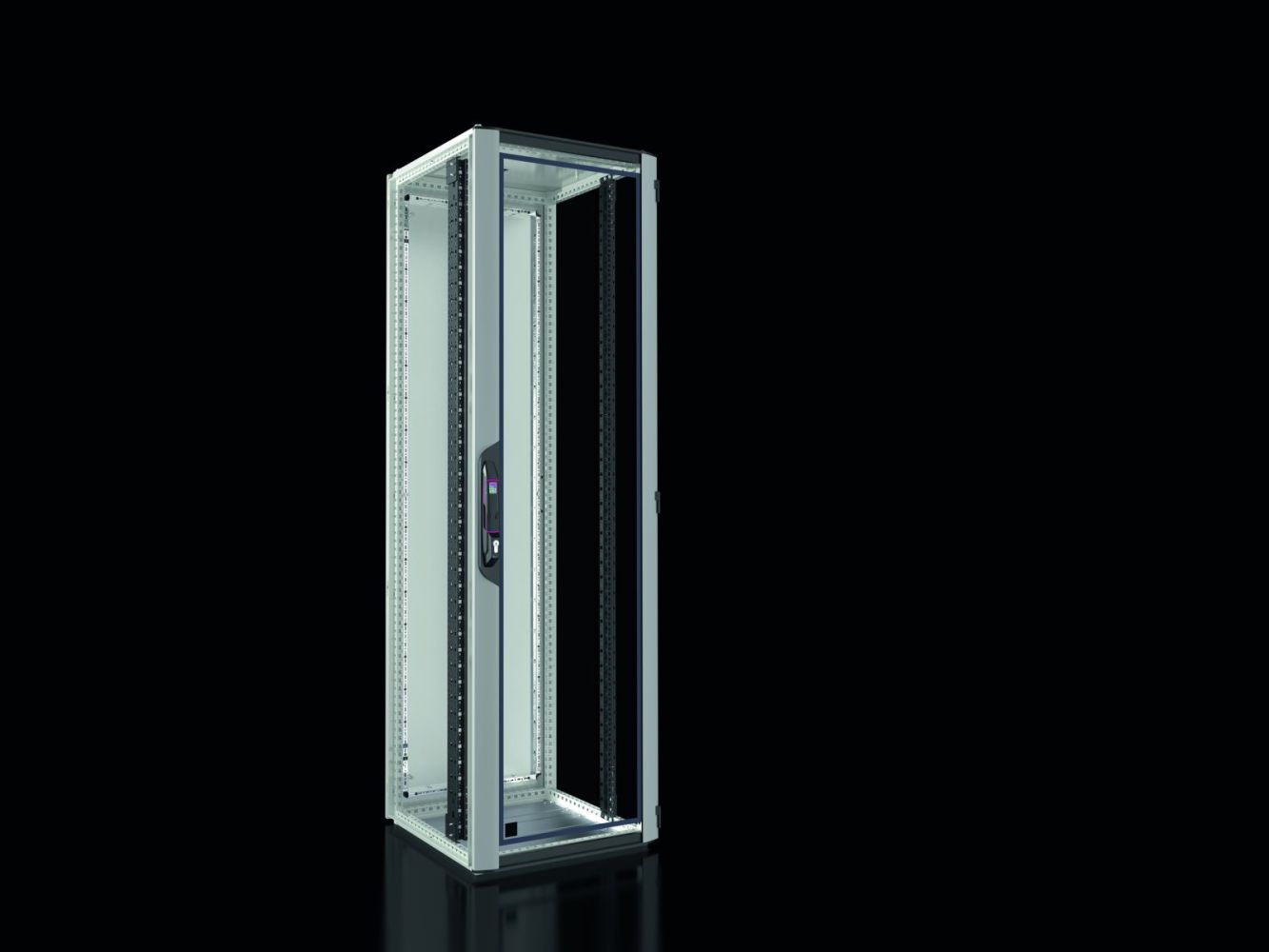

Rittal 5329131 Server rack VX IT closed IP55 600x2000x600 mm 42 U
|
1.014,07 EUR |
|
|
( 1.206,74 EUR incl. VAT ) ≈ £848.78 | ≈ $1,114.46 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775723 |
| Mfg Part No: | 5329131 |
| UPC/EAN: | 4028177945531 |
| Weight: | 78 kg |
| Type: | VX 5329131 |
Product information for Rittal 5329131:
Applications
This enclosure is designed for use in environments with increased requirements for dust and splash water protection. The IP 55 protection rating makes it suitable for indoor spaces with potential humidity or dust exposure, such as production halls, industrial facilities, or technical rooms. The closed design supports direct rack-based climate control, which is important for the thermal stability of installed equipment.
Functions and Equipment in Detail
The front door is made of aluminum with a 3 mm thick single-pane safety glass viewing surface, allowing clear visibility of installed devices. The rear is equipped with a solid steel sheet door, providing high mechanical stability. Both doors are fitted with comfort handles for half cylinders, ensuring secure and convenient operation. Internal components, including profile rails, are painted in RAL 9005, while the enclosure frame, rear door, and roof are finished in RAL 7035. The front door features vertical profiles in silver and horizontal profiles in RAL 9005.
Technical Explanation
The enclosure is made of steel sheet, with the frame structure dip-primed and the rear door and roof powder-coated. The front door is made of aluminum, anodized/painted. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT system and allow mounting of devices in 48,3 cm ( 19 inch ) format. Installation is done via mounting brackets, which are screwed to the frame structure at the top and bottom. The mounting clearance is 87 mm at the front and 435 mm at the rear, providing sufficient space for cable routing and maintenance. The base tray is multi-part and closed, providing a stable foundation.
Compatibility and Accessories
The enclosure is expandable with various accessories for individual adaptation to specific applications. These include, for example, magnetic change frames for labeling, document clips, castors, levelling elements in various heights, plinth baying brackets, plinth trim panels in various versions (side, ventilated, with brush strip), plinth adapters for double swivel castors, plinth mounting brackets, and door position switches. These components enable flexible adaptation to different mounting and operating conditions.
Mounting and Installation
Installation is carried out using the integrated mounting brackets, which are screwed to the frame structure. The 48,3 cm ( 19 inch ) mounting plane is positioned at the front, which is a common arrangement for server and network equipment. The enclosure’s load capacity is 7,500 N, with a maximum static load capacity per enclosure according to UL 2416 of 6,000 N. The base tray is multi-part and closed, enabling stable mounting on uneven surfaces. The baying seal and sealing kit for base plates are included in the delivery scope, supporting the achievement of IP 55 protection rating.
Operational Advantages
The enclosure offers high mechanical stability and reliable IP 55 protection, achieved in combination with baying seal or screwed side panels. The viewing door allows visual inspection of installed devices without opening the door. Integrated mounting brackets and 48,3 cm ( 19 inch ) profile rails simplify installation and maintenance. The use of conductive screws and fasteners ensures a secure electrical connection, which is important for EMC and safety requirements in IT environments. Surface treatment with dip priming and powder coating ensures high corrosion resistance and long service life.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 435 mm |
| Mounting position 19" rack | Front side |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | floor tray with floor plate, multi-part, closed |
| 19" rack configuration | Front side |
| Mounting type for profile rail | 19"-level front |
| Load capacity | 7.500 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 6.000 N |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 199.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5329131 Server rack VX IT closed IP55 600x2000x600 mm 42 U?
The article Rittal 5329131 Server rack VX IT closed IP55 600x2000x600 mm 42 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5329131 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5329131 Server rack VX IT closed IP55 600x2000x600 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5329131 Server rack VX IT closed IP55 600x2000x600 mm 42 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
