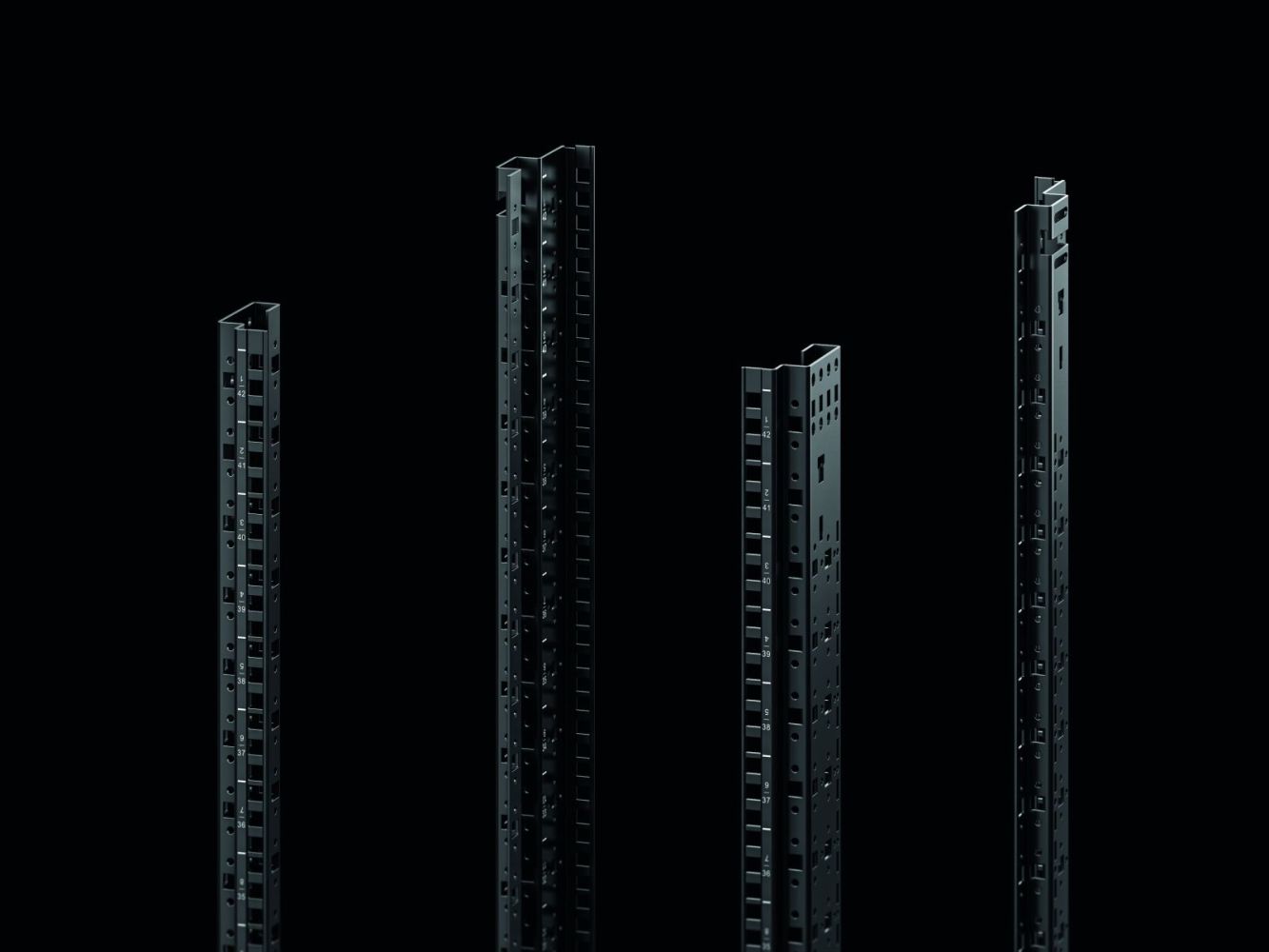

Rittal 5302107 48,3 cm ( 19 inch ) profile rails standard, rear, 42 U
|
88,71 EUR |
|
|
( 105,56 EUR incl. VAT ) ≈ £74.25 | ≈ $97.49 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910613 |
| Mfg Part No: | 5302107 |
| UPC/EAN: | 4028177955455 |
| Weight: | 8.94 kg |
| Type: | VX 5302107 |
Product information for Rittal 5302107:
Applications
The profile rail primarily serves to establish an inch-based mounting plane within the VX IT enclosure system. It is suitable for inch-based partial installations and enables structured cabling through integrated system hole patterns. The lateral round and square holes in the U grid, along with the integrated, bidirectional U labeling, support precise positioning and identification of devices. The mounting hole pattern conforms to standard EIA 310 E and enables inch-based mounting.
Functions and Equipment in Detail
The rail features an integrated system hole pattern in the U grid on the front and sides, enabling U-based mounting of cable management elements. This allows for organized and structured cabling. Equipotential bonding within the mounting plane and with the frame structure is achieved via the mounting elements. The rail is intended for the rear mounting position and is installed in combination with additional mounting elements.
Technology Explained Simply
The profile rail is made of steel sheet, ensuring high mechanical stability and durability. The priming protects the material from corrosion and ensures a uniform surface finish. The RAL 9005 color is a dark gray standard tone that integrates well into IT infrastructures. The L-shaped form allows for direct mounting of server modules secured to the 48,3 cm ( 19 inch )-system hole pattern. The integrated U labeling facilitates identification of mounting positions.
Compatibility and Accessories
The profile rail is designed for use with additional mounting elements such as cross brace, depth brace, or mounting angle. These elements are required to securely fix the rail within the enclosure. Installation options include alternative mounting widths of 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and enclosure dimensions. The combination with the mentioned accessories enables flexible adaptation to different enclosure configurations.
Mounting and Installation
Mounting requires a combination with cross brace, depth brace, or mounting angle. The choice of mounting method depends on the enclosure dimensions. The rail is installed in the rear area of the enclosure and enables mounting of IT components on an inch-based plane. The delivery includes the necessary mounting materials, contributing to secure installation.
Operational Advantages
The profile rail provides a stable and precise mounting base for IT components. The integrated system hole pattern and U labeling facilitate cable structuring and identification of mounting positions. The use of steel sheet ensures high mechanical strength, and the priming provides corrosion protection. Compatibility with various mounting elements enables flexible adaptation to different enclosure configurations.
| General | |
| Model | for VX IT 19" standard profile rail |
| Technical data | side round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E |
| Applications | For creating a standard mounting surface within the VX IT enclosure system |
| Material | Sheet steel, 2 mm |
| Surface protection | Primed |
| Colour | RAL 9005 |
| Scope of delivery | Including mounting hardware |
| Installation position | Back side |
| Mounting options | Alternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions |
| Mounting note | For mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions. |
| Suitable for | Height: = 42 U, = 2,000 mm |
| PCF/VE (Cradle-to-Gate) | 34.1 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5302107 48,3 cm ( 19 inch ) profile rails standard, rear, 42 U?
The article Rittal 5302107 48,3 cm ( 19 inch ) profile rails standard, rear, 42 U is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302107 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5302107 48,3 cm ( 19 inch ) profile rails standard, rear, 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5302107 48,3 cm ( 19 inch ) profile rails standard, rear, 42 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
