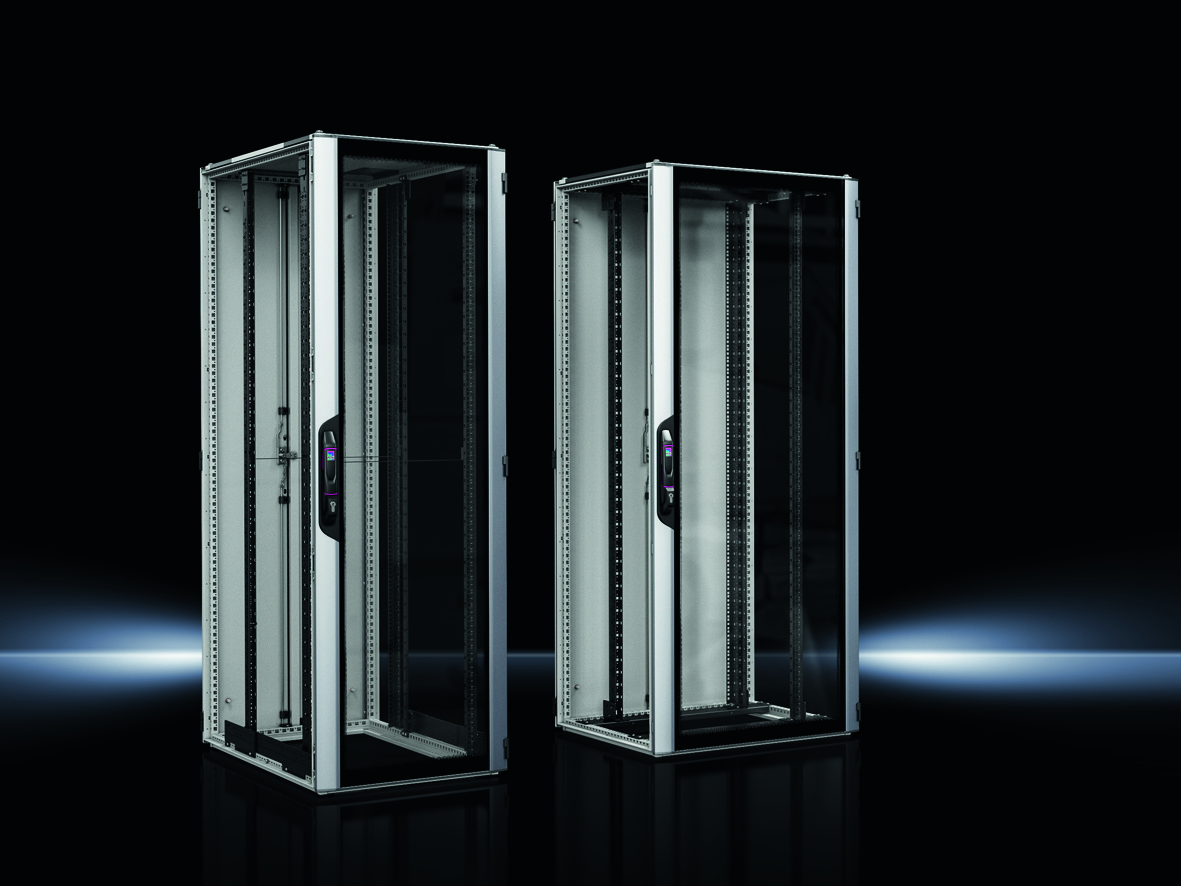

Rittal 5329121 Serverschrank VX IT closed 600x2000x600 mm 42 U
|
1.155,06 EUR |
|
|
( 1.374,52 EUR incl. VAT ) ≈ £966.79 | ≈ $1,269.41 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775810 |
| Mfg Part No: | 5329121 |
| UPC/EAN: | 4028177945524 |
| Weight: | 69.7 kg |
| Type: | VX 5329121 |
Product information for Rittal 5329121:
Applications include use in data centres, server rooms, IT infrastructures, and other environments where structured and secure mounting of IT and network equipment is required. The rack is designed for direct rack-based climate control, enabling efficient cooling of mounted devices. The 48,3 cm ( 19 inch )-profile rails are integrated in the standard configuration and allow mounting of equipment in 48,3 cm ( 19 inch ) format. The installation position of the 48,3 cm ( 19 inch )-plane is front, with a mounting clearance of 87 mm in front and 435 mm at the rear. The 48,3 cm ( 19 inch )-mounting is done using mounting brackets, which are screwed to the frame structure at the top and bottom. The load capacity of the rack is 7,500 N, with the maximum static load capacity according to UL 2416 per rack being 6,000 N. The IK rating is IK08, indicating high mechanical resistance against impacts or vibrations.
Functions and equipment in detail include integrated 48,3 cm ( 19 inch )-profile rails, enabling flexible equipment mounting. The viewing door made of single-pane safety glass ensures clear visibility of mounted devices without compromising safety. The 180° hinges on front and rear doors allow full door opening, facilitating access to equipment. The roof structure is multi-part and provides transverse cable entry at the rear, simplifying cabling. The preparation for a fan plate supports integration of fans for climate control. The rear door is made of steel sheet (1.5 mm), offering high mechanical stability. The front door is made of aluminium (1.25 mm) and is equipped with a comfort handle for half cylinder and a security lock 3524 E.
Technology explained simply shows that the rack consists of a torsion-resistant, welded frame structure made of rolled, 9-fold bent, closed hollow profiles. The perforation is in a 25 mm grid, enabling flexible mounting. The integrated blind rivet nuts M6 allow attachment of fittings without compromising the protection rating. The horizontal profiles feature an integrated groove above the PU foam seal to protect it. The profiles are identical on all sides, creating a symmetrical and stable construction. The surface treatment ensures high corrosion resistance and visual quality. The colour scheme in RAL 7035 and RAL 9005 enables uniform design in technical rooms.
Compatibility and accessories include a variety of compatible components that extend the functionality of the rack. These include cable management panels, cable managers, cable ducts, socket strips, drawers, document clamps, VX castors, levelling elements, plinth baying brackets, door position switches, and glide rails. These accessories enable optimized cabling, better organization, and flexible adaptation to specific requirements. The 48,3 cm ( 19 inch )-fasteners and conductive internal hex socket screws are included in the delivery scope and support secure mounting of equipment.
Mounting and installation involve securing the 48,3 cm ( 19 inch )-profile rails to the mounting brackets, which are screwed to the frame structure at the top and bottom. The spacers (height 50 mm) are included and serve to raise a deck plate above the fan outlet in the roof plate, enabling passive ventilation. The doors are mounted using the integrated hinges, with the front door equipped with a comfort handle and a security lock. The roof structure is pre-assembled and allows for easy installation.
Operational advantages include high load capacity, IK08 protection class, flexible mounting via the 25 mm perforation, and integrated 48,3 cm ( 19 inch )-profile rails. The viewing door enables quick visual inspection of devices, while the 180° hinges ensure unobstructed access. The preparation for fan plate and transverse cable entry support efficient climate control and cabling. The stable construction from steel sheet and aluminium ensures long service life and high reliability. The colour design in RAL 7035 and RAL 9005 fits modern technical environments. The PCF values (Cradle-to-Gate) are 171.7 kg CO2 eq (Cat B), reflecting the product’s environmental impact. The certifications UL + C-UL (listed) confirm compliance with international safety standards.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 435 mm |
| Mounting position 19" rack | Front side |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Model | Standard |
| Roof type | multi-part, with cable entry at rear transverse and prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front side |
| Mounting type for profile rail | 19"-level front |
| Load capacity | 7.500 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 6.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 171.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
