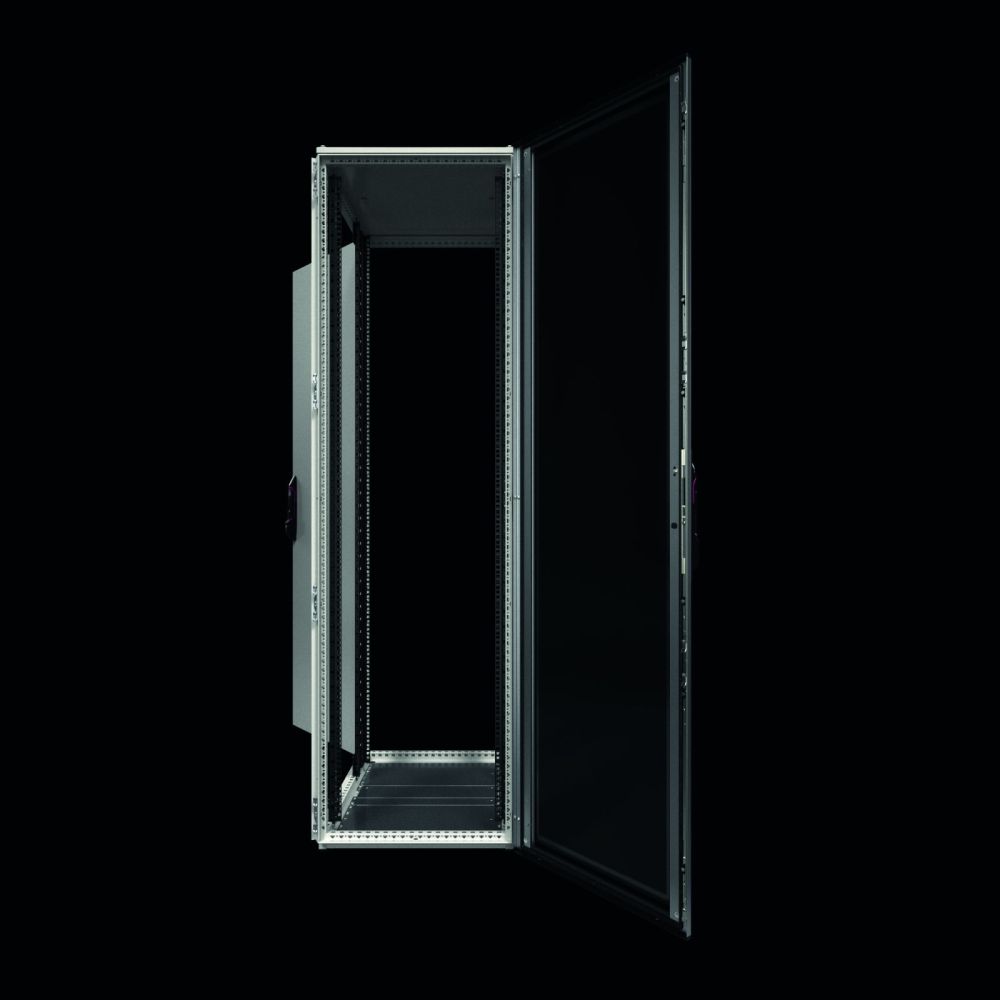

Rittal 5307134 Server rack VX IT closed IP55 800x2000x800 mm 42 U (freight shipping)
|
1.186,11 EUR |
|
|
( 1.411,47 EUR incl. VAT ) ≈ £992.77 | ≈ $1,303.53 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775568 |
| Mfg Part No: | 5307134 |
| UPC/EAN: | 4028177944961 |
| Weight: | 119.8 kg |
| Type: | VX 5307134 |
Product information for Rittal 5307134:
Applications include use in data centres, server rooms, IT distributions, and other environments where high mechanical stability and protection against dust and splashing water are required. The enclosure is intended for use in row configurations, with the protection rating IP 55 only achievable in combination with a baying seal or screwed side panels. The IK08 rating ensures high protection against mechanical impacts, such as shocks or vibrations.
Functions and equipment in detail include a pre-assembled frame structure made of rolled, 9-fold bent hollow profiles, providing high torsional stiffness. The perforation is on a 25 mm grid, allowing flexible mounting of devices. The 48,3 cm ( 19 inch ) profile rails are standardly installed at the front and rear and are screwed to cross-braces at the top and bottom. The spacing between levels is 520 mm in the delivered state, with a mounting clearance of 150 mm at the front and 130 mm at the rear to the 48,3 cm ( 19 inch ) level. The base plate is multi-part and closed, ensuring a stable foundation for device installation.
Technology explained simply shows that the rack frame is made of sheet steel and is dip-primed, while the internal build is painted. The rear door and roof are dip-primed and powder-coated, while the front door made of aluminium is anodized/painted. The colour scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical silver-coloured profiles and horizontal RAL 9005. The internal build as well as handles and hinges are in RAL 9005. The maximum static load capacity is 8,000 N, complying with the UL 2416 standard.
Compatibility and accessories include various extensions suitable for operation in the VX system. These include, for example, component shelves in various heights (1 U, 1.5 U, 0.5 U) with pull-out or fixed mounting elements, slide rails for 1 U or 2 U, document clamps, and door position switches. Additionally, plinth corner pieces, levelling elements, and baying brackets are available to optimise mounting and stability. The baying seal and the sealing kit for base plates are included in the delivery scope, as are 12 pieces of 48,3 cm ( 19 inch ) fasteners (1 U, contacting) and 25 internal hexagon socket screws (conductive).
Mounting and installation are carried out via the integrated blind rivet nuts M6 on the frame, enabling protection-rated fastening of fittings. The profile edges are rounded, facilitating mounting and minimising injury risks. The pre-assembled construction reduces installation effort, as the rack frame is delivered with doors, roof, and base tray.
Operational advantages lie in high mechanical stability, easy mounting, and flexible expandability. The IP 55 protection rating in combination with baying seal or screwed side panels protects against dust and splashing water, which is particularly important in industrial or outdoor environments. The IK08 rating ensures high protection against mechanical loads. The integrated 48,3 cm ( 19 inch ) profile rails and the 25 mm perforation grid enable flexible and standardised device mounting. The delivery with baying seal and sealing kit for base plates simplifies installation in row configurations.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | Standard |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | floor tray with floor plate, multi-part, closed |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 295.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
