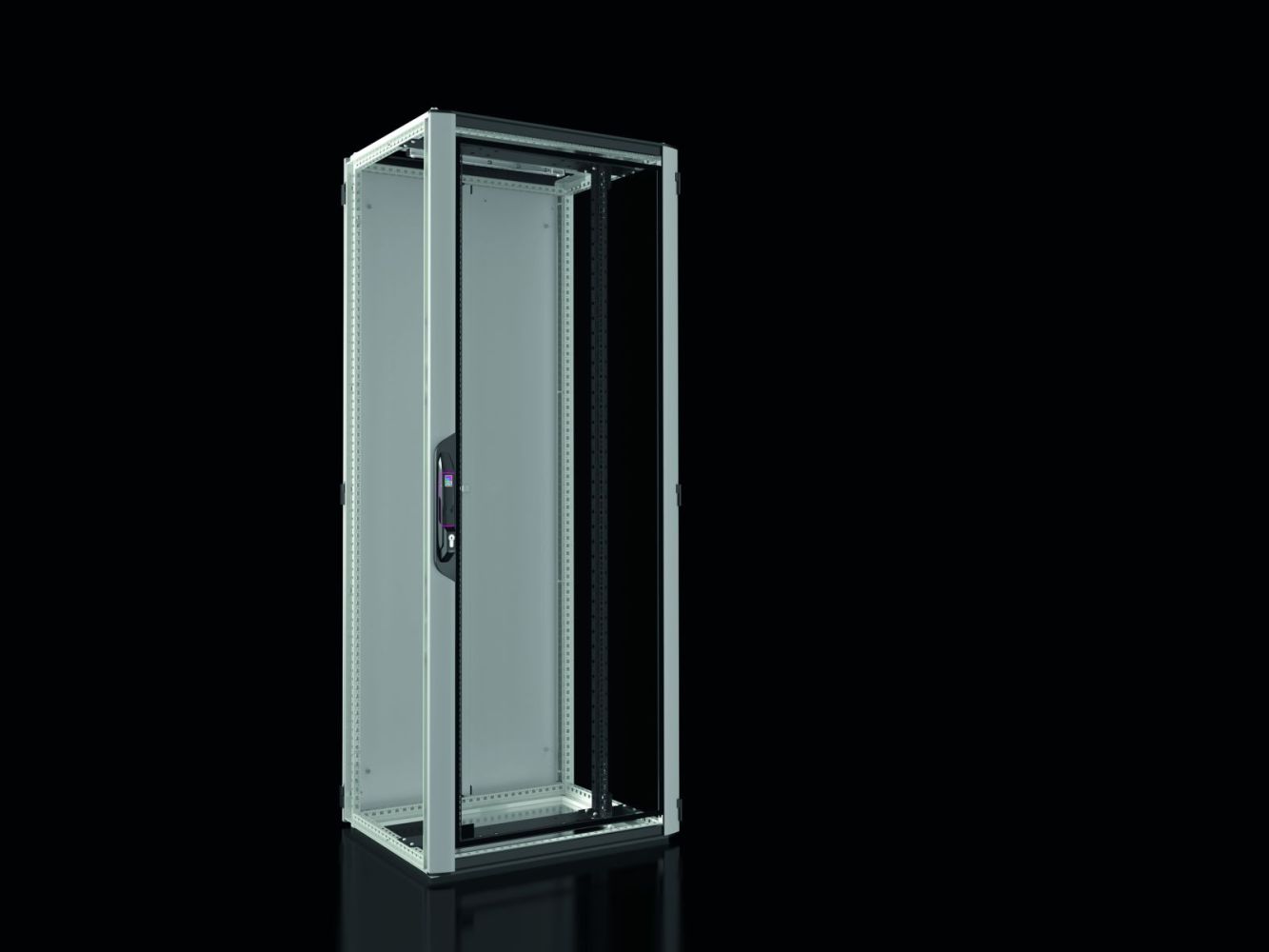

Rittal 5306122 Server rack VX IT closed 800x2000x600 mm 42 U
|
-8% 1.202,90 EUR 1.302,77 EUR |
|
|
( 1.431,45 EUR incl. VAT ) ≈ £1,006.83 | ≈ $1,321.99 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775556 |
| Mfg Part No: | 5306122 |
| UPC/EAN: | 4028177944923 |
| Weight: | 91.4 kg |
| Type: | VX 5306122 |
Product information for Rittal 5306122:
Applications
This rack is suitable for use in IT infrastructures where secure and structured housing of servers, switches, routers and other network components is required. The enclosed design with a viewing door at the front and a steel sheet door at the rear provides protection against dust, mechanical impacts and unauthorized access. The configuration with 180° hinges on both front and rear enables full door opening, facilitating device installation and maintenance. The IK08 rating ensures high protection against mechanical impacts, such as shock or impact.
Functions and equipment in detail
The front of the rack is equipped with an aluminum viewing door made of single-pane safety glass with a thickness of 3 mm. The door is single-piece and fitted with 180° hinges, allowing full opening. The rear features a steel sheet door, vertically divided and also mounted with 180° hinges. The doors are fitted with comfort handles suitable for half cylinders and the security locking system 3524 E. The front door is made of aluminum with a thickness of 1.25 mm, while the rear door is made of steel sheet with a thickness of 1.5 mm.
Technology explained clearly
The rack is made of steel sheet, with the rack frame dip-primed. The interior assembly is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminum, anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The enclosure frames, rear door and roof are painted in RAL 7035. The interior assembly, handle and hinge color corresponds to RAL 9005. The 48,3 cm ( 19 inch ) profile rails are standard-integrated in the VX IT and screwed to the cross-brace at top and bottom. The mounting clearance is 150 mm at the front and 372 mm at the rear to the 48,3 cm ( 19 inch ) plane, which is positioned at the front. The maximum static load capacity is 4,000 N, according to UL 2416.
Compatibility and accessories
The rack is compatible with various accessories that extend its functionality. These include cable management panels, cable managers, power strips, drawers, cable ducts, magnetic labeling frames, castors, leveling elements, plinth expansion angles and door position switches. These components allow individual adaptation to specific requirements, such as cable management, additional power supply or improved accessibility.
Mounting and installation
Mounting is performed at the 48,3 cm ( 19 inch ) plane at the front, with the profile rails screwed to the cross-brace at top and bottom. The roof is multi-part and features a cable entry at the rear transversely, as well as preparation for a fan plate. The floor construction is open, enabling flexible installation and ventilation. The delivery includes the rack frame with doors and roof plate, 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE (conductive), 25 internal hexagon socket screws (conductive), and spacers for raising a cover plate above the fan opening in the roof plate. These spacers are not required for variants without an opening.
Advantages in operation
The rack offers high mechanical stability and load capacity, making it suitable for use in professional IT environments. The enclosed design with a viewing door enables secure and transparent monitoring of installed devices. The integrated 48,3 cm ( 19 inch ) profile rails and flexible mounting options simplify installation and maintenance. The preparation for fan plates and the open floor construction support efficient cooling and air circulation. The surface coating ensures high corrosion resistance and optical quality. The PCF value (Cradle-to-Gate) is 225.2 kg CO2 eq (Category B), indicating the environmental impact of the product.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 372 mm |
| Mounting position 19" rack | Front side |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | Standard |
| Roof type | multi-part, with cable entry at rear transverse and prepared for fan panel |
| Door configuration rear | Steel sheet door, closed, vertically divided, 180° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front side |
| Mounting type for profile rail | 19"-level front |
| Load capacity | 4.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 4.000 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 225.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
