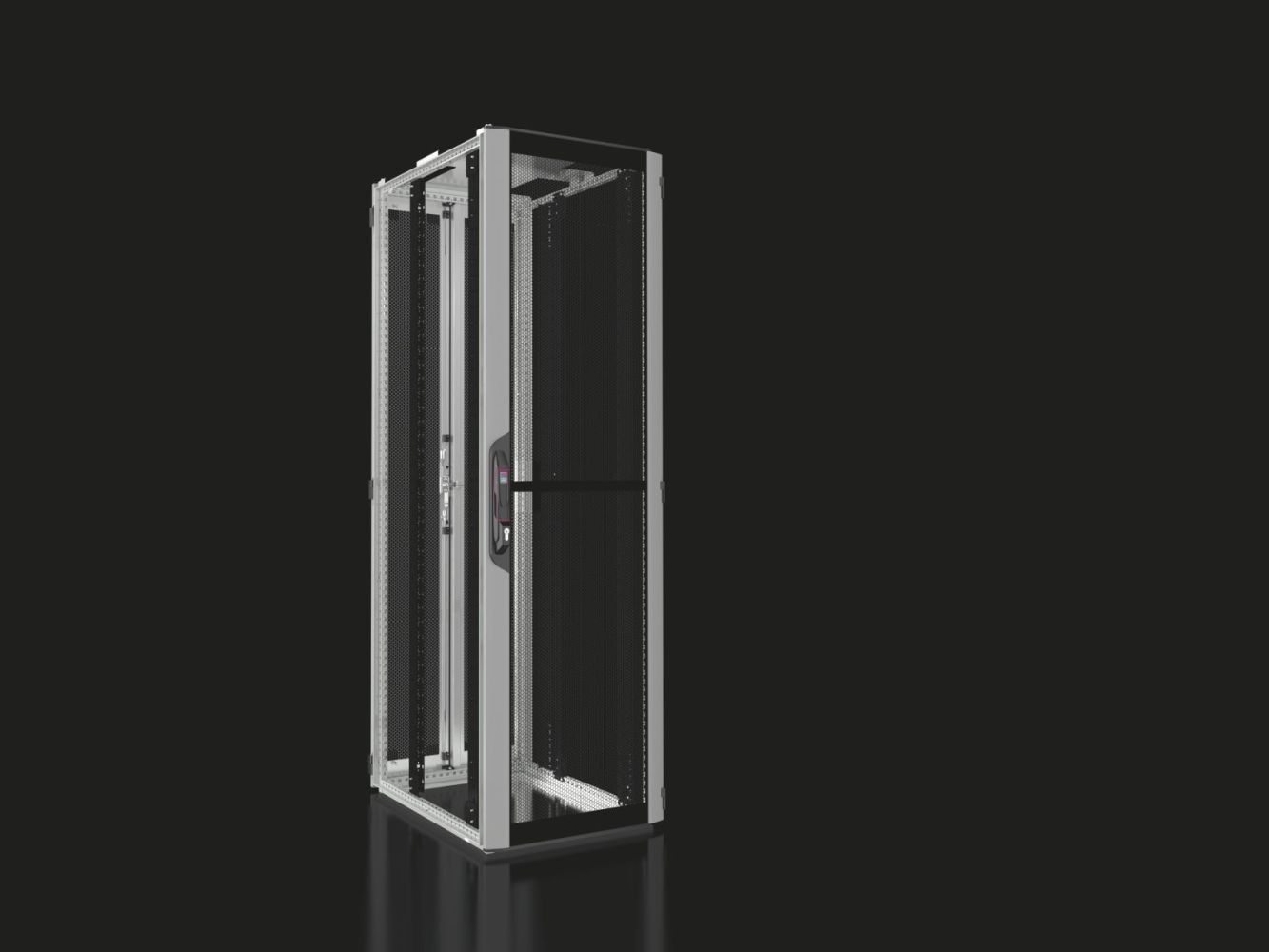

Rittal 5330113 Server rack VX IT ventilated 600x2000x800 mm 42 U
|
1.361,14 EUR |
|
|
( 1.619,76 EUR incl. VAT ) ≈ £1,139.27 | ≈ $1,495.89 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775735 |
| Mfg Part No: | 5330113 |
| UPC/EAN: | 4028177945555 |
| Weight: | 74.8 kg |
| Type: | VX 5330113 |
Product information for Rittal 5330113:
Applications
This rack is designed for use in server and network environments, particularly in rooms with controlled climate conditioning. The ventilated doors support efficient air circulation to ensure cooling of installed devices. The open floor design allows flexible cable routing and integration of floor-mounted components. The multi-part roof construction with cable entries at the front and rear corners facilitates cabling and integration of fans or other components in the roof area.
Functions and Equipment in Detail
The front door consists of aluminium (1.25 mm) and steel sheet, is ventilated and single-piece. The ventilation area accounts for approximately 85% of the perforated sheet portion. The door is fitted with 180° hinges, allowing full opening. The rear is equipped with a ventilated steel sheet door (1.5 mm), vertically divided and also fitted with 180° hinges. The front and rear door locks are equipped with a comfort handle for half cylinder and a security locking mechanism 3524 E. The rack frame surface is dip-primed, the interior build is painted, while the rear door and roof are dip-primed and powder-coated. The front door is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The frame, rear door, and roof are finished in RAL 7035. The interior build and ventilation grilles at the front, as well as handles and hinges, are in RAL 9005.
Technology Explained Simply
The 48,3 cm ( 19 inch )-profile rails are standard in the VX IT and allow mounting of IT devices in 48,3 cm ( 19 inch ) format. The depth-variable profile rails can be adjusted to match the device height. Mounting clearances are 87 mm in front and 520 mm behind the 48,3 cm ( 19 inch )-panel, allowing sufficient space for devices and cables. The rack load capacity is 15,000 N, with a maximum static load capacity per rack according to UL 2416 of 12,000 N. The construction from steel sheet and aluminium ensures high stability and torsional stiffness. The frame construction consists of closed, 9-fold bent hollow profiles, welded and symmetrically designed. The perforation follows a 25 mm grid, enabling flexible mounting. Integrated blind rivet nuts M6 allow attachment of accessories.
Compatibility and Accessories
Various accessories are available for this rack, extending its functionality. These include 48,3 cm ( 19 inch )-fasteners 1 HE with electrical connection, component shelves in various heights (0.5 HE, 1 HE, 1.5 HE) with panel spacings of 400–600 mm, drawers in 2 HE and 3 HE with insertion depths of 427 mm, cable ducts (DK TS IT 6HE), slide rails (TS IT 1 HE, 2 HE), blank panels (48,3 cm ( 19 inch ) toolless fixing, 3HE), cable routing brackets, brush strips, adjustable traverse, and extended length storage. These components enable individual adaptation of the rack to specific requirements such as cable management, device mounting, or access control.
Mounting and Installation
Mounting is performed via pre-mounted mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch )-profile rails are standard and can be adjusted as needed. The roof construction is multi-part, enabling flexible cable entry. The doors are fitted with 180° hinges, with the actual opening angle varying depending on the installation location. The floor construction is open, allowing flexible integration of floor components. Delivery includes spacers (height 50 mm) to elevate a deck plate above the fan opening in the roof plate, supporting passive ventilation. These spacers are not required if no openings are present in the roof plate. Additionally, 12 pieces of 48,3 cm ( 19 inch )-fasteners 1 HE and 25 internal hexagon screws are conductively included.
Operational Advantages
The rack offers high load capacity and stable construction, suitable for use in professional IT environments. The ventilated doors support efficient cooling of installed devices, increasing operational reliability. The flexible mounting via depth-variable profile rails and integrated blind rivet nuts allows individual adaptation to different devices. The multi-part roof construction with cable entry facilitates cabling and fan integration. The surface treatment with dip priming and powder coating ensures high corrosion resistance. The colour design in RAL 7035 and RAL 9005 provides a professional appearance, well-integrated in modern IT rooms. Delivery with spacers and fasteners simplifies installation and reduces the need for additional components.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 87 mm / 520 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | with mounting bracket screwed to top and bottom of frame structure |
| Roof type | multi-part, with cable entry in corner areas front and rear |
| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 184.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5330113 Server rack VX IT ventilated 600x2000x800 mm 42 U?
The article Rittal 5330113 Server rack VX IT ventilated 600x2000x800 mm 42 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5330113 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5330113 Server rack VX IT ventilated 600x2000x800 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5330113 Server rack VX IT ventilated 600x2000x800 mm 42 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
