Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm

Your rating:
Average rating
product review for Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm
( 4.3 / 5 ) 3 ratings

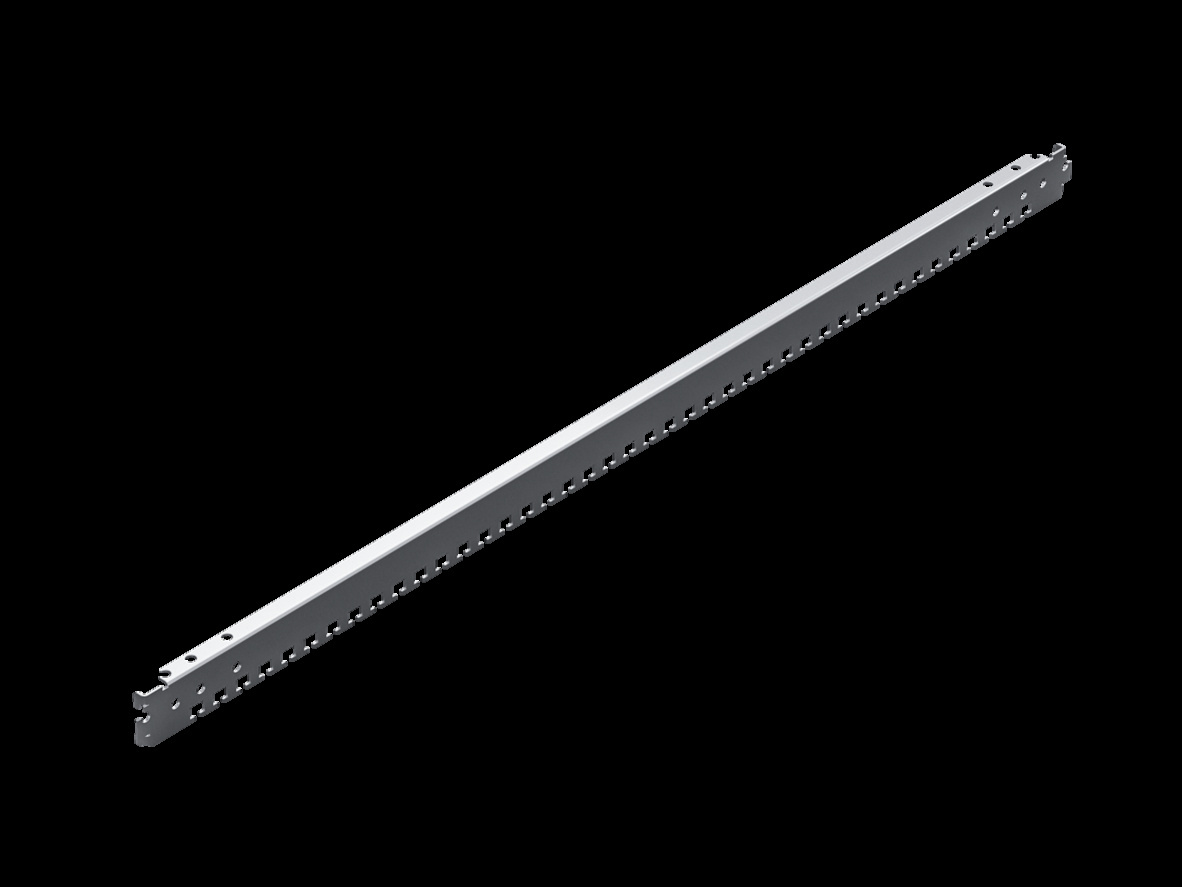

Rittal 5302020
This image may differ from the desired article.
Rittal 5302020Rittal 5302020Rittal 5302020
32,66 EUR
( 38,87 EUR incl. VAT )
≈ £27.34  |  ≈ $35.89
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm
Datasheet:file_download Download
Lieske Part No.:1864903
Mfg Part No: 5302020
UPC/EAN: 4028177952522
Weight:1.543 kg
Type:VX 5302020

Product information for Rittal 5302020:

The Rittal combination rail VX 5302020 is a system accessory for enclosures of type VX, VX IT and TX CableNet. It is designed for structured cable routing and strain relief on the frame unit of the enclosure frame. The rail is specifically designed for enclosures with a width of 600 mm and a depth of 600 mm. Its use enables orderly fastening and routing of cables, thereby reducing mechanical stress caused by tensile forces.

Applications

The combination rail is used in industrial and technical environments where secure and structured cabling within the enclosure is required. It is particularly suitable for installations in which cables are routed over long distances and strain relief is necessary to prevent damage to the cables or connection technology. The rail can be mounted on both the outer and inner side of the enclosure frame, enabling flexible arrangement.

Functions and equipment in detail

The rail consists of a C-profile rail system equipped with cable clips to secure cables. Additionally, it integrates a cable routing rail with hammer heads, enabling orderly cable guidance. Cables can be secured using cable clips, cable ties or hook-and-loop fasteners to avoid tensile forces. The rail is made of sheet steel and features a galvanized surface providing corrosion protection.

Technology explained simply

The combination rail combines two functions in one component: cable securing via a C-profile rail with integrated cable clips, and cable guidance along the rail with hammer heads. This design enables simultaneous strain relief and structured cable routing. The galvanized surface protects the sheet steel from corrosion, which is particularly important in industrial environments. Installation is done by direct screwing between the vertical posts of the enclosure frame, ensuring a stable fixation.

Compatibility and accessories

The combination rail is compatible with enclosure types VX, VX IT and TX CableNet, where the enclosure width and depth must each be 600 mm. As accessories, cable ties with a length of 150 mm and mounting brackets for VX combination rail are available, enabling additional securing or adjustment of the rail. These components can be used additionally to further optimize cable routing.

Installation and mounting

Mounting is done by direct screwing between the vertical posts of the enclosure frame. The rail can be installed either inside or outside the frame, allowing flexible positioning. Installation requires no special tools other than a screwdriver or suitable wrench.

Advantages in operation

The combination rail provides reliable strain relief for cables, extending the service life of the cabling and increasing the reliability of the installation. The integrated cable routing ensures clear and orderly cabling, simplifying maintenance and inspection. The galvanized surface ensures high corrosion resistance, extending the service life in industrial environments. The use of cable ties, cable clips or hook-and-loop fasteners enables flexible and adaptable cable securing.

The packaging unit contains 4 pieces of the combination rail. The net weight is 1.508 kg per packaging unit. Product identification is done via manufacturer number 5302020 and type VX 5302020. The PCF values (Cradle-to-Gate) are 5.7 kg CO2 eq per packaging unit, with category B marked as approximately calculated and self-declared.

General
ApplicationsFor cable routing and strain relief of guided cables on VX frame structure
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsDirect screw connection between the vertical frames of the cabinet frame
Suitable forHousing type: VX, VX IT, TX CableNet, width: = 600 mm, depth: = 600 mm
Suitable for width= 600 mm
PCF/VE (Cradle-to-Gate)5.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302020, EAN: 4028177952522

Questions & answers

What is the delivery time of Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm?

The article Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302020 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 5302020 Combination rail for VX IT, 800x2000 for 600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
