Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping)

Your rating:
Average rating
product review for Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping)
( 4.3 / 5 ) 3 ratings

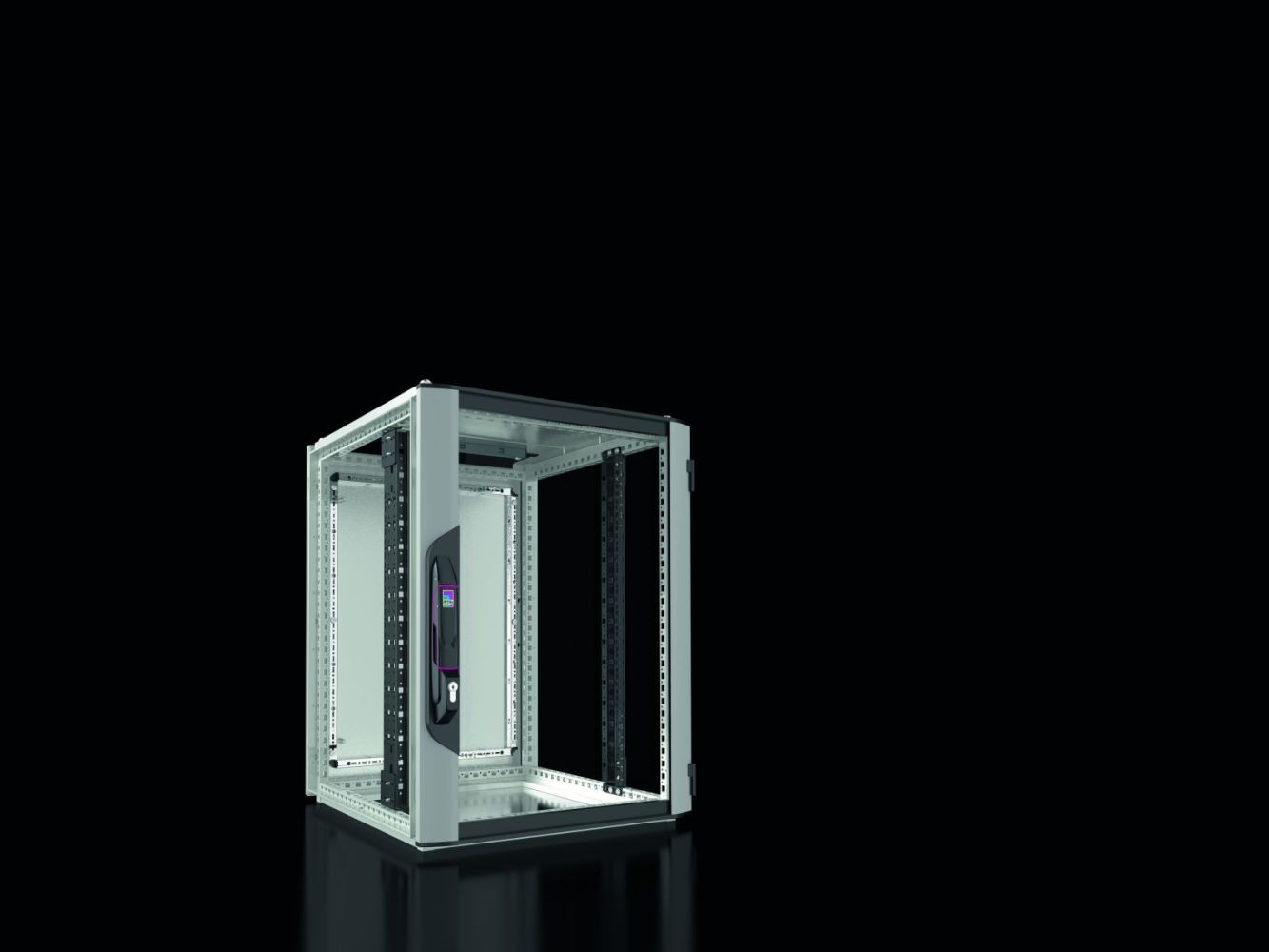

Rittal 5325121
This image may differ from the desired article.
Rittal 5325121Rittal 5325121Rittal 5325121Rittal 5325121Rittal 5325121Rittal 5325121Rittal 5325121
882,05 EUR
( 1.049,64 EUR incl. VAT )
≈ £738.28  |  ≈ $969.37
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1775805
Mfg Part No: 5325121
UPC/EAN: 4028177945418
Weight:42 kg
Type:VX 5325121

Product information for Rittal 5325121:

The Rittal VX 5325121 is a network/server rack of the VX IT series, designed for use in IT infrastructures and data processing environments. It features a height of 800 mm, a width of 600 mm, and a depth of 600 mm, with an internal mounting height of 15 height units (HE). The enclosure construction is designed for direct rack-based climate control and provides a stable platform for mounting 48,3 cm ( 19 inch ) devices. The front door is made of aluminium with a viewing door made of single-pane safety glass (3 mm), mounted on 180° hinges. The rear door is a single-piece steel sheet door, also equipped with 130° hinges, ensuring secure and flexible accessibility. The door locks are designed as comfort handles for half cylinders, enabling secure and convenient operation.

Applications include use in data centres, server rooms, IT distribution enclosures, and industrial environments where a closed, robust, and simultaneously easily accessible enclosure solution is required. The construction is designed for indoor use, with IK08 protection rating providing high mechanical resistance against impacts such as shock or blow. The load capacity is 7,500 N, with a maximum static load capacity according to UL 2416 per enclosure of 6,000 N. This makes the enclosure suitable for use with heavy IT and network equipment.

Functions and equipment in detail include a torsion-resistant frame structure made of rolled, 9-fold flanged, closed hollow profiles, featuring a 25 mm pitch hole pattern. The mounting of 48,3 cm ( 19 inch ) profile rails is done using mounting brackets, which are screwed to the frame structure at the top and bottom. The profile rails are integrated in the standard VX IT configuration and allow for depth-variable mounting. The floor construction is open, enabling flexible cable routing and ventilation. The roof is multi-part, featuring a rear transverse cable entry, and preparation for a fan plate, enabling integration of fans for active ventilation.

Technology explained simply shows that the surface of the enclosure frame is dip-primed, while the internal construction is painted. The rear door and roof are also dip-primed and powder-coated, achieving high corrosion resistance and uniform surface finish. The front door is made of aluminium, anodized/painted, resulting in an aesthetically pleasing and robust surface. The colour scheme is RAL 7035 for the enclosure frame, rear door, and roof, while the front door features vertical profiles in silver and horizontal profiles in RAL 9005. The internal construction, handle, and hinges are also painted in RAL 9005, ensuring clear visual distinction and a professional appearance.

Compatibility and accessories include a wide range of compatible components that extend the functionality of the enclosure. These include cable management panels, cable managers, cable ducts, socket strips, drawers, document clamps, castors, levelling elements, and plinth baying brackets. These components allow individual adaptation to specific requirements such as cable management, ventilation, mounting of additional devices, or transport and installation at the site. The 48,3 cm ( 19 inch ) fasteners and spacers are included in the delivery scope to enable easy mounting of profile rails.

Mounting and installation are performed by securing the profile rails to the mounting brackets on the frame structure. The designated mounting levels and 25 mm pitch facilitate precise positioning of devices. The clearance spaces are 87 mm in front and 435 mm at the rear to the 48,3 cm ( 19 inch ) plane, providing sufficient space for cables and fans. The installation position of the 48,3 cm ( 19 inch ) plane is at the front, enabling direct device mounting. The hinges allow full opening of the front door (180°) and extensive opening of the rear door (130°), ensuring optimal accessibility for maintenance and installation. The handle construction is designed for half cylinders, enabling secure and standardized locking.

Operational advantages lie in the combination of robust construction, high mechanical protection (IK08), flexible mounting, and good accessibility. The integrated spacers and fasteners simplify installation, while the open floor construction enables flexible cable routing. The multi-part roof construction with cable entry and preparation for fan plate supports efficient ventilation and cable routing. The colour design in RAL 7035 and RAL 9005 ensures a professional appearance that integrates well in technical environments. The load capacity of 7,500 N and static load capacity according to UL 2416 of 6,000 N make the enclosure suitable for use with heavy IT systems. The PCF value (Cradle-to-Gate) of 103.5 kg CO2 eq (Cat B) provides an indication of the product’s environmental impact, with category B representing an approximate calculation based on product weight.

General
MaterialSheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourCasing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005
Width600 mm
Height800 mm
Depth600 mm
Height units15 HE
Mounting clearance to 19" plane, front/back87 mm / 435 mm
Mounting position 19" rackFront side
19" mountingwith mounting bracket screwed to top and bottom of frame structure
ModelStandard
Roof typemulti-part, with cable entry at rear transverse and prepared for fan panel
Door configuration rearSteel sheet door, closed, single-piece, 130° hinges
Front door configurationAluminium front door, closed, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront side
Mounting type for profile rail19"-level front
Load capacity7.500 N
Max. load capacity (static) according to UL 2416 per cabinet6.000 N
IK codeIK08
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)103.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5325121, EAN: 4028177945418

Questions & answers

What is the delivery time of Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping) ?

The article Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5325121 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 5325121 Server rack VX IT closed 600x800x600 mm 15 U (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
