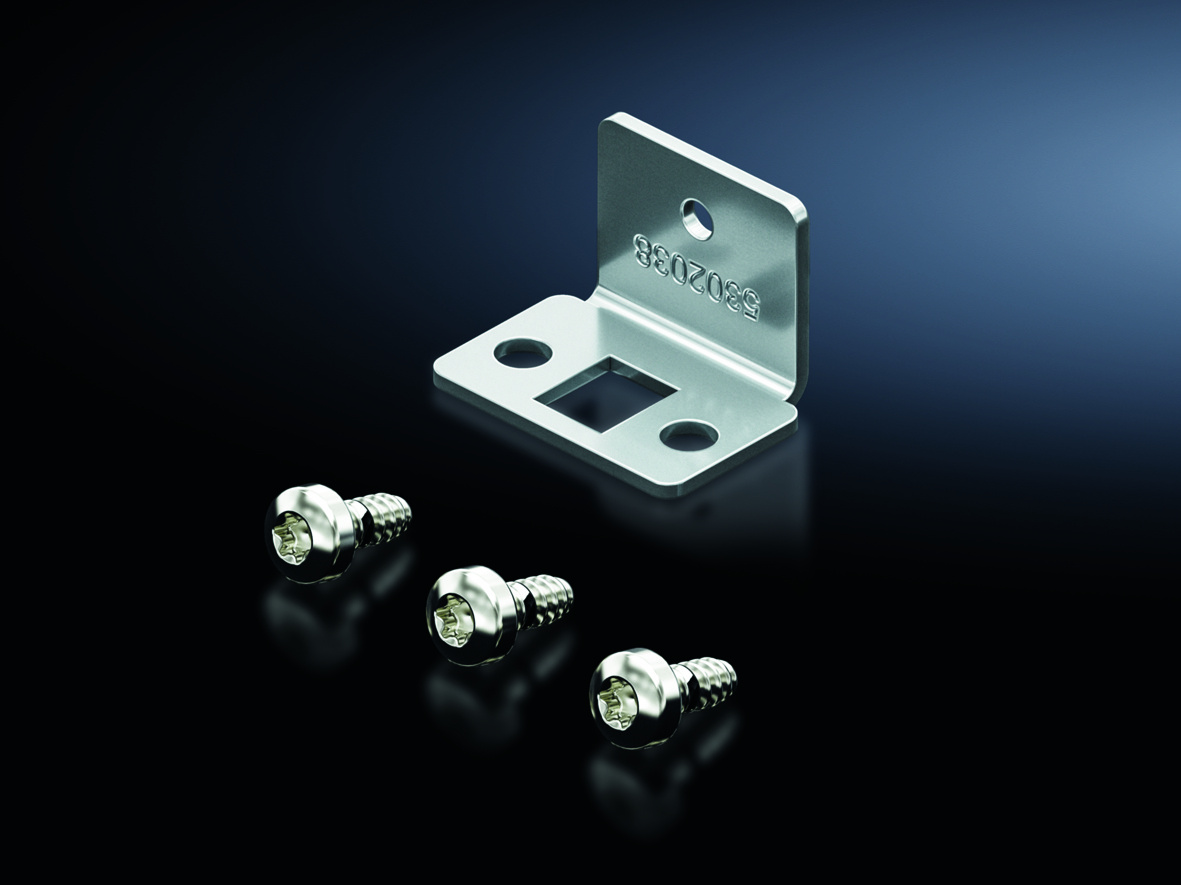

Rittal 5302038 Holding bracket for VX combi rail

Your rating:
Average rating
product review for Rittal 5302038 Holding bracket for VX combi rail
( 4.8 / 5 ) 4 ratings
Rittal 5302038
This image may differ from the desired article.
Rittal 5302038Rittal 5302038Rittal 5302038Rittal 5302038
29,46 EUR
( 35,06 EUR incl. VAT )
≈ £24.66  |  ≈ $32.38
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302038 Holding bracket for VX combi rail
Datasheet:file_download Download
Lieske Part No.:1910608
Mfg Part No: 5302038
UPC/EAN: 4028177952676
Weight:0.4 kg
Type:VX 5302038

Product information for Rittal 5302038:

The VX 5302038 mounting bracket from Rittal is a system accessory for securing combination rails inside enclosures. It enables variable mounting of combination rails between two system chassis, with the rails being screwed into place via elongated hole fastenings at the mounting points. The design allows for flexible positioning of the rails, which is particularly advantageous in cascaded cable management systems where cables are routed in multiple levels or stages. The product is made of steel sheet and features a zinc-coated surface, providing corrosion protection and enhancing durability in industrial applications.

Applications

The mounting bracket is specifically designed for use in enclosures where modular and adjustable cable routing is required. Its applications include particularly cascaded cable routing, where cables are routed in multiple levels across the enclosure depth to ensure an organized and clear wiring layout. The mounting is performed between two system chassis, allowing the combination rails to be securely and positionably installed. This is especially useful in complex control systems where flexible adjustment of rail positions to match the specific enclosure configuration is necessary.

Functions and Features in Detail

The mounting bracket enables variable mounting of combination rails, with the screw connection achieved via elongated holes. This construction allows the rails to be mounted at various heights and positions without requiring additional mounting components. The mounting is done via integrated mounting points designed for connection with system chassis. The use of steel sheet ensures high mechanical stability, while the zinc-coated surface provides an additional protective layer against moisture and corrosion, especially in industrial environments with increased stress.

Technical Explanation

The design of the mounting bracket is based on a simple yet effective principle: combination rails are screwed into place at the mounting points via elongated holes, enabling flexible positioning. The use of steel sheet ensures sufficient strength to withstand mechanical loads within the enclosure. The zinc-coated surface protects the material from oxidation, extending the component’s service life. The installation is performed directly between two system chassis, securing the rails firmly without requiring additional brackets or fastening elements.

Compatibility and Accessories

The mounting bracket is specifically designed for use with combination rails and system chassis from Rittal. It is part of the VX system and matches the standard dimensions and mounting points of Rittal system components. The product is available in a packaging unit of 8 pieces, and the delivery includes fastening material. This material is required for mounting the brackets to the system chassis and enables the secure attachment of the combination rails.

Installation and Mounting

Installation takes place inside the enclosure between two system chassis. The mounting brackets are attached to the designated mounting points on the chassis, with the integrated elongated holes enabling flexible positioning of the combination rails. The fastening is done using the included material, which is used for securing the brackets to the chassis as well as for attaching the combination rails to the brackets. The installation does not require special tools, although a screwdriver or suitable screwdriver is necessary to tighten the screws.

Operational Advantages

Using the mounting bracket enables flexible and adjustable cable routing within the enclosure. The variable mounting of combination rails reduces installation time, as no additional brackets or modifications are required. The use of steel sheet and zinc-coated surface ensures high mechanical stability and longevity, even under industrial conditions. The integrated elongated hole fastening allows for precise positioning of the rails, improving the order and clarity of the wiring. Compatibility with the Rittal VX system ensures seamless integration into existing enclosure configurations.

General
ApplicationsCascaded cable routing
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
PCF/VE (Cradle-to-Gate)1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302038, EAN: 4028177952676
