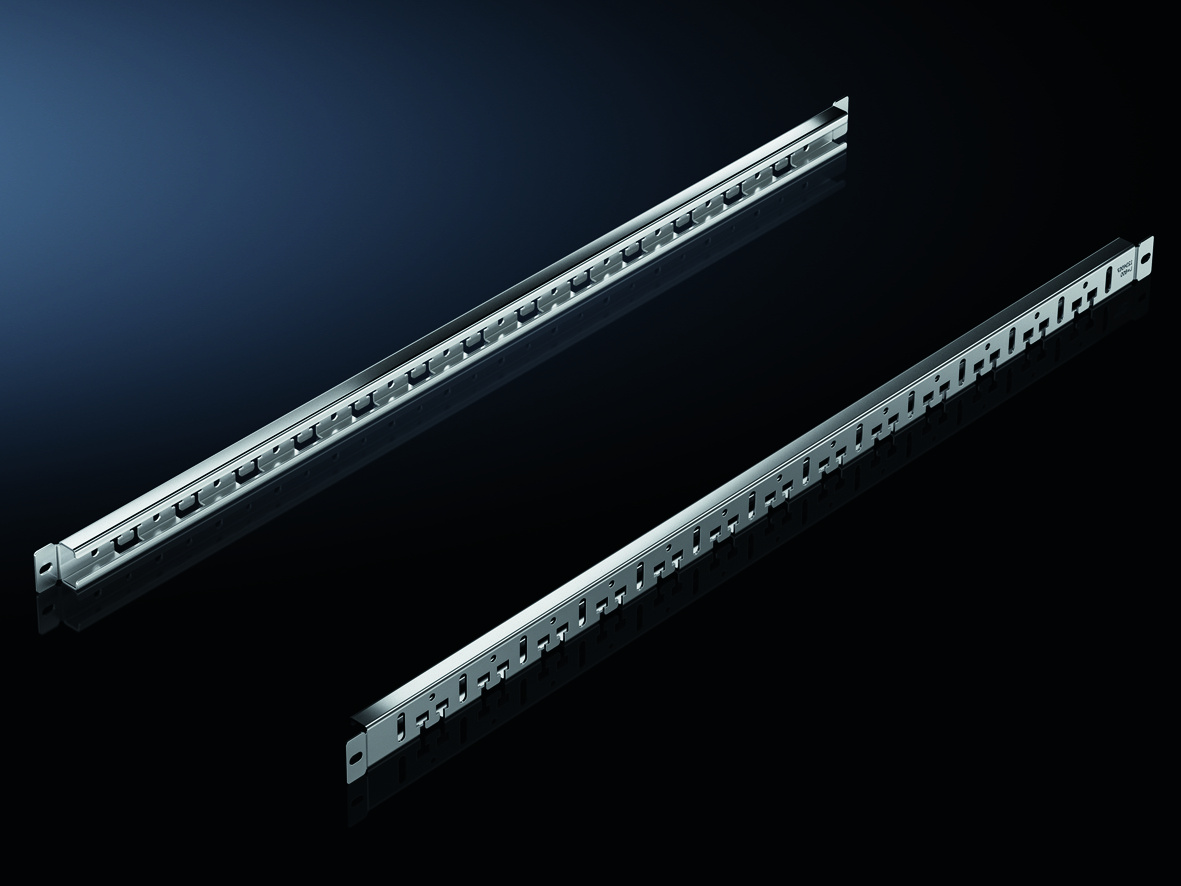

Rittal 5302022 Combination rail for VX IT, 600x2000 for 1000 mm
|
41,98 EUR 42,70 EUR |
|
|
( 49,96 EUR incl. VAT ) ≈ £35.14 | ≈ $46.14 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775866 |
| Mfg Part No: | 5302022 |
| UPC/EAN: | 4028177952546 |
| Weight: | 2.62 kg |
| Type: | VX 5302022 |
Product information for Rittal 5302022:
Applications
The combination rail is primarily used for cable routing and strain relief to safely and systematically route cables within the enclosure. It is particularly suitable for installations where high cable density and clear organization are required. The rail can be mounted on both the outer and inner side of the enclosure frame, allowing flexible adaptation to different mounting conditions. The use is within enclosure systems employed in industrial environments, automation technology or IT infrastructure.
Functions and equipment in detail
The rail is a combination of a C-profile rail for cable strain relief with integrated cable clips and a cable routing rail with hammer heads. This construction allows cables to be secured using cable clips, cable ties or hook-and-loop fasteners. The hammer heads serve as anchoring points for the cables to ensure even distribution of tensile forces. The integrated cable clips provide a secure fastening, while cable ties or hook-and-loop fasteners allow for flexible and quickly adjustable fastening. The rail is therefore suitable for different mounting and maintenance requirements.
Technology explained clearly
The combination rail is made of sheet steel protected against corrosion by a galvanized coating. Galvanization is a standard process in enclosure technology to increase material strength and service life. The rail is directly screwed between the vertical uprights of the enclosure frame, ensuring a stable and secure mounting. The mounting is done using the included fastening material, designed for direct screwing. The rail is designed for enclosures with a width and depth of 1,000 mm each, ensuring an exact fit for the corresponding enclosure types.
Compatibility and accessories
The combination rail is compatible with enclosure types VX, VX IT and TX CableNet. It is specifically designed for enclosures with a width and depth of 1,000 mm. As accessories, cable ties with a length of 150 mm and retaining brackets for VX combination rail are available. These components can be used additionally to optimize cable routing or create additional fastening points. The combination with these accessories allows individual adaptation to specific requirements in enclosure construction.
Mounting and installation
Mounting is done by direct screwing between the vertical uprights of the enclosure frame. The rail can be installed on both the outer and inner side of the frame, allowing flexible arrangement. The included fastening material simplifies installation and ensures secure anchoring. The rail is designed for use in industrial environments and can be installed under normal mounting conditions.
Advantages in operation
The combination rail provides structured and secure cable routing, ensuring strain relief for the cables. The integrated fastening options with cable clips, cable ties or hook-and-loop fasteners allow flexible and adaptable mounting. The galvanization of the sheet steel ensures high corrosion resistance, extending the product's service life. The direct screwing between the frame's vertical uprights ensures stable mounting, even under load. Compatibility with enclosure types VX, VX IT and TX CableNet, as well as the exact fit for enclosures with 1,000 mm width and depth, facilitates integration into existing systems.
The packaging unit includes 4 pieces of the combination rail. The PCF (Product Carbon Footprint) data amount to 9.9 kg CO2 eq per packaging unit (Cradle-to-Gate), with the value classified as approximately calculated and self-declared in category B. This information serves transparency regarding the ecological footprint of the product during the manufacturing process.
The rail is an integral part of cable routing systems in industrial enclosures and supports orderly cable installation and fastening.
| General | |
| Applications | For cable routing and strain relief of guided cables on VX frame structure |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options | Direct screw connection between the vertical frames of the cabinet frame |
| Suitable for | Enclosure type: VX, VX IT, TX CableNet, width: = 1,000 mm, depth: = 1,000 mm |
| Suitable for width | = 1.000 mm |
| PCF/VE (Cradle-to-Gate) | 9.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
