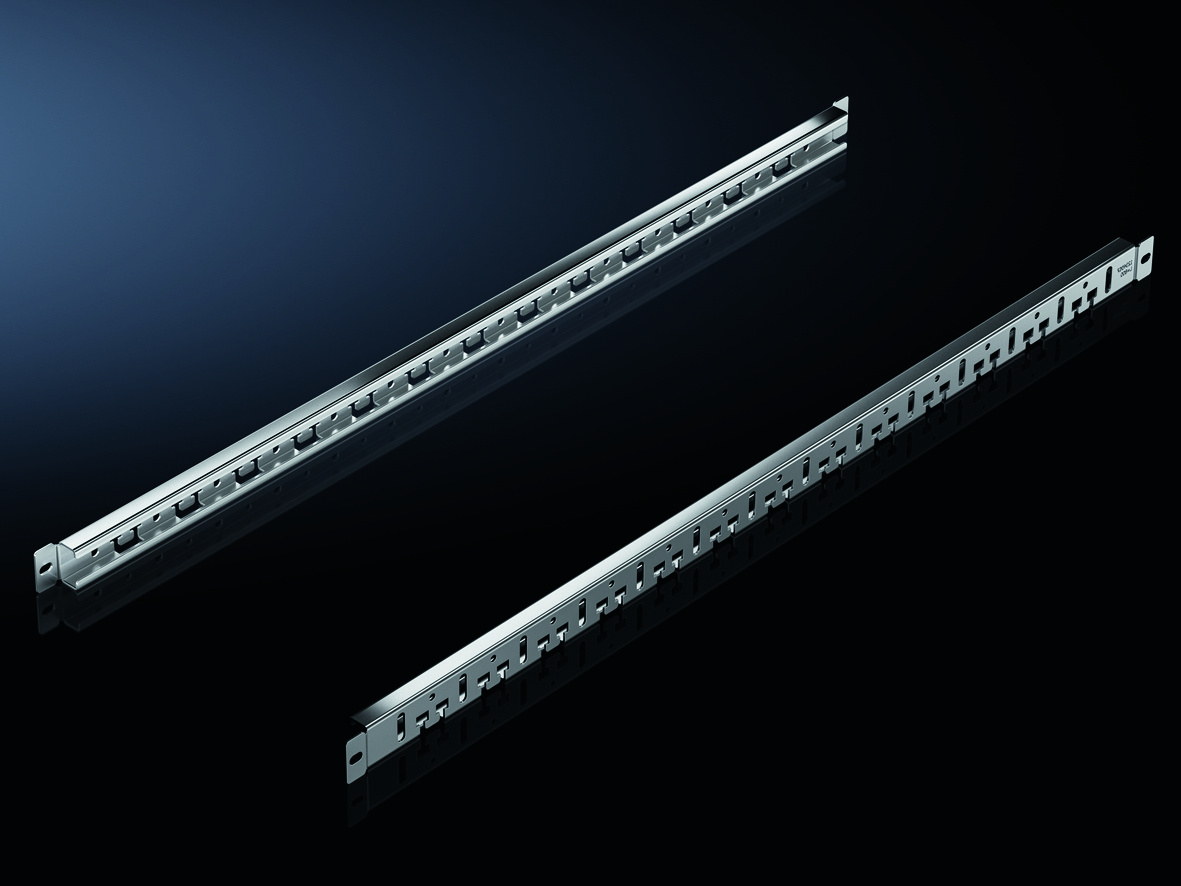

Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm

Your rating:
Average rating
product review for Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm
( 5 / 5 ) 3 ratings
Rittal 5302025
This image may differ from the desired article.
Rittal 5302025Rittal 5302025
-10% 54,28 EUR 60,54 EUR
( 64,59 EUR incl. VAT )
≈ £45.43  |  ≈ $59.65
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1775552
Mfg Part No: 5302025
UPC/EAN: 4028177952577
Weight:3.16 kg
Type:VX 5302025

Product information for Rittal 5302025:

The Rittal combination rail VX 5302025 is a system accessory for enclosures of type VX and VX IT, specifically designed for cable routing and strain relief at the frame assembly. The product serves for structured routing and securing of cables within the enclosure area and enables safe and orderly installation, particularly for larger enclosure dimensions. The combination rail is designed for enclosures with a width and depth of 1,200 mm each, thus fitting the standard dimensions of the VX series.

Applications

The combination rail is primarily used in industrial environments where structured and strain-relieved cable routing in enclosures is required. It is suitable for systems used in automation technology, manufacturing technology, or in the energy supply sector. Direct mounting between the vertical frame rails enables stable fixation and flexible arrangement along the enclosure wall. The rail can be used on both the inner and outer side of the frame, increasing flexibility during planning and installation.

Functions and Equipment in Detail

The combination rail consists of a C-profile rail system that serves both as a cable strain relief with integrated cable clips and as a cable routing rail with hammer heads. Cables can be secured using cable clips, cable ties, or hook-and-loop fasteners, ensuring a flexible and adaptable securing method. The hammer heads act as guiding elements to direct cables along the rail and enable even distribution of tensile forces. The rail is made of sheet steel and features a galvanized surface, providing corrosion protection and increasing service life in industrial use.

Technology Explained Simply

The combination rail combines two functions in one component: strain relief via the C-profile rail with cable clips and cable routing via the rail with hammer heads. The cable clips ensure that cables are not damaged by tensile stress, especially during movements or vibrations within the enclosure. The hammer heads provide defined guidance, preventing cables from becoming tangled and creating a clear structure. Installation is done by direct screwing between the vertical frame rails, achieving a stable and durable fixation. The galvanized surface protects the sheet steel from corrosion, which is particularly beneficial in humid or aggressive environments.

Compatibility and Accessories

The combination rail is specifically designed for enclosures of type VX and VX IT with a width and depth of 1,200 mm each. Compatible accessories include cable ties with a length of 150 mm and retaining brackets for the VX combination rail, which allow additional stabilization or an alternative mounting option. Using these accessories can make installation more flexible and increase securing reliability.

Installation and Mounting

Installation is performed by direct screwing between the vertical frame rails. The product is supplied with mounting material sufficient for installation. The rail can be mounted on either the inner or outer side of the frame, enabling flexible arrangement. Installation requires no additional tools other than a screwdriver or suitable screwdriver to tighten the screws. Mounting is simple and does not require special skills.

Operational Advantages

The combination rail provides clear and structured cable routing, simplifying maintenance and inspection of enclosures. Strain relief protects cables from mechanical stress and extends their service life. The use of cable ties, cable clips, or hook-and-loop fasteners allows adaptable securing methods according to the specific requirements of the system. The galvanized surface ensures high corrosion resistance, increasing reliability in industrial use. Direct mounting between vertical frame rails guarantees stable fixation, even under dynamic conditions.

Scope of Delivery

The product is delivered including mounting material. The packaging unit contains 4 pieces of the combination rail.

General
ApplicationsFor cable routing and strain relief of guided cables on VX frame structure
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsDirect screw connection between the vertical frames of the cabinet frame
Suitable forEnclosure type: VX, VX IT, Width: = 1,200 mm, Depth: = 1,200 mm
Suitable for width= 1.200 mm
PCF/VE (Cradle-to-Gate)11.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302025, EAN: 4028177952577

Questions & answers

What is the delivery time of Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm?

The article Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302025 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 5302025 Combination rail for VX IT, enclosure width/depth: 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
