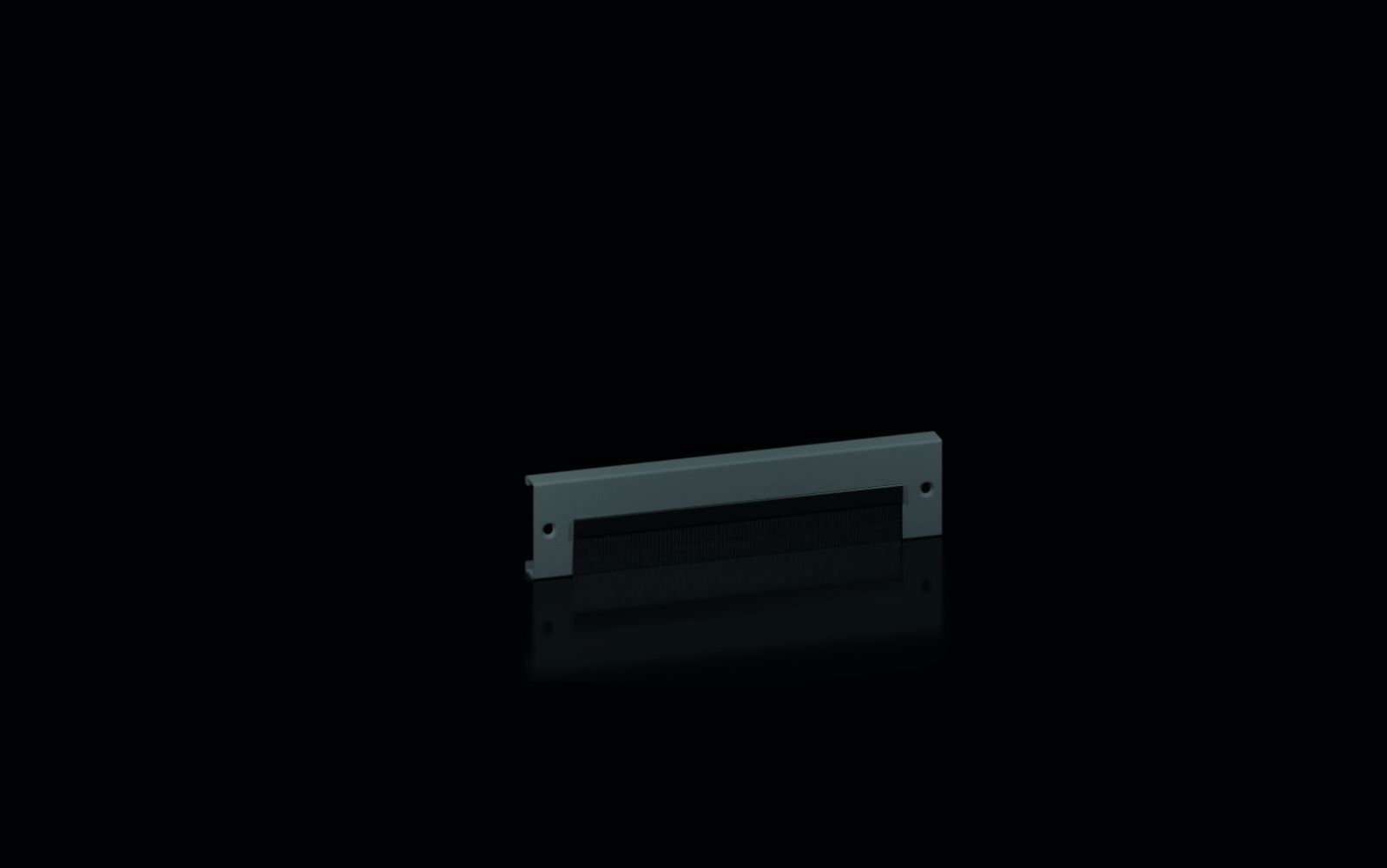

Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm,

Your rating:
Average rating
product review for Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm,
( 4.4 / 5 ) 5 ratings
Rittal 8660092
This image may differ from the desired article.
61,85 EUR 61,86 EUR
( 73,60 EUR incl. VAT )
≈ £51.77  |  ≈ $67.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm,
Datasheet:file_download Download
Lieske Part No.:1103914
Mfg Part No: 8660092
UPC/EAN: 4028177985490
Weight:1.136 kg
Type:VX 8660092

Product information for Rittal 8660092:

The Rittal VX 8660092 is a plinth trim panel with brush strip, specifically designed for enclosures and housing systems with a width/depth of 600 mm. It serves as a cable entry element at the lower section of the enclosure plinth and enables orderly and protective cable routing into the plinth area. The panel is made of sheet steel and features an integrated brush strip made of self-extinguishing plastic, ensuring a dust- and water-tight seal. The colour is RAL 9005, corresponding to dark grey, matching common industrial colour variants. The panel height is 100 mm, making it suitable for standard plinth heights.

Applications
The plinth trim panel is intended for a wide range of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for enclosures with a width/depth of 600 mm and is mounted at the lower section of the plinth to route cables while ensuring a closed, clean appearance. With a plinth height of 200 mm, either one or two panels with brush strip can be used optionally to optimise cable routing.

Functions and Equipment in Detail
The integrated brush strip made of self-extinguishing plastic provides effective sealing against dust and moisture, ensuring the enclosure's functionality even under harsh operating conditions. The panel itself is made of sheet steel, providing high mechanical stability and durability. The RAL 9005 colour is standard in industrial electrotechnics and enables uniform design of enclosure systems. The brush strip is designed to flexibly glide over cables without damaging them.

Technology Explained Simply
The brush strip acts as a dynamic seal that adapts to cable movements while maintaining a tight seal. The material is self-extinguishing, meaning it does not continue to burn when exposed to open flame but self-extinguishes — an important safety feature in electrical installations. The sheet steel construction of the panel offers mechanical protection and is resistant to mechanical stress during operation.

Compatibility and Accessories
The plinth trim panel is compatible with the mentioned housing types and fits standard dimensions of 600 mm width/depth. For installation into the depth of the plinth, the optional panel mounting bracket 8660092 is required to ensure secure mounting. Additionally, suitable accessories are available in the range, such as VX plinth expansion angles, mounting brackets for VX systems, VX system chassis, or cable strain relief rail with angle profile, which can be used complementarily depending on the application scenario.

Mounting and Installation
Installation takes place at the lower section of the enclosure plinth. When installing into the depth of the plinth, the optional panel mounting bracket 8660092 is necessary to securely fix the panel. The packaging unit contains 2 pieces, sufficient for most standard applications.

Operational Advantages
The plinth trim panel with brush strip provides reliable cable entry while protecting the mechanical and electrical integrity of the enclosure. The self-extinguishing brush strip increases operational safety, while the sheet steel construction ensures high mechanical stability. The uniform RAL 9005 colour supports professional and consistent system planning. The combination of function and design makes the panel a practical component in industrial electrical installations.

General
ModelWith brush bar
MaterialSocket faceplate: sheet steel, brush strip: plastic, self-extinguishing
ColourRAL 9005
Height100 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width/depth: 600 mm
Mounting noteFor installation in depth, the optional panel mounting 8660092 is required.


Product data sheet
Datasheet for Rittal 8660092, EAN: 4028177985490

Questions & answers

What is the delivery time of Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm, ?

The article Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660092 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8660092 VX plinth trim panel with brush strip, for W x D: 600 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
