Rittal 2500210 System light LED 900 lumens

Your rating:
Average rating
product review for Rittal 2500210 System light LED 900 lumens
( 4.5 / 5 ) 59 ratings
Rittal 2500210
This image may differ from the desired article.
Rittal 2500210Rittal 2500210Rittal 2500210Rittal 2500210Rittal 2500210
119,56 EUR
( 142,28 EUR incl. VAT )
≈ £100.07  |  ≈ $131.40
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2500210 System light LED 900 lumens
Datasheet:file_download Download
Lieske Part No.:674672
Mfg Part No: 2500210
UPC/EAN: 4028177806962
Weight:0.58 kg
Type:SZ 2500210

Product information for Rittal 2500210:

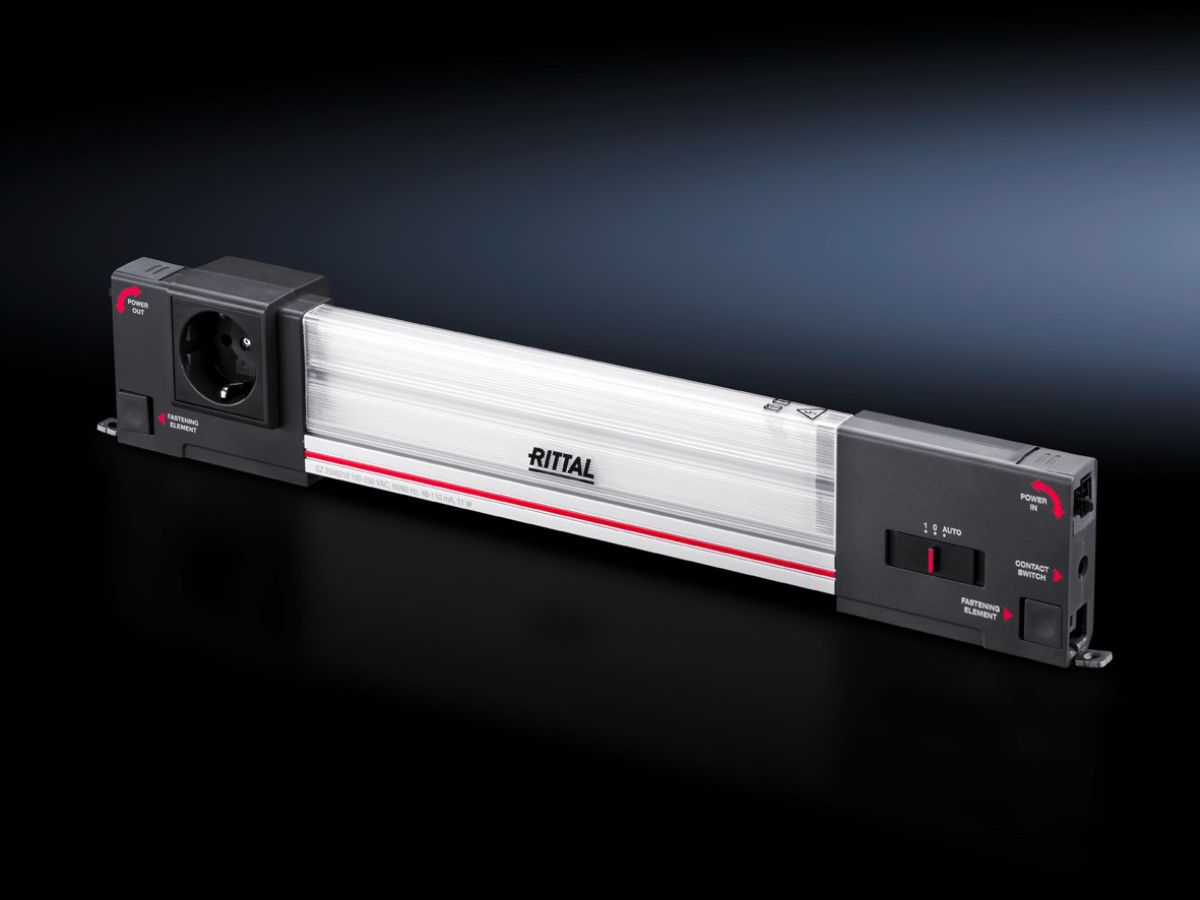

The Rittal SZ 2500210 is a robust LED system lamp, specifically designed for use in control cabinets. With a luminous flux of 900 lumens, it provides even and sufficient illumination inside control cabinets, significantly simplifying the maintenance and inspection of components. The lamp features an integrated Schuko socket (Type F, CEE 7/3), allowing additional devices to be connected directly within the control cabinet—ideal for measuring instruments, fans, or other auxiliary equipment. Its compact design, with a length of 437 mm, height of 80 mm, and depth of 44 mm, fits perfectly into standard control cabinet sizes. The operating voltage of 100–230 V AC at 50/60 Hz ensures universal compatibility with various electrical networks. The lamp is designed for operation in a temperature range of -20 °C to 55 °C, making it suitable for industrial applications in diverse environments. The housing is made of aluminum, providing high mechanical stability and efficient heat dissipation. The protection rating of IP20 safeguards against finger contact and solid foreign objects, but it is not intended for outdoor use or in damp environments.

Technical Data
  • Manufacturer: Rittal
  • Manufacturer's Part Number: 2500210
  • Type: LED System Lamp
  • Luminous Flux: 900 lm
  • Power: 11 W
  • Operating Voltage: 100–230 V AC
  • Frequency: 50/60 Hz
  • Length: 437 mm
  • Height: 80 mm
  • Depth: 44 mm
  • Net Weight: 0.466 kg
  • Gross Weight: 0.58 kg
  • Socket: Schuko (Type F, CEE 7/3)
  • Protection Rating: IP20
  • Material: Aluminum
  • Temperature Range: -20 °C to 55 °C
  • Country of Origin: Germany


General
ModelWith socket
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power11 W
Connection optionsPower supply, 3-pole, through wiring, 3-pole, door position switch
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux900 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height80 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsD, Schuko (Type F, CEE 7/3)
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Socket configurationD, Schuko (Type F, CEE 7/3)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)13,6


Product data sheet
Datasheet for Rittal 2500210, EAN: 4028177806962
