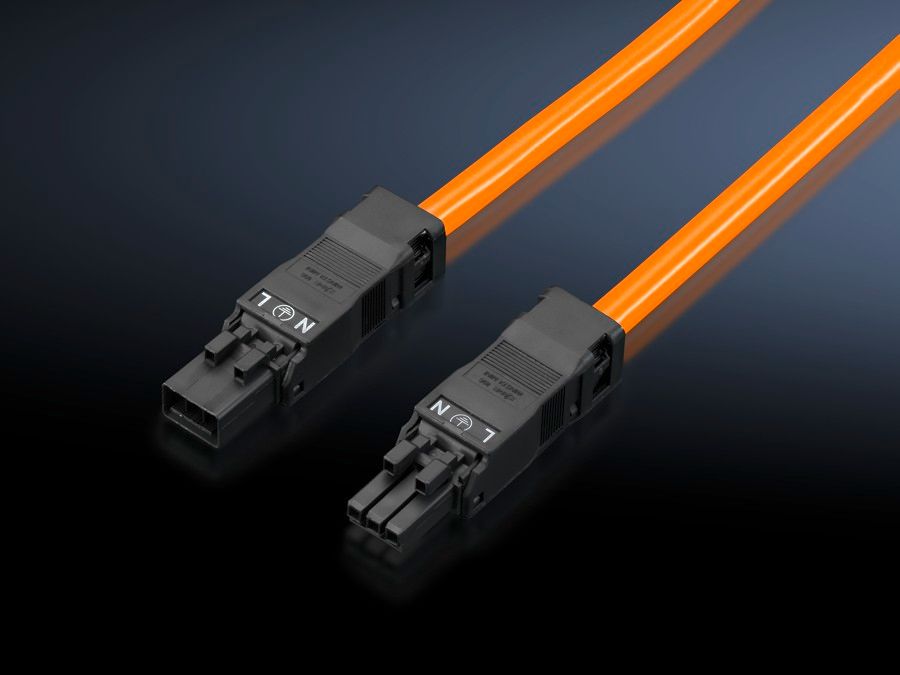

Rittal 2500430 Connection cable L1000 mm orange 5 pcs

Your rating:
Average rating
product review for Rittal 2500430 Connection cable L1000 mm orange 5 pcs
( 4.5 / 5 ) 203 ratings
Rittal 2500430
This image may differ from the desired article.
Rittal 2500430Rittal 2500430Rittal 2500430
41,75 EUR 43,41 EUR
( 49,68 EUR incl. VAT )
≈ £34.94  |  ≈ $45.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500430 Connection cable L1000 mm orange 5 pcs
Datasheet:file_download Download
Lieske Part No.:632336
Mfg Part No: 2500430
UPC/EAN: 4028177809123
Weight:0.664 kg
Type:SZ 2500430

Product information for Rittal 2500430:

The Rittal connection cable SZ 2500430 is a 3-pole cable connection solution for through-wiring in enclosures. It is designed for the simple and time-saving connection of the LED system light and is specifically conceived for use in industrial electrical installations. The cable has a length of 1,000 mm and is finished in Orange, ensuring good visibility within the enclosure. The rated operating voltage is 100 V to 240 V, 1~, 50 Hz/60 Hz, enabling use in standard mains voltage systems. The cable cross-section is 1.5 mm², ensuring stable current transmission with low resistance and meeting electrical conductivity requirements.

Applications
This connection cable is primarily intended for use in enclosures, particularly for connecting LED system lights. The through-wiring allows for flexible and quick integration into existing control systems without requiring additional connection components or complex installation work. The Orange color supports visual differentiation within the enclosure, which is helpful during maintenance and servicing.

Functions and Features in Detail
The cable is equipped with socket and plug, ensuring a secure and mechanically stable connection. The 3-pole configuration covers the required conductors for live wire, neutral wire, and protective earth, which is necessary for safe power supply to lighting components. The length of 1,000 mm provides sufficient clearance for wiring within an enclosure without applying additional bending stress or requiring extensions to the cable.

Technology Explained Simply
The cross-section of 1.5 mm² is designed for the transmitted power and complies with common standards for connection cables in enclosures. The rated operating voltage of 100–240 V covers typical voltage ranges in Europe and other regions, making the cable universally applicable. Through-wiring means the cable is routed through a pre-drilled opening in the enclosure, reducing installation time. The Orange color is commonly reserved in electrical engineering for auxiliary circuits or lighting installations, facilitating identification within the enclosure.

Compatibility and Accessories
The connection cable is specifically developed for the LED system light from Rittal. As a suitable accessory, a cable tie L150 mm is offered, which can be used to secure and organize the cable within the enclosure. Combining the cable with a cable tie enables orderly wiring and prevents loose cables that could cause short circuits or mechanical damage.

Installation and Mounting
Installation is performed by simply inserting the cable through the designated opening in the enclosure and then connecting the socket and plug to the LED system light. The through-wiring reduces installation time, as no additional connection elements or drilling are required. The length of 1,000 mm allows flexible positioning of the light within the enclosure.

Operational Advantages
The connection cable provides a fast and secure connection for LED lighting in enclosures. The 3-pole configuration ensures safe power supply, while the through-wiring simplifies installation. The Orange color supports maintenance, as the cable is easily identifiable. The length of 1,000 mm offers sufficient flexibility for installation in various enclosure sizes. The use of cable ties (as separate accessory) enables orderly securing and prevents mechanical stress.

The packaging unit includes 5 pcs of the connection cable, which is sufficient for small to medium-sized projects. The exact description of technical features and intended uses is documented in the manufacturer’s specifications and corresponds to the information provided in the data sheets.

General
ModelThrough wiring, 3-pole (with socket and plug)
ColourOrange
Cross section1,5 mm²
Length1.000 mm
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz


Product data sheet
Datasheet for Rittal 2500430, EAN: 4028177809123

Questions & answers

What is the delivery time of Rittal 2500430 Connection cable L1000 mm orange 5 pcs?

The article Rittal 2500430 Connection cable L1000 mm orange 5 pcs is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500430 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2500430 Connection cable L1000 mm orange 5 pcs always at the best possible price. We can give you a discount of 2% on Rittal 2500430 Connection cable L1000 mm orange 5 pcs if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
