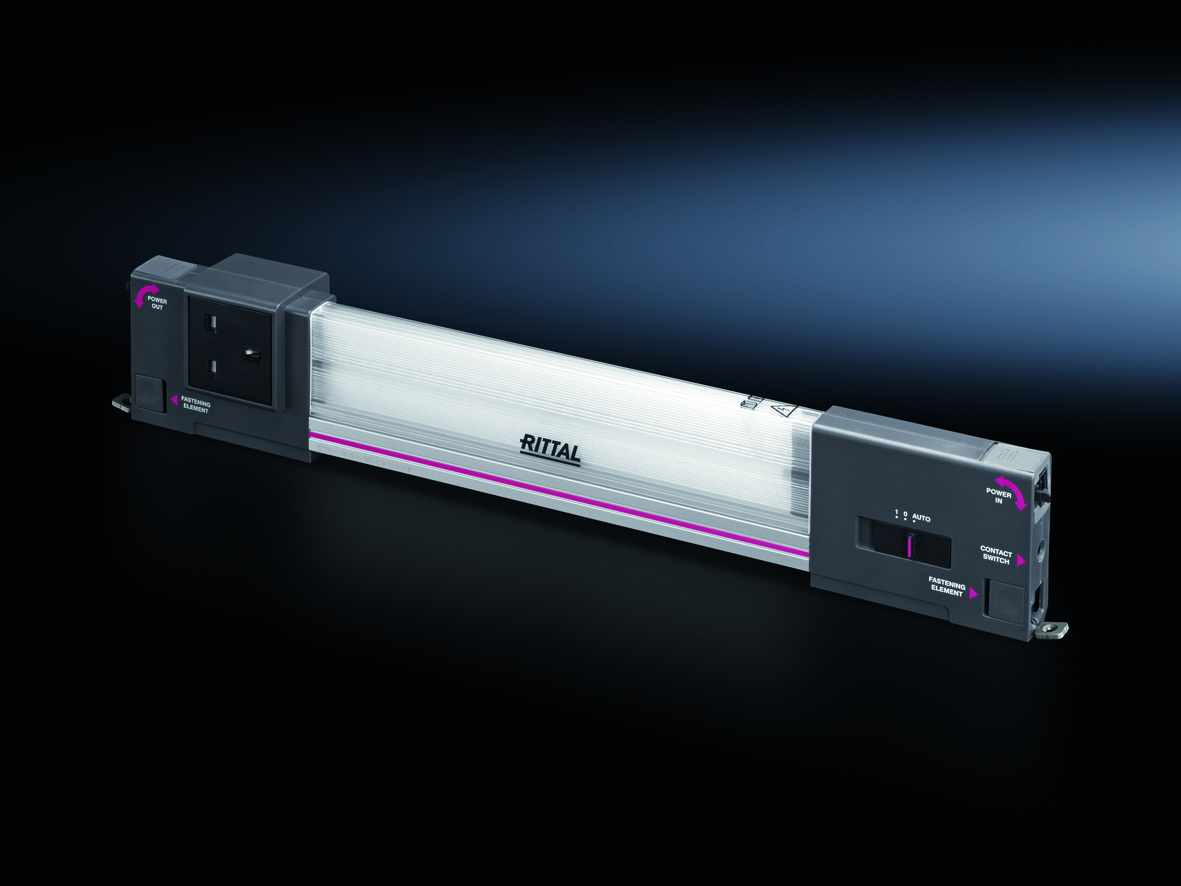

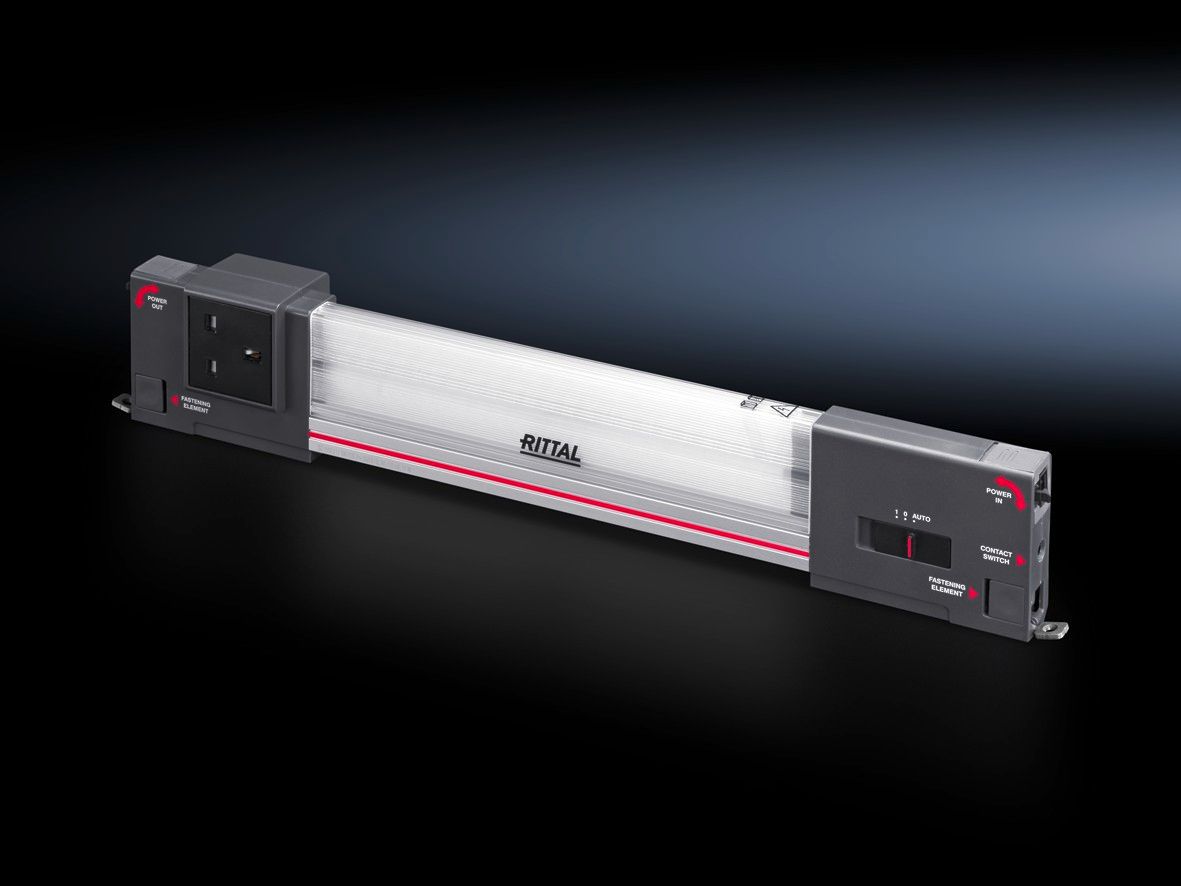

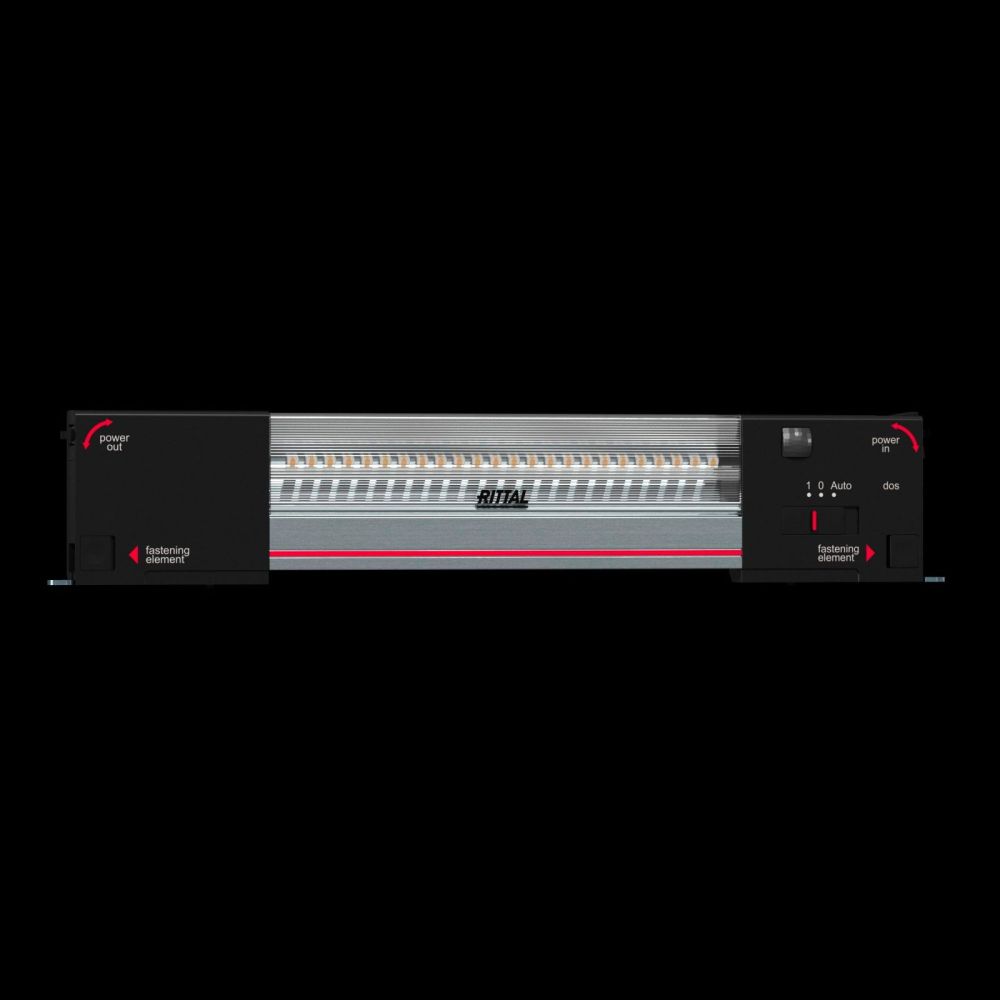

Rittal 2500211 System light LED 900, 100-240 V, L: 437 mm, with plug
|
119,95 EUR |
|
|
( 142,74 EUR incl. VAT ) ≈ £100.40 | ≈ $131.83 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1351082 |
| Mfg Part No: | 2500211 |
| UPC/EAN: | 4028177811355 |
| Weight: | 0.628 kg |
| Type: | SZ 2500.211 |
Product information for Rittal 2500211:
Applications
The SZ 2500.211 is intended for use in industrial enclosures where uniform and sufficient lighting is required. The light is particularly suitable for installations requiring an additional socket outlet within the enclosure, such as for measuring instruments, fans, or other electronic auxiliary devices. Installation is directly onto the enclosure profile with a 25 mm mounting grid, ensuring universal compatibility with standard enclosure constructions. The operating temperature range of -20 °C to 55 °C makes the light suitable for a wide range of environments, including industrial production halls and outdoor installations with protected mounting.
Functions and Equipment in Detail
The light has a rated power of 11 W and operates at a rated operating voltage of 100 V to 230 V, 1~, 50 Hz/60 Hz. The protection class II (double insulated) and overvoltage protection class II ensure safe electrical insulation and protection against overvoltages. The rated insulation voltage is 300 V AC, and the rated impulse withstand voltage phase to earth is 2500 V AC, highlighting its reliability in industrial applications. The protection rating IP 20 according to IEC 60 529 protects against contact with fingers and against solid foreign objects, but is not suitable for outdoor use or in damp environments.
Technology Explained Simply
The light consists of an extruded aluminium housing, providing high mechanical stability and heat dissipation. The light cover made of polycarbonate is transparent and protects the LED modules from mechanical impacts. The light ends are made of PC-ABS, a robust plastic that enhances mechanical strength. The light distribution is adjustable, enabling optimal illumination of the enclosure interior. Installation is either by screwing or clip mounting, with the mounting screws included in the delivery scope. The socket outlet is rotatable by 90°, allowing flexible positioning.
Compatibility and Accessories
The light is equipped with various connection options: power input (3-pole), through wiring (3-pole), and door position switch. These functions enable flexible integration into existing enclosure systems. These components can be supplemented as required to ensure individual installation.
Mounting and Installation
Installation is directly onto the enclosure profile with a 25 mm mounting grid. The light can be mounted either with the included mounting screws or using clip mounting. The clip mounting allows for quick and tool-free installation, while screwing provides a permanent and stable fixation. The installation options are aligned with standard enclosure profiles, enabling universal use in various enclosure sizes.
Operational Advantages
The SZ 2500.211 offers a high light output of 900 lumens at only 11 W consumption, ensuring energy-efficient lighting. The integrated socket outlet according to GB standard reduces the need for additional socket outlets in the enclosure and enables central power supply for auxiliary devices. The adjustable light distribution and the 90° rotatable socket outlet increase installation flexibility. The protection class II and overvoltage protection class II ensure safe and reliable operation in industrial environments. The operating temperature range of -20 °C to 55 °C allows use in a wide range of environments without affecting the light’s performance or lifespan.
| General | |
| Model | With socket |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS |
| Colour | Housing: RAL 7016 |
| Scope of delivery | Including mounting screws |
| Nominal power | 11 W |
| Connection options | Power supply, 3-pole, through wiring, 3-pole, door position switch |
| Overvoltage protection class | II |
| Protection class | II (double insulated) |
| Luminaires mounting type | Screwing, clip mounting |
| Rated impulse voltage withstand, phase to ground | 2500 V AC |
| Rated insulation voltage | 300 V AC |
| Mounting options | Direct mounting on cabinet profile with 25 mm grid |
| Luminous flux | 900 lm |
| Colour of light | 4000 K (neutral white) |
| Note | Connection accessories to be ordered separately |
| Width | 437 mm |
| Height | 80 mm |
| Depth | 44 mm |
| Operating temperature range | -20 °C...55 °C |
| Socket outlets | GB (Type G, BS 1363) |
| Rated operating voltage | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| Socket configuration | GB (Type G, BS 1363) |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| PCF/VE (Cradle-to-Gate) | 13,6 |
