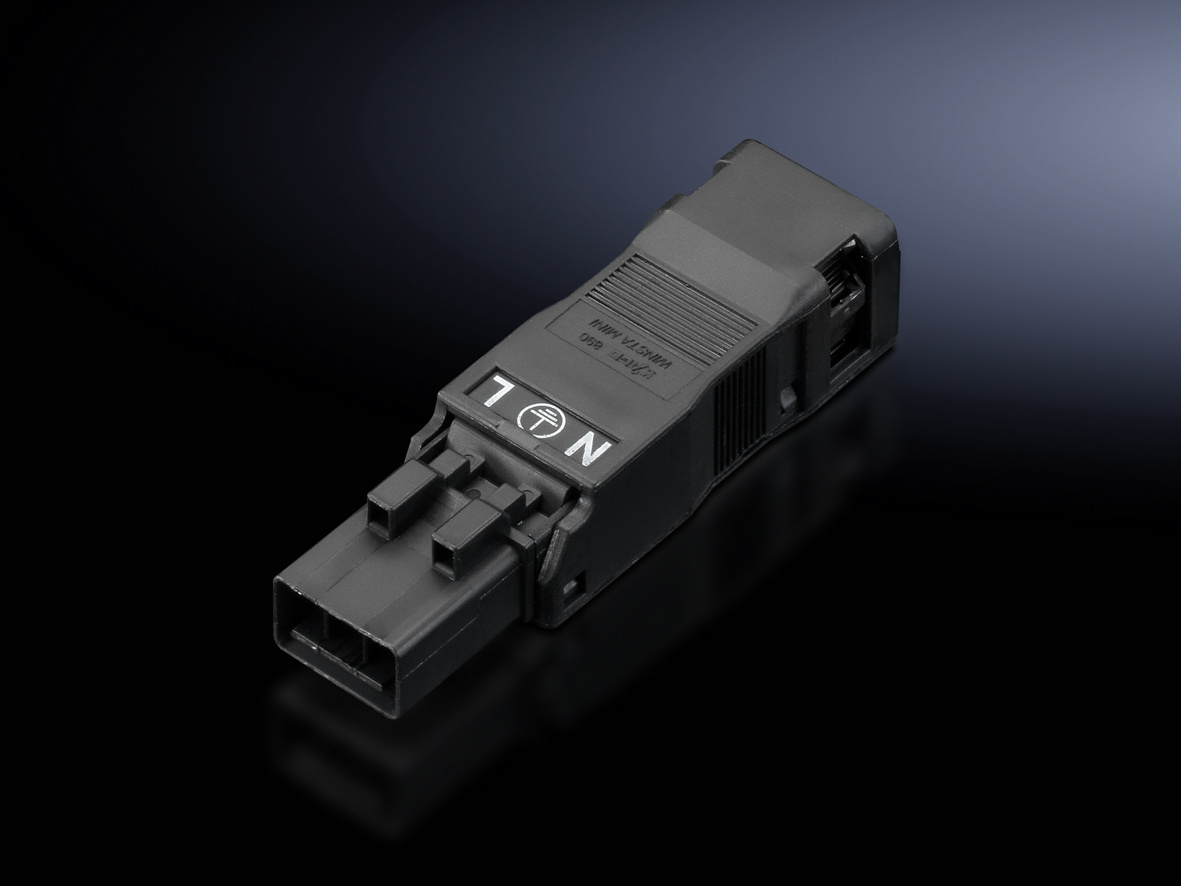

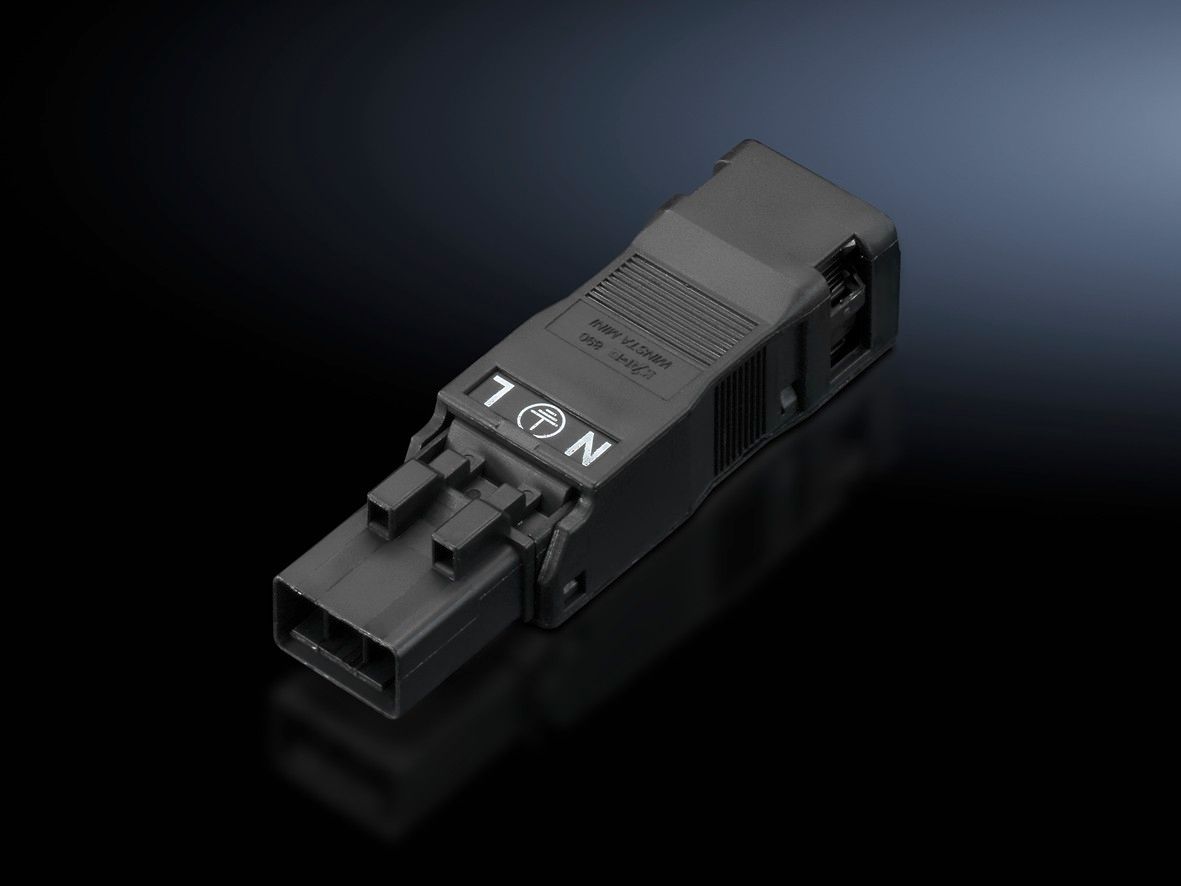

Rittal 2500630 Plug for through-wiring, 3-pole, 100–240 V

Your rating:
Average rating
product review for Rittal 2500630 Plug for through-wiring, 3-pole, 100–240 V
( 4.5 / 5 ) 11 ratings
Rittal 2500630
This image may differ from the desired article.
Rittal 2500630Rittal 2500630
31,51 EUR 32,52 EUR
( 37,50 EUR incl. VAT )
≈ £26.37  |  ≈ $34.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500630 Plug for through-wiring, 3-pole, 100–240 V
Datasheet:file_download Download
Lieske Part No.:1100675
Mfg Part No: 2500630
UPC/EAN: 4028177918764
Weight:0.08 kg
Type:SZ 2500630

Product information for Rittal 2500630:

The Rittal SZ 2500630 is a 3-pole connector for through-wiring and serves as connection accessory for custom assembly. It is specifically designed for individual installation of connection cables in industrial systems, particularly for system lights such as LED lighting units. The construction enables a secure and reliable connection of cables in the area of electrical wiring within enclosures or other closed systems. The connector is rated for an operating voltage of 100 V to 240 V, making it suitable for standard applications in industry and operational technology.

Applications

The connector is primarily used in industrial electrical engineering, where flexible and modular cabling is required. It is particularly suitable for wiring system lights, but also for other devices requiring through-wiring. The connector is used in enclosures, control systems, or lighting systems, where cables are routed through and connected via the connector. The through-wiring allows cables to be routed through the connector without additional fastening elements, resulting in a compact and orderly cabling arrangement.

Functions and Equipment in Detail

The connector features a rated cross-section of 1.5 mm², making it suitable for medium power requirements in industrial applications. It can connect both single-strand round conductors with a cross-section of 0.25 to 1.5 mm² and multi-strand round conductors in the range of 0.25 to 1 mm². The AWG equivalent is AWG 16 to AWG 22 for single-strand and AWG 18 to AWG 22 for multi-strand conductors. This versatility allows use with various cable types commonly used in industrial electrical installations. The dimensions are 17.9 mm (width), 14 mm (height), and 63.6 mm (depth), resulting in a compact design that saves space in tight mounting conditions.

Technology Explained Simply

The construction of the connector enables a secure mechanical and electrical connection by inserting the conductors into the corresponding connection openings. Through-wiring means that the cable is routed through the connector, establishing the connection at both ends of the connector. This is particularly advantageous when multiple devices are connected in series or when cabling inside an enclosure needs to be structured. The operating voltage of 100 V to 240 V covers most applications in industry, including low-voltage systems and control systems.

Compatibility and Accessories

The connector is designed as connection accessory for custom assembly, meaning it is used in combination with other components such as cables, switches, or lights. Compatible accessories available in the range include cable ties with a length of 150 mm, which can be used to secure cables in enclosures or wiring. These cable ties support orderly and secure cabling, especially when installing multiple cables in confined spaces.

Mounting and Installation

Mounting is done by inserting the round conductors into the designated connection openings of the connector. Through-wiring requires no additional fastening elements, as the cable is routed through the connector. The connection is secured by the mechanical tension of the connector, creating a stable electrical connection. Installation typically takes place in enclosures or on electrical devices where structured cabling is required. The packaging unit contains 5 pcs, which is sufficient for small to medium-sized projects.

Advantages in Operation

Using the Rittal SZ 2500630 enables efficient and orderly cabling in industrial systems. Through-wiring reduces the number of required connection points and minimizes the risk of incorrect connections. Compatibility with various cable cross-sections and robust construction ensure long service life and reliable performance under industrial conditions. Use in combination with cable ties supports a clean and clear installation, facilitating maintenance and servicing.

General
ModelPlug, 3-pole
Nominal cross-section1,5 mm²
Width17,9 mm
Height14 mm
Depth63,6 mm
Connection of stranded wires, solid0,25 ‐ 1,5 mm²
Connection of round conductors, solid AWGAWG 16 ‐ AWG 22
Connection of stranded wires, stranded0,25 ‐ 1 mm²
Rated operating voltage100 V - 240 V


Product data sheet
Datasheet for Rittal 2500630, EAN: 4028177918764
