Rittal 2500312 System light LED 1200, 100-240 V, L: 437 mm, with St

Your rating:
Average rating
product review for Rittal 2500312 System light LED 1200, 100-240 V, L: 437 mm, with St
( 4.5 / 5 ) 4 ratings
Rittal 2500312
This image may differ from the desired article.
Rittal 2500312Rittal 2500312Rittal 2500312Rittal 2500312
193,43 EUR
( 230,18 EUR incl. VAT )
≈ £161.90  |  ≈ $212.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500312 System light LED 1200, 100-240 V, L: 437 mm, with St
Datasheet:file_download Download
Lieske Part No.:1599182
Mfg Part No: 2500312
UPC/EAN: 4028177811300
Weight:0.707 kg
Type:SZ 2500312

Product information for Rittal 2500312:

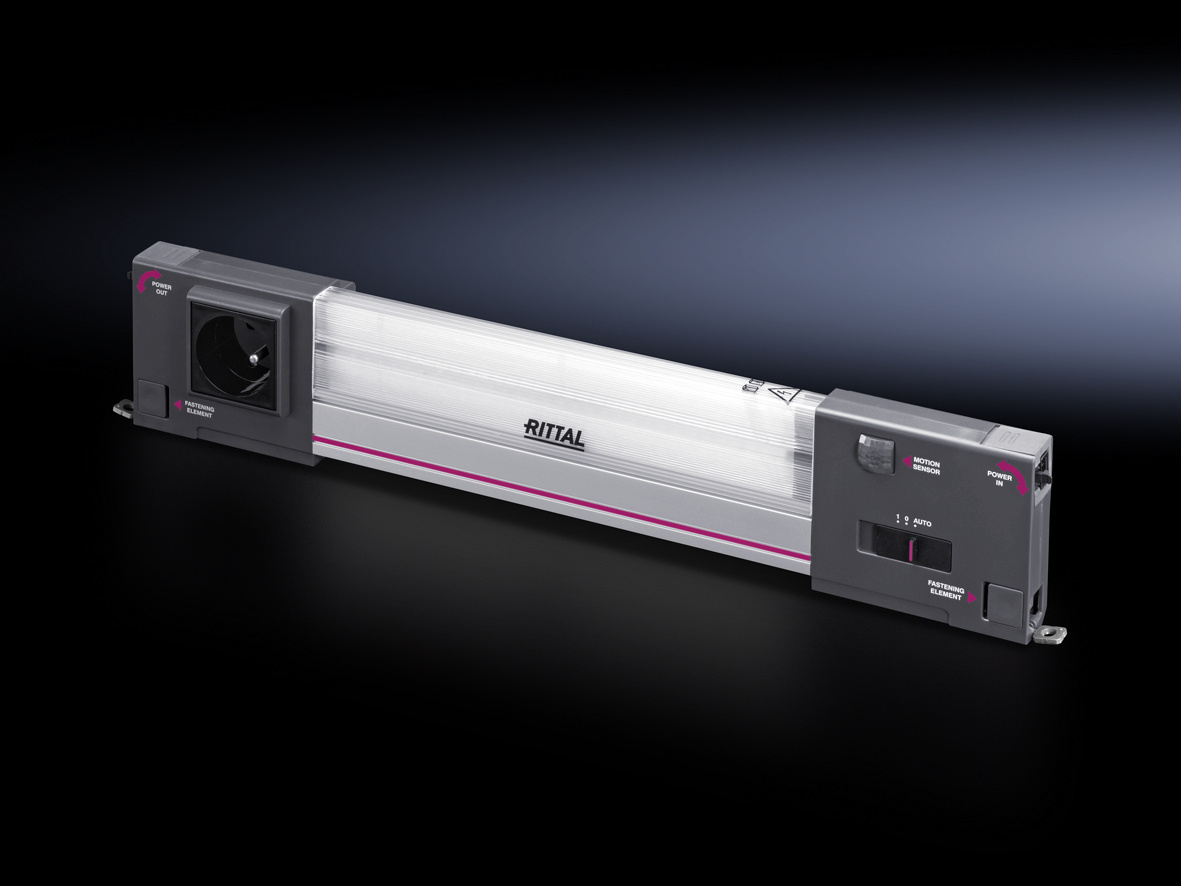

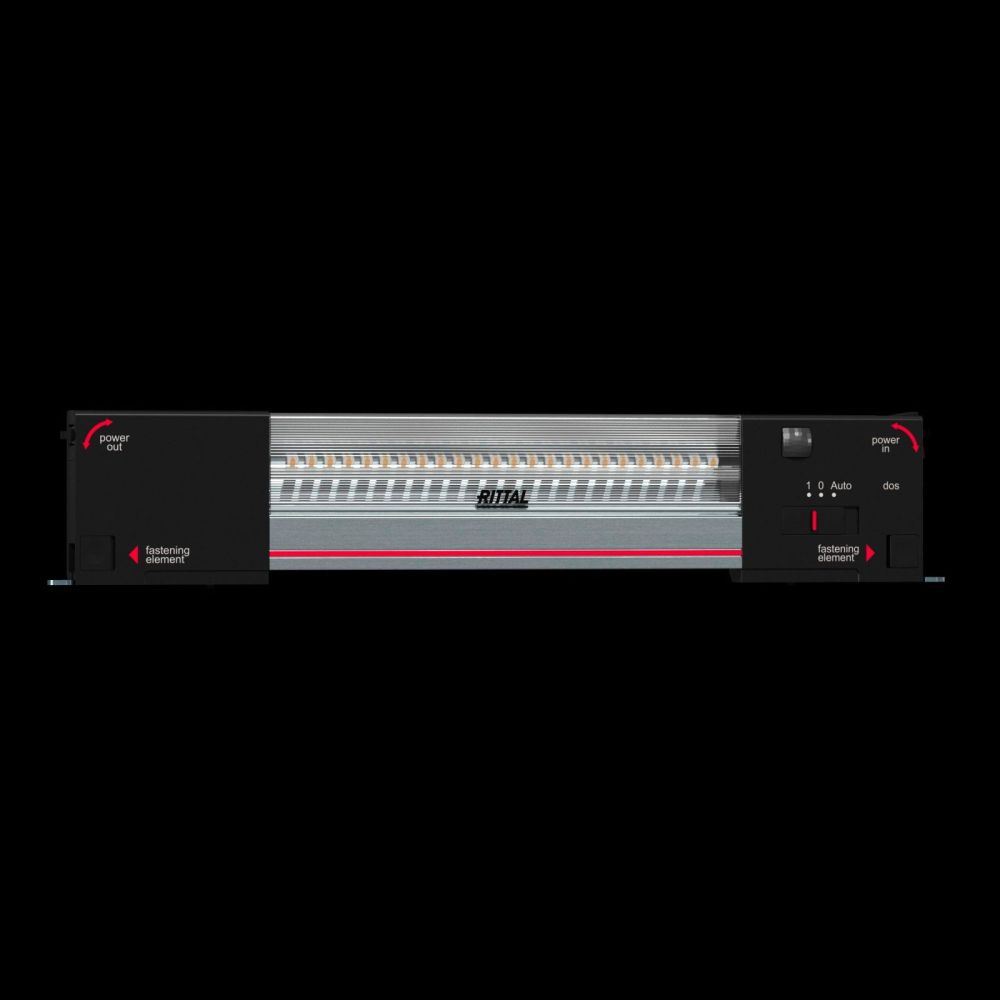

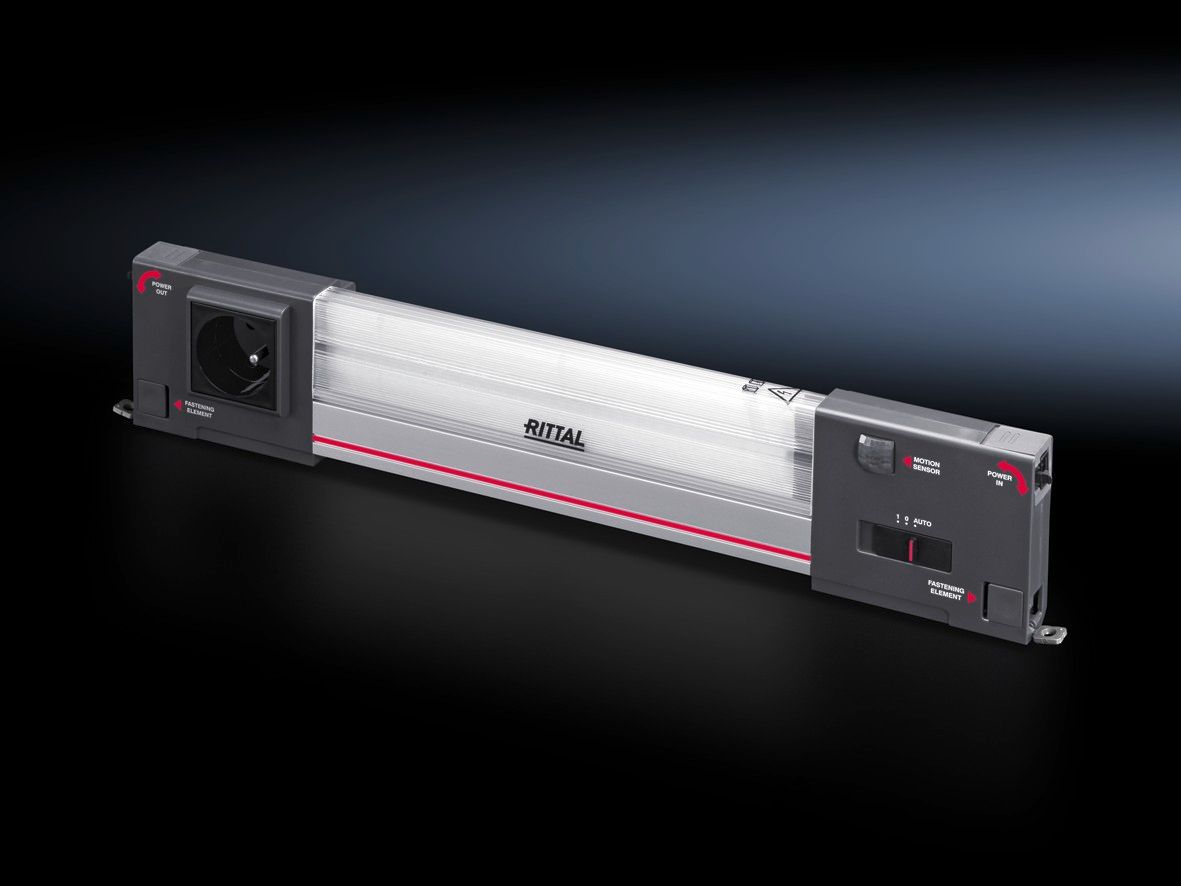

The Rittal SZ 2500312 is an LED system light, specifically designed for illuminating enclosures. It features an integrated socket and a motion sensor, enabling it to be used both as a work light and as safety lighting within enclosure areas. The light has a luminous flux of 1,200 lumens and produces a neutral white light with a colour temperature of 4000 K, ensuring good visibility for technical tasks. The operating voltage ranges from 100 V to 230 V, 1~, making it suitable for standard mains voltages in Europe and other regions.

Applications

The light is primarily designed for use in industrial enclosures, where uniform and sufficient lighting is required for maintenance and installation work. The integrated socket with F/B plug connection (Type E, CEE 7/5) allows devices and tools to be connected directly within the enclosure. The motion sensor automatically activates the lighting whenever a person moves within the light’s detection range, enhancing safety and work efficiency.

Functions and Equipment in Detail

The SZ 2500312 features a 90° rotatable plug connector design, allowing flexible adaptation to different connection orientations. The light can be mounted directly onto the enclosure profile using a 25 mm grid spacing, with installation via screwing or clip fastening. The delivery includes the necessary mounting screws. The socket is designed for use in enclosures and complies with the CEE 7/5 standard.

Technology Explained Simply

The light is based on LED technology with a rated power of 13 W, ensuring energy-efficient and long-lasting illumination. The rated insulation voltage is 300 V AC, and the rated impulse voltage withstand (phase to earth) is 2500 V AC, ensuring electrical safety during operation. Protection Class II (double insulated) and Overvoltage Category II guarantee a high safety standard. The protection rating IP 20 according to IEC 60 529 protects against finger contact and solid foreign objects, but is not waterproof and not suitable for outdoor use.

Compatibility and Accessories

The light is designed for installation in enclosures with a 25 mm grid spacing. Compatible accessories include connection cables in various lengths (e.g. 1000 mm and 3000 mm, orange) as well as mounting brackets and connectors for through-wiring. These components enable flexible and secure cabling within the enclosure.

Mounting and Installation

Mounting is done directly onto the enclosure profile using the included mounting screws or via clip fastening. The light is designed to be easily and quickly integrated into existing enclosure constructions. Installation requires no additional tools, except a screwdriver for screwing.

Operational Advantages

The combination of LED technology, motion sensor, and integrated socket offers high functionality. Automatic activation via motion reduces energy consumption, as the lighting is only switched on when needed. The socket allows tools and devices to be used directly within the enclosure, improving work efficiency. The robust construction made of extruded aluminium and polycarbonate ensures a long service life even under industrial conditions. The operating temperature range of -20 °C to 55 °C makes the light suitable for a wide range of environments.

The light is available in the colour RAL 7016 (grey), enabling visual harmony with many enclosure colours. Dimensions are 437 mm (width), 85 mm (height), and 44 mm (depth), representing a compact design for use in enclosures.

General
Modelwith socket, with motion sensor
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power13 W
Connection optionsSupply, 3-pole, through wiring, 3-pole
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux1.200 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height85 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsF/B (Type E, CEE 7/5)
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Socket configurationF/B (Type E, CEE 7/5)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)16,7
Motion sensorJa


Product data sheet
Datasheet for Rittal 2500312, EAN: 4028177811300
