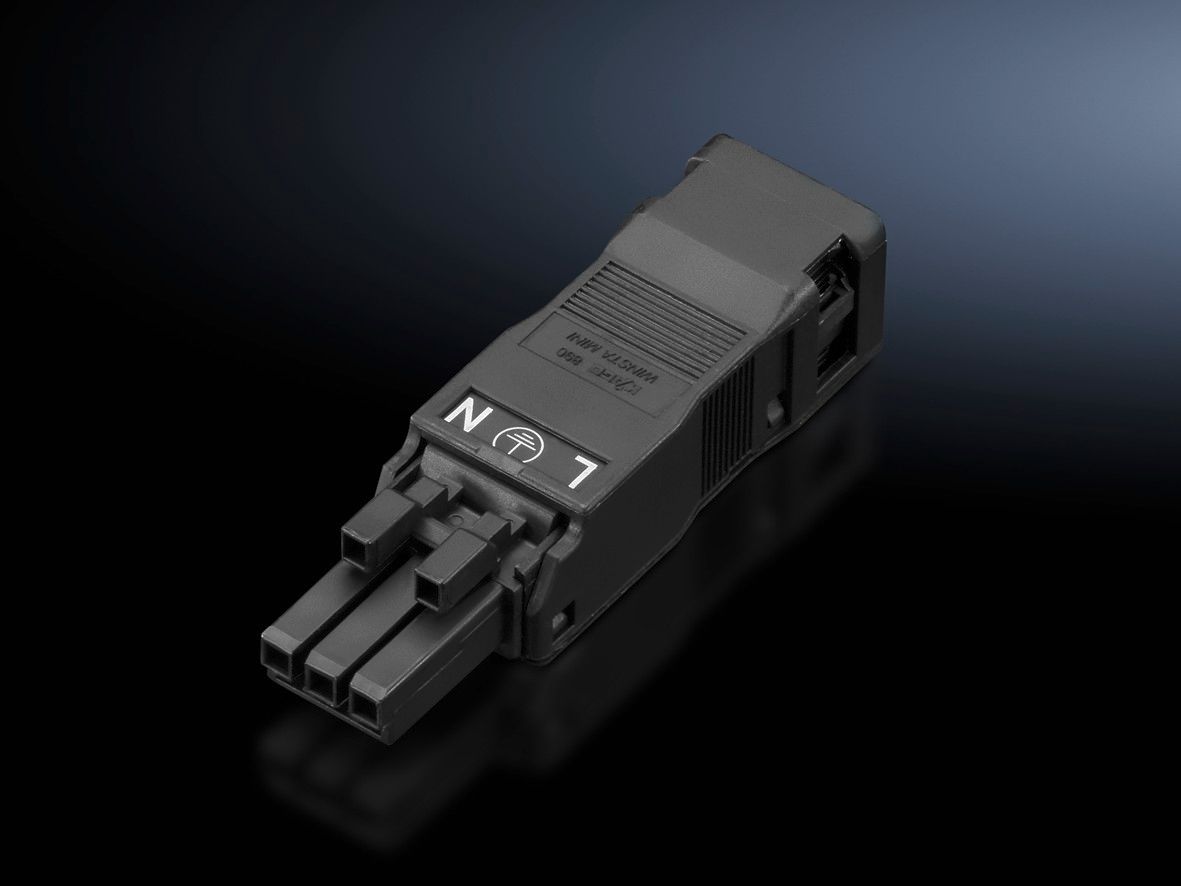

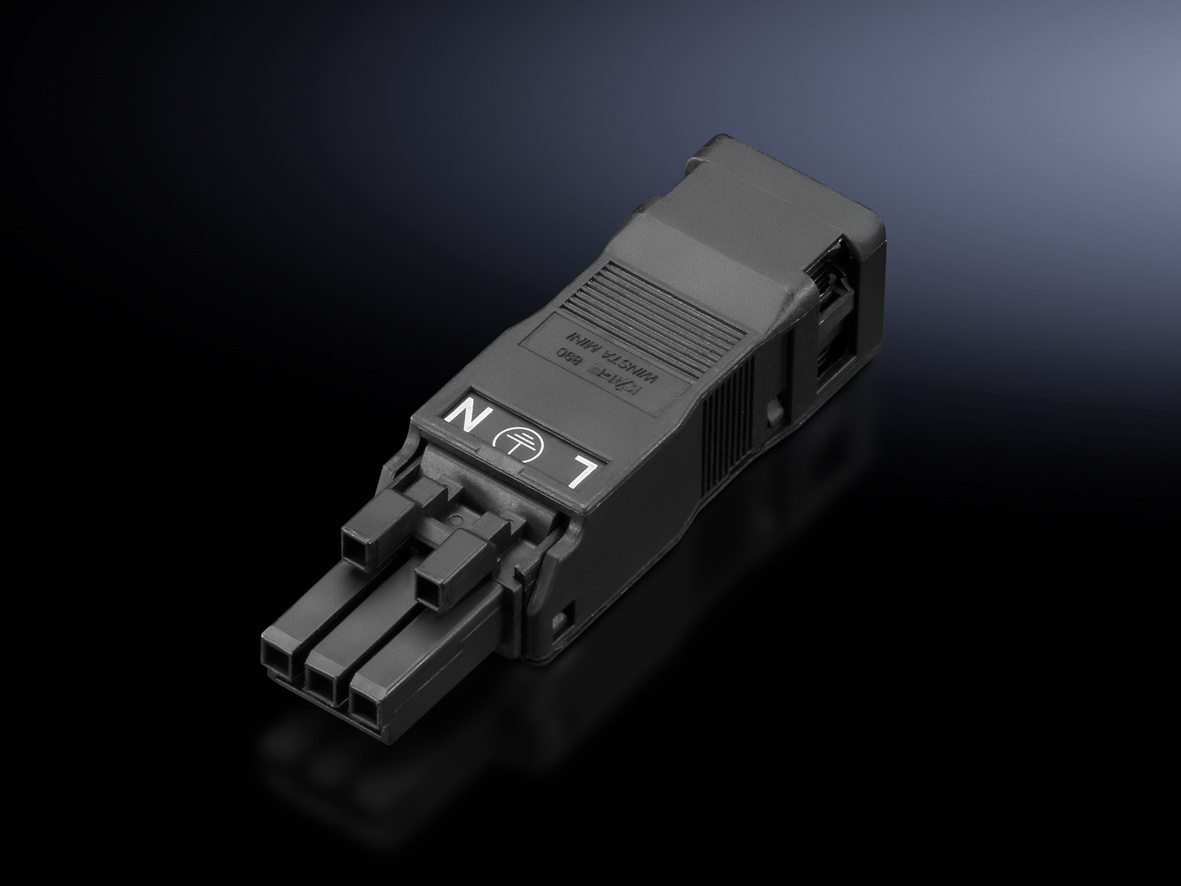

Rittal 2500600 Socket for feed-in and through-wiring, 3-
|
29,08 EUR 29,10 EUR |
|
|
( 34,61 EUR incl. VAT ) ≈ £24.34 | ≈ $31.96 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1100676 |
| Mfg Part No: | 2500600 |
| UPC/EAN: | 4028177918733 |
| Weight: | 0.084 kg |
| Type: | SZ 2500600 |
Product information for Rittal 2500600:
Applications
The socket is designed for use in industrial electrical installations where a reliable and durable connection of cables is required. It is commonly used in enclosures to safely implement power supplies for lighting, controls, or other electrical components. Its use is particularly common during the installation of system lights, where a direct and secure connection to the network or supply voltage is necessary. The rated operating voltage ranges from 100 V to 240 V, enabling use in standard industrial installations with alternating voltage.
Functions and Features in Detail
The SZ 2500600 is designed for connection of round conductors, with a nominal cross-section of 1.5 mm². For single-core conductors, cross-sections from 0.25 to 1.5 mm² are permitted, corresponding to an AWG range of AWG 16 to AWG 22. For multi-core conductors, the permissible cross-section is 0.25 to 1 mm², equivalent to AWG 18 to AWG 22. Thus, the socket is suitable for a wide range of cable types commonly used in industrial electrical engineering. The dimensions are 17.9 mm (width), 14 mm (height), and 63.6 mm (depth), enabling compact installation in enclosures.
Technology Explained Simply
The socket is designed as connection accessory to be integrated into the control panel to establish a secure electrical connection. The 3-pole configuration allows connection of three conductors, for example, for live, neutral, and protective earth. The connection is made by directly inserting the conductors into the socket, with mechanical strength and electrical conductivity ensured by the specified cross-sections. Use in custom cable assembly means the user prepares the cables themselves and inserts them into the socket, enabling individual adaptation to the specific installation.
Compatibility and Accessories
The accessories include cable ties L150 mm, which can be used to secure the connected cables. These help organize and stabilize the cabling within the enclosure. The socket is specifically developed for use with LED system lights, with wiring directly integrated into the control panel. Compatibility with other Rittal systems is ensured, as the socket is part of the system accessories.
Installation and Mounting
Mounting is done by inserting the socket into the control panel, placing it into the designated mounting openings. The cables are directly inserted into the socket and secured, with the cross-section specifications ensuring a mechanically stable and electrically safe connection. The use of cable ties to secure the cables is recommended to ensure orderly cabling.
Operational Advantages
The socket provides a reliable and durable connection for power supply and signal lines. The 3-pole configuration enables a safe and standardized connection that meets the requirements of industrial electrical engineering. Use in custom cable assembly offers flexibility in adapting to individual installation conditions. The compact design allows efficient space utilization in the enclosure. The packaging unit contains 5 pieces, enabling the installation of multiple connections in a single work step.
| General | |
| Model | Socket, 3-pole |
| Nominal cross-section | 1,5 mm² |
| Width | 17,9 mm |
| Height | 14 mm |
| Depth | 63,6 mm |
| Connection of stranded wires, solid | 0,25 ‐ 1,5 mm² |
| Connection of round conductors, solid AWG | AWG 16 ‐ AWG 22 |
| Connection of stranded wires, stranded | 0,25 ‐ 1 mm² |
| Rated operating voltage | 100 V - 240 V |
Questions & answers
What is the delivery time of Rittal 2500600 Socket for feed-in and through-wiring, 3-?
The article Rittal 2500600 Socket for feed-in and through-wiring, 3- is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2500600 Socket for feed-in and through-wiring, 3- always at the best possible price. We can give you a discount of 2% on Rittal 2500600 Socket for feed-in and through-wiring, 3- if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
