Rittal 2500214 System light LED 900, 100-125 V, L: 437 mm, with plug

Your rating:
Average rating
product review for Rittal 2500214 System light LED 900, 100-125 V, L: 437 mm, with plug
( 4.6 / 5 ) 8 ratings
Rittal 2500214
This image may differ from the desired article.
Rittal 2500214Rittal 2500214Rittal 2500214Rittal 2500214Rittal 2500214
119,72 EUR
( 142,47 EUR incl. VAT )
≈ £100.21  |  ≈ $131.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500214 System light LED 900, 100-125 V, L: 437 mm, with plug
Datasheet:file_download Download
Lieske Part No.:1351081
Mfg Part No: 2500214
UPC/EAN: 4028177811324
Weight:0.599 kg
Type:SZ 2500.214

Product information for Rittal 2500214:

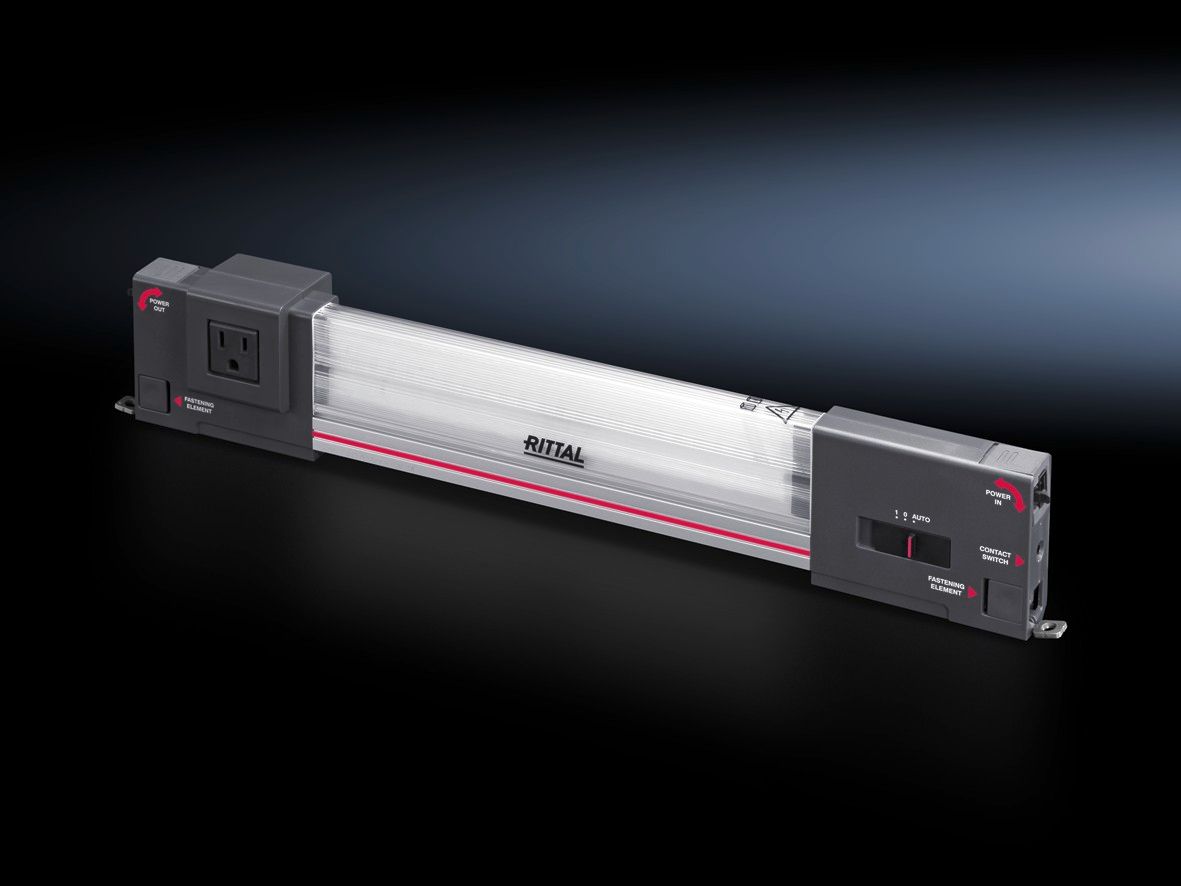

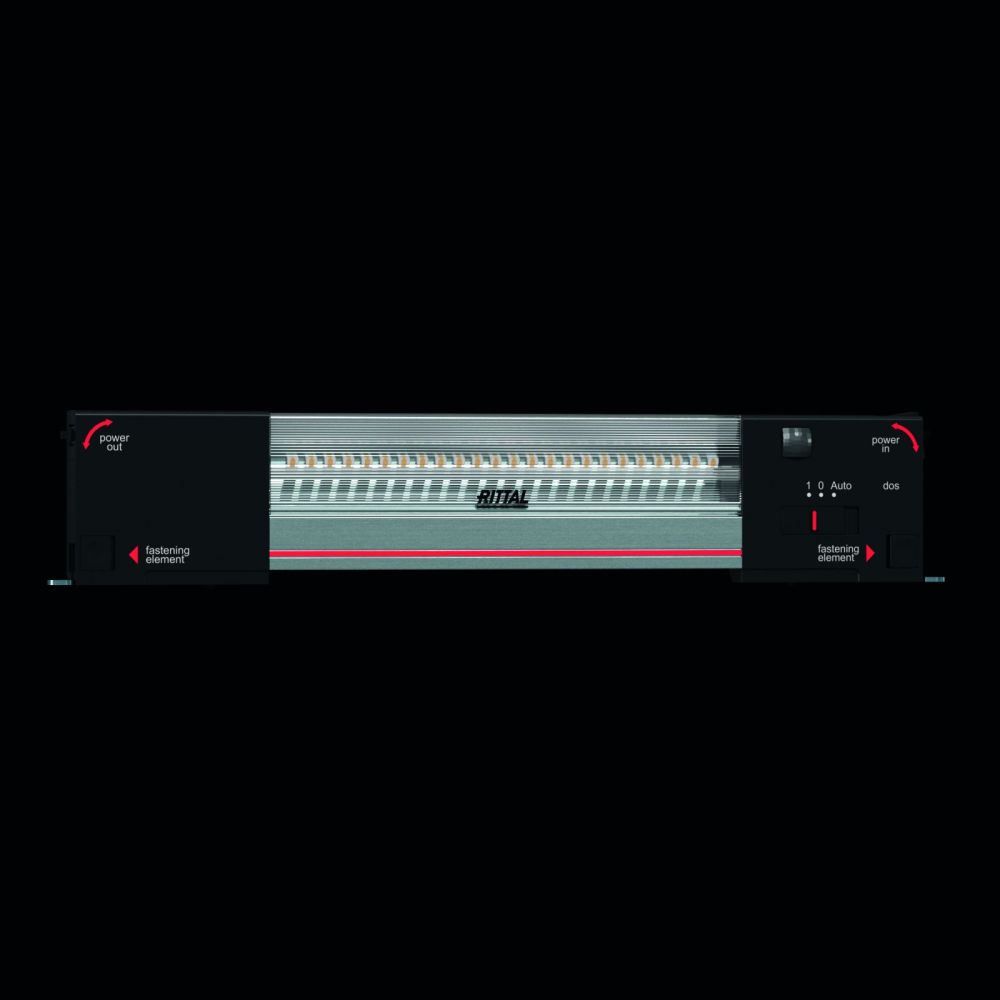

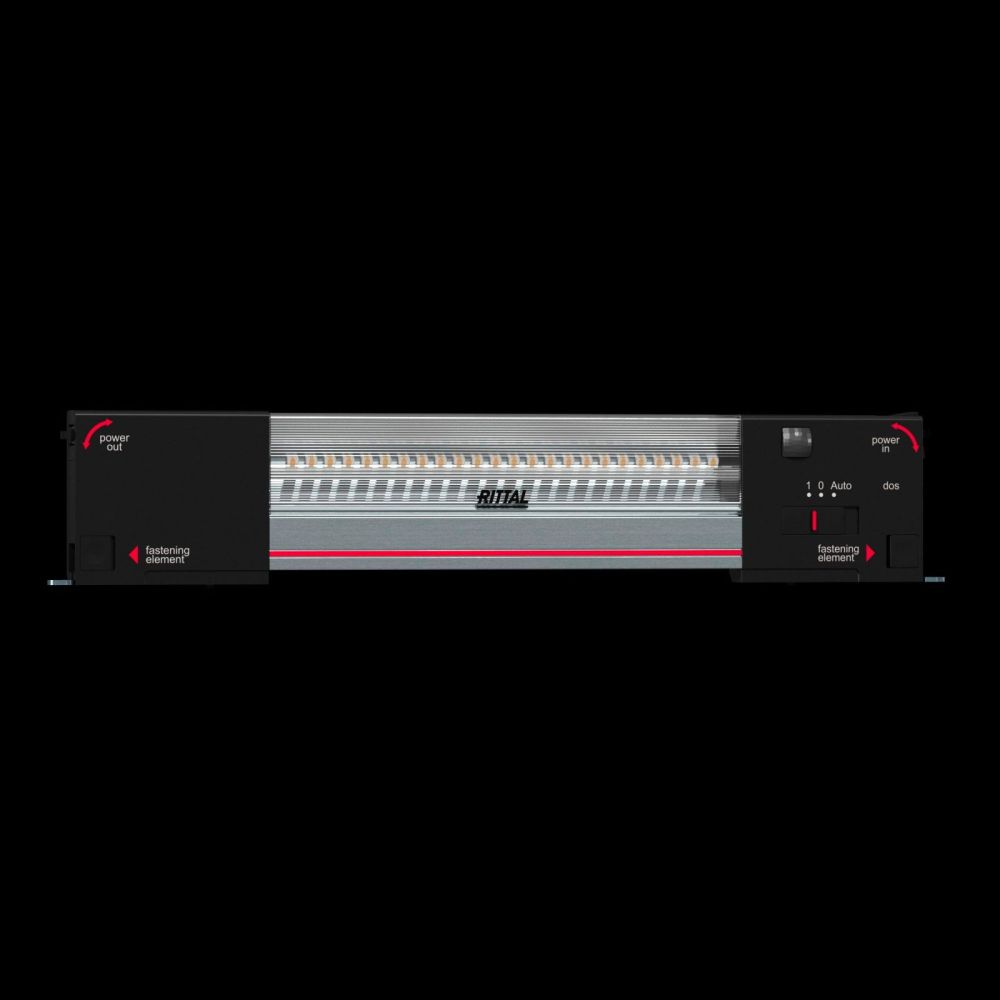

The Rittal SZ 2500.214 is an LED system light, specifically designed for use in enclosures. It provides even and sufficient illumination of the entire enclosure interior and is equipped with a socket for the North American market (Type B, NEMA 5-15). The light is mounted directly onto the enclosure profile with a 25 mm grid spacing and is finished in RAL 7016. The housing is made of extruded aluminium, the cover is made of polycarbonate, and the ends are made of PC-ABS, ensuring a robust and durable construction. Mounting screws are included in the delivery scope.

Applications

The light is designed for use in industrial enclosures where reliable and even illumination is required for maintenance and installation work. The integrated socket enables the supply of devices or tools operating on 100 V to 125 V, 1~, 50 Hz/60 Hz mains voltage. Mounting is directly onto the enclosure profile, allowing flexible positioning within the enclosure.

Functions and Equipment in Detail

The SZ 2500.214 features a luminous intensity of 900 lumens with a colour temperature of 4000 K (neutral white), ensuring clear and natural colour reproduction. The rated power is 11 W. The light is equipped with various connection options: 3-pole input, 3-pole pass-through wiring, and connection for a door position switch. These features enable flexible integration into existing enclosure systems. The socket is configured for USA/CDN (Type B, NEMA 5-15), allowing use with devices from the USA and Canada.

Technology Explained Simply

The light operates using LED technology, which provides high light output with low energy consumption. The rated insulation voltage is 300 V AC, and the rated impulse voltage withstand (phase to earth) is 2500 V AC, ensuring high electrical safety. Protection Class II (double insulated) means the light can operate without an additional protective earth conductor. The protection rating IP 20 according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. The operating temperature range extends from -20 °C to 55 °C, enabling use in various industrial environments.

Compatibility and Accessories

To extend functionality, various accessories can be combined, such as connection cables (e.g. L3000 mm orange, L1000 mm orange), door position switches with connection cable (e.g. 800 mm black), universal brackets, mounting brackets for internal installation, plugs for pass-through wiring (3-pole, 100–240 V), and sockets for input and pass-through wiring (3-pole). These components allow individual adaptation to specific requirements within the enclosure.

Mounting and Installation

Mounting is directly onto the enclosure profile with 25 mm grid spacing. The light can be mounted using screws or clip fastening, enabling quick and secure installation. Mounting screws are included in the delivery scope. The connection options require the use of separate connection accessories, which must be ordered separately.

Advantages in Operation

The SZ 2500.214 provides reliable and even illumination within the enclosure, improving working conditions for maintenance and installation tasks. The integrated socket enables the supply of devices operated via mains voltage. The robust construction made of aluminium, polycarbonate, and PC-ABS ensures a long service life. Flexible mounting and various connection options facilitate integration into existing systems. Protection Class II and protection rating IP 20 ensure safe use in industrial environments.

General
ModelWith socket
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power11 W
Connection optionsPower supply, 3-pole, through wiring, 3-pole, door position switch
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux900 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height80 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsUSA/CDN (Type B, NEMA 5-15)
Rated operating voltage100 V - 125 V, 1~, 50 Hz/60 Hz
Socket configurationUSA/CDN (Type B, NEMA 5-15)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)13,6


Product data sheet
Datasheet for Rittal 2500214, EAN: 4028177811324
