Rittal 2500313 System light LED 1200, 100-240 V, L: 437 mm, with St

Your rating:
Average rating
product review for Rittal 2500313 System light LED 1200, 100-240 V, L: 437 mm, with St
( 5 / 5 ) 3 ratings
Rittal 2500313
This image may differ from the desired article.
Rittal 2500313Rittal 2500313Rittal 2500313Rittal 2500313Rittal 2500313
193,43 EUR 199,73 EUR
( 230,18 EUR incl. VAT )
≈ £161.90  |  ≈ $212.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2500313 System light LED 1200, 100-240 V, L: 437 mm, with St
Datasheet:file_download Download
Lieske Part No.:1599181
Mfg Part No: 2500313
UPC/EAN: 4028177811294
Weight:0.7 kg
Type:SZ 2500313

Product information for Rittal 2500313:

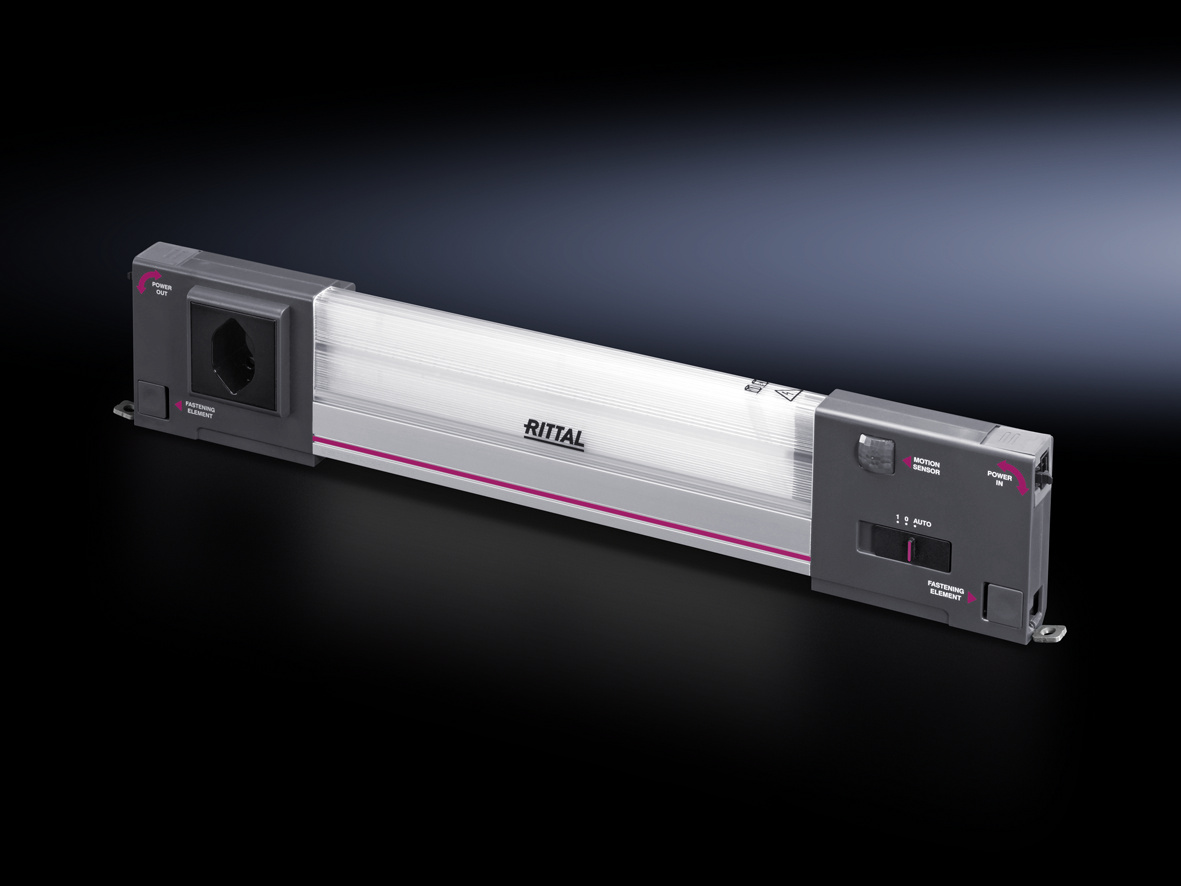

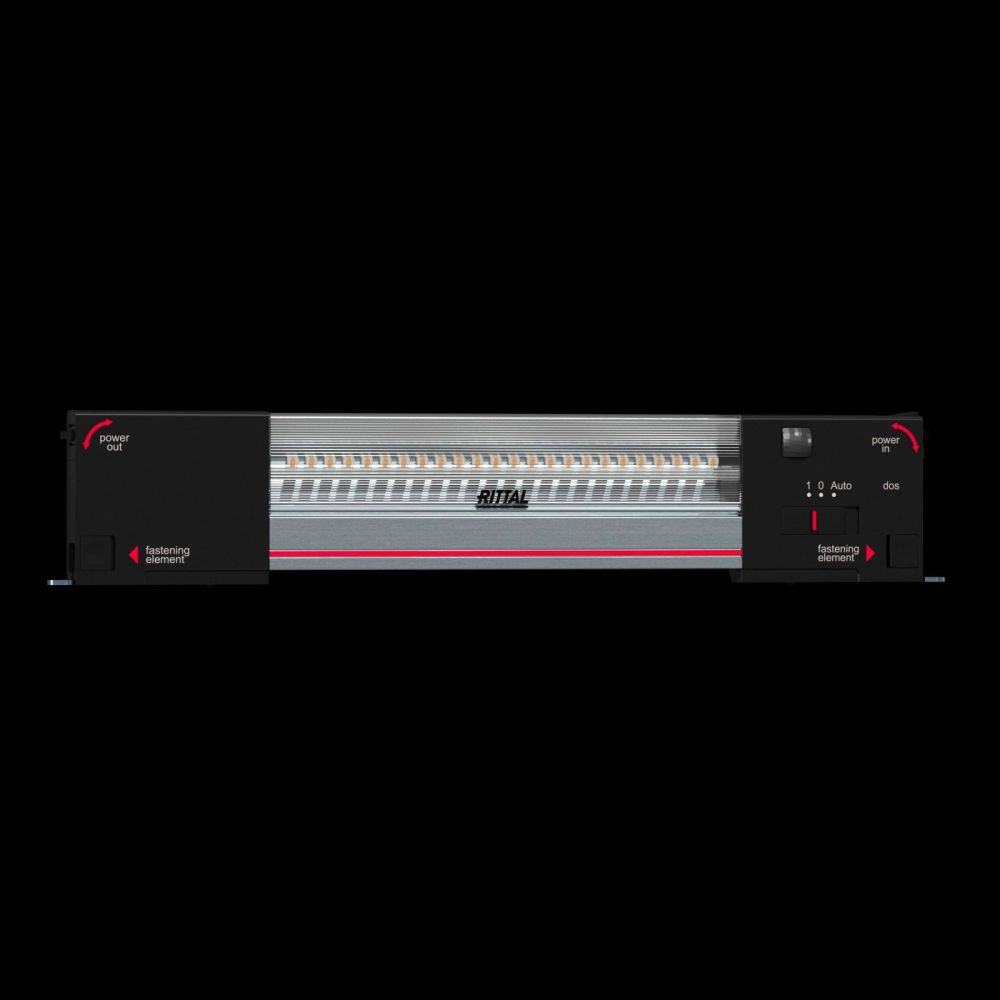

The Rittal SZ 2500313 is an LED system light, specifically developed for use in enclosures. It provides optimal illumination of the entire enclosure interior and is equipped with an integrated motion sensor as well as a socket outlet. The light is mounted directly onto the enclosure profile with a 25 mm grid spacing and is suitable for applications requiring reliable and energy-efficient lighting in industrial environments. The finish in RAL 7016 ensures visual harmony with standard enclosure colours.

Applications

The light is designed for use in industrial enclosures where uniform and sufficient illumination is required for maintenance and installation work. The integrated socket outlet in CH format (Type J, SEV 1011) allows direct connection of tools or measuring instruments within the enclosure. The motion sensor automatically activates the lighting as soon as movement is detected in the vicinity of the light, improving energy efficiency and working conditions.

Functions and Equipment in Detail

The SZ 2500313 has a rated power of 13 W and produces a luminous flux of 1,200 lm at a colour temperature of 4000 K (neutral white), ensuring clear and natural colour rendering. The socket outlet is in CH format (Type J, SEV 1011) and allows connection of devices with matching plugs. The light is equipped with a motion sensor that automatically turns the lighting on and off when movement is detected in the surrounding area. Mounting is done via screwing or clip fastening, with the mounting screws included in the delivery scope.

Technology Explained Simply

The light operates using LED technology, which provides high luminous efficacy at low energy consumption. The rated operating voltage is 100 V to 230 V, 1~, 50 Hz/60 Hz, allowing universal use in various electrical networks. The protection class IP 20 according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. Protection class II (double insulated) means the light can be operated without an additional protective earth conductor. The rated impulse voltage withstand is 2500 V AC, and the rated insulation voltage is 300 V AC, ensuring electrical safety. The operating temperature range extends from -20 °C to 55 °C, enabling use in various industrial environments.

Compatibility and Accessories

The light can be mounted directly onto the enclosure profile with a 25 mm grid spacing. Plugs for through-wiring (3-pole, 100–240 V) and sockets for supply and through-wiring (3-pole) can be ordered separately to optimise wiring within the enclosure.

Mounting and Installation

Mounting is done directly onto the enclosure profile using the included mounting screws or via clip fastening. The light is designed to easily adapt to the 25 mm grid spacing. Wiring is done via 3-pole connection points for supply and through-wiring. The socket outlet is rotatable by 90°, allowing flexible orientation. The light direction and light distribution are adjustable to optimally match the lighting to the specific enclosure geometry.

Operational Advantages

The LED technology of the SZ 2500313 provides high luminous efficacy at low energy consumption. The integrated motion sensor ensures automatic activation of the lighting, improving energy efficiency and working conditions. The socket outlet allows direct connection of tools or measuring instruments within the enclosure, simplifying maintenance work. The robust construction from extruded aluminium, polycarbonate, and PC-ABS ensures long service life and high mechanical stability. The protection class IP 20 and protection class II (double insulated) ensure safe and reliable use in industrial environments.

General
Modelwith socket, with motion sensor
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power13 W
Connection optionsSupply, 3-pole, through wiring, 3-pole
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux1.200 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height85 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsCH (Type J, SEV 1011)
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Socket configurationCH (Type J, SEV 1011)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)16,7
Motion sensorJa


Product data sheet
Datasheet for Rittal 2500313, EAN: 4028177811294
