Rittal 2500310 System light LED 1200 lumens

Your rating:
Average rating
product review for Rittal 2500310 System light LED 1200 lumens
( 4.2 / 5 ) 10 ratings
Rittal 2500310
This image may differ from the desired article.
Rittal 2500310Rittal 2500310Rittal 2500310
193,16 EUR 193,17 EUR
( 229,86 EUR incl. VAT )
≈ £161.67  |  ≈ $212.28
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2500310 System light LED 1200 lumens
Datasheet:file_download Download
Lieske Part No.:1020532
Mfg Part No: 2500310
UPC/EAN: 4028177806986
Weight:0.69 kg
Type:SZ 2500310

Product information for Rittal 2500310:

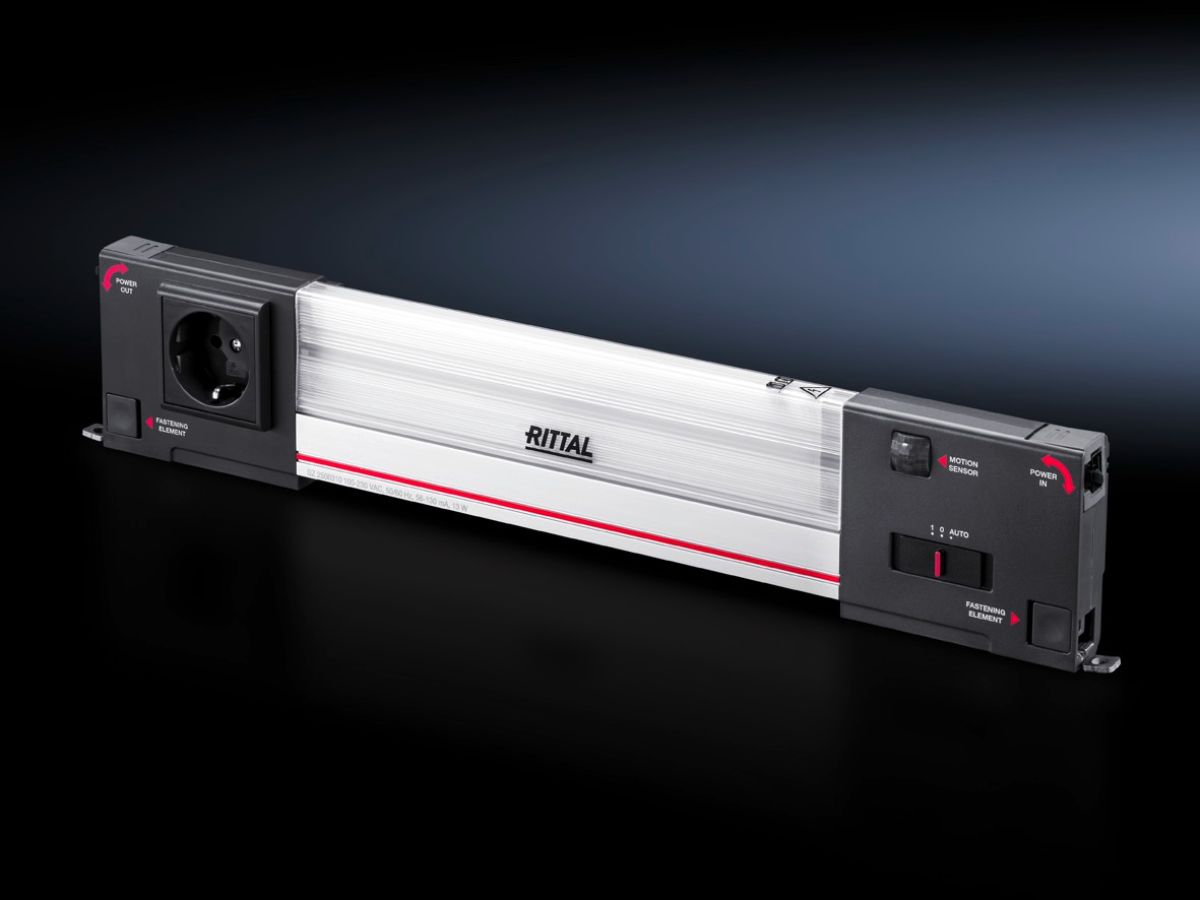

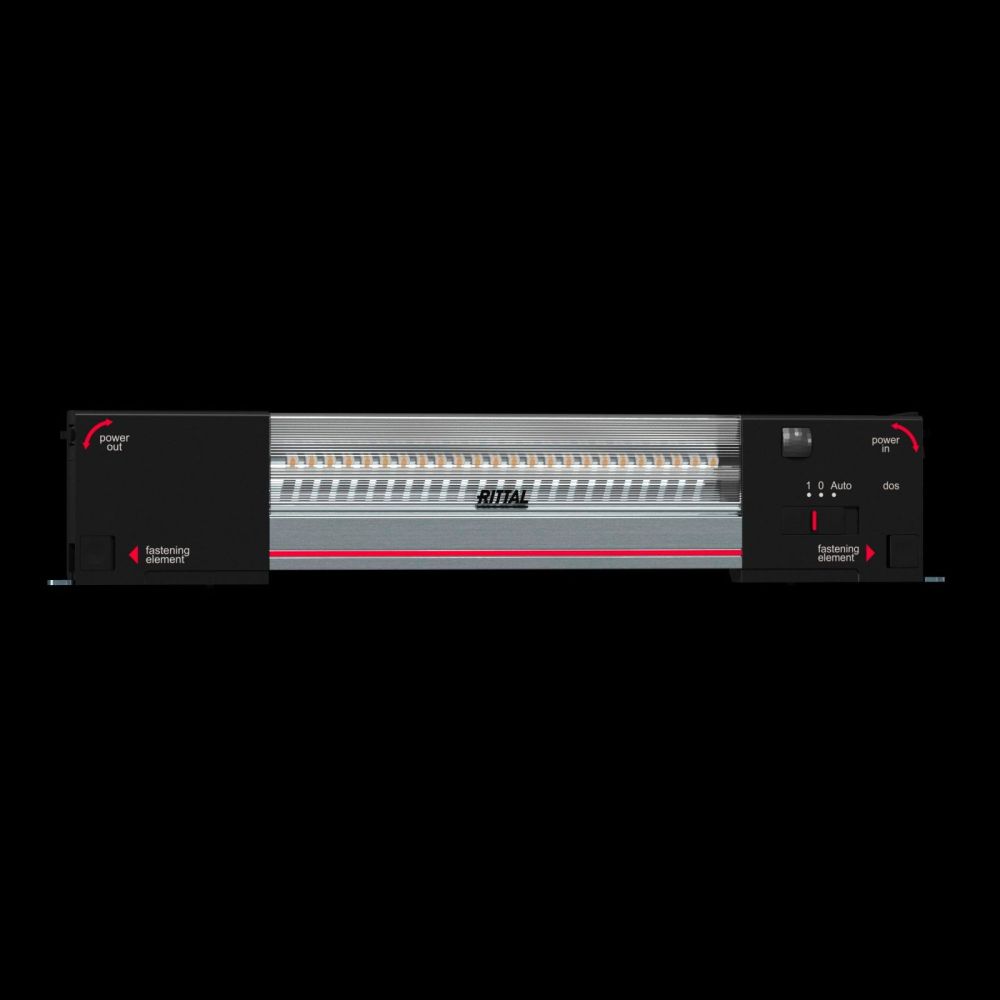

The Rittal SZ 2500310 is a robust LED system luminaire designed for use in control cabinets and technical installations. With a luminous flux of 1,200 lumens and a neutral white light color temperature of 4000 K, it provides sufficient, even lighting in industrial environments. The luminaire is equipped with a motion sensor, enabling intelligent, energy-saving lighting control — the lighting activates automatically upon detecting motion and turns off after a preset time interval. Additionally, it features an integrated socket, allowing direct connection of tools, measuring devices, or other equipment within the control cabinet. Its compact design, with a length of 437 mm and a height of 85 mm, fits perfectly into standard control cabinets. The luminaire operates at a rated voltage of 100–230 V, 1~, 50/60 Hz and consumes 13 W of power. The operating temperature range is from -20 °C to 55 °C, ensuring reliable performance in various industrial environments. The housing material is aluminum, providing high mechanical stability and heat dissipation. The protection rating IP20 protects against contact with fingers and larger solid objects, but is not suitable for outdoor use or humid environments. The luminaire is without an on/off switch, meaning control is exclusively via the motion sensor.

Technical Data
  • Manufacturer: Rittal
  • Manufacturer's Part Number: 2500310
  • Type/Series: SZ 2500.310
  • Product Name: LED System Luminaire
  • Configuration: with socket, with motion sensor
  • Luminous Flux: 1,200 lm
  • Light Color: 4000 K (neutral white)
  • Rated Operating Voltage: 100 V – 230 V, 1~, 50 Hz/60 Hz
  • Power Consumption: 13 W
  • Length: 437 mm
  • Width: 44 mm
  • Height: 85 mm
  • Depth: 44 mm
  • Protection Rating: IP20
  • Operating Temperature: -20 °C to 55 °C
  • Material: Aluminum
  • With Light Sensor/Motion Sensor: Yes
  • With Socket: Yes
  • With On/Off Switch: No
  • Net Weight: 0.6 kg
  • Gross Weight: 0.69 kg
  • Country of Origin: RO
  • WEEE Country: DE


General
Modelwith socket, with motion sensor
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power13 W
Connection optionsSupply, 3-pole, through wiring, 3-pole
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux1.200 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height85 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsD, Schuko (Type F, CEE 7/3)
Rated operating voltage100 V - 230 V, 1~, 50 Hz/60 Hz
Socket configurationD, Schuko (Type F, CEE 7/3)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)16,7
Motion sensorJa


Product data sheet
Datasheet for Rittal 2500310, EAN: 4028177806986
