Rittal 2500314 System light LED 1200, 100–125 V, L: 437 mm, with St

Your rating:
Average rating
product review for Rittal 2500314 System light LED 1200, 100–125 V, L: 437 mm, with St
( 4.5 / 5 ) 2 ratings
Rittal 2500314
This image may differ from the desired article.
Rittal 2500314Rittal 2500314Rittal 2500314Rittal 2500314
193,09 EUR
( 229,78 EUR incl. VAT )
≈ £161.62  |  ≈ $212.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500314 System light LED 1200, 100–125 V, L: 437 mm, with St
Datasheet:file_download Download
Lieske Part No.:1907660
Mfg Part No: 2500314
UPC/EAN: 4028177811287
Weight:0.684 kg
Type:SZ 2500314

Product information for Rittal 2500314:

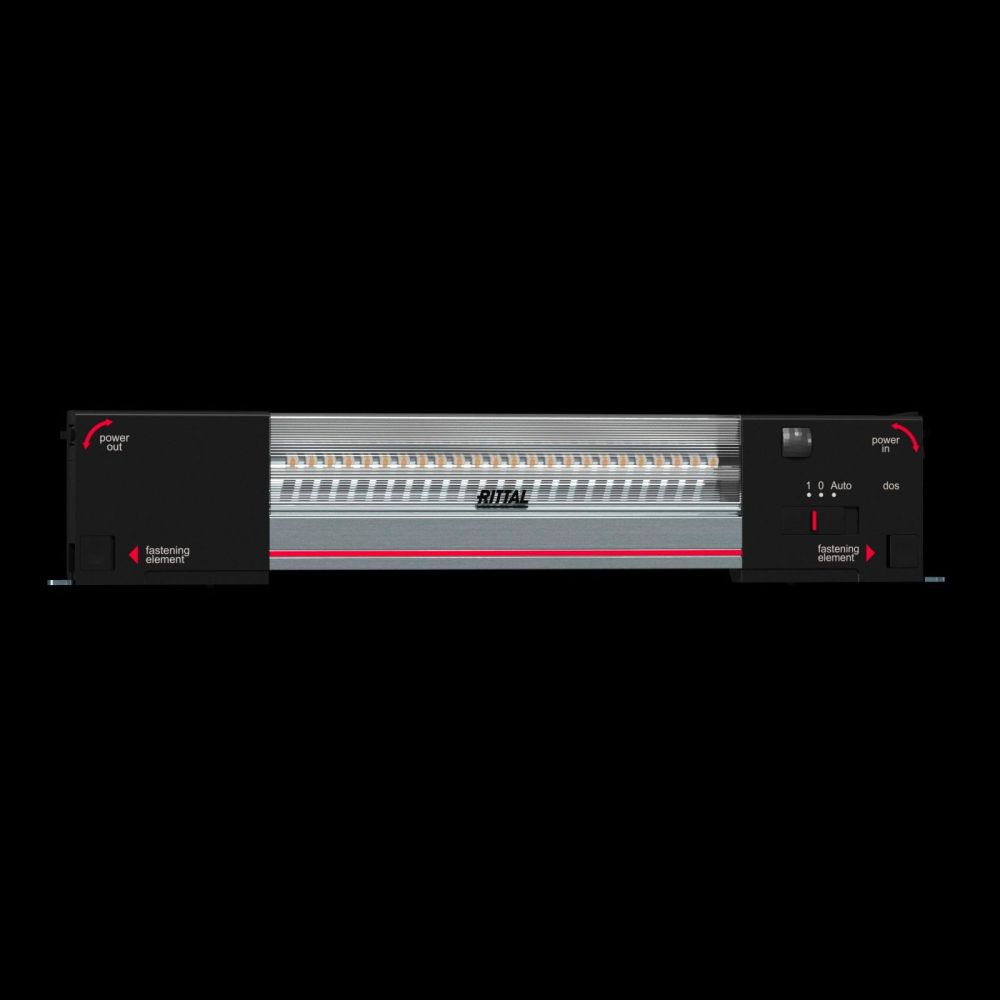

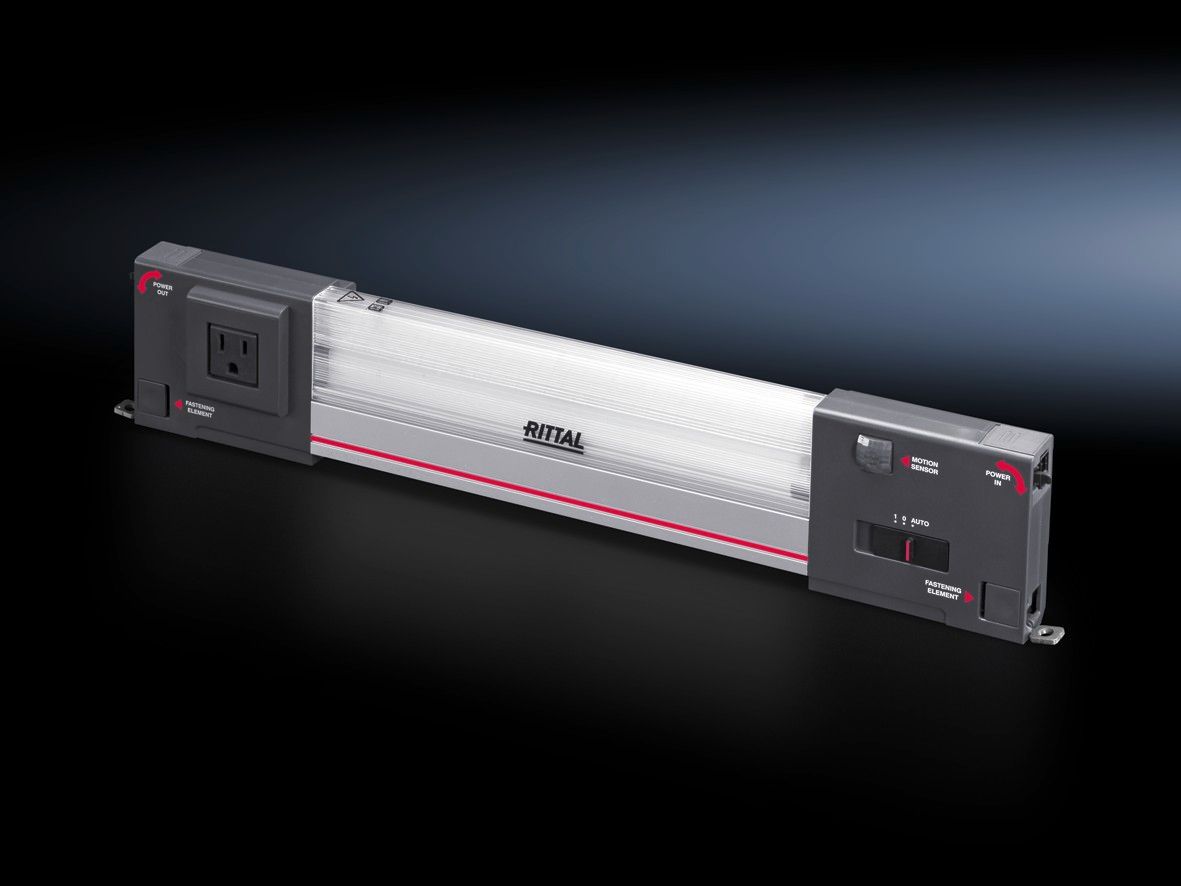

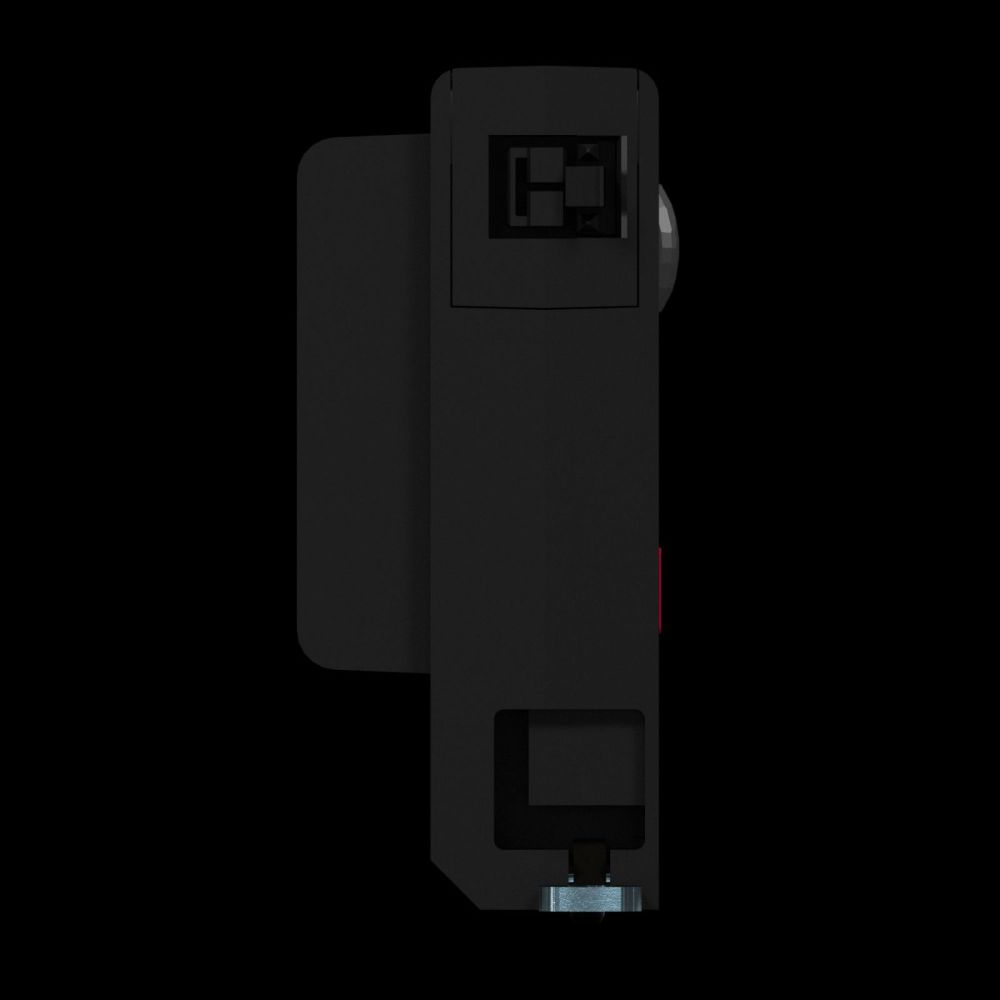

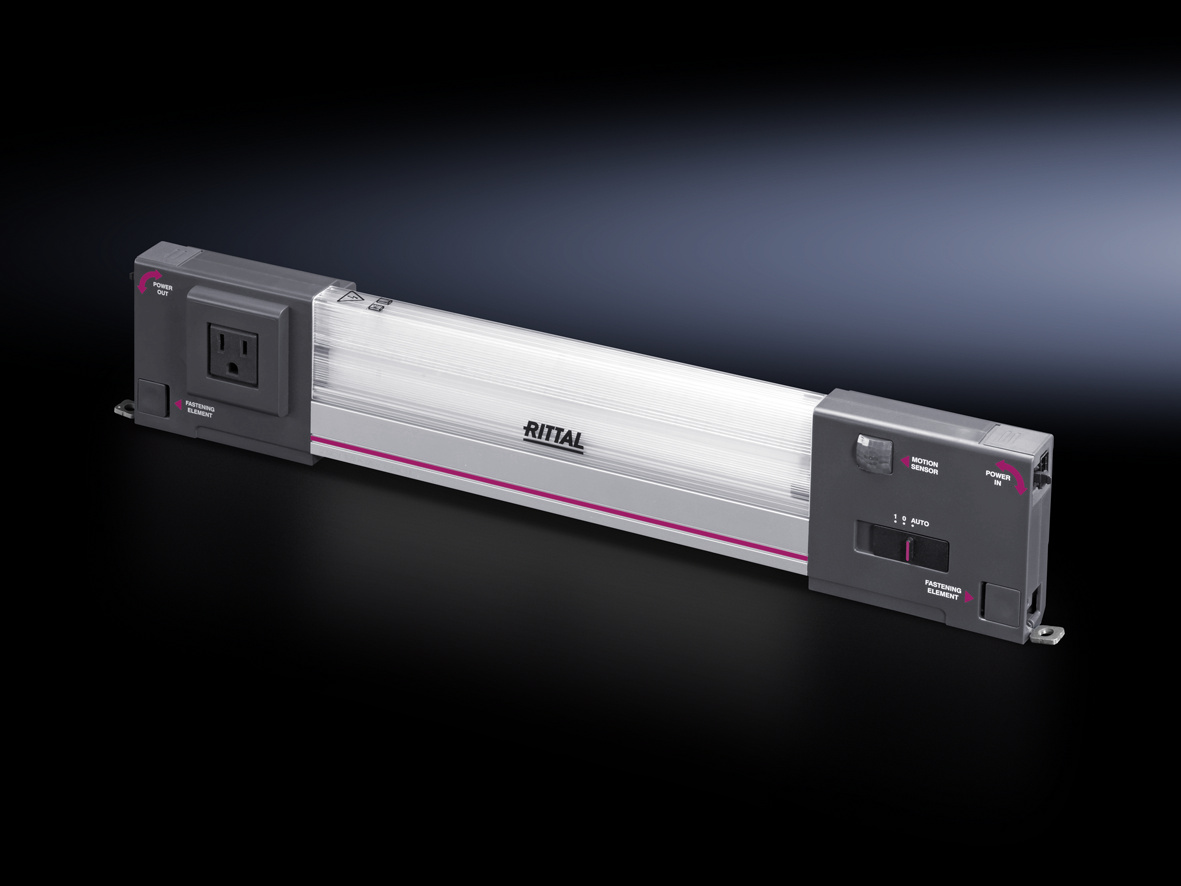

The Rittal SZ 2500314 is an LED system light, specifically designed for installation in enclosures. The device provides a luminous output of 1,200 lumens at a rated power of 13 W and produces neutral white light with a colour temperature of 4000 K. The light is equipped with an integrated motion sensor that automatically activates the lighting when movement is detected in the area. The operating voltage is 100 V to 125 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz. The light is mounted directly onto the enclosure profile with a 25 mm grid, using either screwing or clip mounting. Mounting screws are included in the delivery scope.

Applications

The SZ 2500314 is designed for lighting inside enclosures where uniform and sufficient light distribution is required. The integrated socket in USA/CDN configuration (Type B, NEMA 5-15) enables the supply of devices or tools within the enclosure. The light is suitable for use in industrial environments, particularly in plants where safe and reliable lighting is necessary during maintenance or inspections. The operating temperature range extends from -20 °C to +55 °C, enabling use under various climatic conditions.

Functions and Equipment in Detail

The light features a luminaire body made of extruded aluminium, ensuring high mechanical stability and heat dissipation. The luminaire cover is made of polycarbonate, a robust and transparent plastic that optimizes light output and protects against mechanical damage. The ends of the light are made of PC-ABS, a material known for its high resistance to mechanical stress and temperature fluctuations. The housing colour is RAL 7016, a dark grey tone that integrates well visually in industrial environments. The socket is configured for USA/CDN (Type B, NEMA 5-15), enabling connection to devices from the North American market.

Technology Explained Simply

The LED technology of the SZ 2500314 ensures high luminous output with low energy consumption. The light colour of 4000 K corresponds to neutral white light, suitable for technical workspaces as it provides good colour rendering and high readability. The integrated motion sensor reduces energy consumption by activating the lighting only when persons are detected in the vicinity of the luminaire. The protection class IP 20 according to IEC 60 529 means the device is protected against contact with fingers and against solid foreign objects, but not against water or dust. Protection class II (double insulated) ensures high electrical safety, as no protective earth connection is required. The rated insulation voltage is 300 V AC, and the rated impulse withstand voltage phase to earth is 2500 V AC, ensuring reliability under electrical stress.

Compatibility and Accessories

The luminaire is designed for direct mounting on enclosure profiles with a 25 mm grid. Compatible accessories include connection cables in various lengths (e.g. 1000 mm and 3000 mm), connection cables for supply and pass-through wiring, as well as mounting brackets and connectors for pass-through wiring. These components enable flexible and secure cabling within the enclosure.

Mounting and Installation

Mounting is done directly onto the enclosure profile, with the luminaire either screwed or clipped into place. Mounting screws are included in the delivery scope. Connection options include supply and pass-through wiring, each 3-pole, enabling flexible integration into existing control systems. Wiring is carried out via the designated connection points, and the use of appropriate connection accessories is recommended to ensure a safe and orderly installation.

Operational Advantages

The SZ 2500314 provides a reliable and energy-efficient lighting solution for enclosures. The integrated socket allows the use of tools or devices within the enclosure without requiring additional power supply solutions. The motion sensor ensures automatic activation of the lighting, enhancing safety during maintenance work and reducing energy consumption. The robust material selection and protection class II ensure long service life and high safety during operation. The luminaire is designed for industrial environments and meets requirements for electrical safety and functionality.

General
Modelwith socket, with motion sensor
MaterialLuminaire body: extruded aluminium, luminaire cover: polycarbonate, luminaire ends: PC-ABS
ColourHousing: RAL 7016
Scope of deliveryIncluding mounting screws
Nominal power13 W
Connection optionsSupply, 3-pole, through wiring, 3-pole
Overvoltage protection classII
Protection classII (double insulated)
Luminaires mounting typeScrewing, clip mounting
Rated impulse voltage withstand, phase to ground2500 V AC
Rated insulation voltage300 V AC
Mounting optionsDirect mounting on cabinet profile with 25 mm grid
Luminous flux1.200 lm
Colour of light4000 K (neutral white)
NoteConnection accessories to be ordered separately
Width437 mm
Height85 mm
Depth44 mm
Operating temperature range-20 °C...55 °C
Socket outletsUSA/CDN (Type B, NEMA 5-15)
Rated operating voltage100 V - 125 V, 1~, 50 Hz/60 Hz
Socket configurationUSA/CDN (Type B, NEMA 5-15)
Degree of protection IP according to IEC 60 529IP 20
PCF/VE (Cradle-to-Gate)16,7
Motion sensorJa


Product data sheet
Datasheet for Rittal 2500314, EAN: 4028177811287
