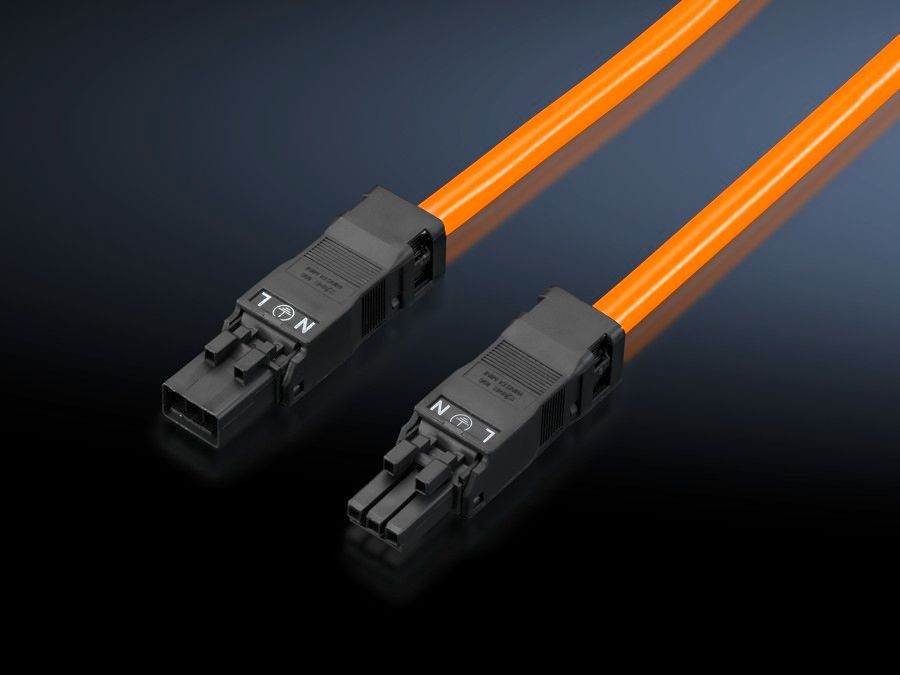

Rittal 2500530 Connection cable L1000 mm Orange 3-pole

Your rating:
Average rating
product review for Rittal 2500530 Connection cable L1000 mm Orange 3-pole
( 4.4 / 5 ) 45 ratings
Rittal 2500530
This image may differ from the desired article.
Rittal 2500530Rittal 2500530Rittal 2500530
10,69 EUR 10,70 EUR
( 12,72 EUR incl. VAT )
≈ £8.95  |  ≈ $11.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 2500530 Connection cable L1000 mm Orange 3-pole
Datasheet:file_download Download
Lieske Part No.:634172
Mfg Part No: 2500530
UPC/EAN: 4028177811362
Weight:0.16 kg
Type:SZ 2500530

Product information for Rittal 2500530:

The Rittal SZ 2500530 is a connection cable for through-wiring in enclosures and systems, specifically designed for simple and time-saving connection of the LED system light. The product features a 3-pole configuration with integrated plug and socket, enabling direct connection without additional connection components. The cable is coloured orange, making it highly visible in the enclosure and allowing for quick identification. With a length of 1,000 mm, it provides sufficient clearance for installation in standard enclosure configurations.

Applications

The connection cable is primarily intended for use in industrial enclosures, particularly for connecting LED system lights. These lights are used for illumination inside enclosures and are often part of systems for visual signalling or to support maintenance work. Through-wiring enables clean and structured cabling, reducing installation time and improving clarity within the enclosure.

Functions and Equipment in Detail

The cable is equipped with a plug and socket, ensuring quick and secure connection. The 3-pole design covers the required conductors for phase, neutral, and protective earth. The orange colour is typical for connection cables in enclosures and serves to visually distinguish them from other cables. The length of 1,000 mm is sufficient for most standard applications, eliminating the need for additional cable extensions.

Technology Explained Simply

The cable complies with the AWG 16 specification, corresponding to a cross-sectional area of approximately 1.31 mm². This cross-section is suitable for power transmission in enclosure applications and ensures adequate current-carrying capacity with low resistance. The rated operating voltage is 100 V to 240 V, 1~, 50 Hz/60 Hz, enabling use in standard mains voltage installations in Europe and other regions. The standards AVLV2 for mains connection cables and ECBT2 for mains connection plug connectors guarantee compliance with relevant safety and quality standards. The UL approval (UR + C-UR recognized) confirms conformity with requirements set by Underwriters Laboratories, which is particularly relevant for use in international projects.

Compatibility and Accessories

The connection cable is specifically designed for use with Rittal system lights. Compatible accessories available in the range include cable ties with a length of 150 mm, which can be used to secure and organise the cable within the enclosure. These cable ties support orderly cabling and prevent loose or uncontrolled cable runs.

Installation and Mounting

Installation is performed by simply inserting the plug into the socket of the system light and the corresponding socket in the enclosure or at another connection point. Through-wiring allows the cable to be routed without additional connection boxes or terminals. The cable is designed for direct installation in enclosures, and the use of cable ties is recommended to ensure proper cable routing.

Operational Advantages

The SZ 2500530 reduces installation time through the integrated plug-socket combination and pre-defined length. The clear colour coding facilitates identification and maintenance. Compliance with AVLV2 and ECBT2 standards, as well as UL approval, ensures reliability and safety in operation. The cable is designed for use in industrial environments where robust and maintenance-friendly cabling is required.

Note: Cable ties are not included in the delivery scope.

General
ModelThrough wiring, 3-pole (with socket and plug)
ColourOrange
Length1.000 mm
AWGAWG 16
StandardsPower supply cables: AVLV2, power supply plug connectors: ECBT2
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz


Product data sheet
Datasheet for Rittal 2500530, EAN: 4028177811362

Questions & answers

What is the delivery time of Rittal 2500530 Connection cable L1000 mm Orange 3-pole?

The article Rittal 2500530 Connection cable L1000 mm Orange 3-pole is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2500530 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2500530 Connection cable L1000 mm Orange 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 2500530 Connection cable L1000 mm Orange 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
