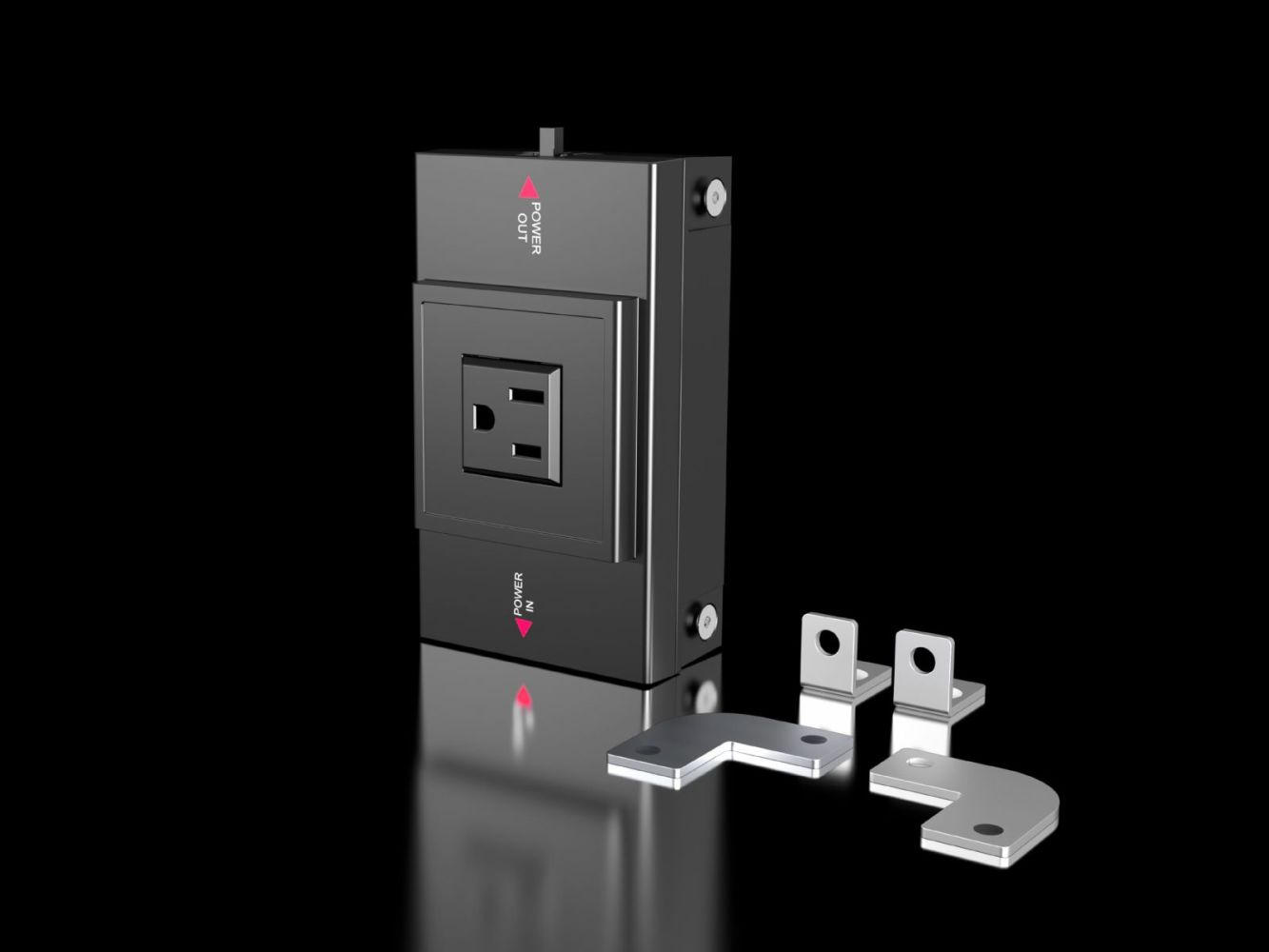

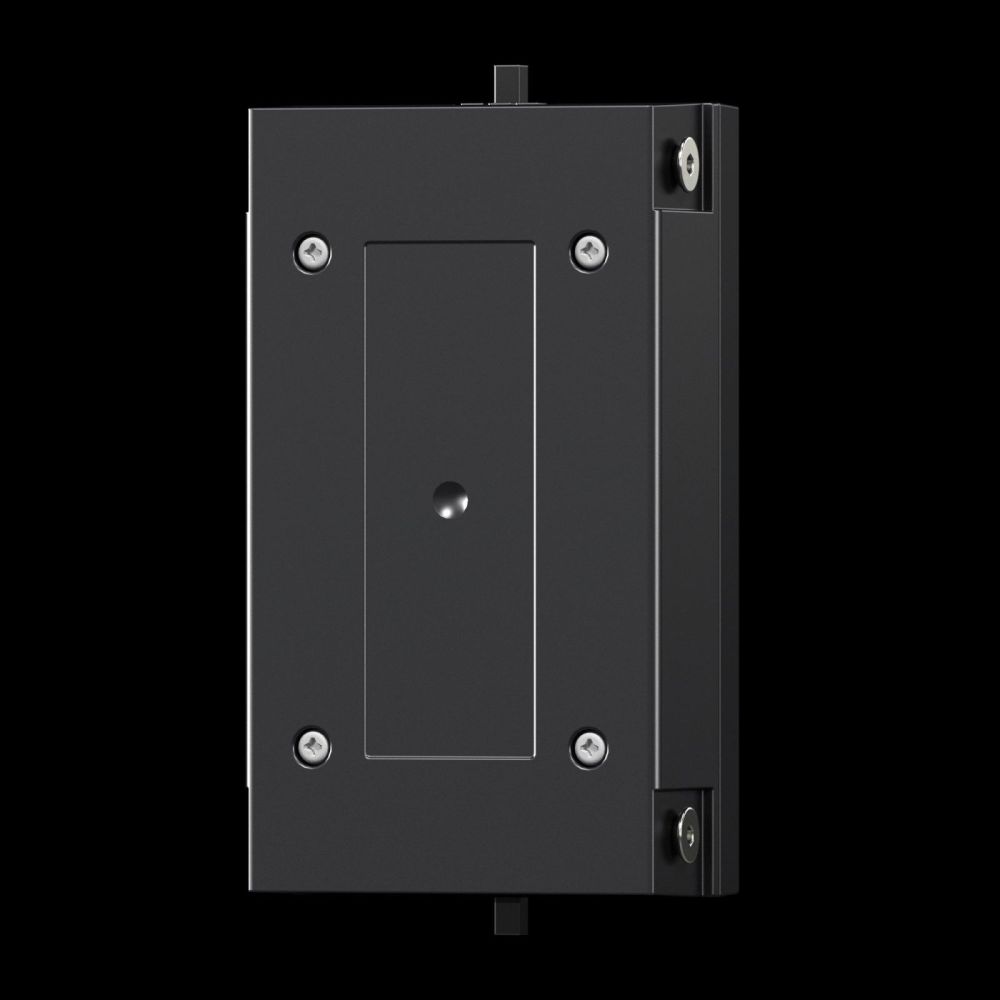

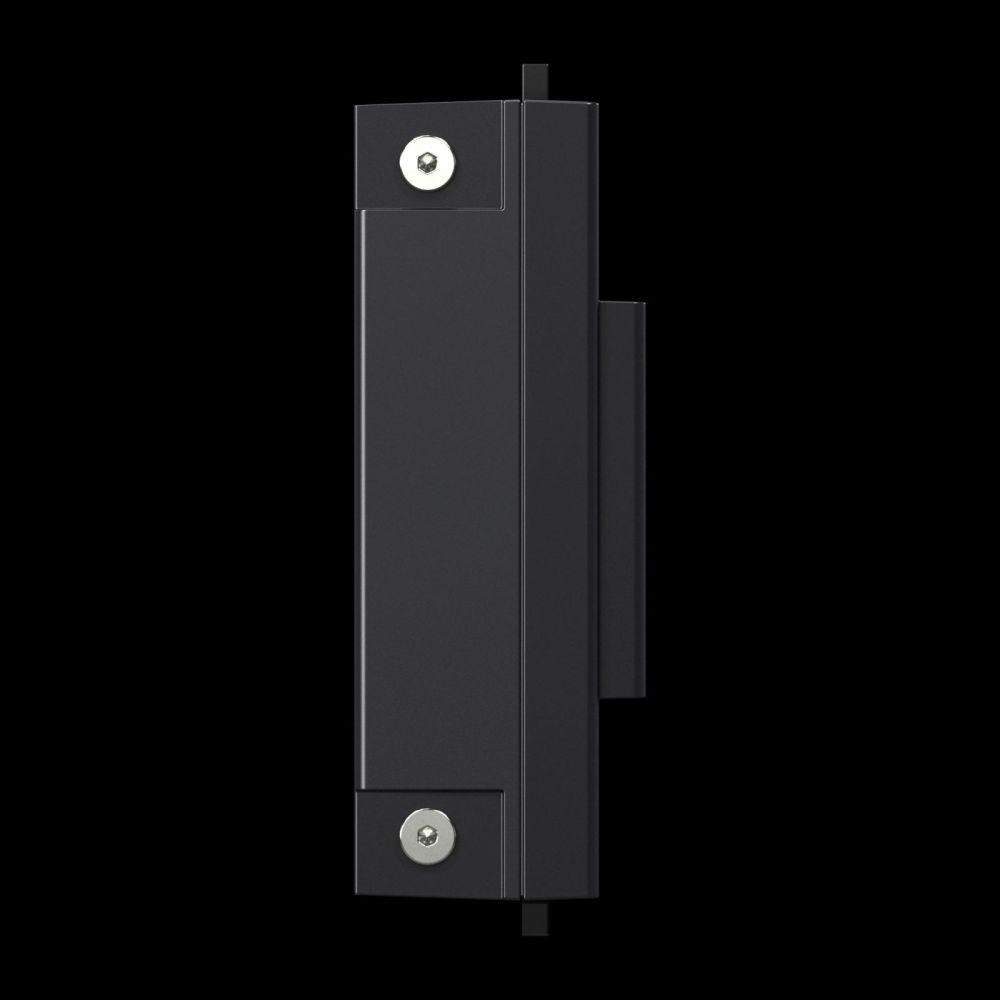

Rittal 2500714 SZ socket box for system light LED, USA/CDN (Type SZ )

Your rating:
Average rating
product review for Rittal 2500714 SZ socket box for system light LED, USA/CDN (Type SZ )
( 5 / 5 ) 1 ratings
Rittal 2500714
This image may differ from the desired article.
Rittal 2500714Rittal 2500714Rittal 2500714Rittal 2500714Rittal 2500714
36,80 EUR
( 43,79 EUR incl. VAT )
≈ £30.80  |  ≈ $40.44
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2500714 SZ socket box for system light LED, USA/CDN (Type SZ )
Datasheet:file_download Download
Lieske Part No.:2039880
Mfg Part No: 2500714
UPC/EAN: 4028177956841
Weight:0.247 kg
Type:SZ 2500714

Product information for Rittal 2500714:

The Rittal SZ 2500714 is a socket box specifically designed for use in combination with the LED system light. It serves as a modular component for international applications, particularly in regions with the USA/CDN socket type (Type B, NEMA 5-15). The box enables the integration of an electrical socket into enclosures and offers flexible mounting at various locations within the enclosure or on the door frame. The ergonomic positioning on surfaces facilitates access and usability during operation. The socket box is made of plastic and is available in the colour RAL 7016, ensuring visual harmony with other Rittal products. Dimensions are 163 mm (width), 68 mm (height), and 43.5 mm (depth), allowing integration into standardised 48,3 cm ( 19 inch ) formats.

Applications

The socket box is designed for use in industrial and technical installations where flexible power supply for tools, measuring devices, or other electrical equipment is required. It is particularly suitable for users operating in countries with the NEMA 5-15 socket type, such as the USA or Canada. The combination with the LED system light creates a modular building block system that can be adapted to different requirements. The flexible mounting throughout the enclosure allows optimal placement at locations where power access is needed.

Functions and Equipment in Detail

The box features a socket in USA/CDN format (Type B, NEMA 5-15), rated for an operating voltage of 100 V to 125 V at 60 Hz. Connection options include both 3-pole supply and 3-pole feed-through wiring, allowing the power supply to be either directly connected to the box or passed through, depending on the application. This reduces wiring effort, as the socket box is directly integrated into the circuit of the LED system light. The delivery includes mounting hardware, enabling installation at designated locations.

Technology Explained Simply

The socket box is designed for operation in a temperature range of -20 °C to 55 °C, allowing use in various environments, including industrial facilities with temperature fluctuations. The use of plastic as material ensures sufficient mechanical stability and resistance to environmental influences. Integration into the circuit of the LED system light means no additional wiring is required, simplifying installation and reducing the risk of errors. The socket is designed for use in regions with the NEMA 5-15 socket type, standardised in the USA and Canada.

Compatibility and Accessories

The socket box is stackable with the LED system light and uses the same connection accessories. This enables uniform wiring techniques and simplifies planning and installation. Suitable accessories include connection cables, such as 3-pole cables for feed-through wiring or supply, as well as cables in lengths of 1000 mm and 3000 mm in orange. These cables support flexible wiring and allow adaptation to different requirements within the enclosure.

Mounting and Installation

Mounting is possible at any location within the enclosure or on the door frame, with flexible positioning ensuring optimal accessibility of the socket. The included mounting hardware enables secure and stable installation. The simple connection technique requires no additional wiring work, as the socket box is directly integrated into the circuit of the LED system light.

Operational Advantages

The socket box provides reliable power supply at flexible positions within the enclosure, enabling more efficient workflows during operation. Integration into the circuit of the LED system light reduces wiring effort and minimises the number of required connections. The use of standardised connection cables and the same wiring technique as the LED system light ensures a uniform and maintenance-friendly installation. The operating temperature range of -20 °C to 55 °C allows use in a wide variety of industrial environments.

General
MaterialPlastic
ColourRAL 7016
Scope of deliveryIncluding mounting hardware
Connection optionsSupply, 3-pole, through wiring, 3-pole
NoteDepending on application, either through wiring or 3-phase supply is required
Width163 mm
Height68 mm
Depth43,5 mm
Operating temperature range-20 °C...55 °C
Socket outletsUSA/CDN (Type B, NEMA 5-15)
Rated operating voltage100 V – 125 V, 60 Hz
PCF/VE (Cradle-to-Gate)1,6


Product data sheet
Datasheet for Rittal 2500714, EAN: 4028177956841
